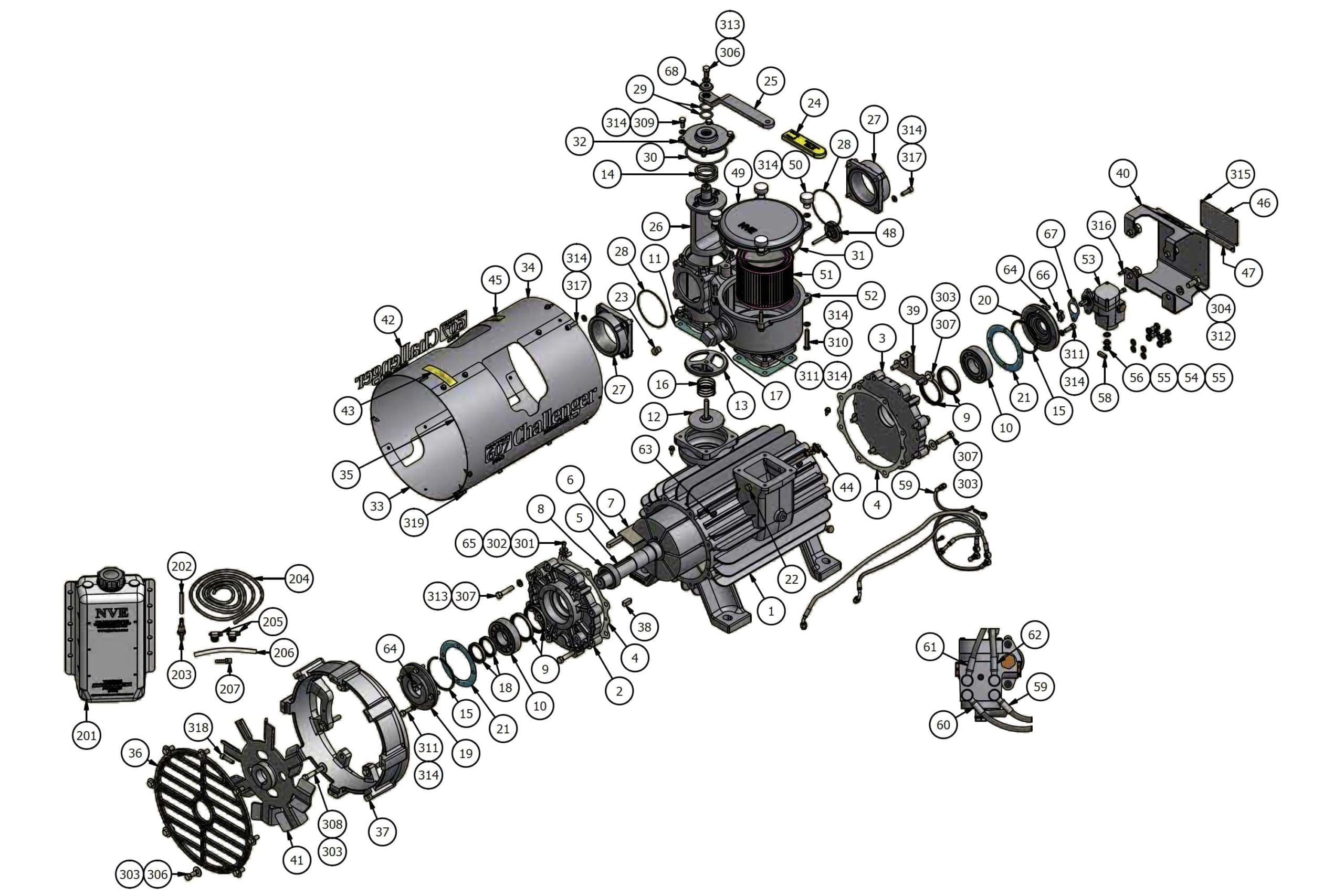

National Vacuum Challenger Pump Parts – 607 PRO

1

120-001-367

HOUSING 607

1

2

120-003-002
120-003-003

ENDPLATE 607 (CW PUMP)
ENDPLATE 607 (CCW PUMP)

1

3

120-003-003
120-003-002

ENDPLATE 607 (CW PUMP)
ENDPLATE 607 (CCW PUMP)

1

4

120-004-367

GASKET ENDPLATE 607

4

5

120-005-367

ROTOR 607

1

6

120-006

KEY 3/8″ X 3/8″ X 2″

1

7

120-007-367

VANE 607

7

8

120-009-367

SEAL SLEEVE 607

2

9

120-018-367

SEAL 60 X 72 X 8 VITON SGL LIP

4

10

120-019-367

BEARING NJ308 C3

2

11

120-039-367

GASKET 607 INTAKE/EXHAUST

2

12

120-041-367

CHECK VALVE 3″

1

13

120-042-367

RETAINER RING CHECK VALVE 3″

1

14

120-045

SPRING 4-WAY FTR VALVE

1

15

120-045-001

SPRING WAVE WIRE 3.50″ DIA

2

16

120-046-367

SPRING CHECK VALVE

1

17

120-047-004

PLUG 1.5″ NPT SQ CORED GALV

1

18

120-053

SEAL 40 X 52 X 7 VITON

2

19

120-054-001

BEARING COVER 607

1

20

120-054-002

BEARING COVER 607 OIL PUMP

1

21

120-055-367

GASKET, FRONT BEARING COVER

2

22

120-058

PLUG BRASS HEX HEAD 1/8″ NPT

2

23

120-059

PLUG BRASS HEX HEAD 1/4″ NPT

1

24

120-060-005

GRIP 3/8″ HANDLE W/ LOGO

2

25

120-060-006

HANDLE 3/8″

2

26

120-062-002

PLUG 4-WAY FOR 3/8″ HANDLE

1

27

120-063-367

FLANGE 4-WAY 3″ NPT

2

28

120-064-001

O-RING, 2-154 VITON

2

29

120-064-002

O-RING, 2-214 VITON

2

30

120-064-003

O-RING, 2-240 VITON

1

31

120-064-004

O-RING, 2-265 VITON

1

32

120-065-002

TOWER 3″ 607

1

33

120-070-004

SHROUD LOWER 607

1

34

120-071-004

SHROUD UPPER 607

1

35

120-072-004

SHROUD SERVICE PANEL 607

1

36

120-073-E

E-COAT FAN GUARD, 367, 460, 466 & 506

1

37

120-074-001

FAN SHROUD 607

1

38

120-076

KEY 3/8″ X 3/8″ X 1″

1

39

120-077-004

SHROUD SUPPORT PLATE 607

1

40

120-079-008

GUARD NVE OIL PUMP 607/887 W/ SN TAG MOUNT

1

41

120-083-002
120-083-001

FAN ASSY, CW 607
FAN ASSY, CCW 607

1

42

120-100-005

DECAL 607 PRO CHALLENGER HEAVY DUTY

2

43

120-101-003
120-101-004

DECAL CW ROTATION ARROW
DECAL CCW ROTATION ARROW

1

44

120-102

VALVE, DRAIN 1/8″ NPT

1

45

120-103-367

DECAL, IMPORTANT, MAX OPERATING TEMP

1

46

120-105-607

NAME PLATE SS, 607

1

47

120-107-001

SERIAL TAG SS

1

48

120-220

THERMOMETER, 50- 400 DEG, 2″ FACE

1

49

120-310-001

COVER, FILTER 607/866

1

50

120-312-002

KNOB, 5/16-18UNC

4

51

120-314-001

FILTER ELEMENT 607/866

1

52

120-320-003

HOUSING FILTER 607 W/ RELIEF BOSS

1

53

123-000-004

OIL PUMP 4 PORT BIDIRECTIONA

1

54

123-408-017

BANJO ADAPTER TO 0.250″ HB

1

55

123-013-001

WASHER 3/8″ SEALING NBR

10

56

123-408-014

BANJO BOLT 1/8″ BSPP

5

57

150-220-VPOIL-150

OIL VACUUM PUMP R&O ISO 150/SAE 40

.07 GAL

58

320-083-011

CAP OIL PUMP FEED LINE FITTING

1

59

320-407-005z

OIL LINE -3 SST FEMALE JIC TO BANJO 6.75″

1

60

320-407-006z

OIL LINE -3 SST 90 DEG JIC TO BANJO 17.5″

1

61

320-407-008z

OIL LINE -3 SST 90 DEG JIC TO BANJO 24.00″

1

62

320-407-035

OIL LINE -3 SST 45 DEG JIC TO BANJO 29.75″

1

63

320-408-016

FITTING STR -3 MJIC X 1/8 MNPT

2

64

320-408-017

FITTING ELBOW -3 MJIC X 1/8 MNPT

2

65

320-409-003

P-CLIP, OIL LINE 1/4″ X 5/16

1

66

320-LF8

DRIVE TAB

1

67

320-R31

GASKET, OIL PUMP

1

68

412-020-001

WASHER, CUP 4-WAY

1

200

OWNERS MANUAL

OWNERS MANUAL

1

201

320-082-001

OIL TANK, 5QT, W/ LOGO

1

202

320-083-009

OIL TANK FILTER, 100 MESH

1

203

320-083-010

FILTER FITTING, OIL TANK 1/4 NPT

1

204

320-407-003

OIL LINE, BLK 1/4″ ID 30R7

5 FT

205

416-025-1WC

CLAMP, WORM, 1/4″ DIA

2

206

320-R102

OIL LINE, 3/8″ X 1/4″ ID X 6″ LG

6 IN

207

310-LPS

HOSE BARB 1/4″ X 1/8″ NPT STRAIGHT

1

302

FW – 1/4 USS

FLAT WASHER – 1/4″ USS

1

303

FW – 3/8

FLAT WASHER, 3/8″

22

304

HHCS – 1_2-13 UNC X 1.00

HHCS – 1/2-13 UNC X 1.00

4

306

HHCS – 3/8-16 UNC X 0.75

HEX HEAD CAP SCREW – 3/8-16 UNC X 0.75

9

307

HHCS – 3/8-16 UNC X 1.75

HEX HEAD CAP SCREW – 3/8-16 UNC X 1.75

10

308

HHCS – 3/8-16 UNC X 2.25

HEX HEAD CAP SCREW – 3/8-16 UNC X 2.25

6

309

HHCS – 5/16-18 UNC x 0.75

HEX HEAD CAP SCREW – 5/16-18 UNC x 0.75

4

310

HHCS – 5/16-18 UNC X 2.00 – FULL THREAD

HEX HEAD CAP SCREW – 5/16-18 UNC X 2.00 FULL THREAD

4

311

HHCS – 5/16-18 UNC X 1.00

HEX HEAD CAP SCREW – 5/16-18 UNC X 1.00

16

312

LW – 1/2

LOCK WASHER, 1/2

5

313

LW – 3/8

LOCK WASHER, 3/8

3

314

LW – 5/16

LOCK WASHER, 5/16

36

315

RVT 3/32 D X 1/4L SS

BLIND RIVET, 3/32 DIA X 1/4 GRIP, SS

6

316

SHCS – 1/4-20 UNC X 0.50

SHCS – 1/4-20 UNC X 0.50

2

317

SHCS – 5/16-18 UNC X 1

SHCS – 5/16-18 UNC X 1

8

318

SHCS – 5/16-24 UNF X 1.25

SHCS – 5/16-24 UNF X 1.25

1

319

TAPSCR – 1/4-14 X 0.75

HEX HEAD SELF TAPPING SCREW 1/4-14

16
