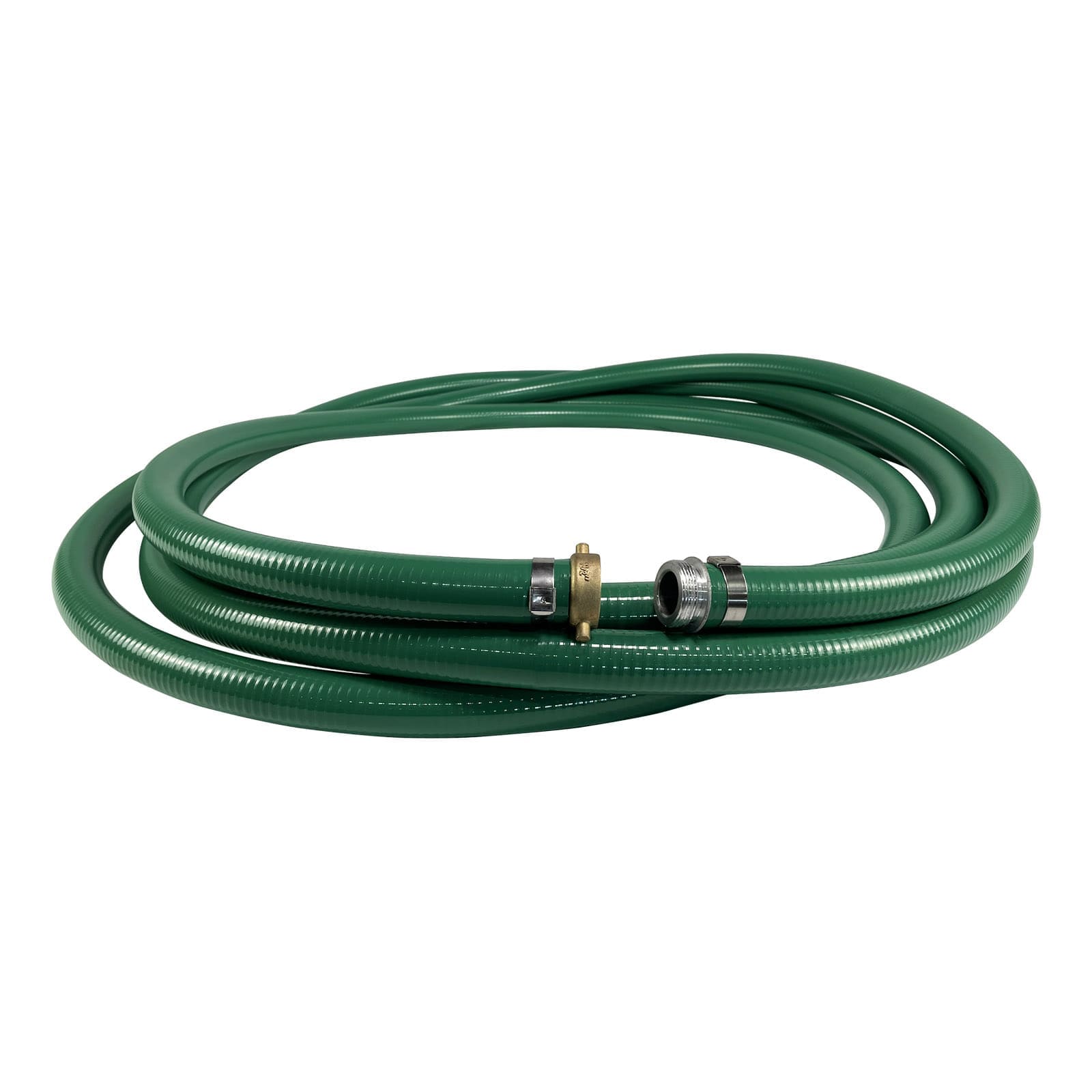

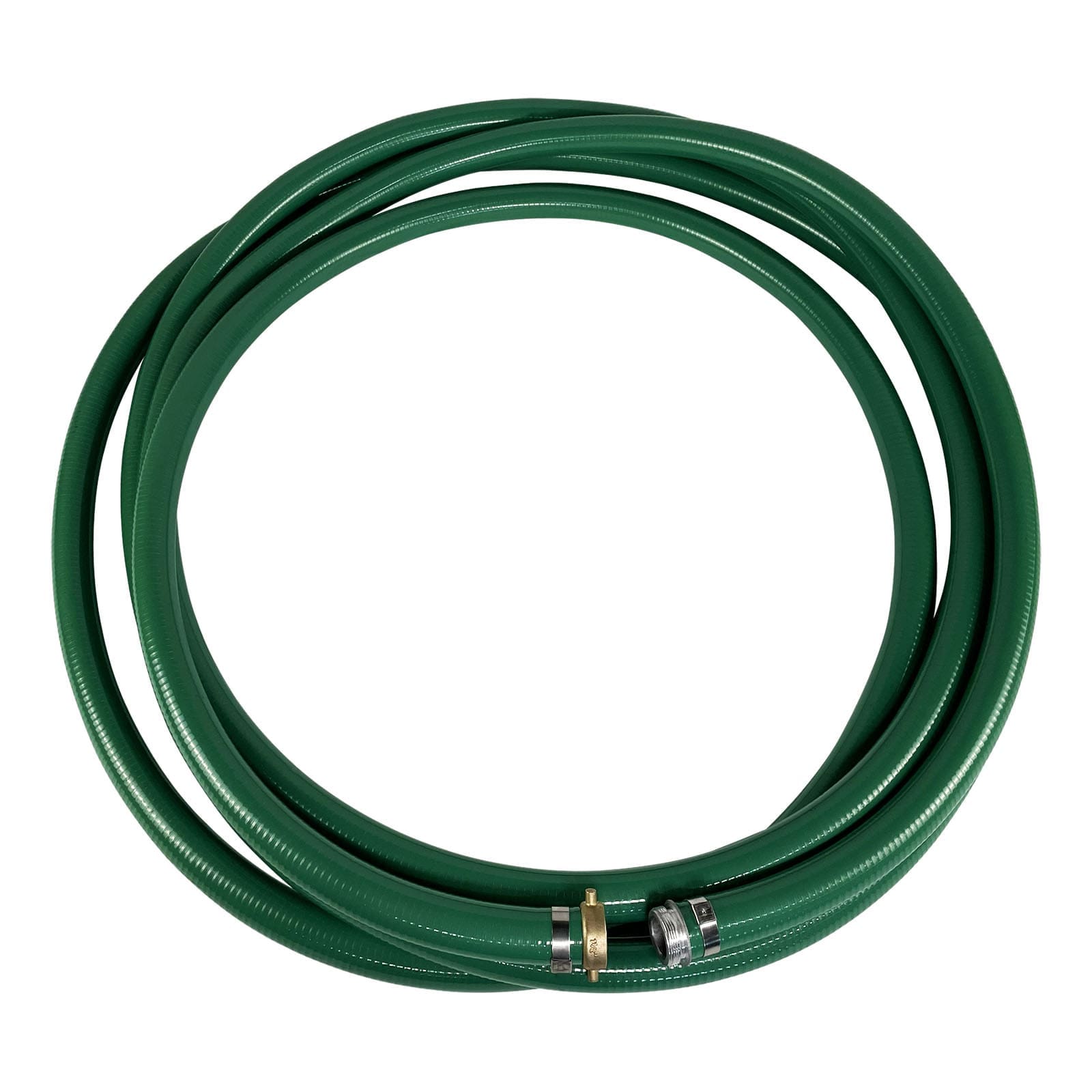

1-1/2″ Green PVC Suction Hose Assembly, Female Pin Lug x Male Pin Lug, 100 PSI, 40′ Length
$84.25
- 1-1/2″ ID Suction Hose, 40 Ft Length
- Green PVC Hose with Rigid PVC Helix Reinforcement
- 1-1/2″ Male Pin Lug Hose Shank x 1-1/2″ Female Pin Lug Hose Shank with Brass Swivel Nut
- Aluminum Pin Lug Fittings, Installed with Hose Bands
- 100 PSI working pressure (at 68 deg Fahrenheit)
- Temperature Range: -14° F to +150° F
This PVC suction hose is designed to meet all water hose specifications. It was especially designed for use in construction, mining, industrial & agricultural service.
The hose is made of flexible green PVC and is reinforced by a rigid white PVC helix. It has a working temperature range of -14° F to +150° F.
This is a hose assembly has an aluminum female NPSH pin lug hose shank fitting, with a brass swivel nut on one side. It has an aluminum male NPSH pin lug hose shank fitting on the other side.These assemblies are installed with hose bands.
| Weight | 15.5085 lbs |
|---|---|
| Dimensions | 22 × 22 × 12 in |
| Hose Type | Green PVC Suction |
| Hose Fittings | Male Pin Lug x Female Pin Lug |
| Hose Length | 40' |
| Hose ID | 1-1/2" |
| Inside Diameter | 1.5" |
| Outside Diameter | 1.77" |
| Hose Cover | Green PVC |
| Hose Tube | Green PVC |
| Hose Reinforcement | Rigid White PVC Helix |
| Working Pressure | 100 PSI |
| Working Temperature | -14° F to +150° F |
| Product Type | Green PVC Suction Hose Assemblies |
