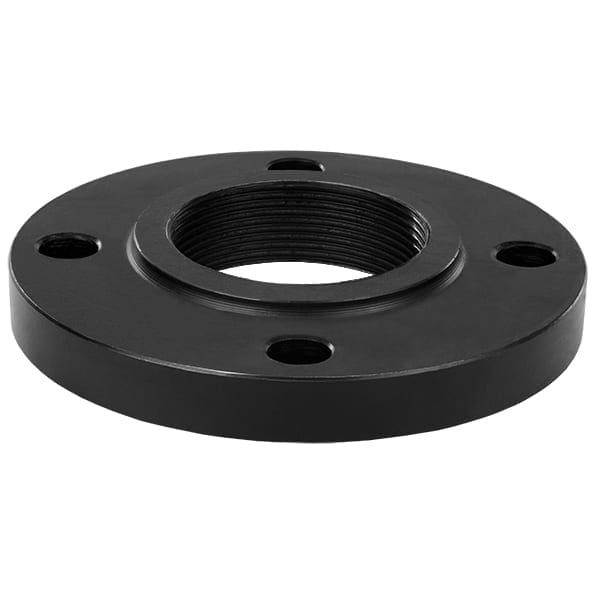

1-1/2″ Pipe Size Raised Face Flange, 150# ANSI B16.5 Flange x 1-1/2″ Female NPT, Carbon Steel
$13.99
- Raised Face Flange with Female NPT Threads
- 1-1/2″ Flange x 1-1/2″ Female NPT
- 150# Max Pressure
- Meets ANSI B16.5 Standards
- Carbon Steel
Class 150 raised face flanges are suitable for plumbing applications with air water, natural gas and steam. These flanges are for use with schedule 40 or 80 pipes and nipples. They allow for easy access to piping systems by bolting 2 flanges together with a gasket to create a tight seal.
This is a 1-1/2″ raised face flange with a 1-1/2″ female NPT threads. It is pressure rated up to 150# and meets ANSI B16.5 standards. It is forged of Carbon Steel to offer very good corrosion resistance.
| Weight | 3.29 lbs |
|---|---|
| Dimensions | 5 × 5 × 1.5 in |
| Connection Size | 1-1/2" |
| Connection Type | Female NPT x Flange |
| Material | Carbon Steel |
| Lead Time | Ships in 1-2 Business Days |
| Unit of Measure | Each |
| Flange Diameter | 5" |
| Flange Hole Diameter | 0.68" |
| Flange Pressure | 150# |
| Flange Bolts | 4 Bolts |
| Flange Standards | ANSI B16.5 |
| Flange Type | NPT Threaded Raised Face |
| Pipe Size | 1-1/2" |
