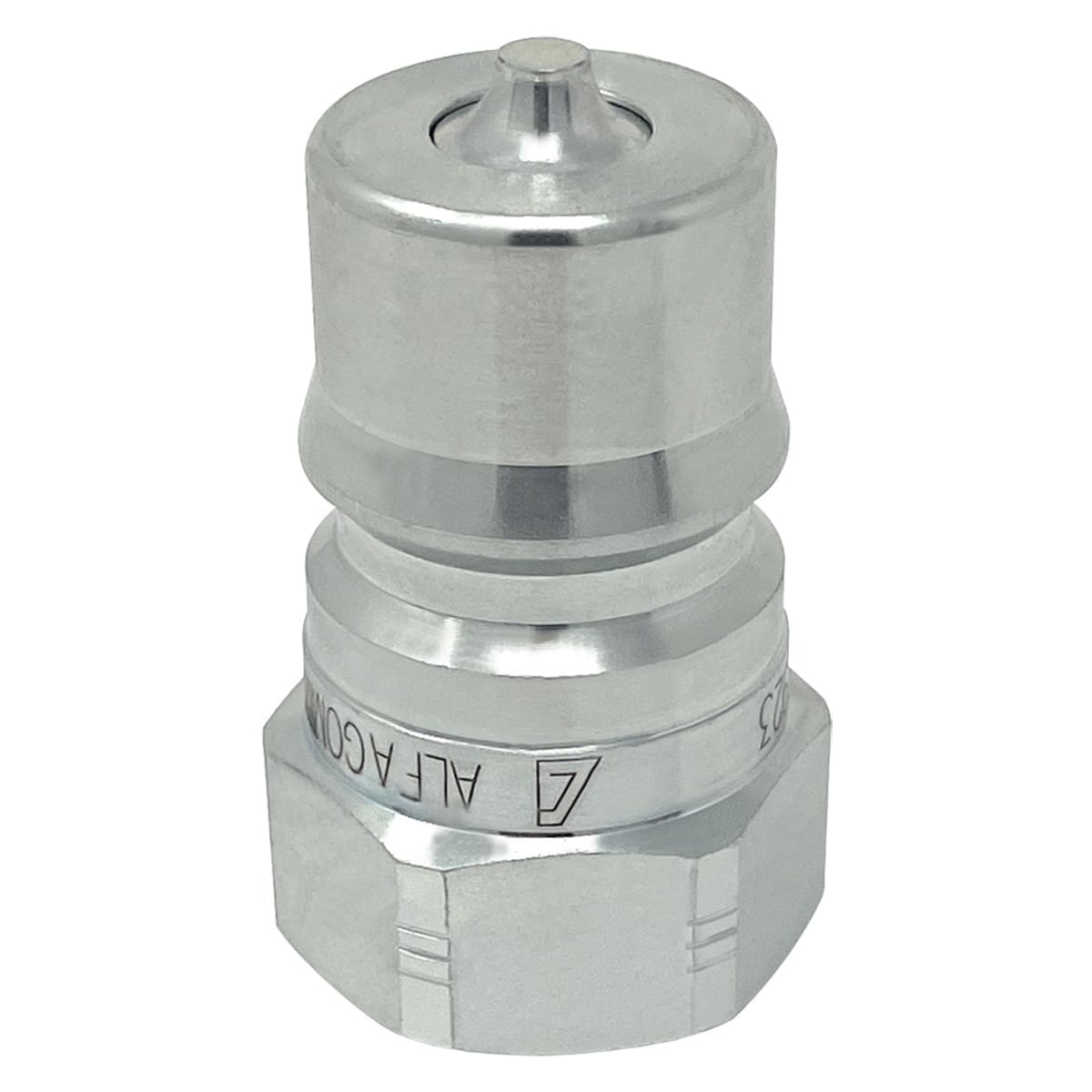

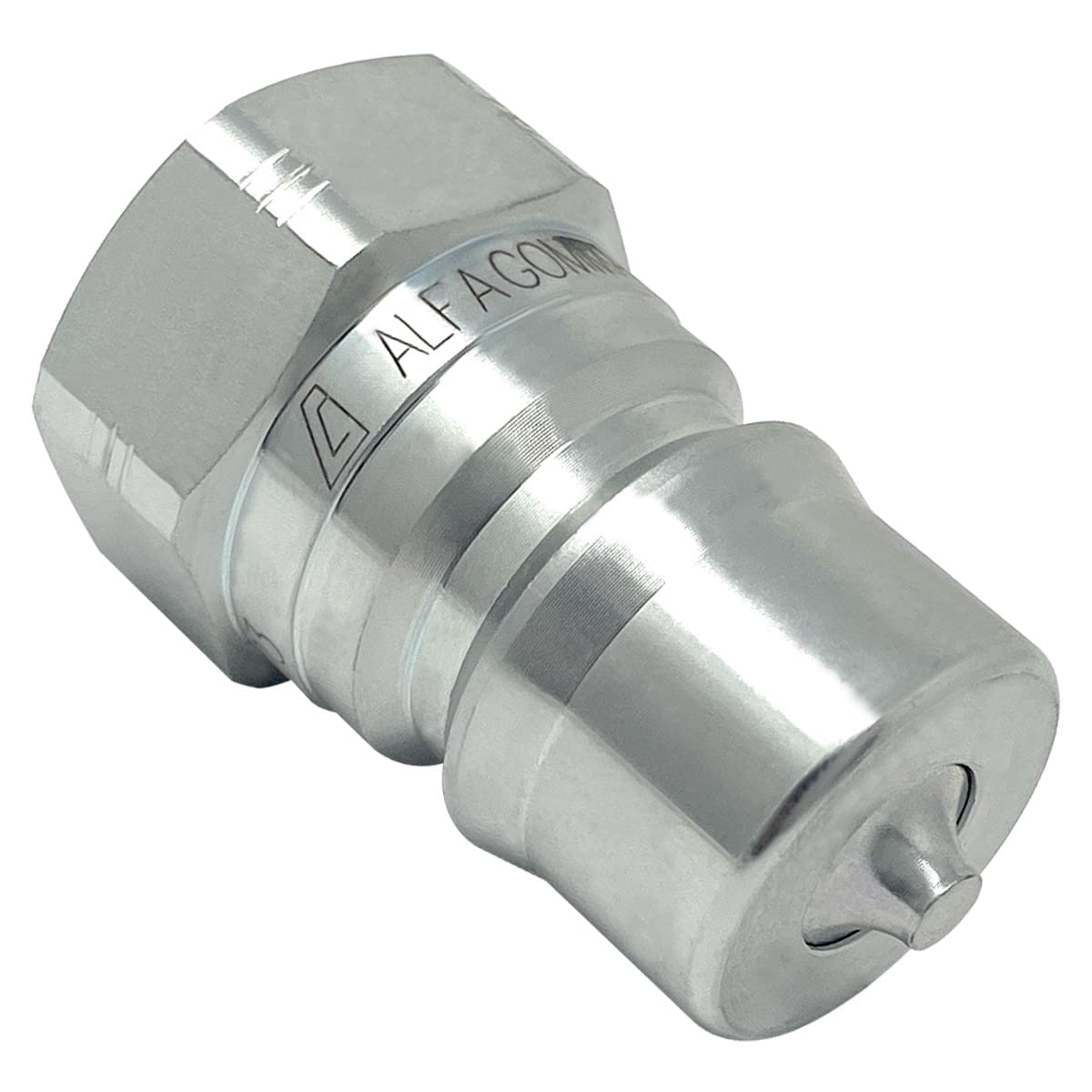

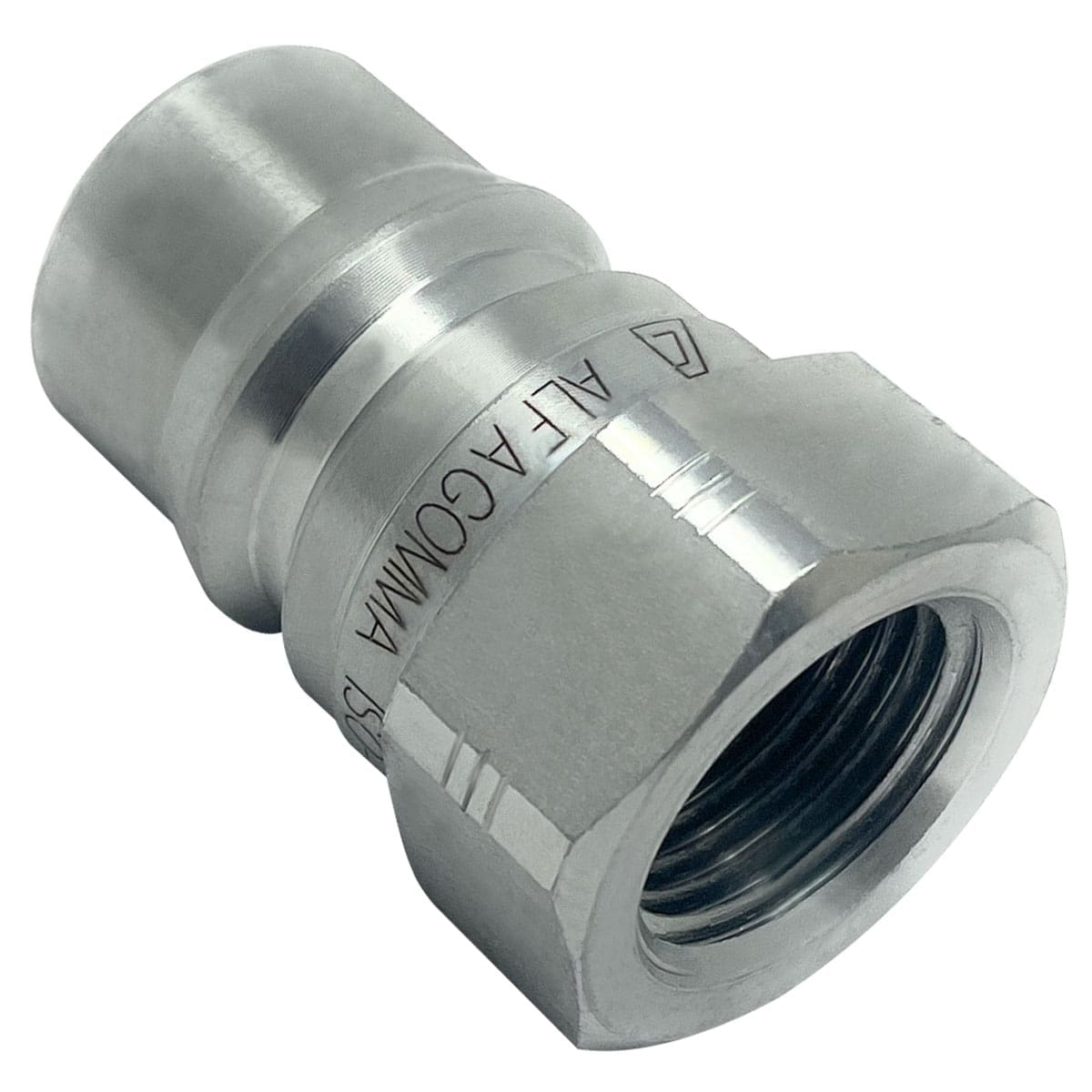

1/2″ Hydraulic Quick Release Coupling, Series B, 1/2″ Male Plug x 1/2″ Female Threads, Galvanized Steel

$7.67

Hydraulic Quick Release / Connect Coupler
ISO 7241 B Standard (Series “B”)
1/2″ Male Plug x1/2″ Female Threads
3625 psi Working Pressure
Galvanized Steel Coupler

Stock Item: Available

This product ships from the Gloxco fulfillment center. Stock items typically ship within 1 business day.

SKU: QBM-0808-FNPR Categories: Couplings & Fittings, Hydraulic Quick Release Couplers

Description
Additional information

Quick Release Coupling 1/2″ QBM-0808-FNPR

QD ISO B 1/2″ Male x 1/2″ FPT ARGUS ISO 7241-1 series “B” quick-release couplings are used for quick coupling and uncoupling of hydraulic lines. During the coupling action in zero or low-pressure ranges, valves that release or block the flow are automatically activated. The QA-ISO-B quick-release coupling, formed by the coupling plug and the coupling socket, is connected by pushing on a sleeve. This guarantees a flush connection between the two coupling halves.

*Interchange: 1222489, K4F4, NV 12 NPT M, QAN88FP, G95611-0808, 8MQP-8FP, HA 15232 00, IA12-M-08N, Q00211341A-08-08, 6602-8-10, 6001-08, S561-4, 61N8-8F, QRC-IA-12-M-NF08-B-W3 M. BIR 12 NPT, PA5604-26, B-6657-10

*This interchange does not give 100% interchangeability with the part numbers listed, only compatibility.

Lead Time	1-2 Days
Brand	Alfagomma®
Quick Connect Type	Series B (ISO 7241-B)
Connection Size	1/2"
Connection Type	Male Plug x Female Threads
Fitting Material	Zinc Plated Carbon Steel
Fittings	1/2" Male Plug x 1/2" Female NPT
Working Pressure	3625 psi
Working Temperature	-4° F to +212° F
Cross Reference	1233780, 4-KP26, 4KP26, 72N8-8F, 8MQPI-8FP, DS4F4-S, F6601-08, G94511-0808, H4-63, H4F4, HNV 12 NPT M, IB12-M-08N, M. IRB 12 NPT, Q02111341A-08-08, QBN88FP, QRC-IB-12-M-NF08-B-W3, S101-4, TK4-26
Product Type	Series B Hydraulic Quick Connect Fittings

1/2″ Hydraulic Quick Release Coupling, Series B, 1/2″ Male Plug x 1/2″ Female Threads, Galvanized Steel
