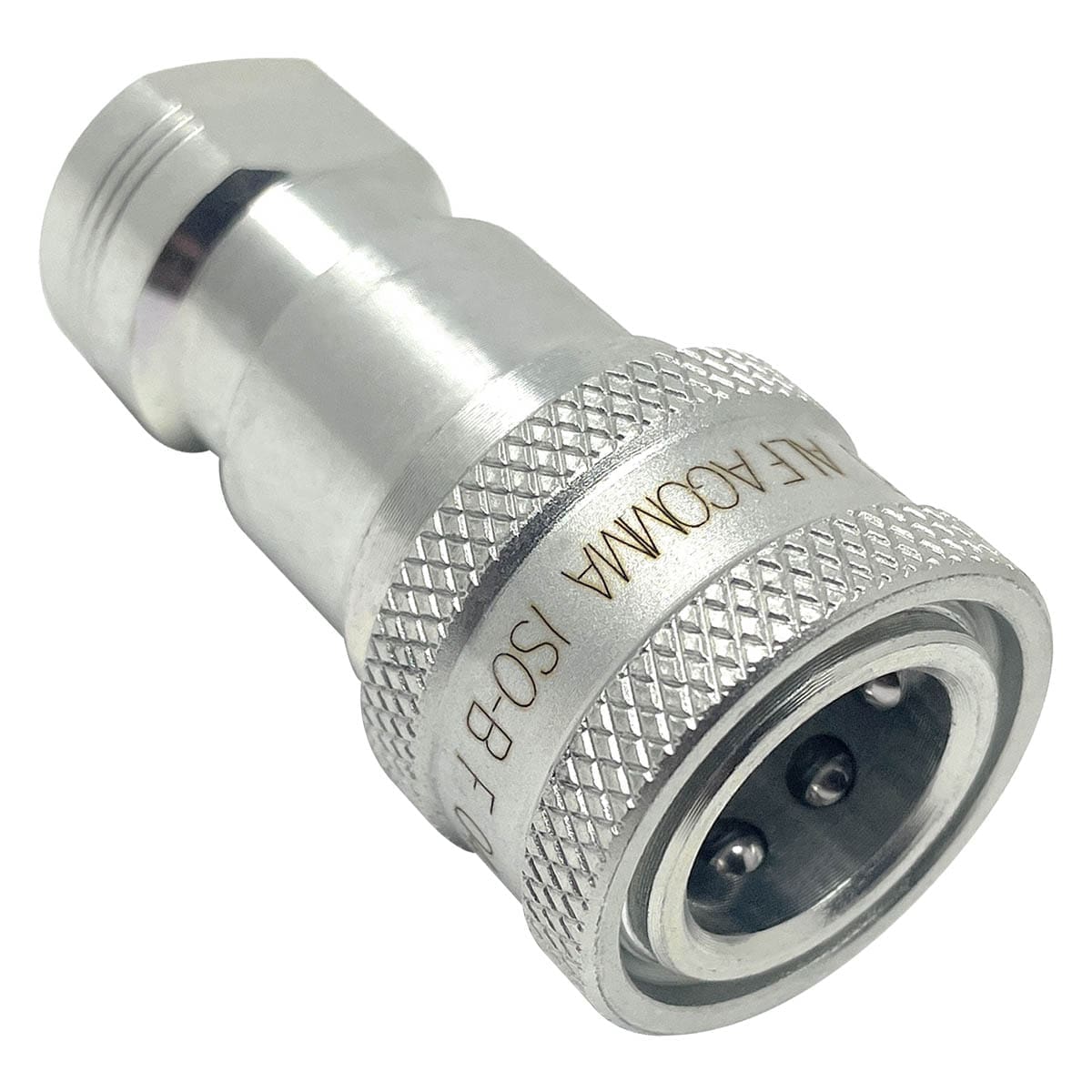

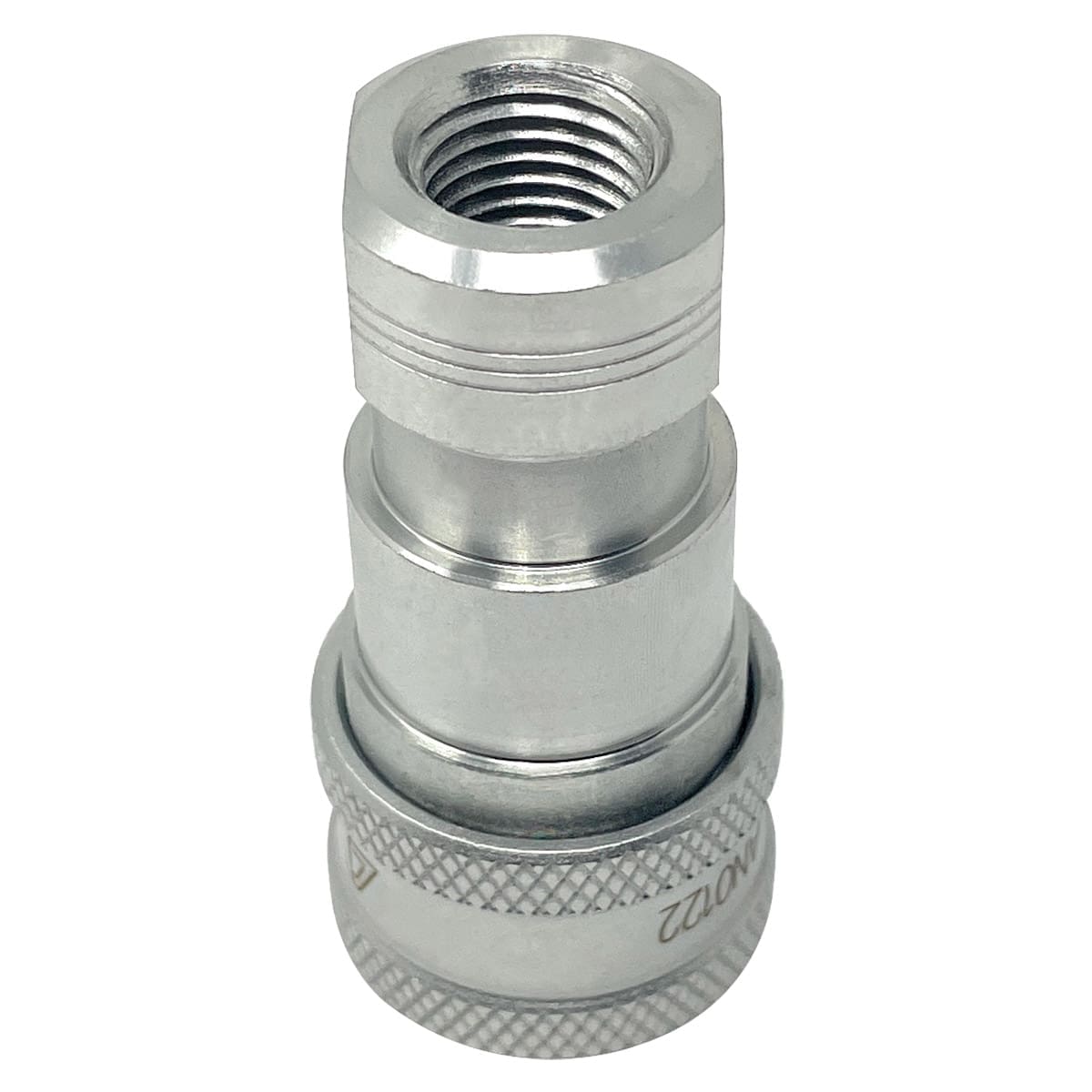

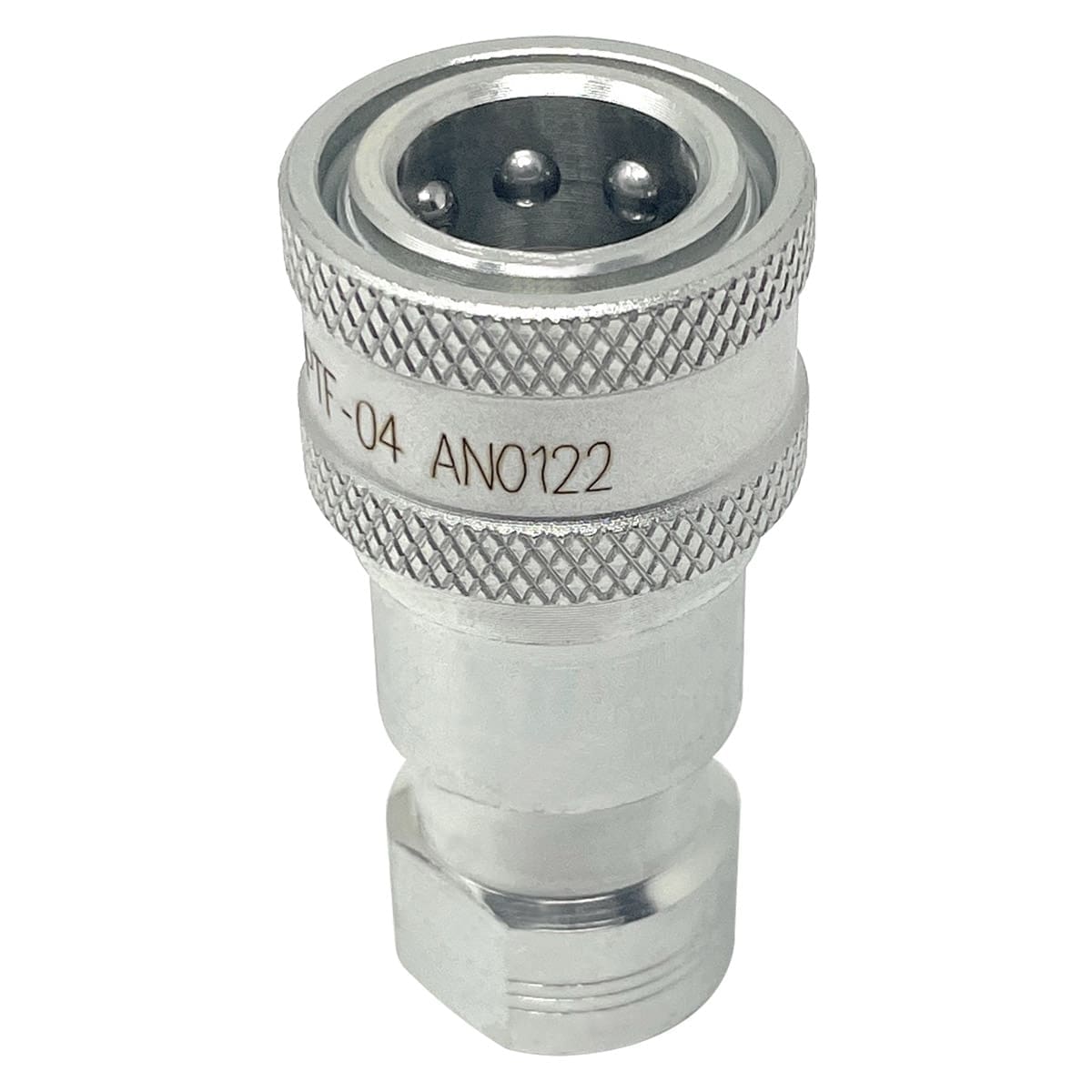

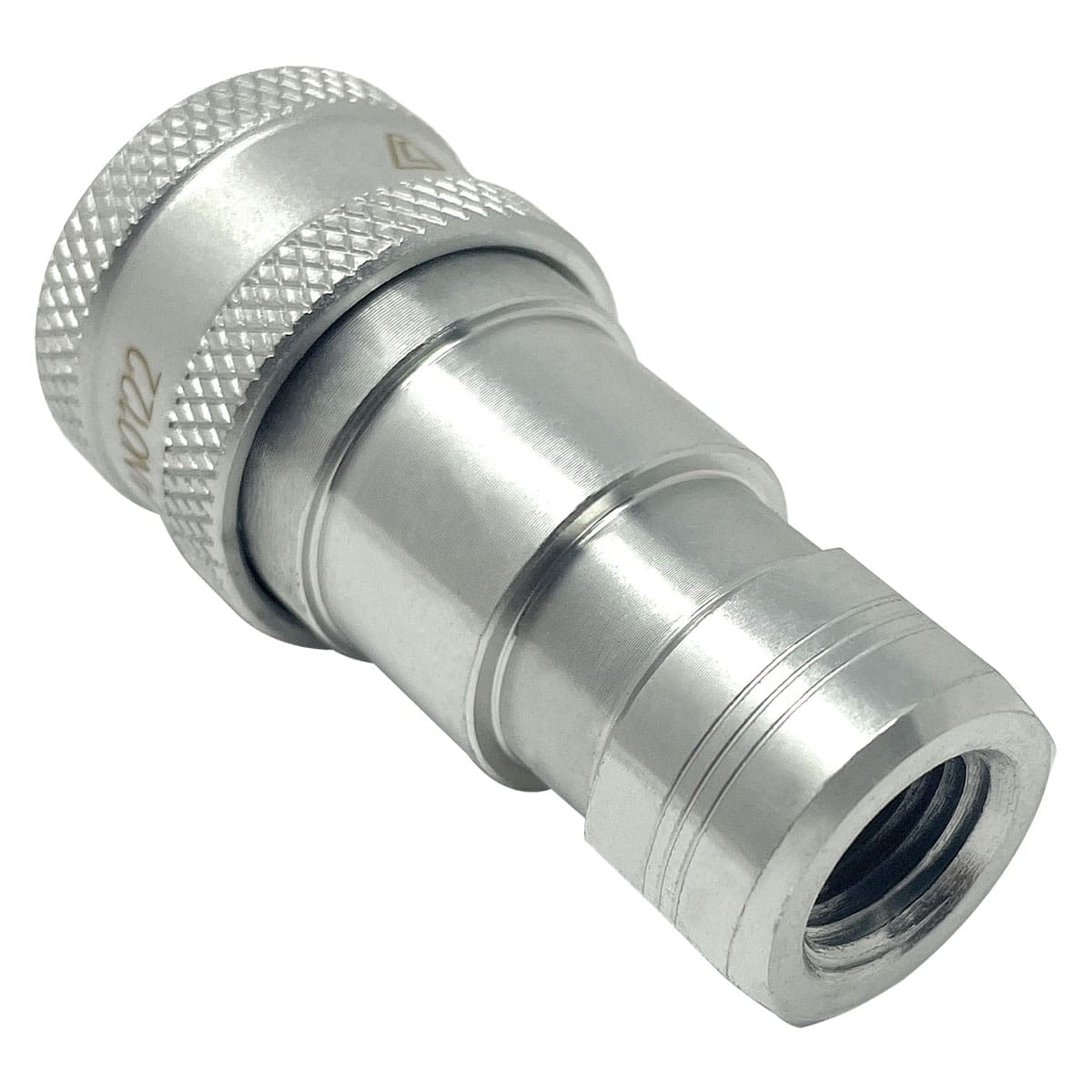

1/4″ Hydraulic Quick Release Coupling, Series B, 1/4″ Female Socket x 1/4″ Female Threads, Galvanized Steel

$11.64

Hydraulic Quick Release / Connect Coupler
ISO 7241 B Standard (Series “B”)
1/4″ Female Socket x 1/4″ Female Threads
4350 psi Working Pressure
Galvanized Steel Coupler with NBR O-Rings

Stock Item: Available

This product ships from the Gloxco fulfillment center. Stock items typically ship within 1 business day.

SKU: QBF-0404-FNPR Categories: Couplings & Fittings, Hydraulic Quick Release Couplers

Description
Additional information

Quick Release Coupling 1/4″ QBF-0404-FNPR

QD ISO B 1/4″ Male x 1/4″ FPT ARGUS ISO 7241-1 series “B” quick-release couplings are used for quick coupling and uncoupling of hydraulic lines. During the coupling action in zero or low-pressure ranges, valves that release or block the flow are automatically activated. The QA-ISO-B quick-release coupling, formed by the coupling plug and the coupling socket, is connected by pushing on a sleeve. This guarantees a flush connection between the two coupling halves

*Interchange: 1233775, 2HF2, 2H16, HNV 14 NPT F, QBC44FP, G94521-0404, 4FQPI-4FP, 2-H16, IB06-F-04N, Q02411341A-04-04, H2-62, F6602-04, S105-2, 72C4-4F, QRC-IB-06-F-NF04-BT-W3, F. IRB 14 NPT, TH2-16, 2DSF2-S

*This interchange does not give 100% interchangeability with the part numbers listed, only compatibility.

Lead Time	1-2 Days
Brand	Alfagomma®
Quick Connect Type	Series B (ISO 7241-B)
Connection Size	1/4"
Connection Type	Female Socket x Female Threads
Fitting Material	Zinc Plated Carbon Steel
Gasket Material	NBR
Fittings	1/4" Female Socket x 1/4" Female NPT
Working Pressure	4350 psi
Working Temperature	-4° F to +212° F
Cross Reference	1233775, 2-H16, 2DSF2-S, 2H16, 2HF2, 4FQPI-4FP, 72C4-4F, F. IRB 14 NPT, F6602-04, G94521-0404, H2-62, HNV 14 NPT F, IB06-F-04N, Q02411341A-04-04, QBC44FP, QRC-IB-06-F-NF04-BT-W3, S105-2, TH2-16
Product Type	Series B Hydraulic Quick Connect Fittings

1/4″ Hydraulic Quick Release Coupling, Series B, 1/4″ Female Socket x 1/4″ Female Threads, Galvanized Steel
