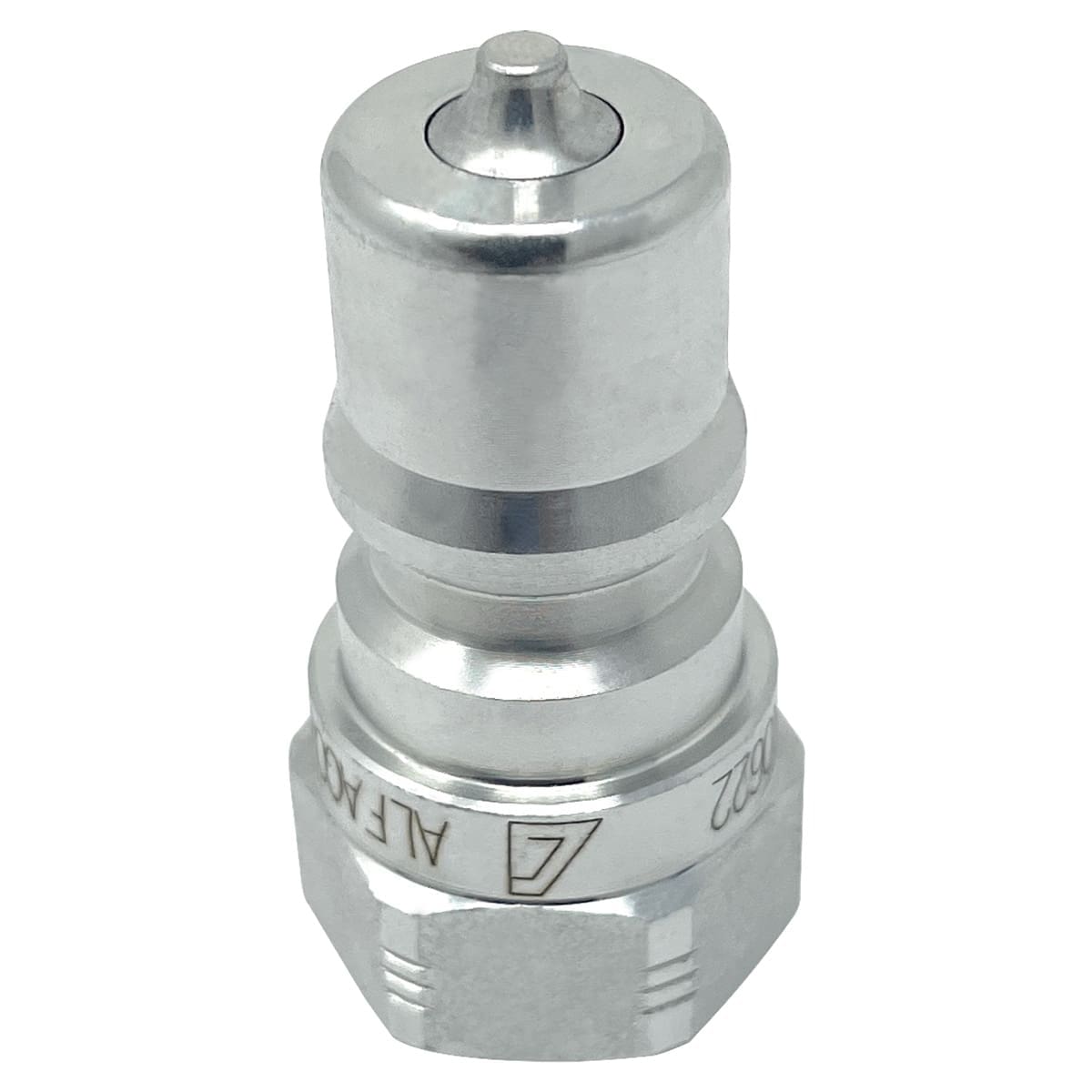

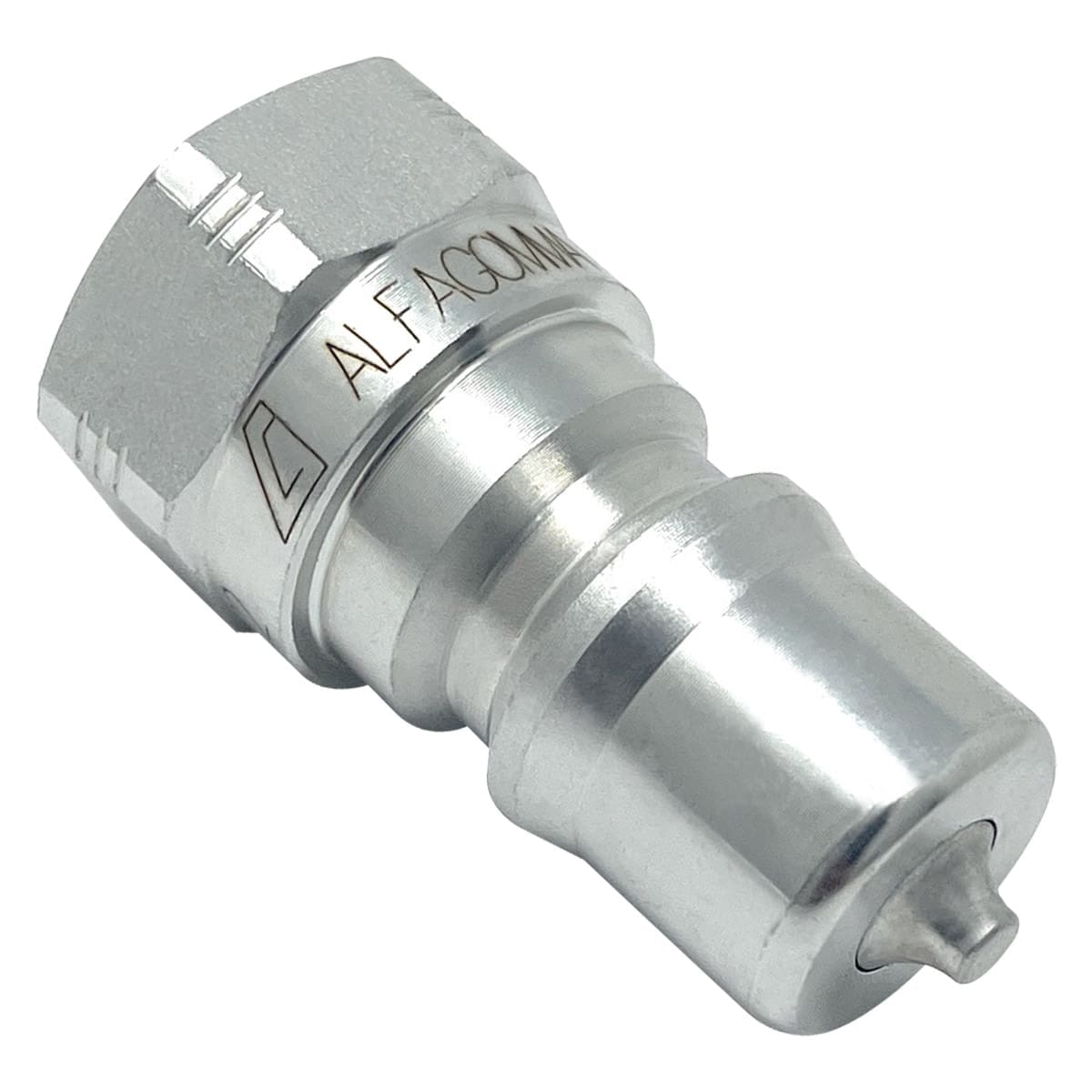

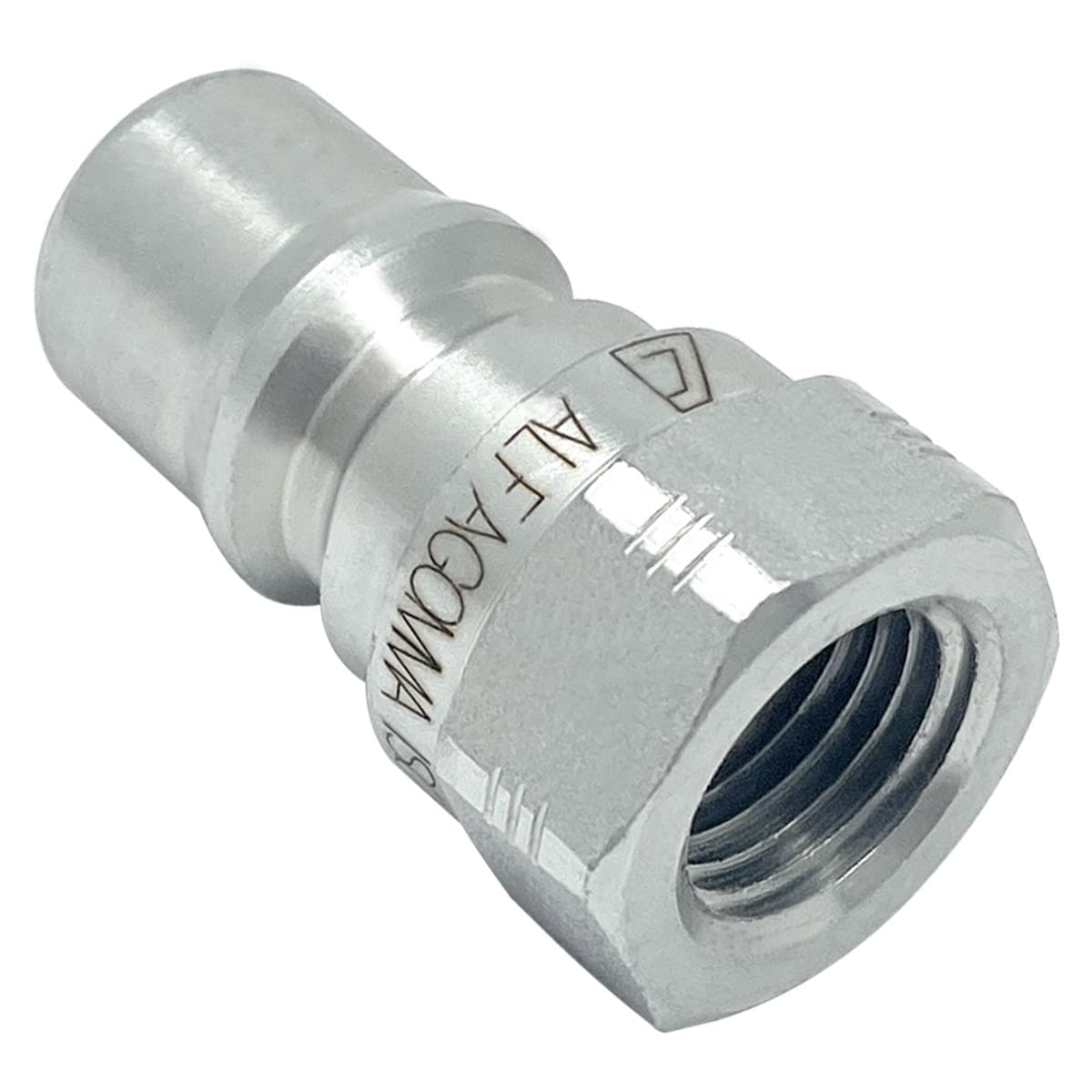

1/4″ Hydraulic Quick Release Coupling, Series B, 1/4″ Male Plug x 1/4″ Female Threads, Galvanized Steel

$6.09

Hydraulic Quick Release / Connect Coupler
ISO 7241 A Standard (Series “B”)
1/4″ Male Plug x 1/4″ Female Threads
4350 psi Working Pressure
Galvanized Steel Coupler

Stock Item: Available

This product ships from the Gloxco fulfillment center. Stock items typically ship within 1 business day.

SKU: QBM-0404-FNPR Categories: Couplings & Fittings, Hydraulic Quick Release Couplers

Description
Additional information

Quick Release Coupling 1/4″ QBM-0404-FNPR

QD ISO B 1/4″ Male x 1/4″ FPT ARGUS ISO 7241-1 series “B” quick-release couplings are used for quick coupling and uncoupling of hydraulic lines. During the coupling action in zero or low-pressure ranges, valves that release or block the flow are automatically activated. The QA-ISO-B quick-release coupling, formed by the coupling plug and the coupling socket, is connected by pushing on a sleeve. This guarantees a flush connection between the two coupling halves.

*Interchange: 1233776, H2F2, 2K16, HNV 14 NPT M, QBN44FP, G94511-0404, 4MQPI-4FP, 2-K16, IB06-M-04N, Q02111341A-04-04, H2-63 F6601-04, S101-2, 72N4-4F, QRC-IB-06-M-NF04-B-W3, M. IRB 14 NPT, TK2-16, DS2F2-S

*This interchange does not give 100% interchangeability with the part numbers listed, only compatibility.

Lead Time	1-2 Days
Brand	Alfagomma®
Quick Connect Type	Series B (ISO 7241-B)
Connection Size	1/4"
Connection Type	Male Plug x Female Threads
Fitting Material	Zinc Plated Carbon Steel
Fittings	1/4" Male Plug x 1/4" Female NPT
Working Pressure	4350 psi
Working Temperature	-4° F to +212° F
Cross Reference	1233776, 2-K16, 2K16, 4MQPI-4FP, 72N4-4F, DS2F2-S, F6601-04, G94511-0404, H2-63, H2F2, HNV 14 NPT M, IB06-M-04N, M. IRB 14 NPT, Q02111341A-04-04, QBN44FP, QRC-IB-06-M-NF04-B-W3, S101-2, TK2-16
Product Type	Series B Hydraulic Quick Connect Fittings

1/4″ Hydraulic Quick Release Coupling, Series B, 1/4″ Male Plug x 1/4″ Female Threads, Galvanized Steel
