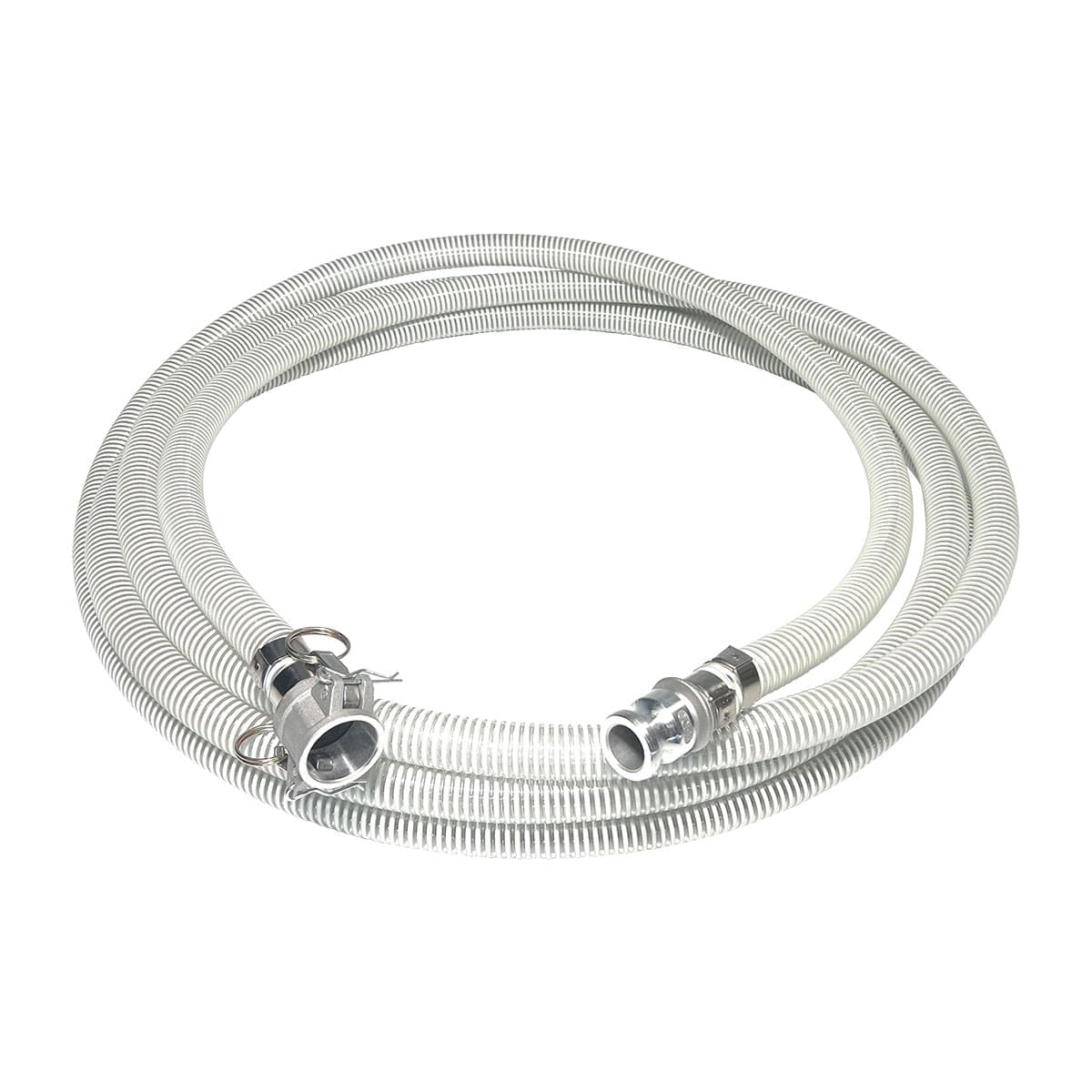

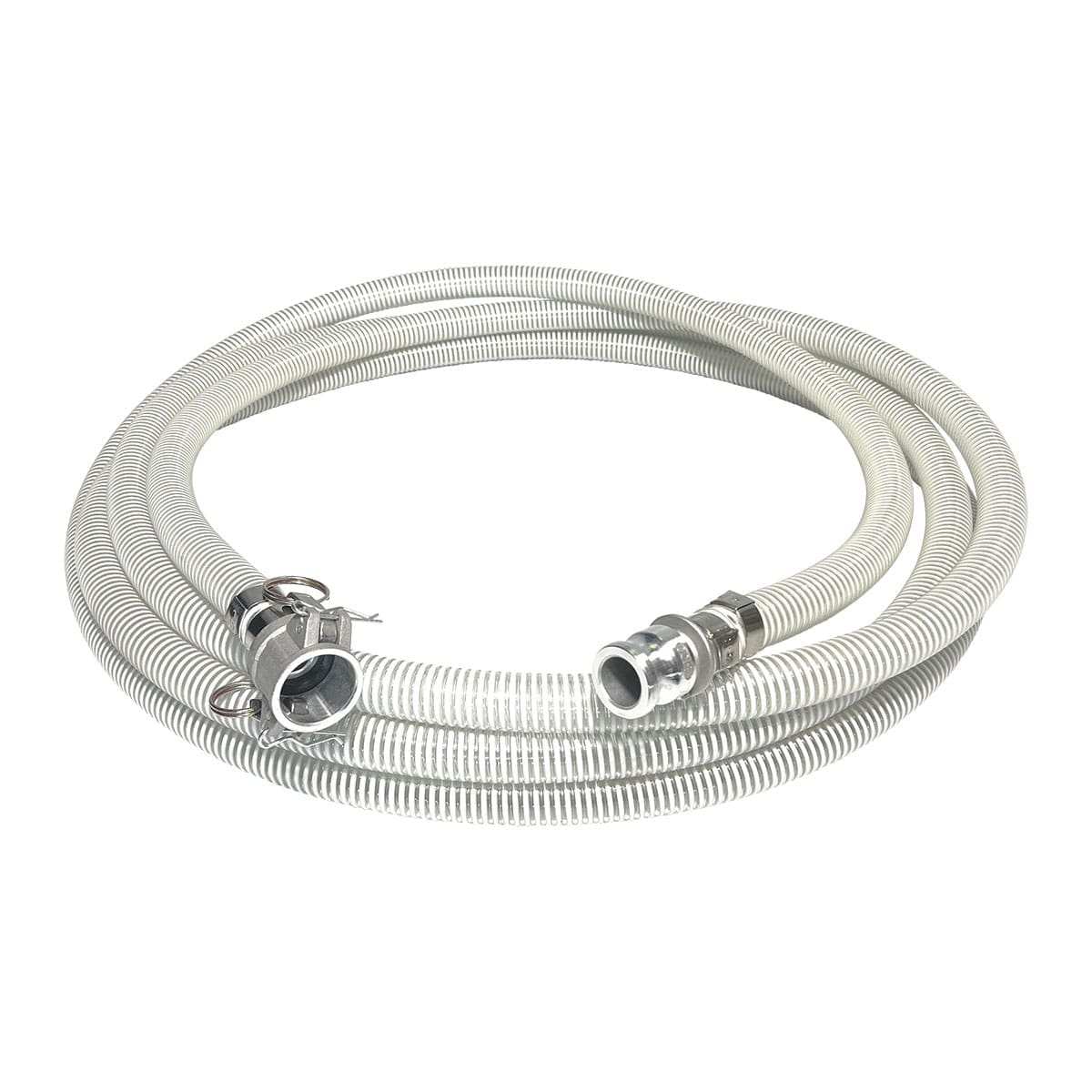

1″ Clear PVC Suction Hose Assembly, Male Camlock x Female Camlock, 85 PSI, 30′ Length
$56.33
- 1″ ID Suction Hose, 30 Ft Length
- Clear PVC Hose with Rigid PVC Helix Reinforcement
- 1″ Male Camlock x 1″ Female Camlock
- Aluminum Cam and Groove Fittings, Installed with Hose Bands
- 85 PSI working pressure (at 68 deg Fahrenheit)
- Temperature Range: -5° F to +150° F
This PVC suction hose is designed to meet all water hose specifications. It was especially designed for use in construction, mining, industrial & agricultural service.
The hose is made of flexible clear PVC and is reinforced by a rigid white PVC helix. It has a working temperature range of -5° F to +150° F.

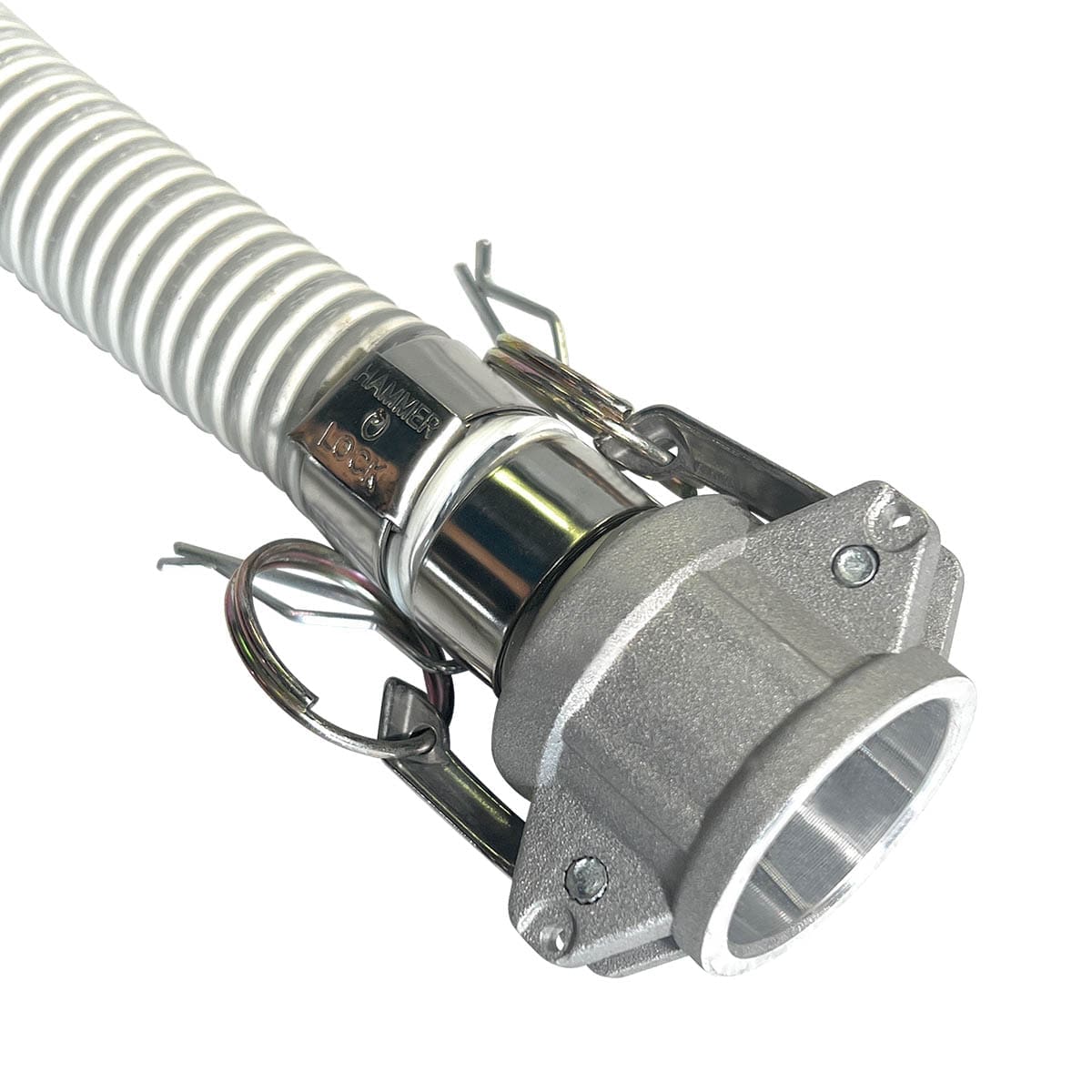

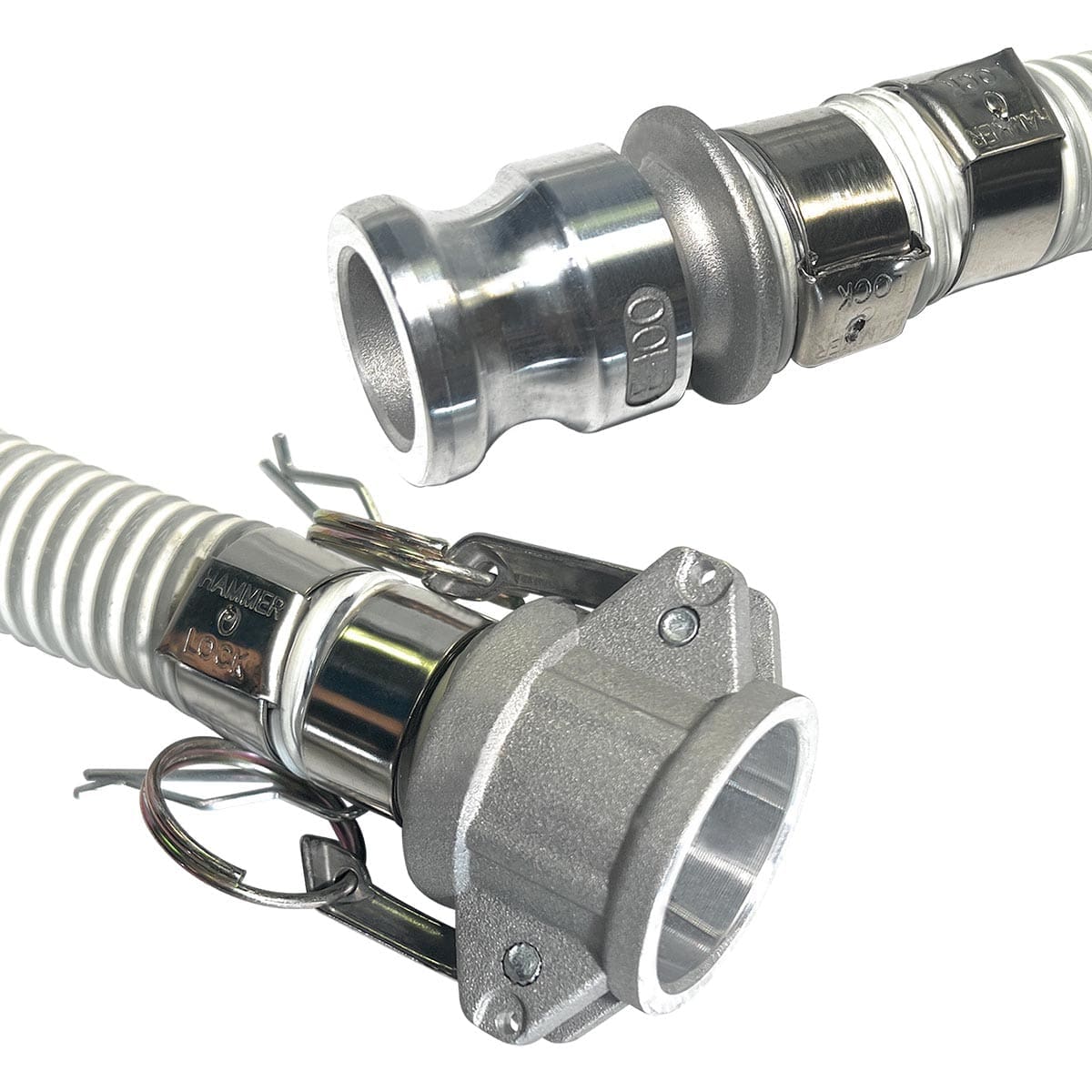

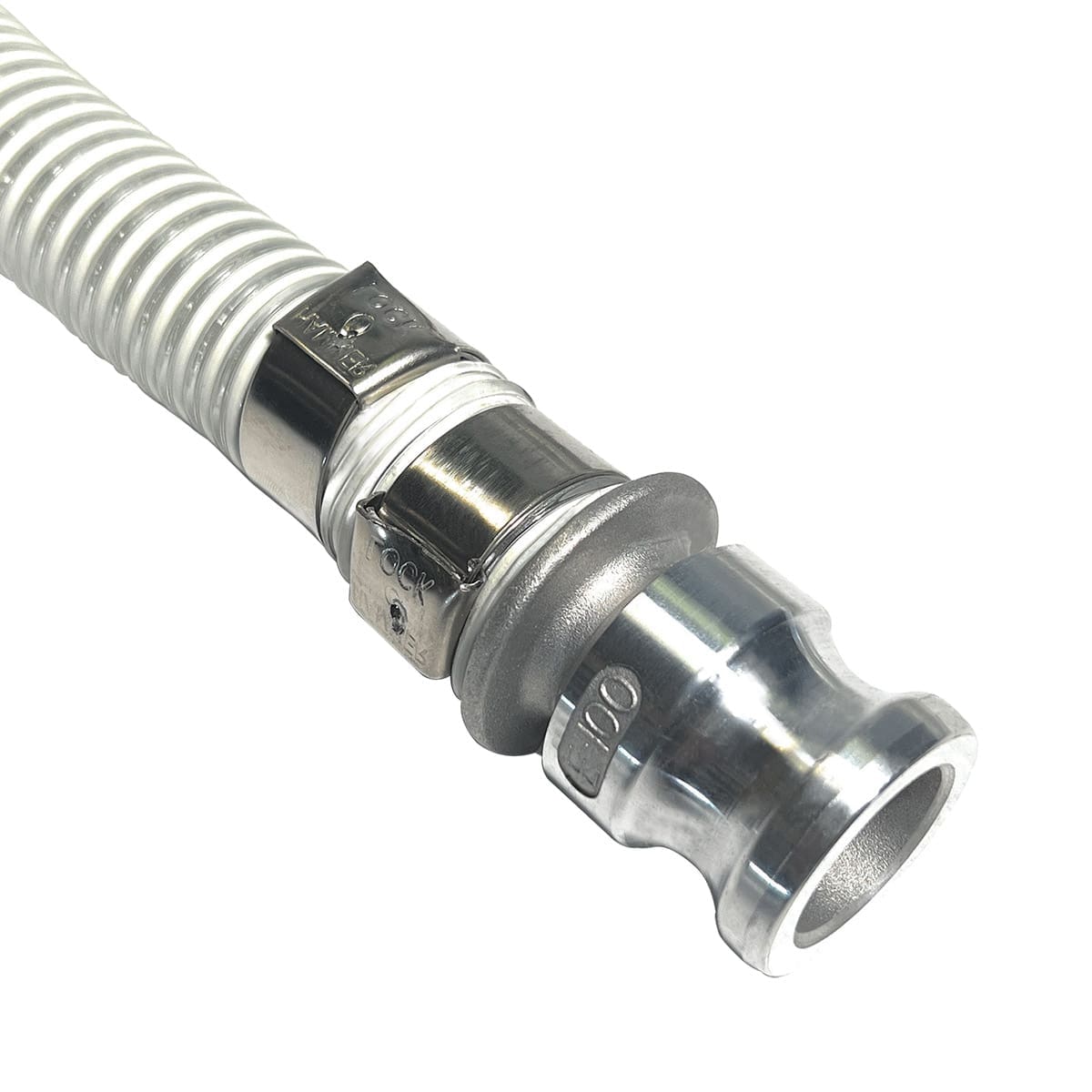

This is a hose assembly has an aluminum Type E male cam and groove fitting installed on one side and an aluminum Type C female cam and groove fitting installed on the other side. These assemblies are installed with hose bands.
| Weight | 7.3185 lbs |
|---|---|
| Dimensions | 20 × 20 × 6 in |
| Hose Type | Clear PVC Suction |
| Hose Fittings | Male Camlock x Female Camlock |
| Hose Length | 30' |
| Hose ID | 1" |
| Inside Diameter | 1" |
| Outside Diameter | 1.18" |
| Hose Cover | Clear PVC |
| Hose Tube | Clear PVC |
| Hose Reinforcement | Rigid White PVC Helix |
| Working Pressure | 85 PSI |
| Working Temperature | -5° F to +150° F |
| Product Type | Clear PVC Suction Hose Assemblies |
