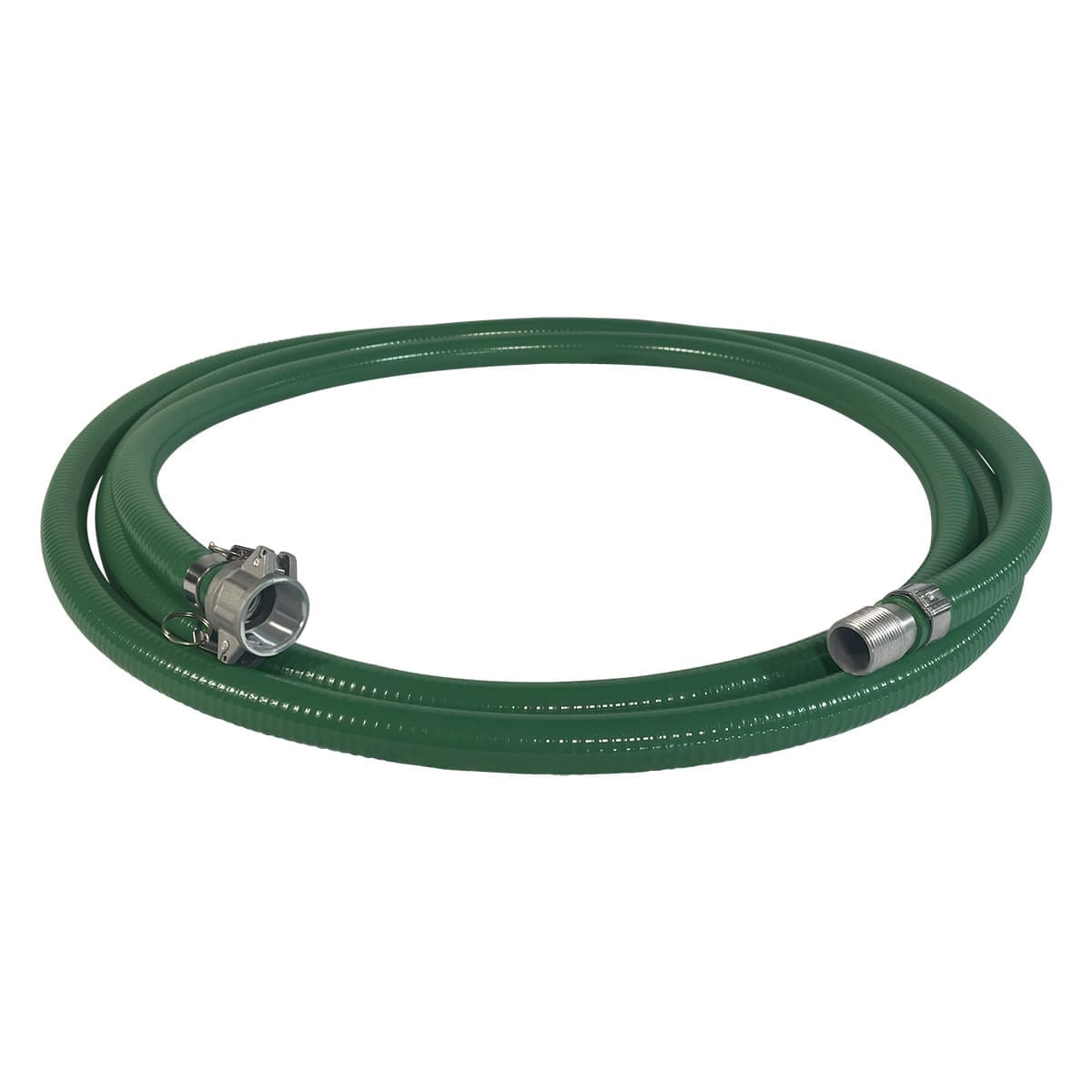

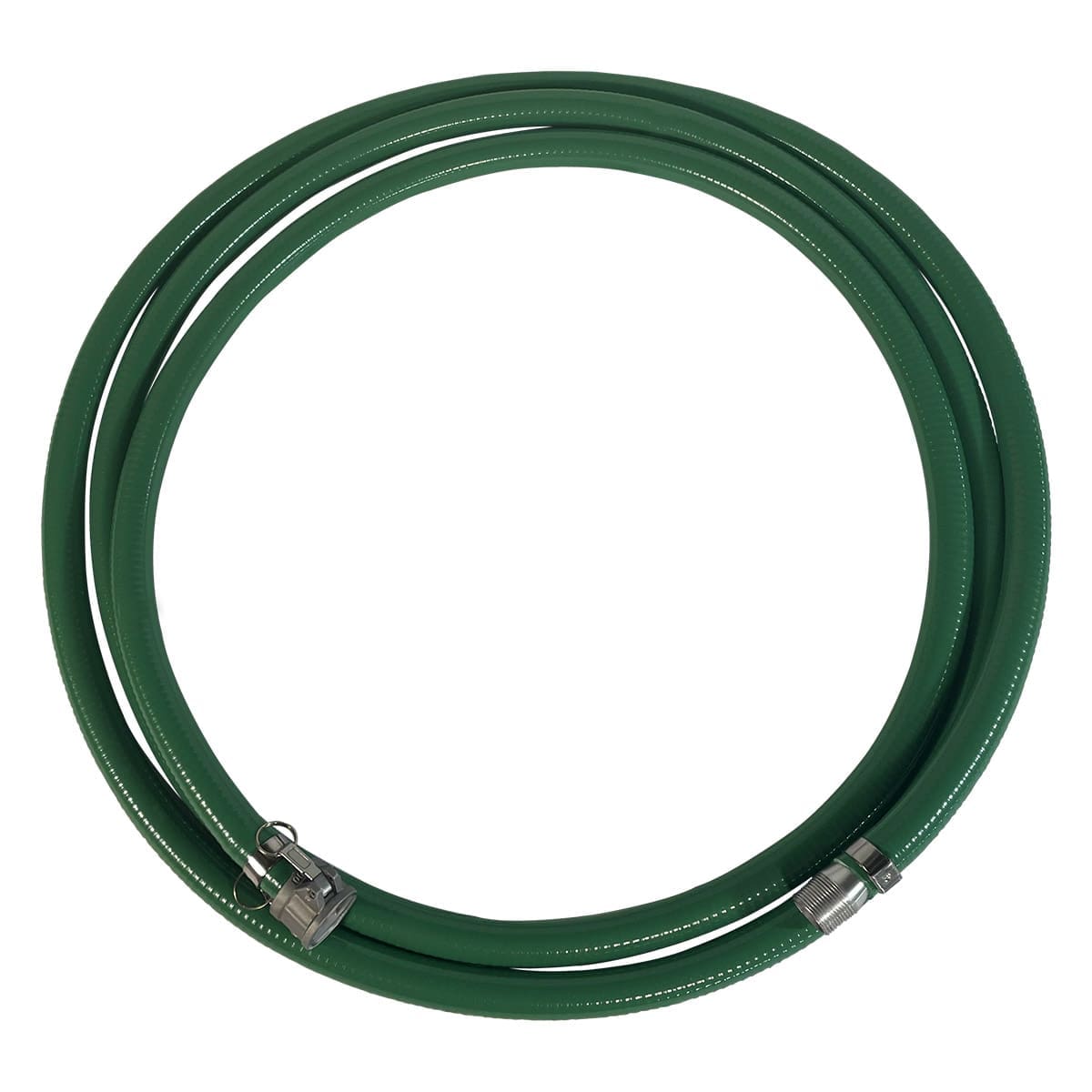

1″ Green PVC Suction Hose Assembly, Female Camlock x Male NPT KC Nipple, 85 PSI, 20′ Length
$43.35
- 1″ ID Suction Hose, 20 Ft Length
- Green PVC Hose with Rigid PVC Helix Reinforcement
- 1″ Female Camlock x 1″ Male NPT Nipple
- Aluminum Type C Fitting x Plated Steel Combination Nipple
- Fittings Installed with Stainless Steel Punch Lock Clamps
- 85 PSI working pressure (at 68 deg Fahrenheit)
- Temperature Range: -14° F to +150° F
This PVC suction hose is designed to meet all water hose specifications. It was especially designed for use in construction, mining, industrial & agricultural service.

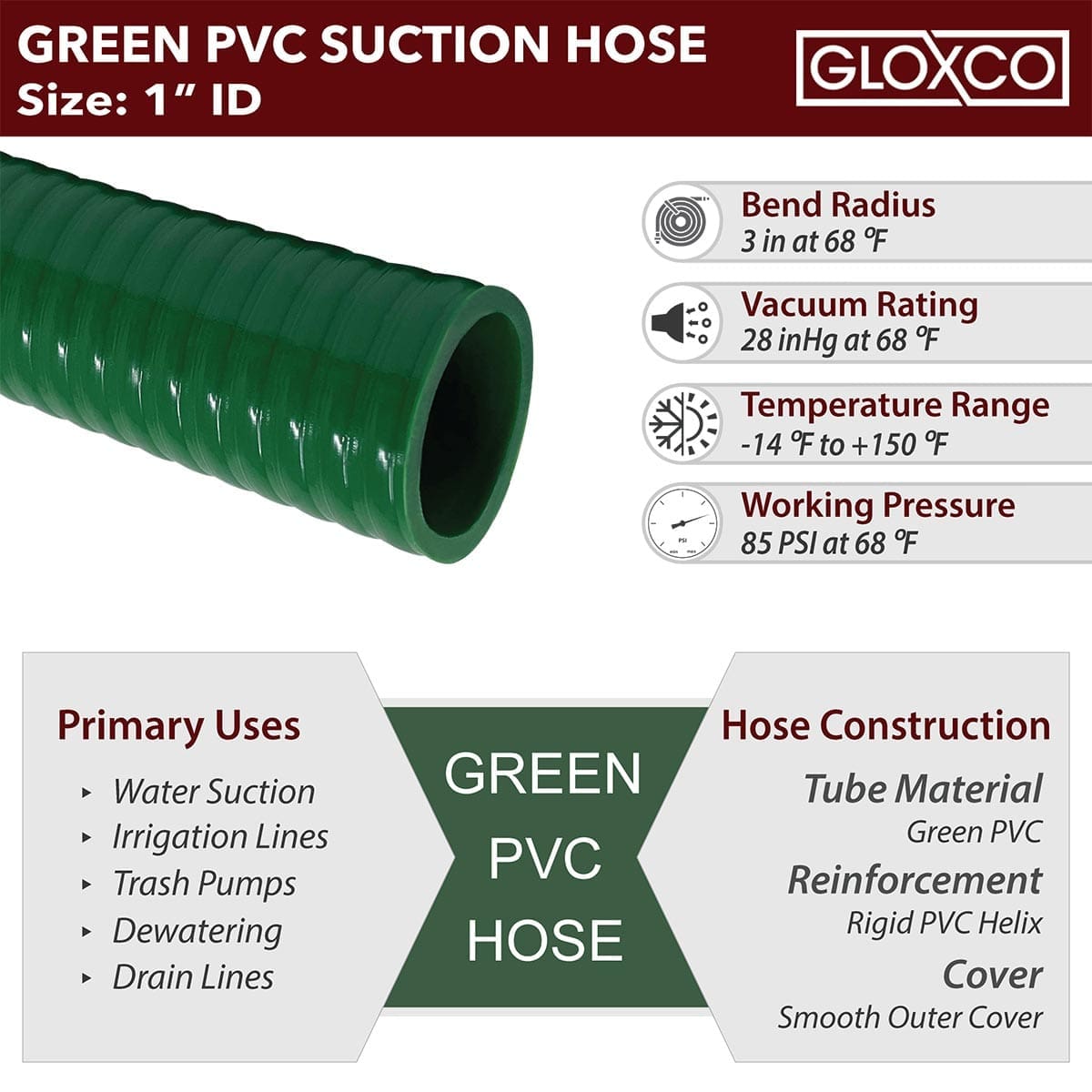

The hose is made of flexible green PVC and is reinforced by a rigid white PVC helix. It has a working temperature range of -14° F to +150° F.

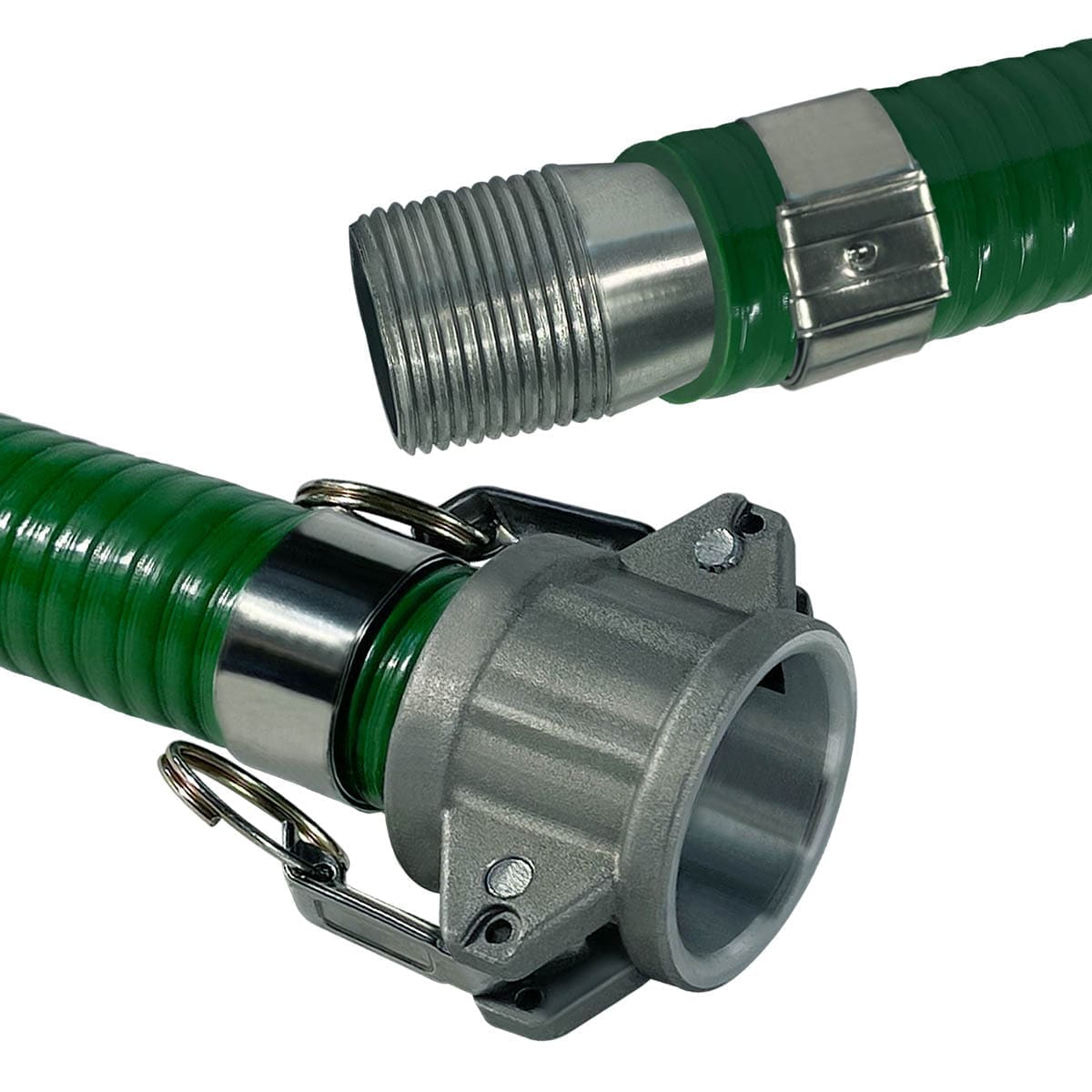

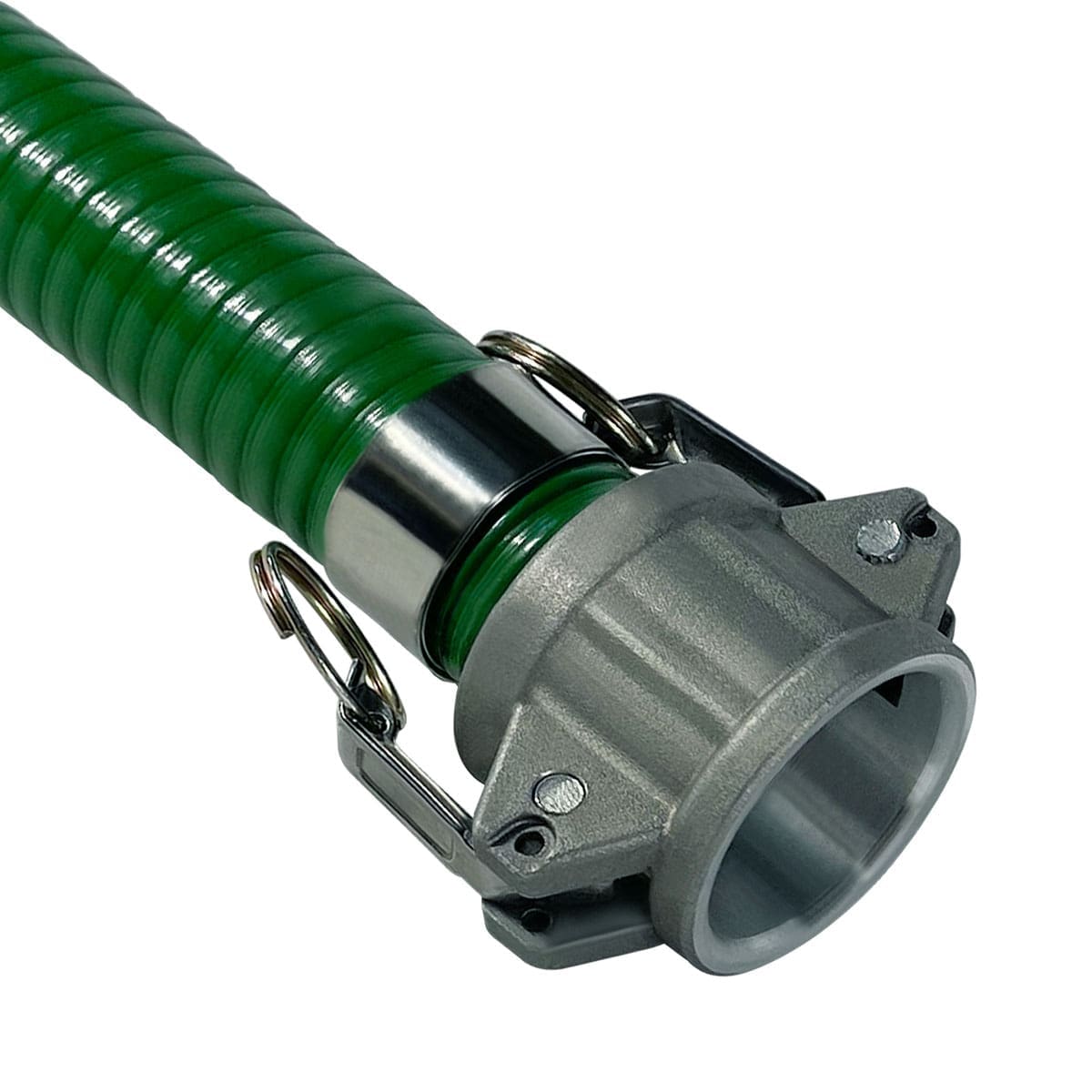

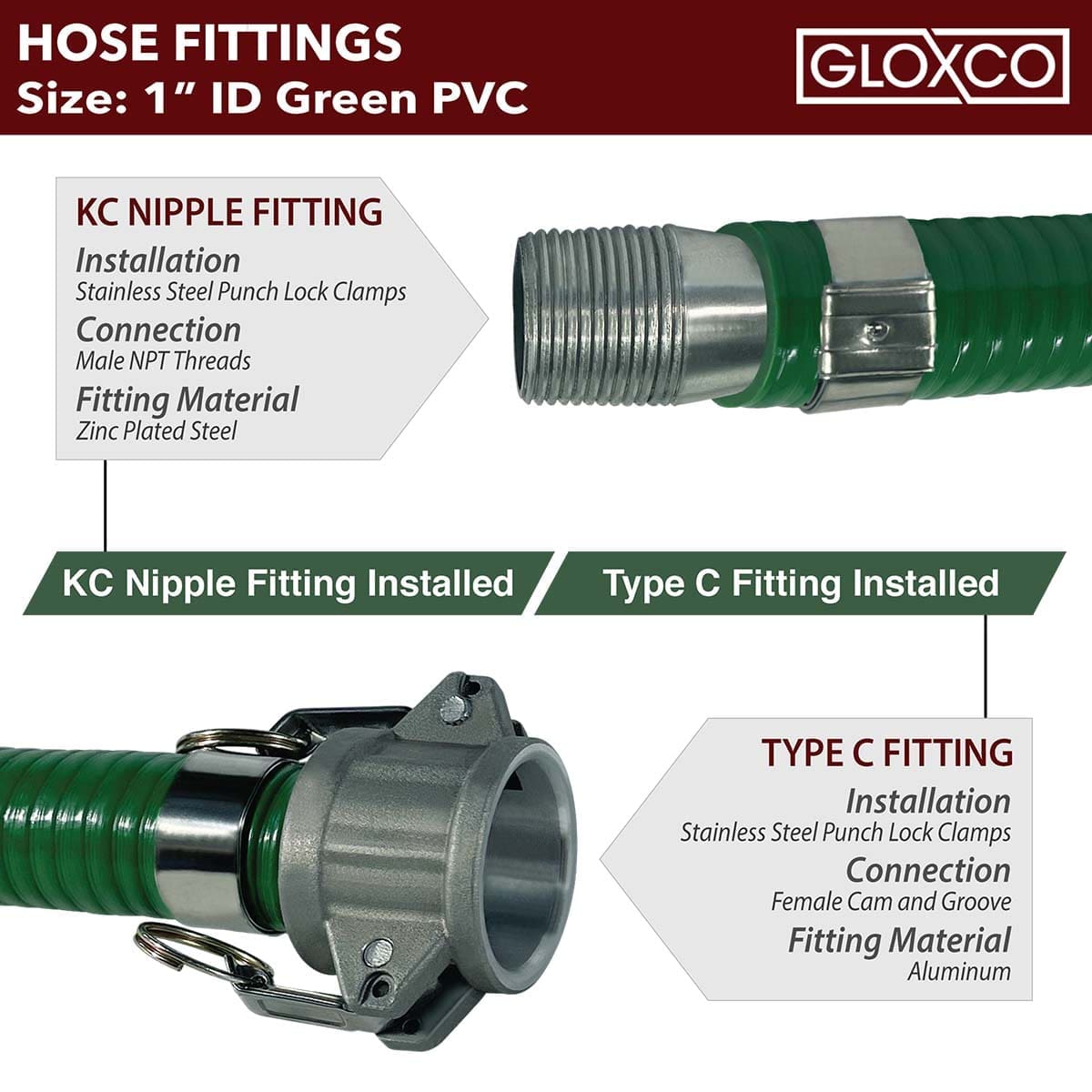

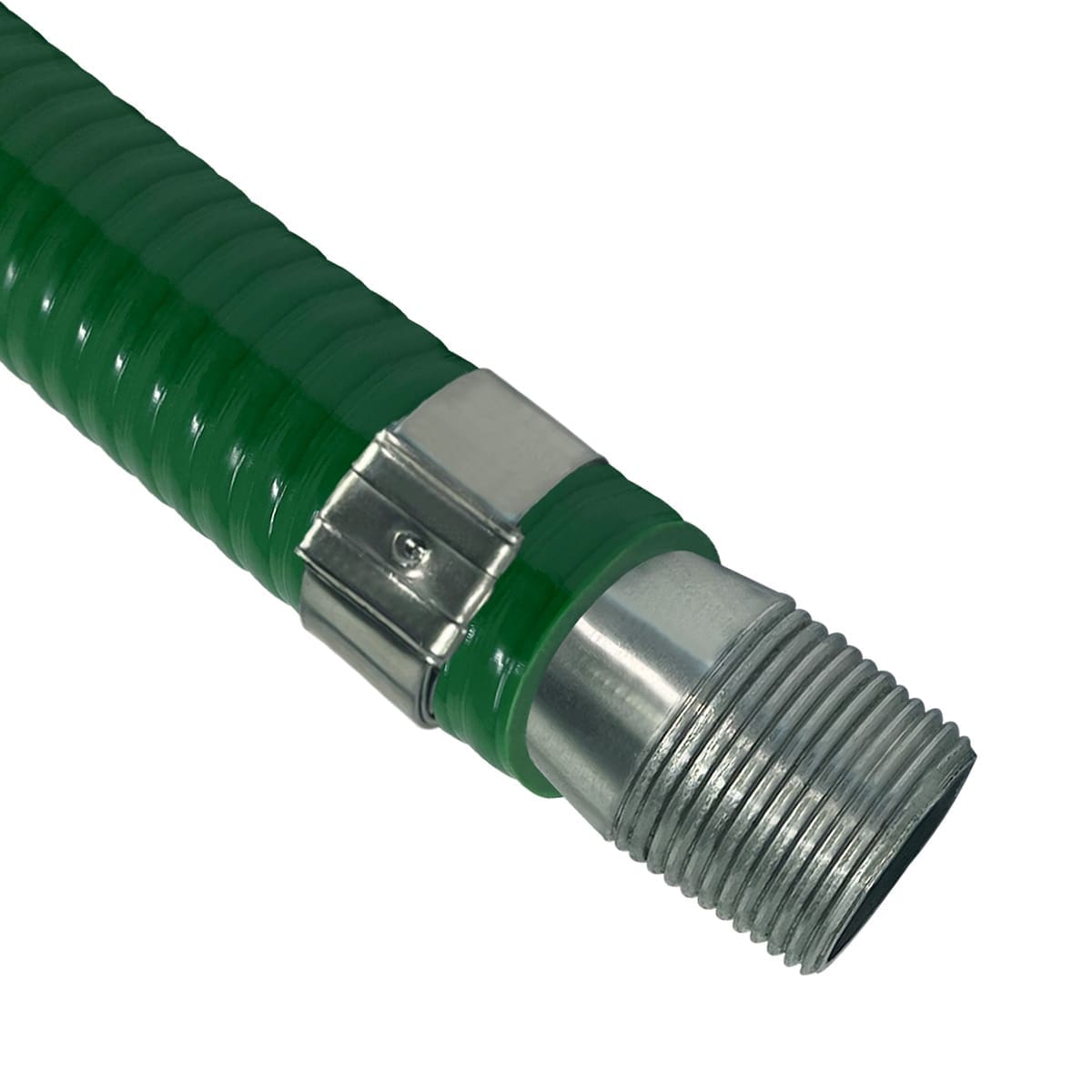

This is a hose assembly has an plated steel male NPT KC Nipple installed on one side and an aluminum Type C female cam and groove fitting installed on the other side. These assemblies are installed with hose bands.
| Weight | 6.14775 lbs |
|---|---|
| Dimensions | 21 × 21 × 3 in |
| Hose Type | Green PVC Suction |
| Hose Fittings | Aluminum Female Camlock x Plated Male NPT Nipple |
| Clamp Style | Banded |
| Hose Length | 20' |
| Hose ID | 1" |
| Inside Diameter | 1" |
| Outside Diameter | 1.22" |
| Hose Cover | Green PVC |
| Hose Tube | Green PVC |
| Hose Reinforcement | Rigid White PVC Helix |
| Working Pressure | 85 PSI |
| Working Temperature | -14° F to +150° F |
| USA Content | Assembled In USA |
| Product Type | Green PVC Suction Hose Assemblies |
