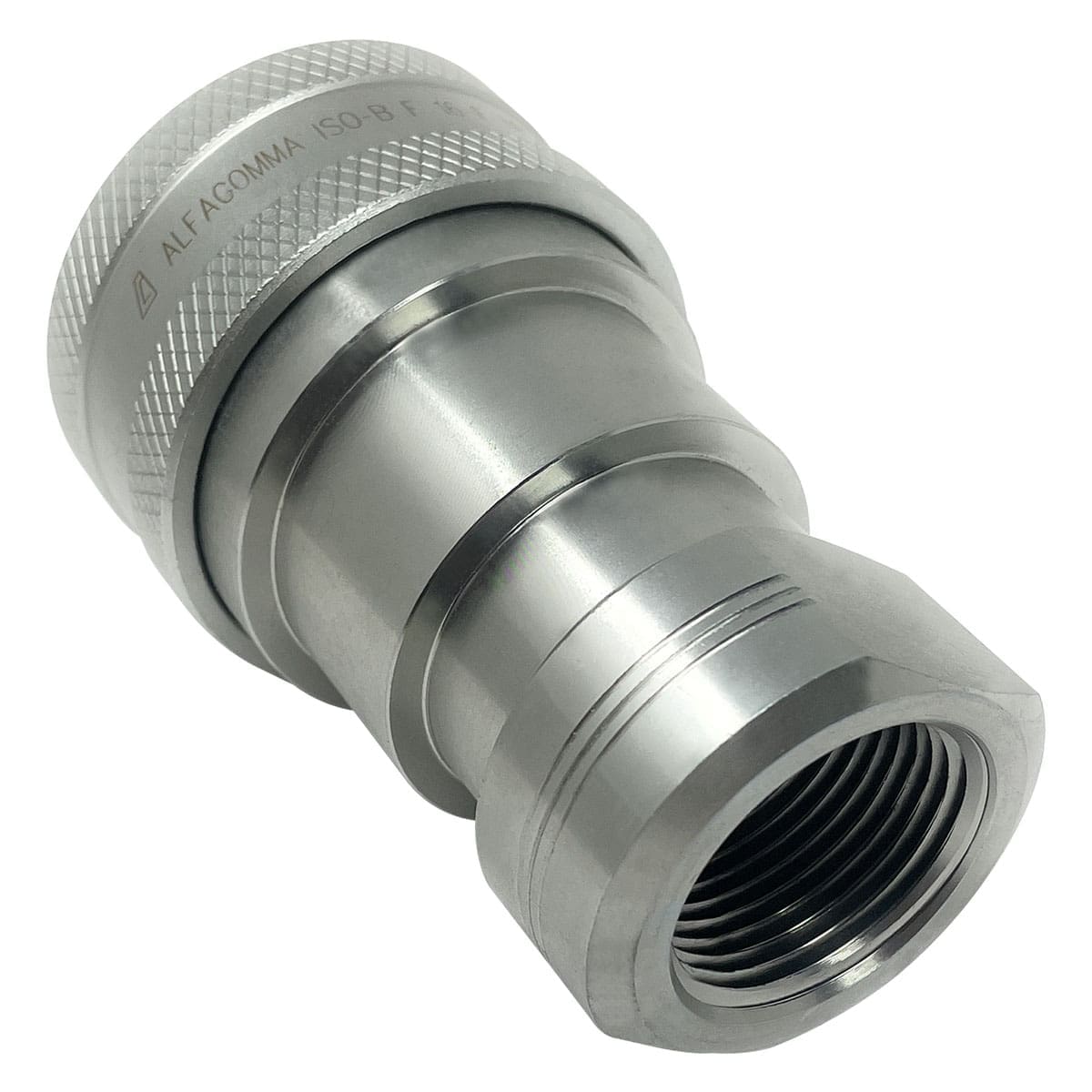

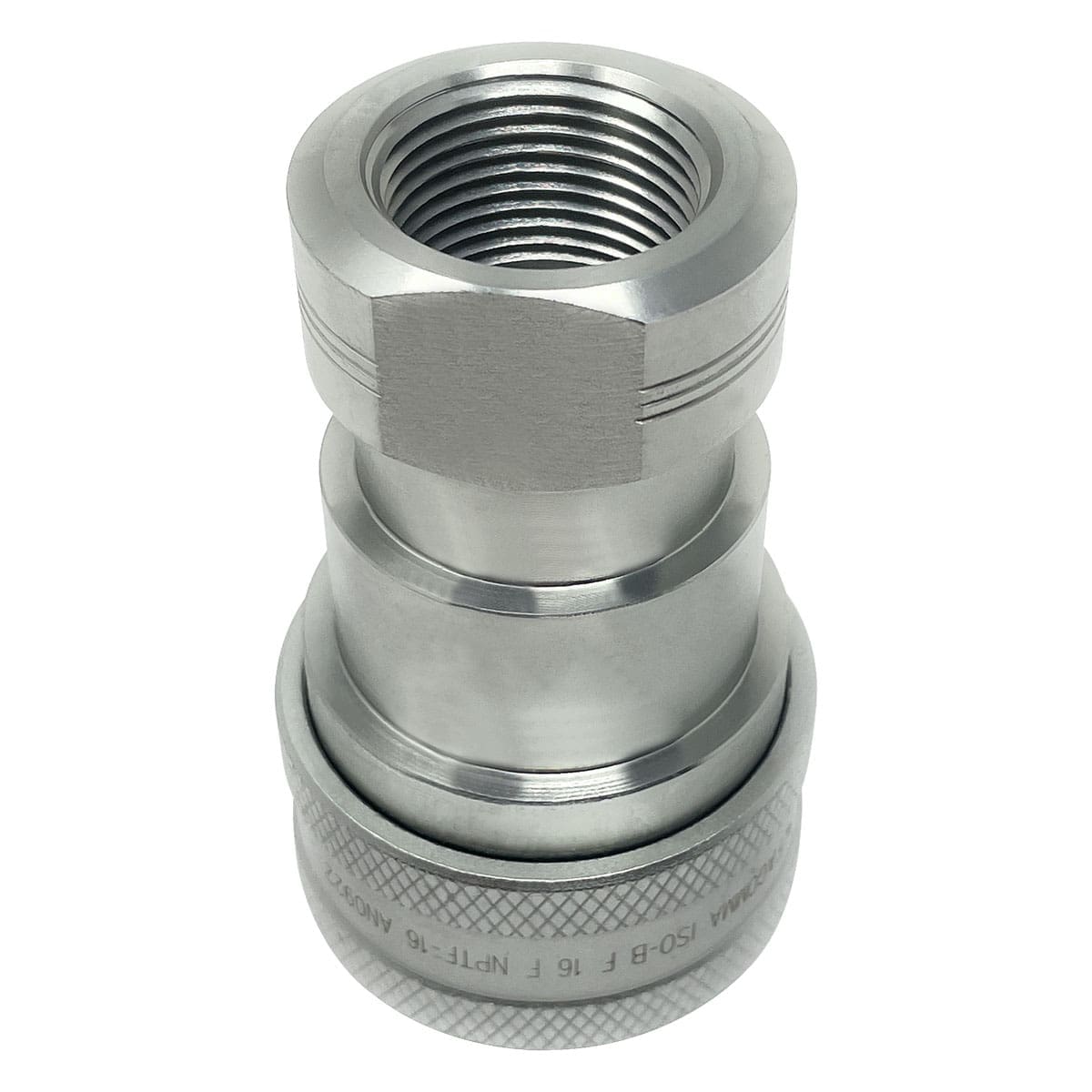

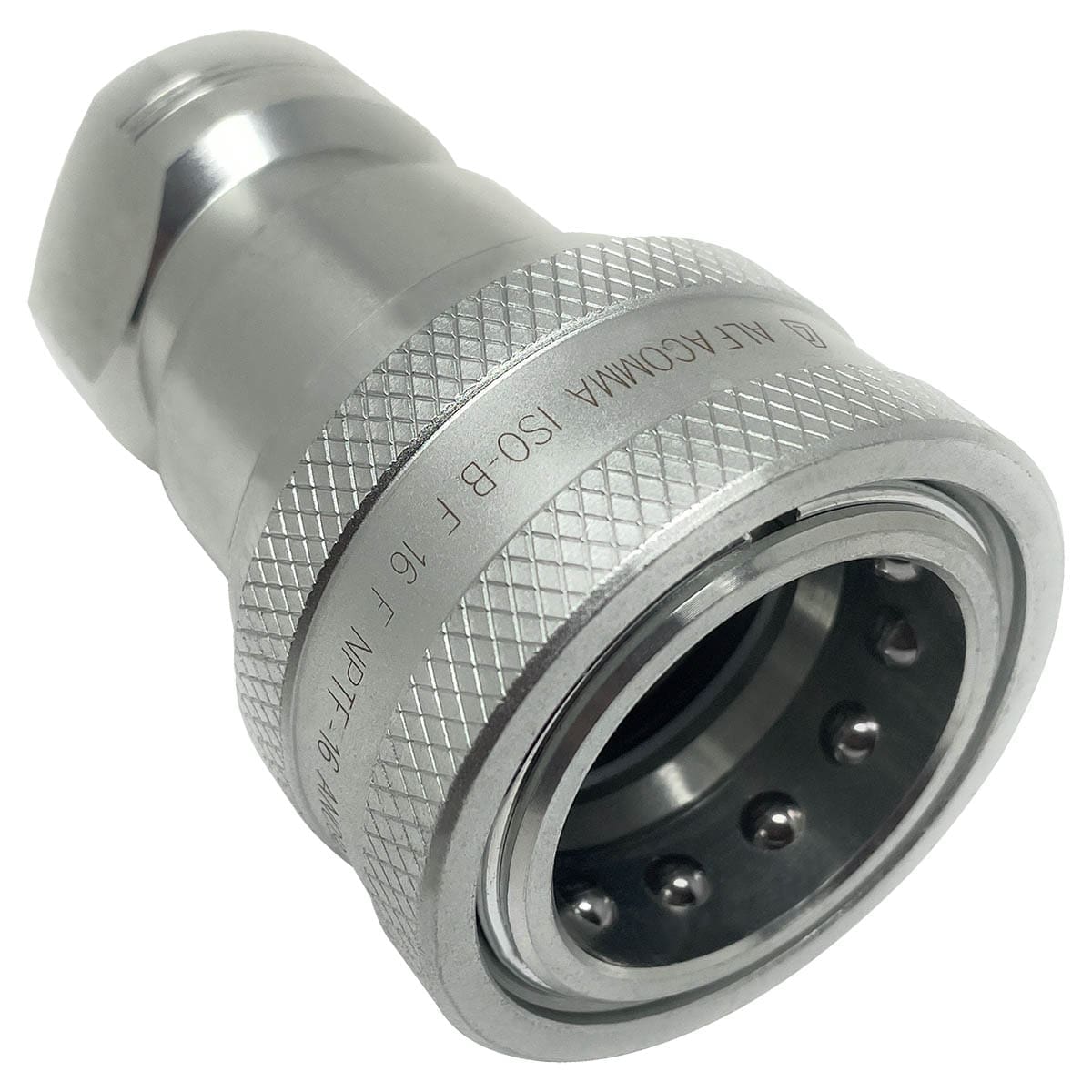

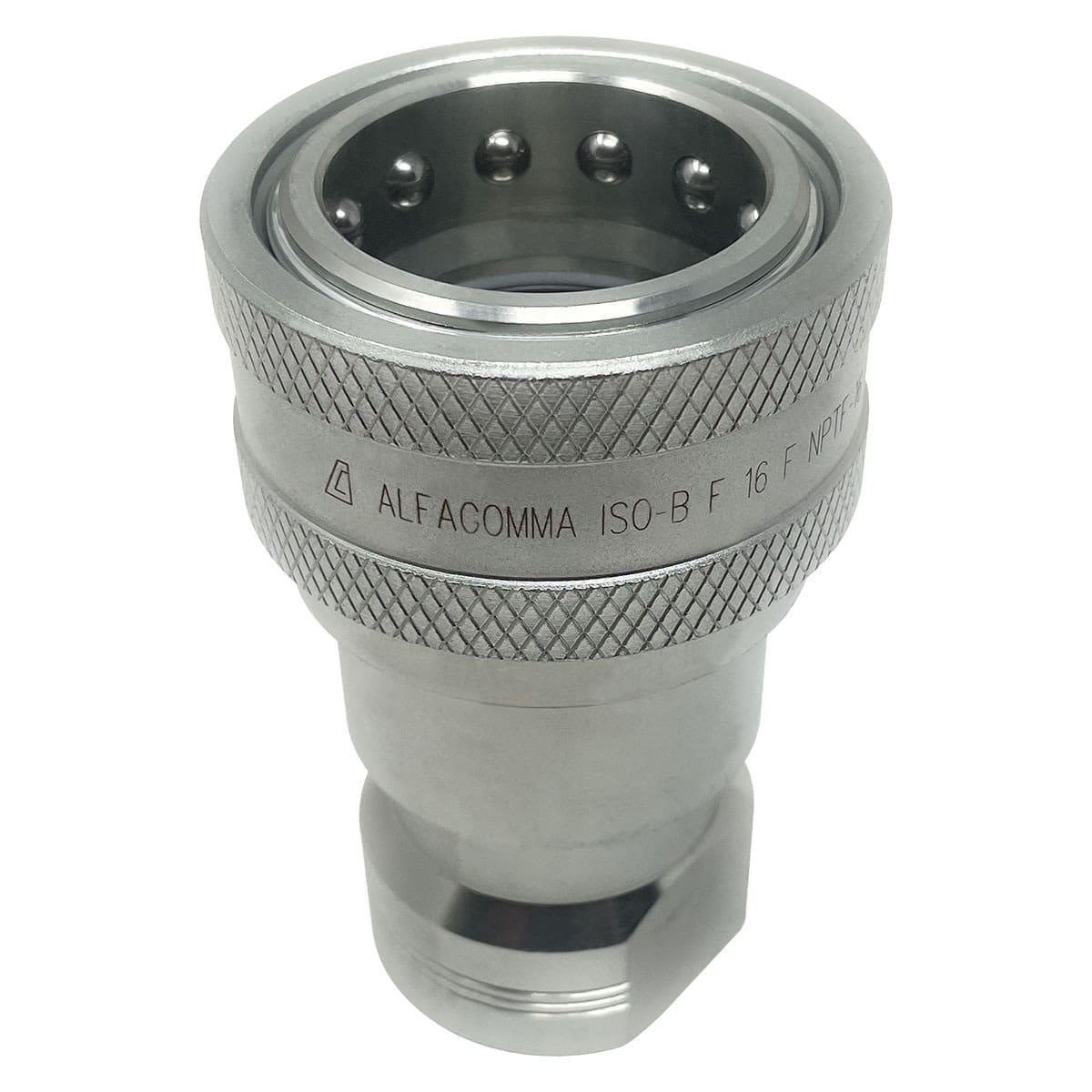

1″ Hydraulic Quick Release Coupling, Series B, 1″ Female Socket x 1″ Female Threads, Galvanized Steel
$51.72
- Hydraulic Quick Release / Connect Coupler
- ISO 7241 B Standard (Series “B”)
- 1″ Female Socket x 1″ Female Threads
- 4350 psi Working Pressure
- Galvanized Steel Coupler with NBR O-Rings
Quick Release Coupling 1″ QBF-1616-FNPR
QD ISO B 1″ Male x 1″ FPT ARGUS ISO 7241-1 series “B” quick-release couplings are used for quick coupling and uncoupling of hydraulic lines. During the coupling action in zero or low-pressure ranges, valves that release or block the flow are automatically activated. The QA-ISO-B quick-release coupling, formed by the coupling plug and the coupling socket, is connected by pushing on a sleeve. This guarantees a flush connection between the two coupling halves
*Interchange: 1233783, 8HF8, 8HP36, HNV 1 NPT F, QBC1616FP, G94521-1616, 16FQPI-16FP, 8-HP36, IB25-F-16N, Q02411341A-16-16, H8-62, F6602-16, S105-8, 72C16-16F, QRC-IB-25-F-NF16-BT-W3, F. IRB 100 NPT, TH8-36, 8DSF8-S
*This interchange does not give 100% interchangeability with the part numbers listed, only compatibility.
| Lead Time | 1-2 Days |
|---|---|
| Brand | Alfagomma® |
| Quick Connect Type | Series B (ISO 7241-B) |
| Connection Size | 1" |
| Connection Type | Female Socket x Female Threads |
| Fitting Material | Zinc Plated Carbon Steel |
| Gasket Material | NBR |
| Fittings | 1" Female Socket x 1" Female NPT |
| Working Pressure | 2175 psi |
| Working Temperature | -4° F to +212° F |
| Cross Reference | 1233783, 16FQPI-16FP, 72C16-16F, 8-HP36, 8DSF8-S, 8HF8, 8HP36, F. IRB 100 NPT, F6602-16, G94521-1616, H8-62, HNV 1 NPT F, IB25-F-16N, Q02411341A-16-16, QBC1616FP, QRC-IB-25-F-NF16-BT-W3, S105-8, TH8-36 |
| Product Type | Series B Hydraulic Quick Connect Fittings |
