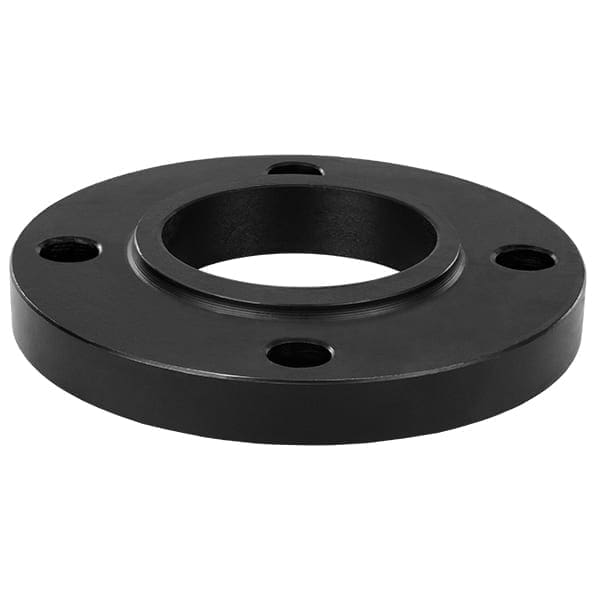

10″ Pipe Size Raised Face Flange, Slip-On 150# ANSI B16.5 Flange, Carbon Steel
$128.64
- Raised Face, Slip-On Flange
- For Use with 10″ Pipe
- 150# Max Pressure
- Meets ANSI B16.5 Standards
- Carbon Steel
Class 150 raised face flanges are a popular type of flange that allows the user to easily weld pipe to a flange.
This is a 10″ raised face, slip-on flange for use with 10″ pipe. It is pressure rated up to 150# and meets ANSI B16.5 standards. It is forged of Carbon Steel to offer very good corrosion resistance.
| Weight | 43.00 lbs |
|---|---|
| Dimensions | 16 × 16 × 2.5 in |
| Connection Size | 10" |
| Connection Type | Female Slip-On x Flange |
| Material | Carbon Steel |
| Lead Time | Ships in 1-2 Business Days |
| Unit of Measure | Each |
| Flange Diameter | 16" |
| Flange Hole Diameter | 1.19" |
| Flange Pressure | 150# |
| Flange Bolts | 12 Bolts |
| Flange Standards | ANSI B16.5 |
| Flange Type | Slip-On Raised Face |
| Pipe Size | 10" |
