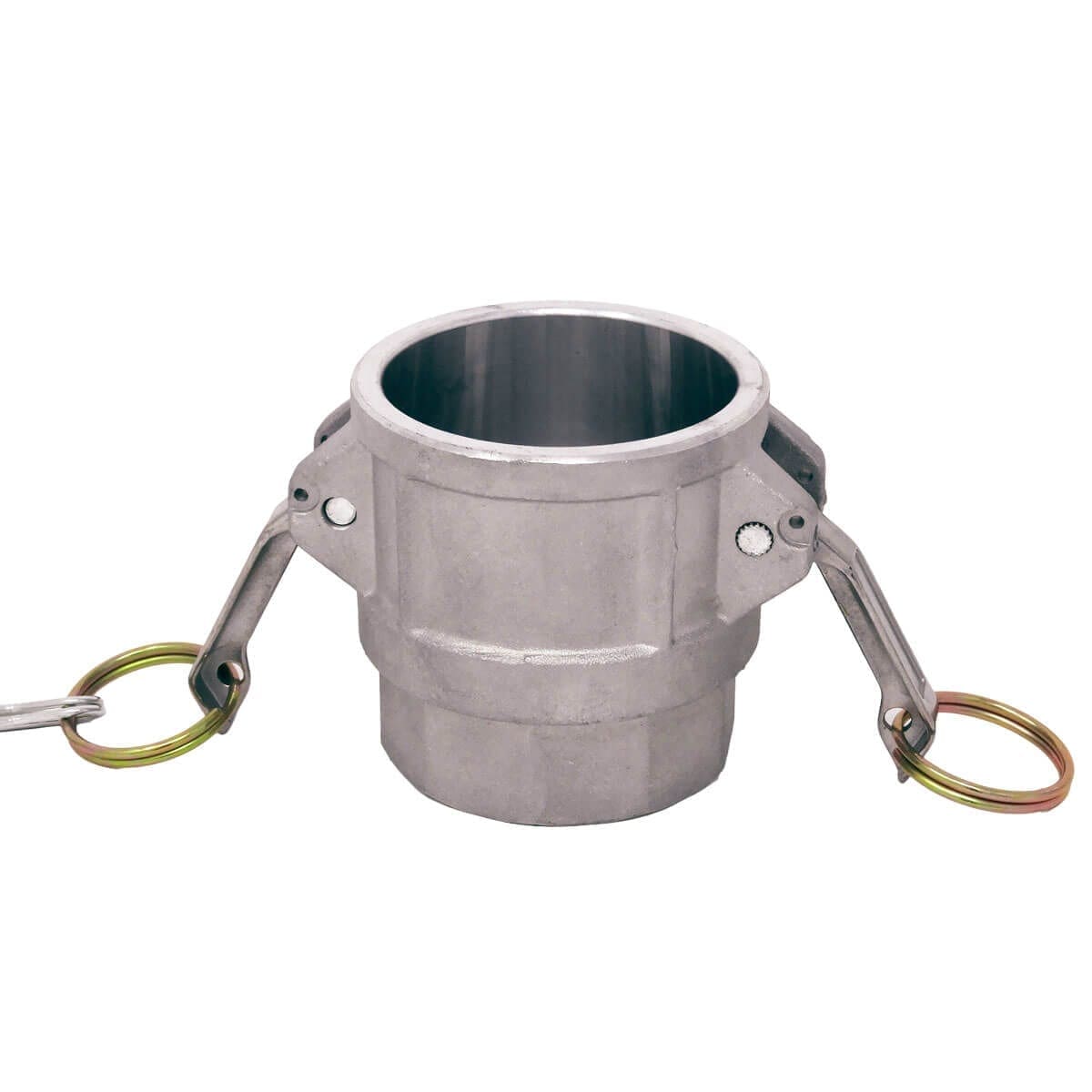

Aluminum Type D Cam and Groove Fitting, 2

2″ In-line Camlock Polycarbonate Sight Glass Assembly (CAM-20-SG-PCAL)

2″ In-Line, Cam and Groove Sight Glass Assembly

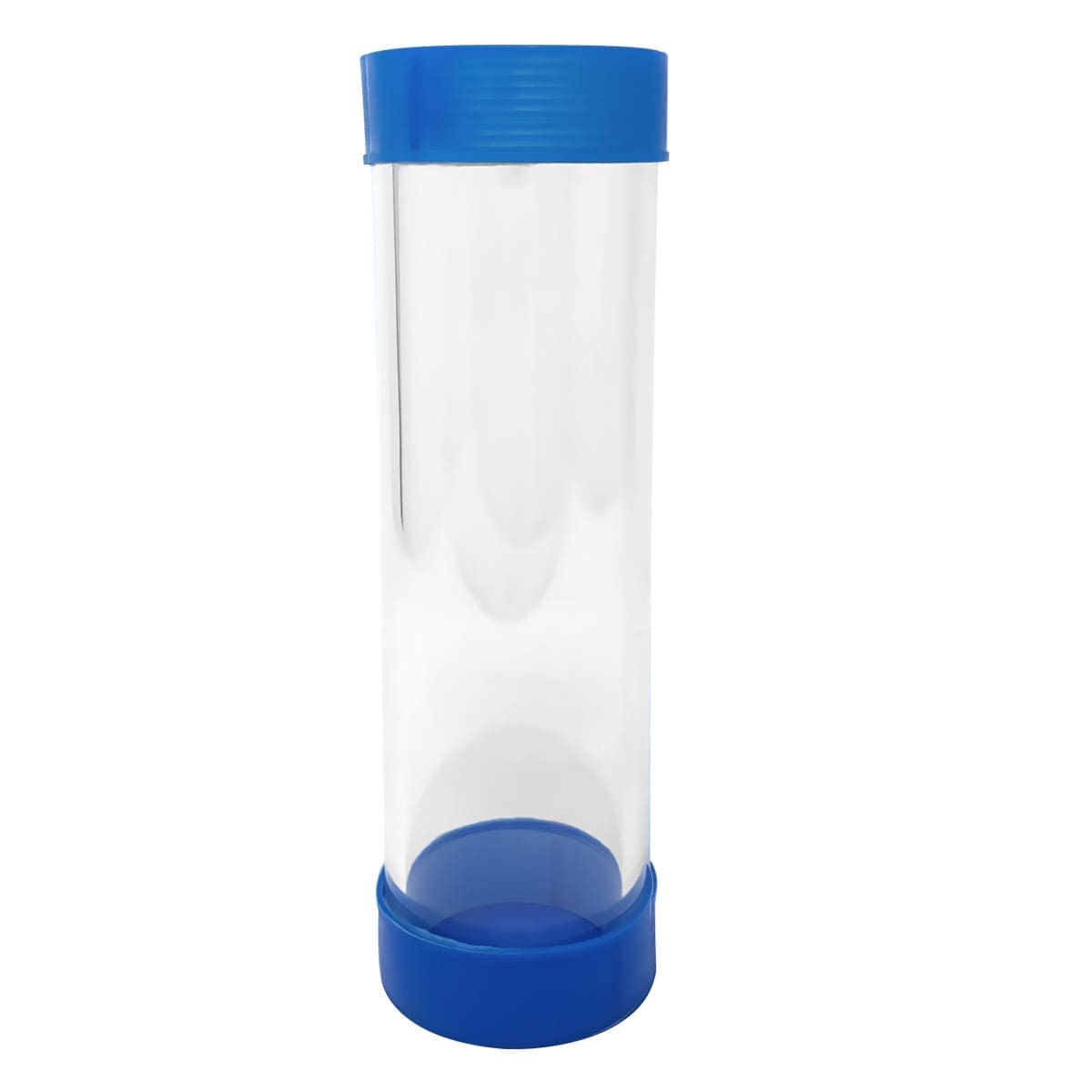

Includes an 8″ x 2″ Polycarbonate Sight Glass Tube
Includes a 2″ Aluminum Type A Cam and Groove Fitting
Includes a 2″ Aluminum Type D Cam and Groove Fitting
View your flow at the same time!

SKU: CAM-20-SG-PCAL Categories: Strainers, Sight Strainers, Sight Glasses and Fittings Tag: Stock Item

Description
Additional information

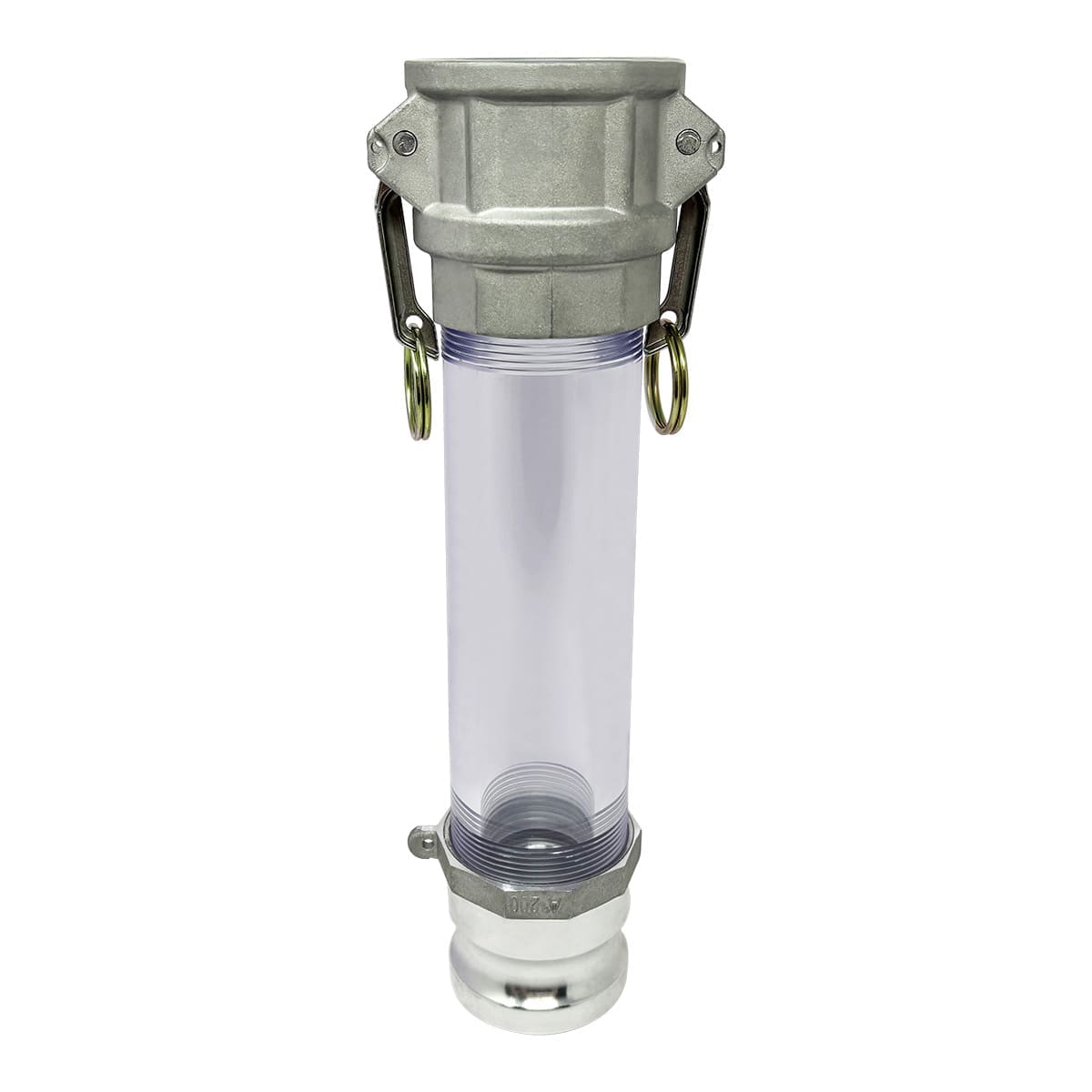

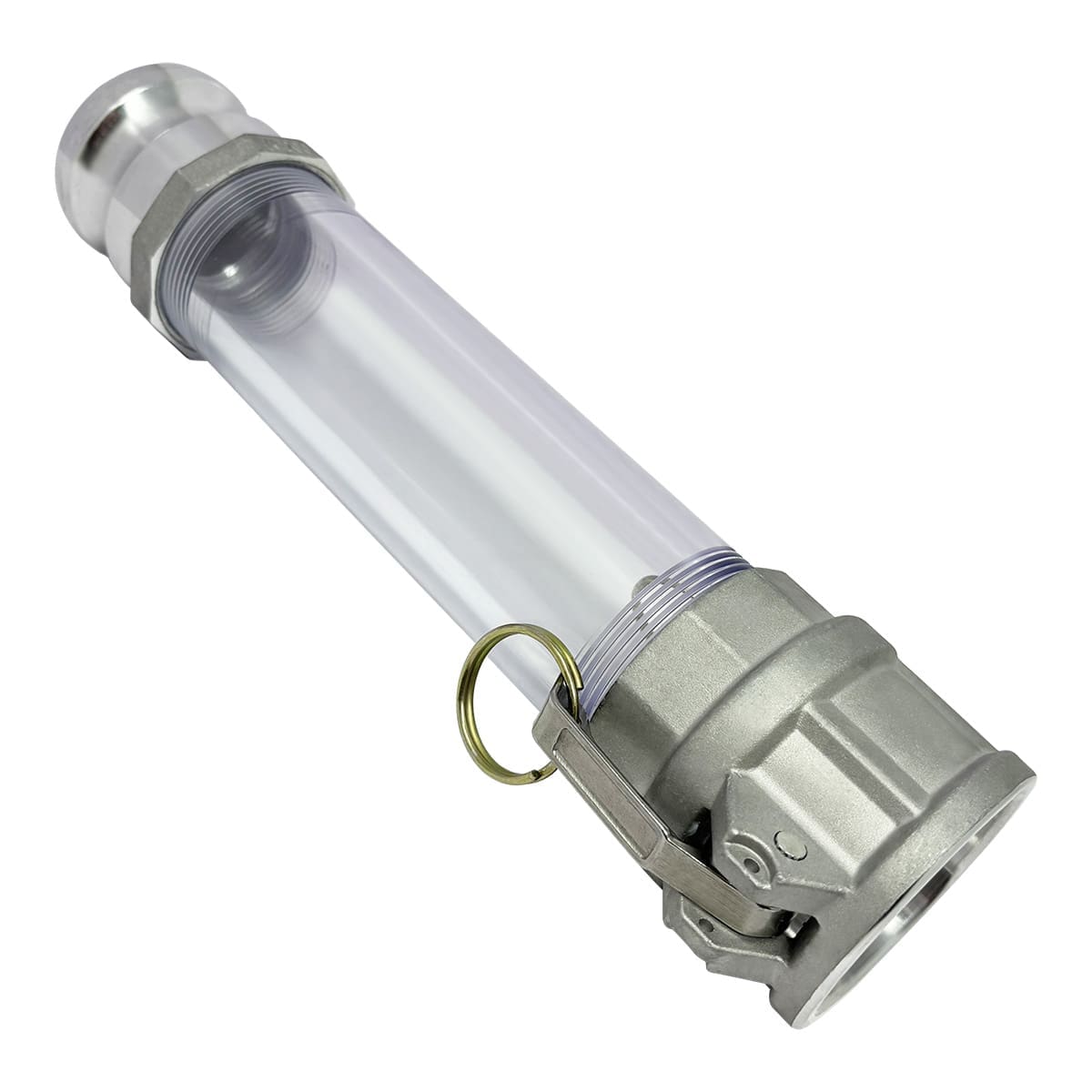

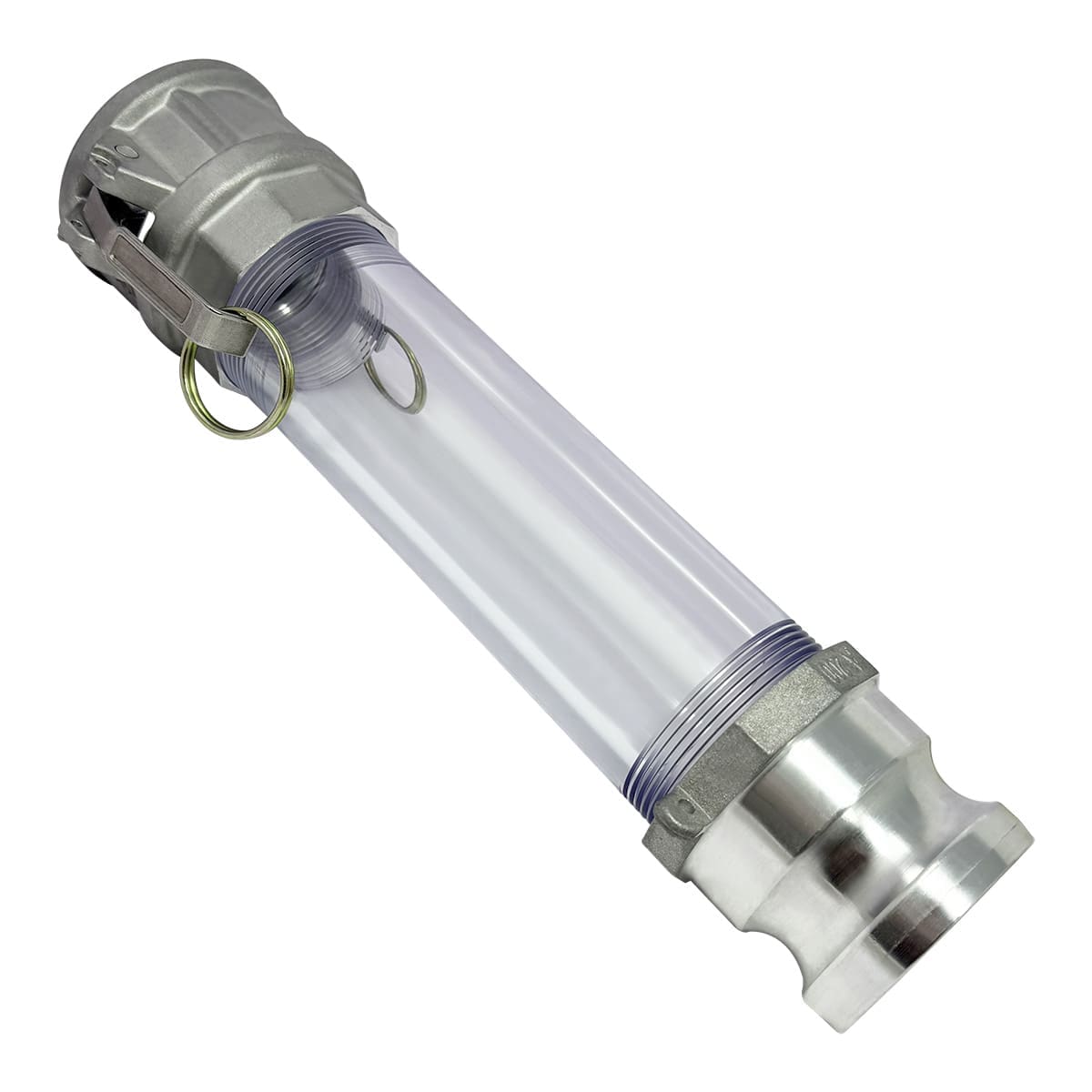

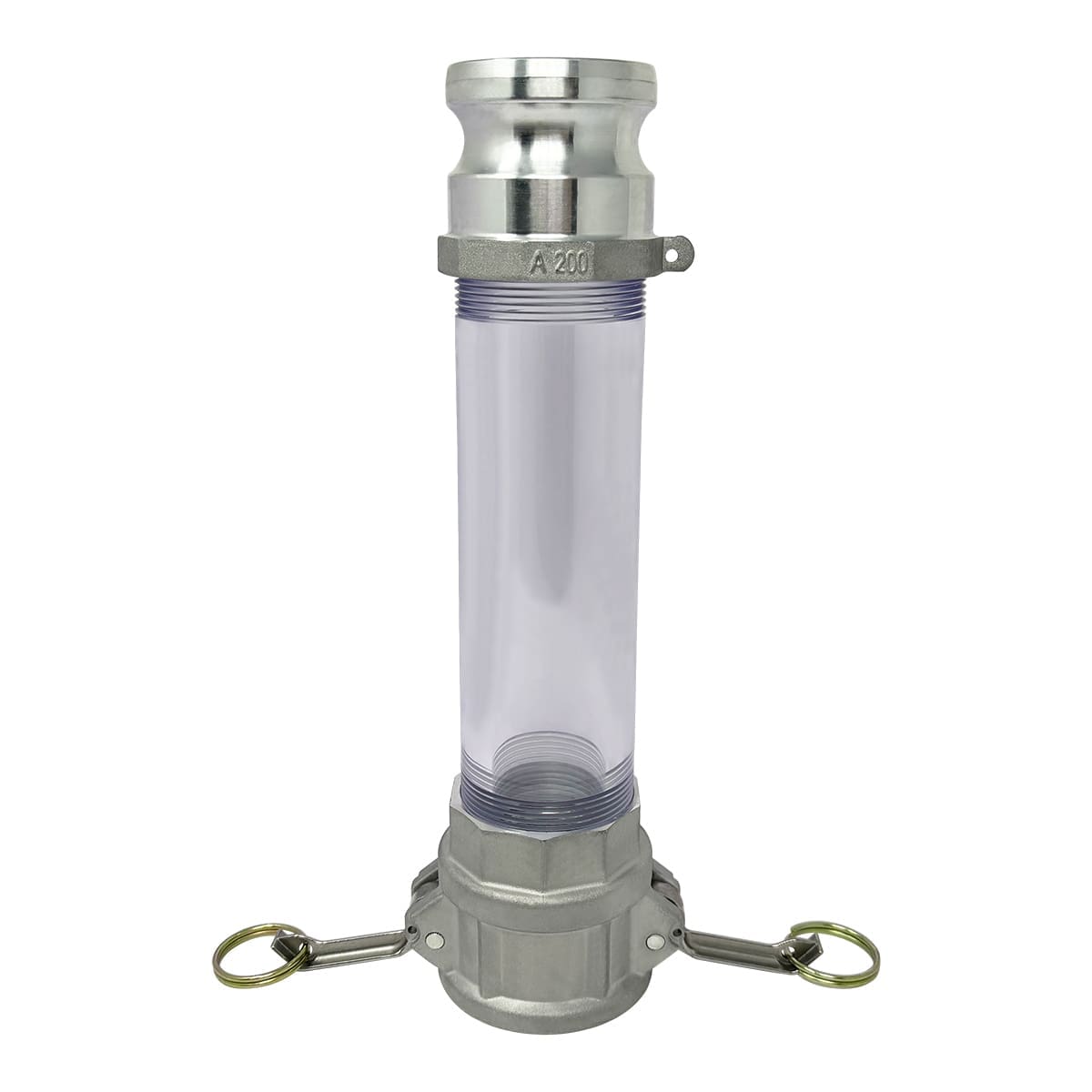

This cam and groove in-line sight glass assembly will allow the operator to see the material being transferred through a hose assembly. This assembly includes an 8″ polycarbonate sight glass tube, a type A camlock fitting, and a type D camlock fitting. The type A & D cam and groove fittings screw into each side of the polycarbonate tube.

Once assembled, this assembly will have a male camlock adapter on one side and a female camlock on the other side. These quick connect/disconnect fittings will make it easy for the operator to connect this in-line sight glass assembly to a hose with cam and groove fittings.

View your flow at the same time.

Weight	3 lbs
Dimensions	14 × 3 × 4 in
Strainer Type	Sight Strainer
Connection Size	2"
Connection Type	Male Camlock x Female Camlock
Material	Polycarbonate
Working Temperature	-50 to +185 ºF
Camlock Material	Aluminum
Sight Glass Material	Polycarbonate
Product Type	Sight Strainers

2″ In-line Camlock Polycarbonate Sight Glass Assembly (CAM-20-SG-PCAL)
