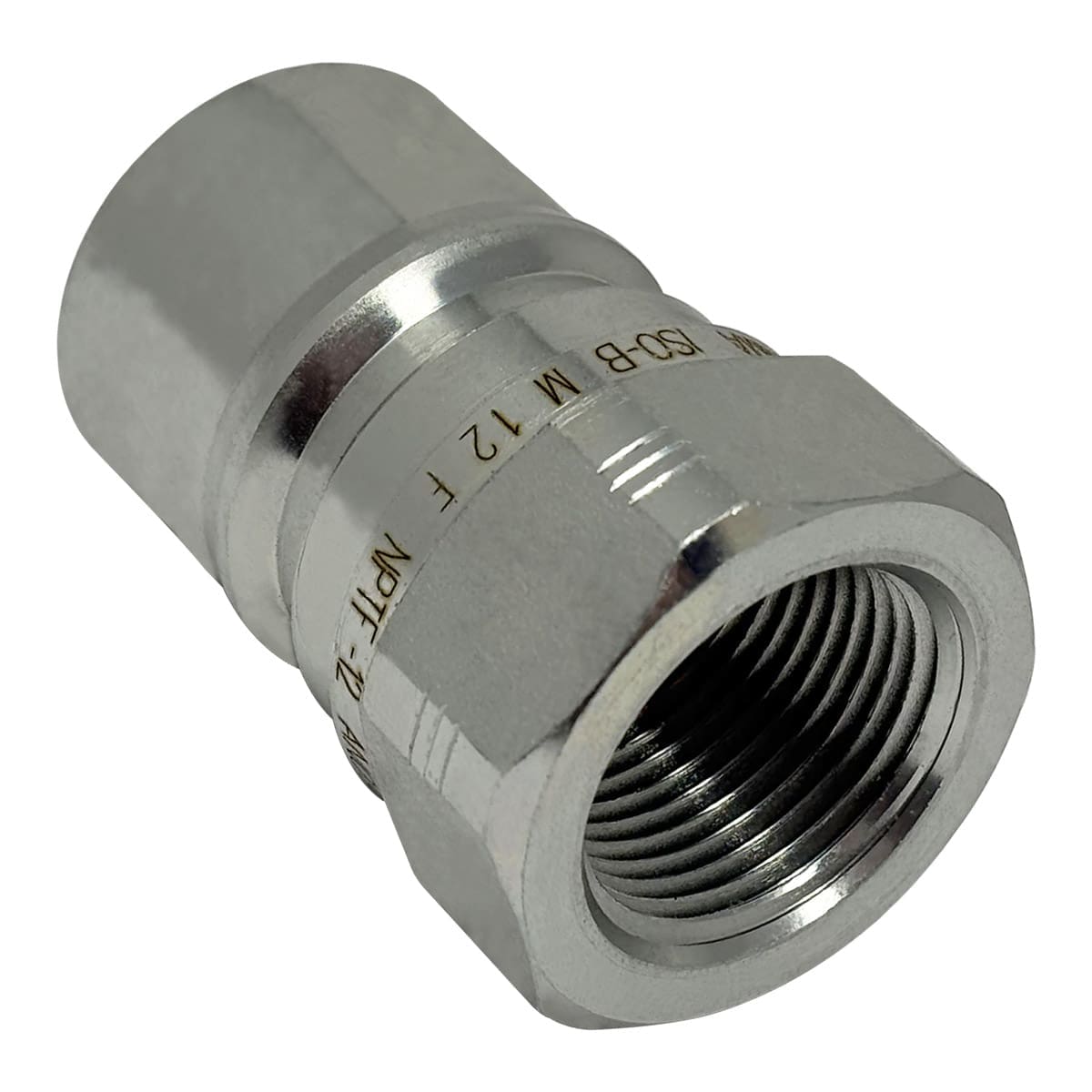

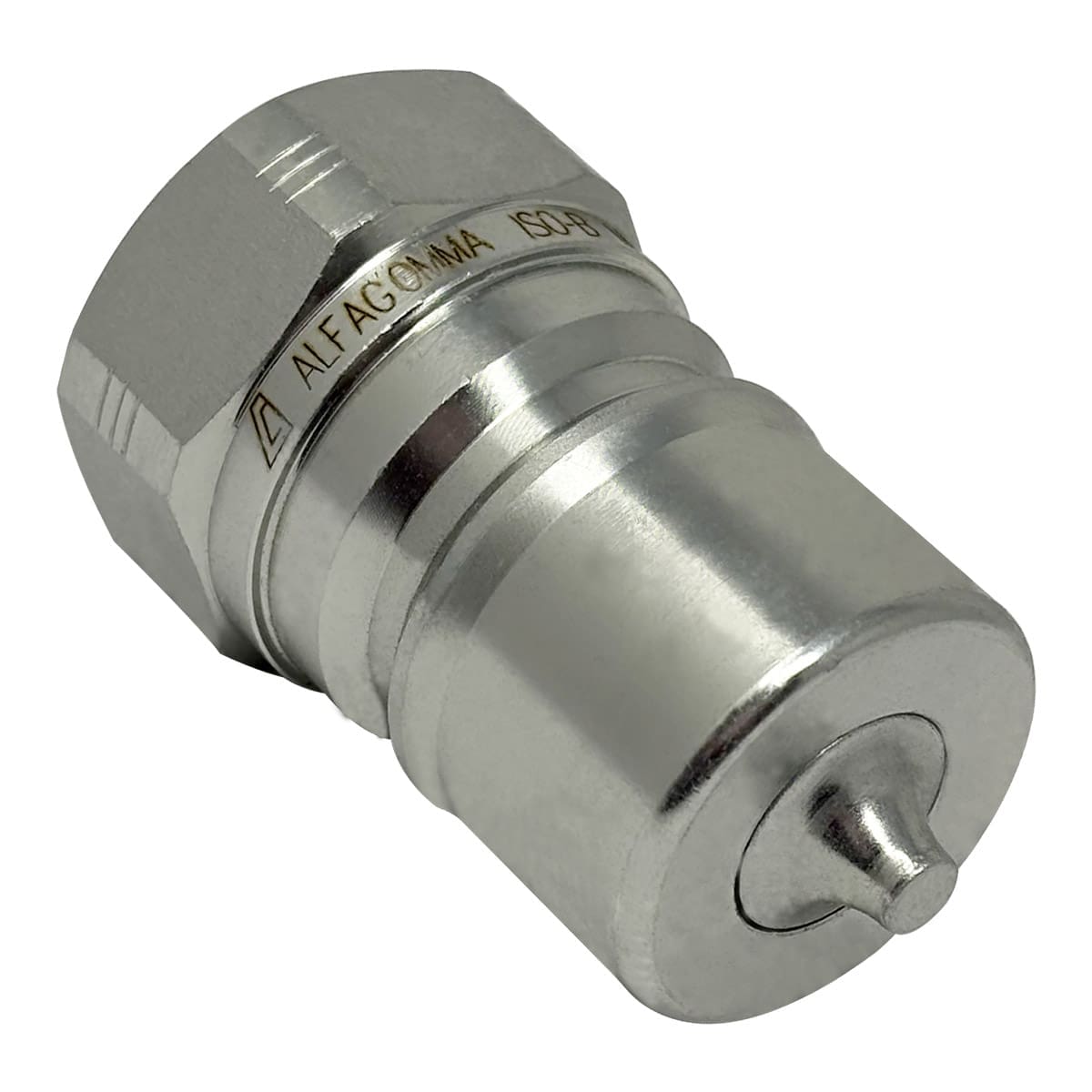

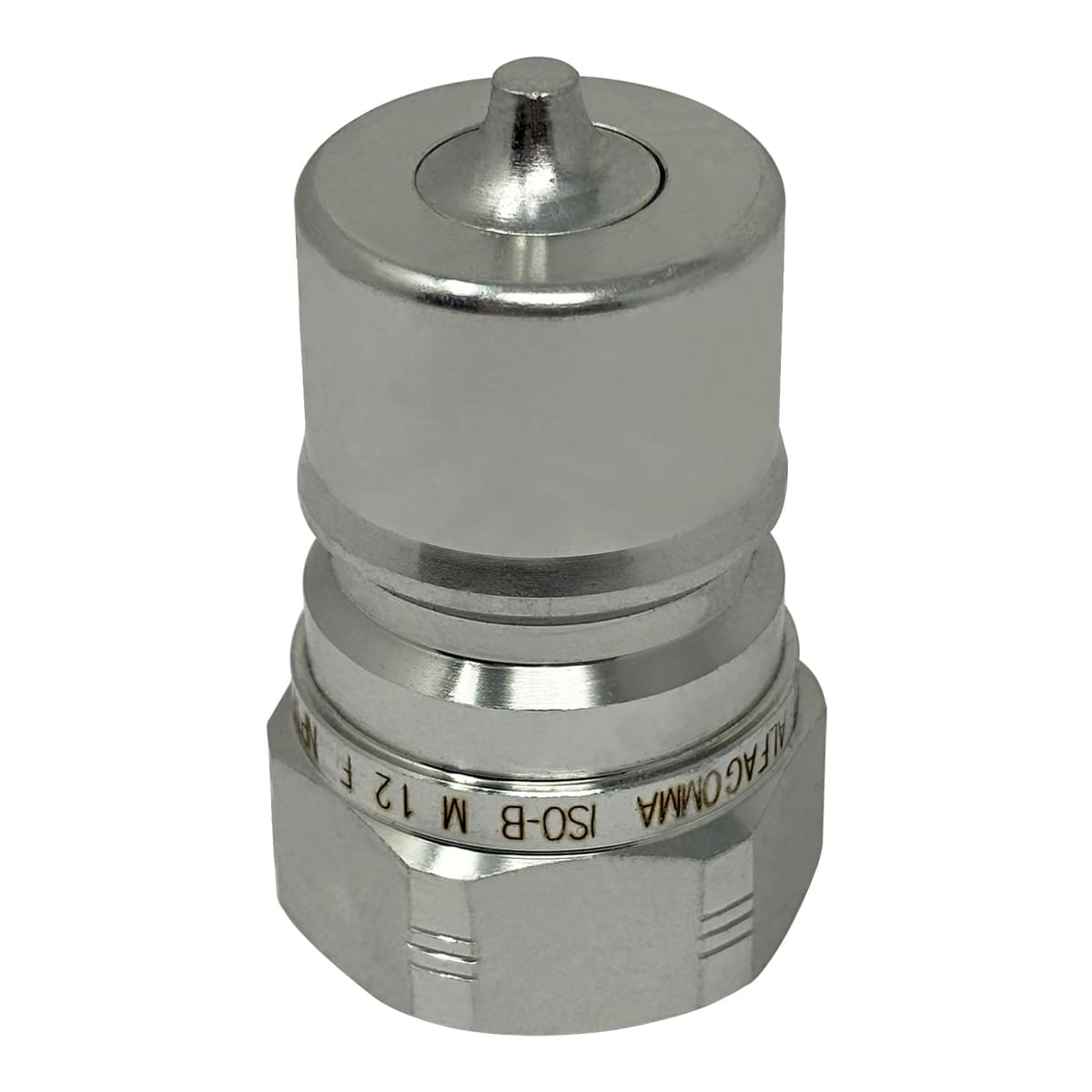

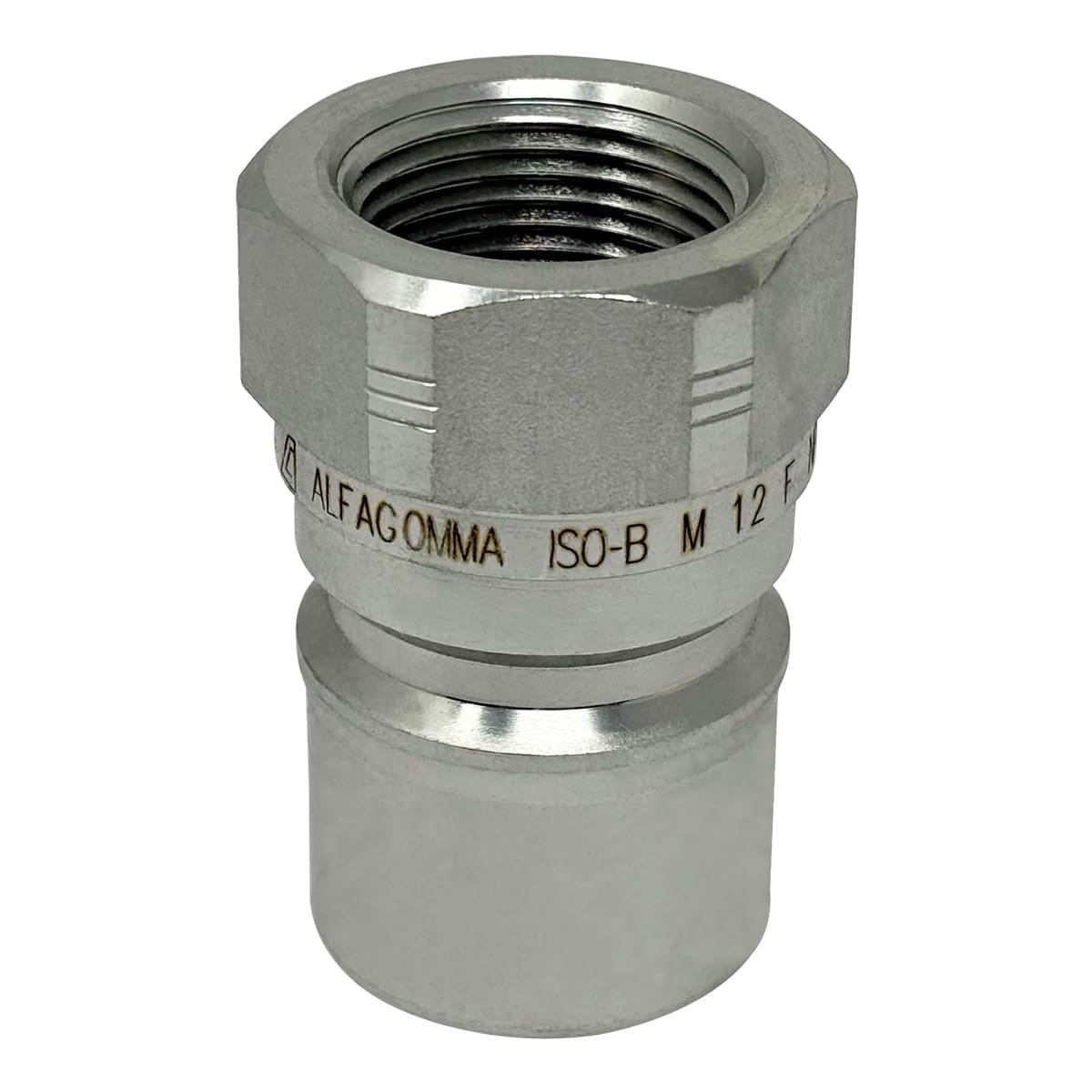

3/4″ Hydraulic Quick Release Coupling, Series B, 3/4″ Male Plug x 3/4″ Female Threads, Galvanized Steel

$15.72

Hydraulic Quick Release / Connect Coupler
ISO 7241 B Standard (Series “B”)
3/4″ Male Plug x 3/4″ Female Threads
2900 psi Working Pressure
Galvanized Steel Coupler

Stock Item: Available

This product ships from the Gloxco fulfillment center. Stock items typically ship within 1 business day.

SKU: QBM-1212-FNPR Categories: Couplings & Fittings, Hydraulic Quick Release Couplers

Description
Additional information

Quick Release Coupling 3/4″ QBM-1212-FNPR

QD ISO B 3/4″ Male x 3/4″ FPT ARGUS ISO 7241-1 series “B” quick-release couplings are used for quick coupling and uncoupling of hydraulic lines. During the coupling action in zero or low-pressure ranges, valves that release or block the flow are automatically activated. The QA-ISO-B quick-release coupling, formed by the coupling plug and the coupling socket, is connected by pushing on a sleeve. This guarantees a flush connection between the two coupling halves.

*Interchange: 1233782, H6F6, 6KP31, HNV 34 NPT M, QBN1212FP, G94511-1212, 12MQPI-12FP, 6-KP31, IB19-M-12N, Q02111341A-12-12, H6-63 F6601-12, S101-6, 72N12-12F, QRC-IB-19-M-NF12-B-W3, M. IRB 34 NPT, TK6-31, DS6F6-S

*This interchange does not give 100% interchangeability with the part numbers listed, only compatibility.

Lead Time	1-2 Days
Brand	Alfagomma®
Quick Connect Type	Series B (ISO 7241-B)
Connection Size	3/4"
Connection Type	Male Plug x Female Threads
Fitting Material	Zinc Plated Carbon Steel
Fittings	3/4" Male Plug x 3/4" Female NPT
Working Pressure	2900 psi
Working Temperature	-4° F to +212° F
Cross Reference	1233782, 12MQPI-12FP, 6-KP31, 6KP31, 72N12-12F, DS6F6-S, F6601-12, G94511-1212, H6-63, H6F6, HNV 34 NPT M, IB19-M-12N, M. IRB 34 NPT, Q02111341A-12-12, QBN1212FP, QRC-IB-19-M-NF12-B-W3, S101-6, TK6-31
Product Type	Series B Hydraulic Quick Connect Fittings

3/4″ Hydraulic Quick Release Coupling, Series B, 3/4″ Male Plug x 3/4″ Female Threads, Galvanized Steel
