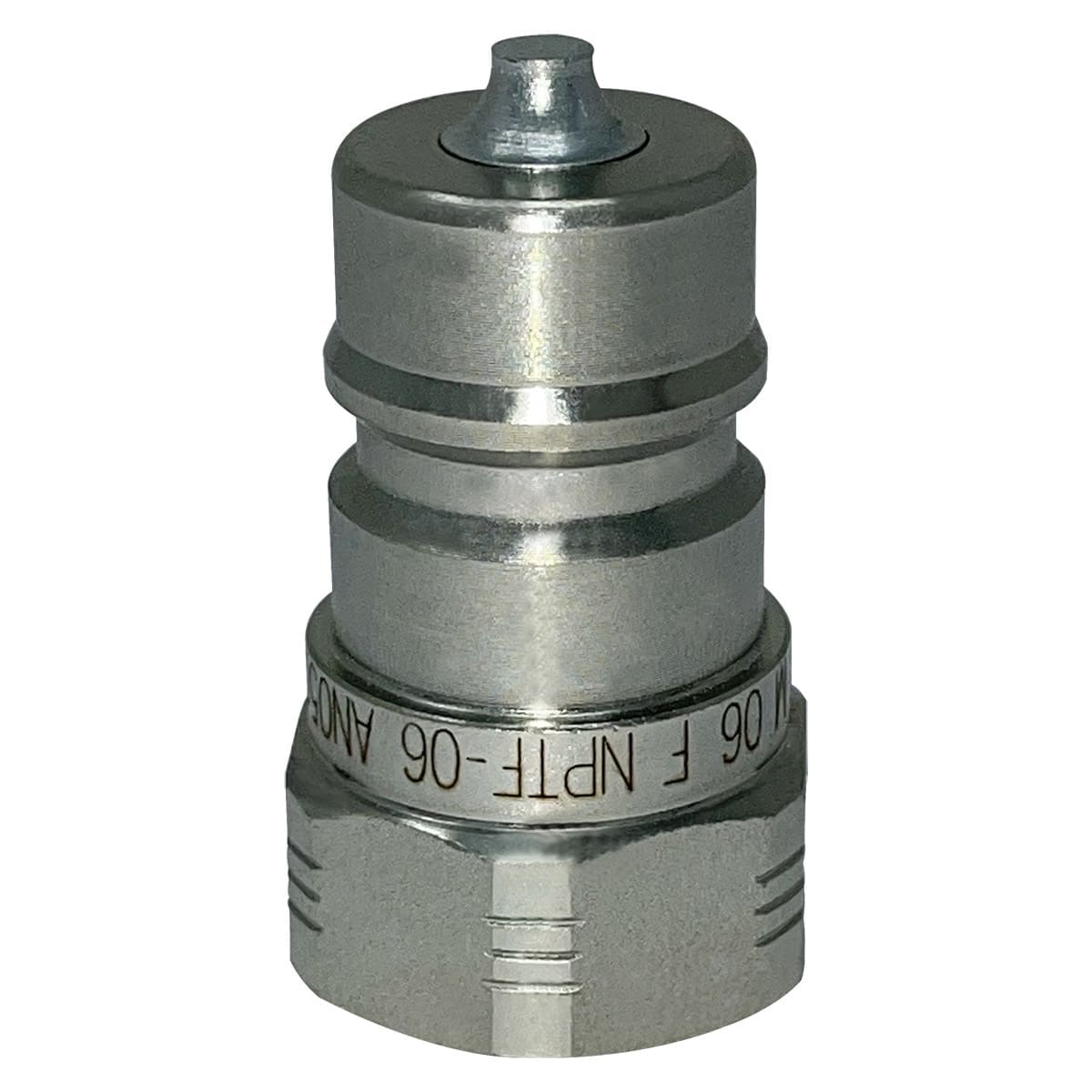

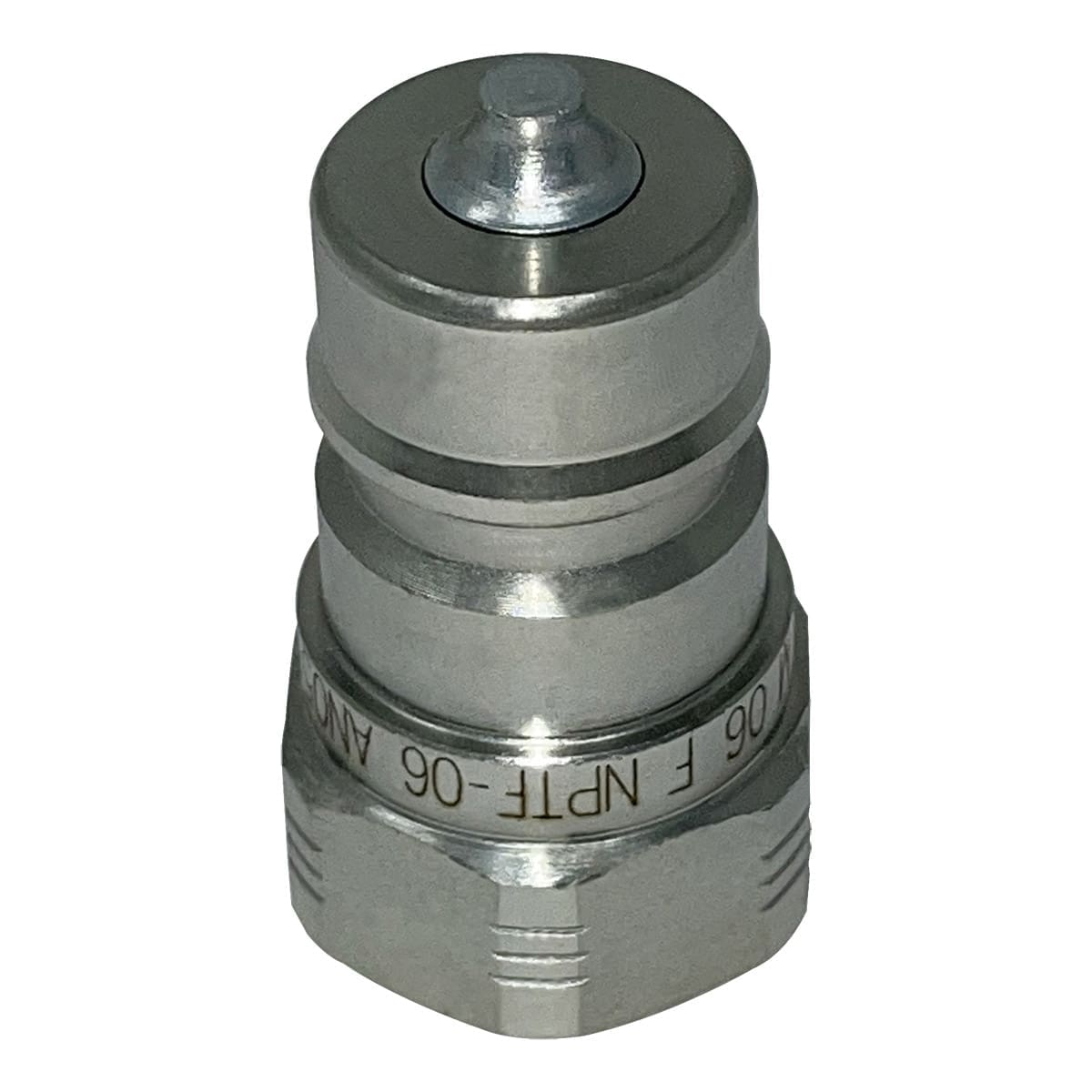

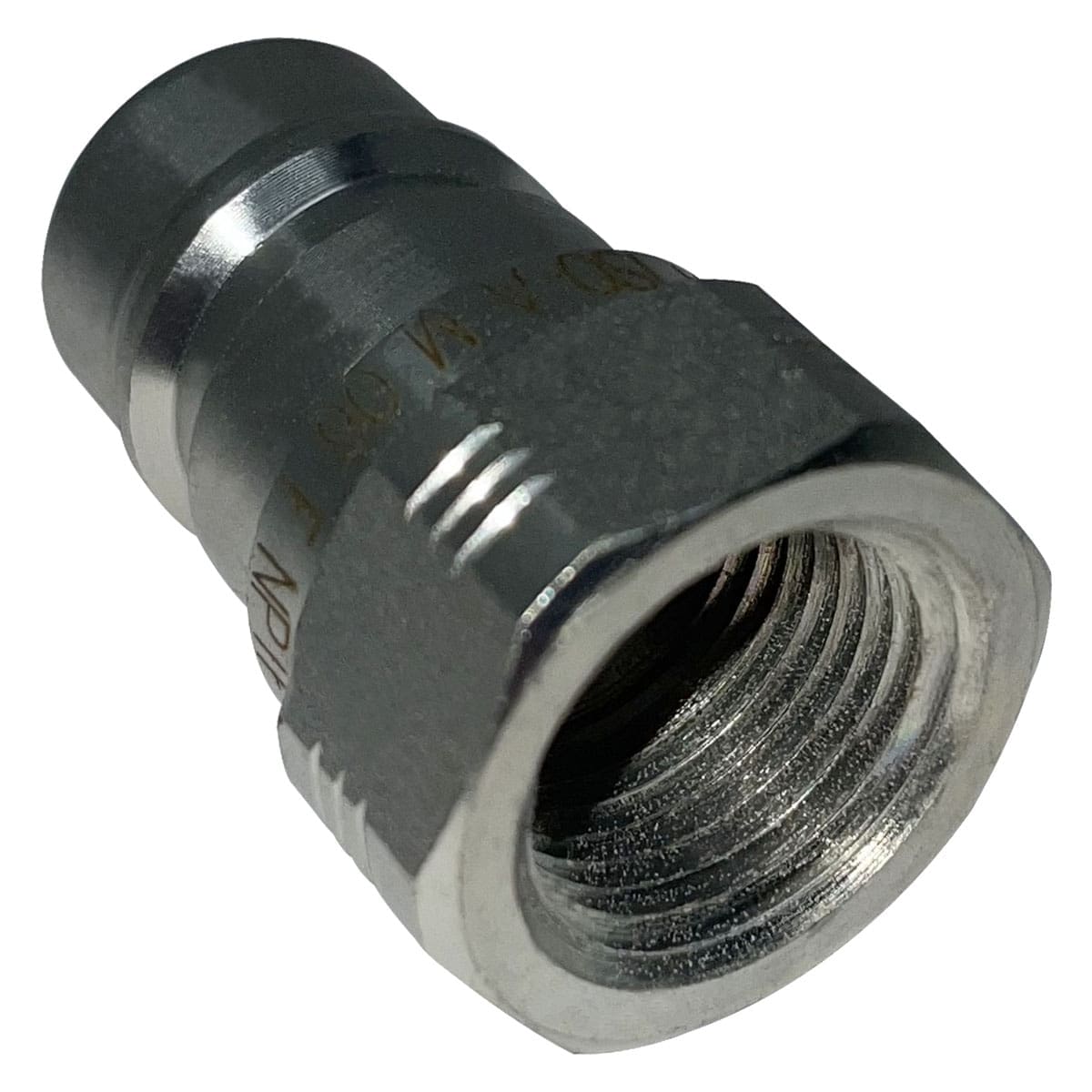

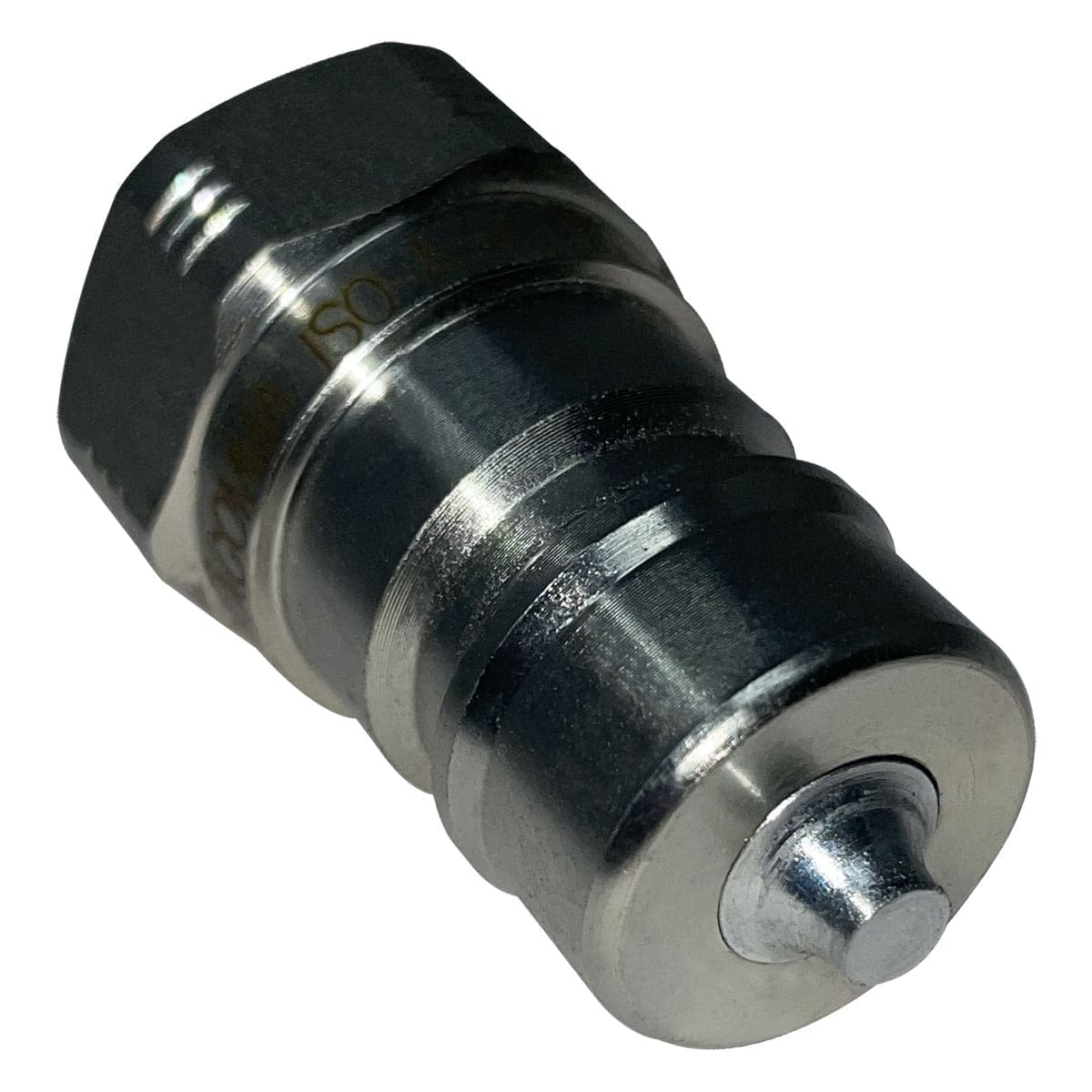

3/8″ Hydraulic Quick Release Coupling, Series A, 3/8″ Male Plug x 3/8″ Female Threads, Galvanized Steel

$5.85

Hydraulic Quick Release / Connect Coupler
ISO 7241 A Standard (Series “A”)
3/8″ Male Plug x 3/8″ Female Threads
5075 psi Working Pressure
Galvanized Steel Coupler

Stock Item: Available

This product ships from the Gloxco fulfillment center. Stock items typically ship within 1 business day.

SKU: QAM-0606-FNPR Categories: Couplings & Fittings, Quick Release Couplings

Description
Additional information

Quick Release Coupling 3/8″ QAM-0606-FNPR

QD ISO A 3/8″ Male x 3/8″ FPT ARGUS ISO 7241-1 series “A” quick-release couplings are used for quick coupling and uncoupling of hydraulic lines. During the coupling action in zero or low-pressure ranges, valves that release or block the flow are automatically activated. The QA-ISO-A quick-release coupling, formed by the coupling plug and the coupling socket, is connected by pushing on a sleeve. This guarantees a flush connection between the two coupling halves.

*Interchange: 1222492, K3F3, 5602-6-6S, NV 38 NPT M, QAN66FP, G95611-0606, 6MQP-6FP, HA 15222 00, IA10-M-06N, Q00211341A-06-06, 6602-6-6 6001-06, S561-3, 61N6-6F, QRC-IA-10-M-NF06-B-W3, M. BIR 38 NPT, PA5603-21, B-6657-6

*This interchange does not give 100% interchangeability with the part numbers listed, only compatibility.

Lead Time	1-2 Days
Brand	Alfagomma®
Quick Connect Type	Series A (ISO 7421-A)
Connection Size	3/8"
Connection Type	Male Plug x Female Threads
Fitting Material	Zinc Plated Carbon Steel
Fittings	3/8" Male Plug x 3/8" Female NPT
Working Pressure	5075 psi
Working Temperature	-4° F to +212° F
Product Type	Series A Hydraulic Quick Connect Fittings

3/8″ Hydraulic Quick Release Coupling, Series A, 3/8″ Male Plug x 3/8″ Female Threads, Galvanized Steel
