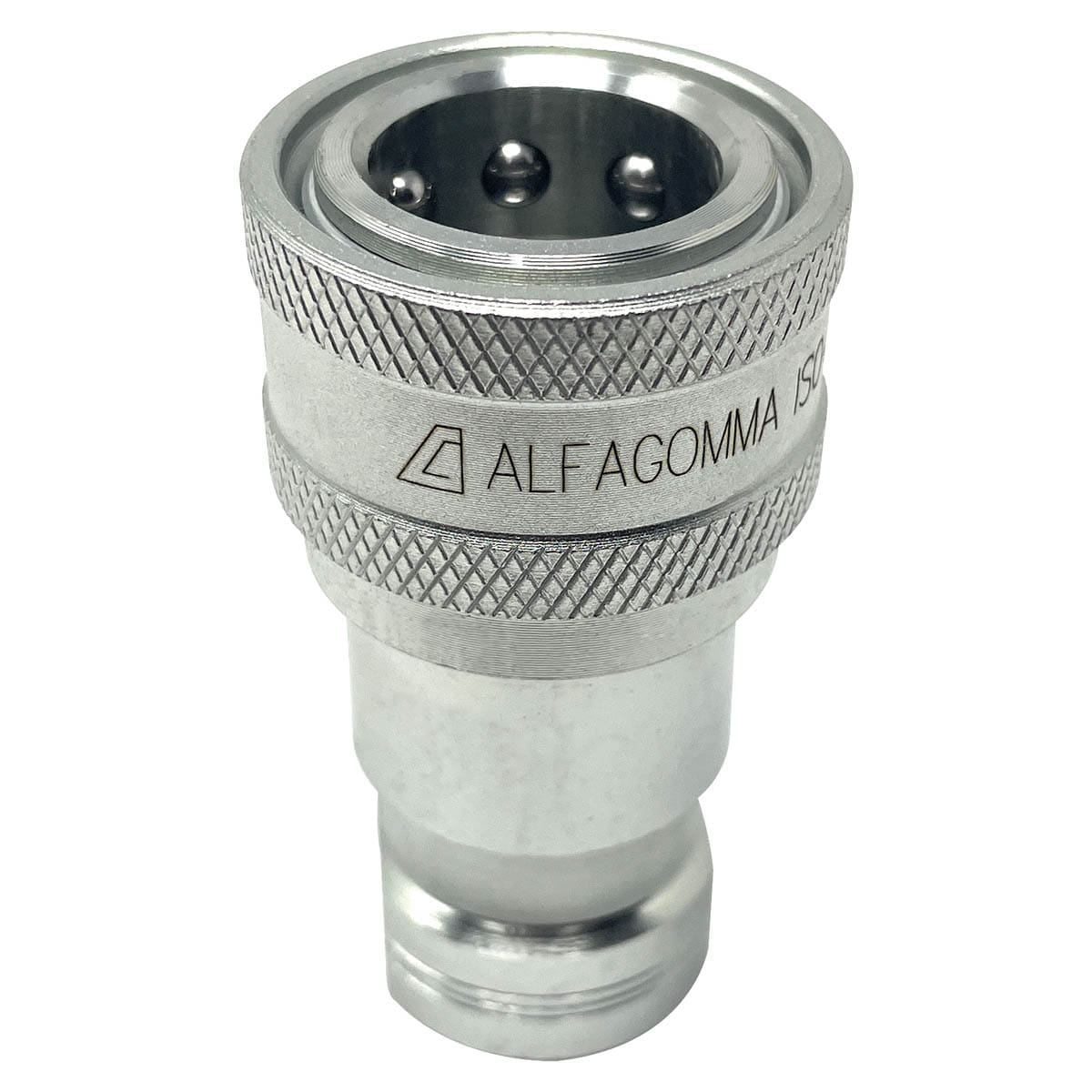

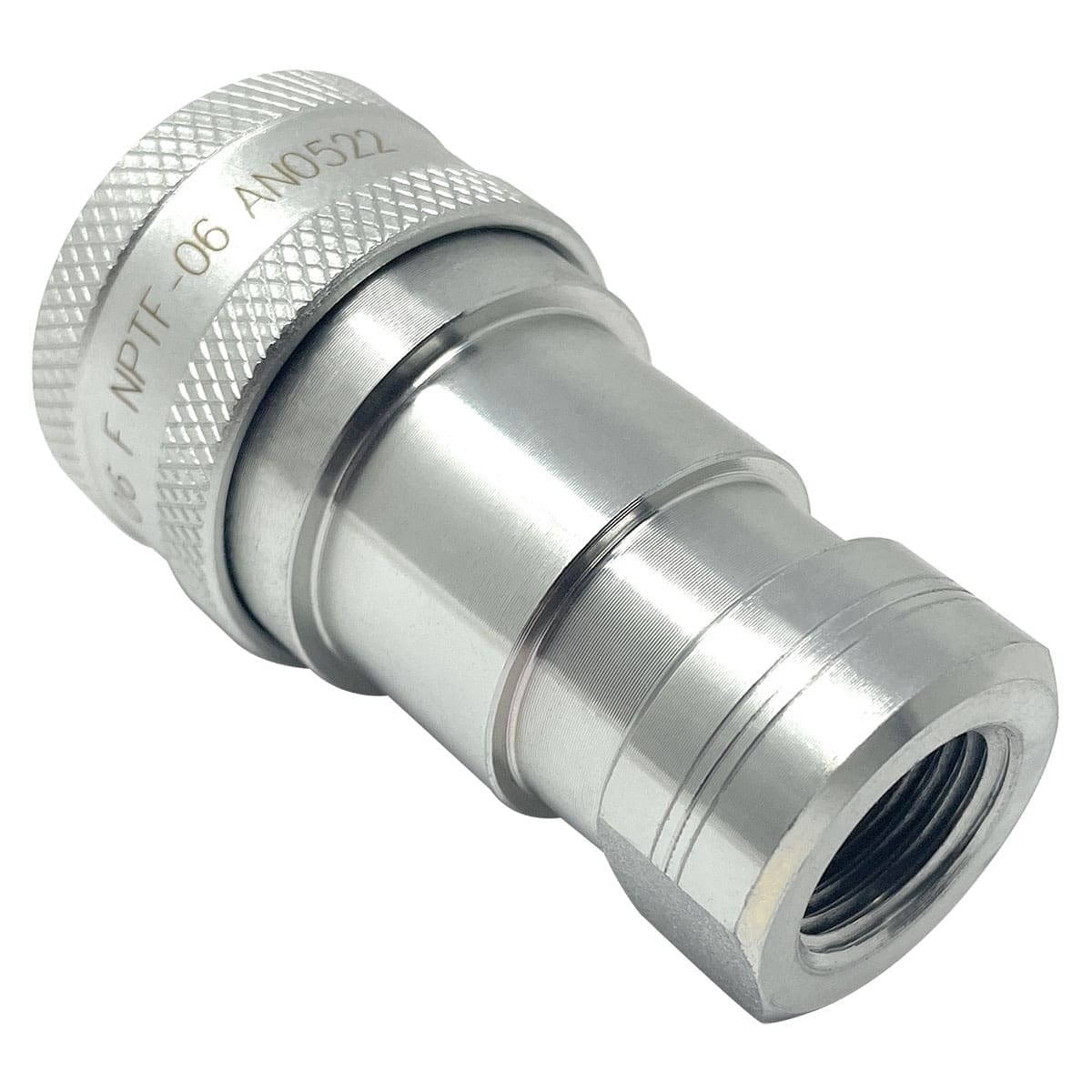

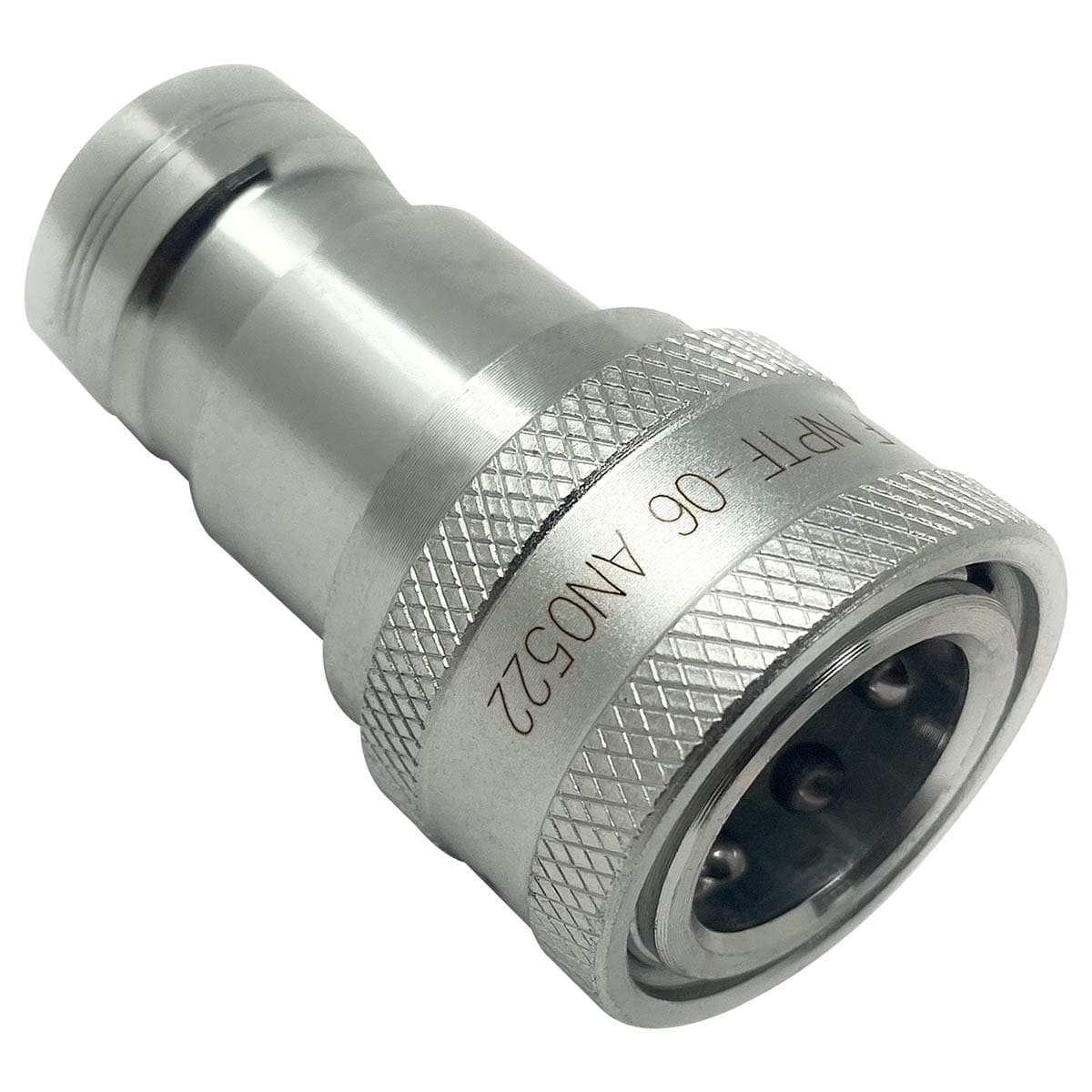

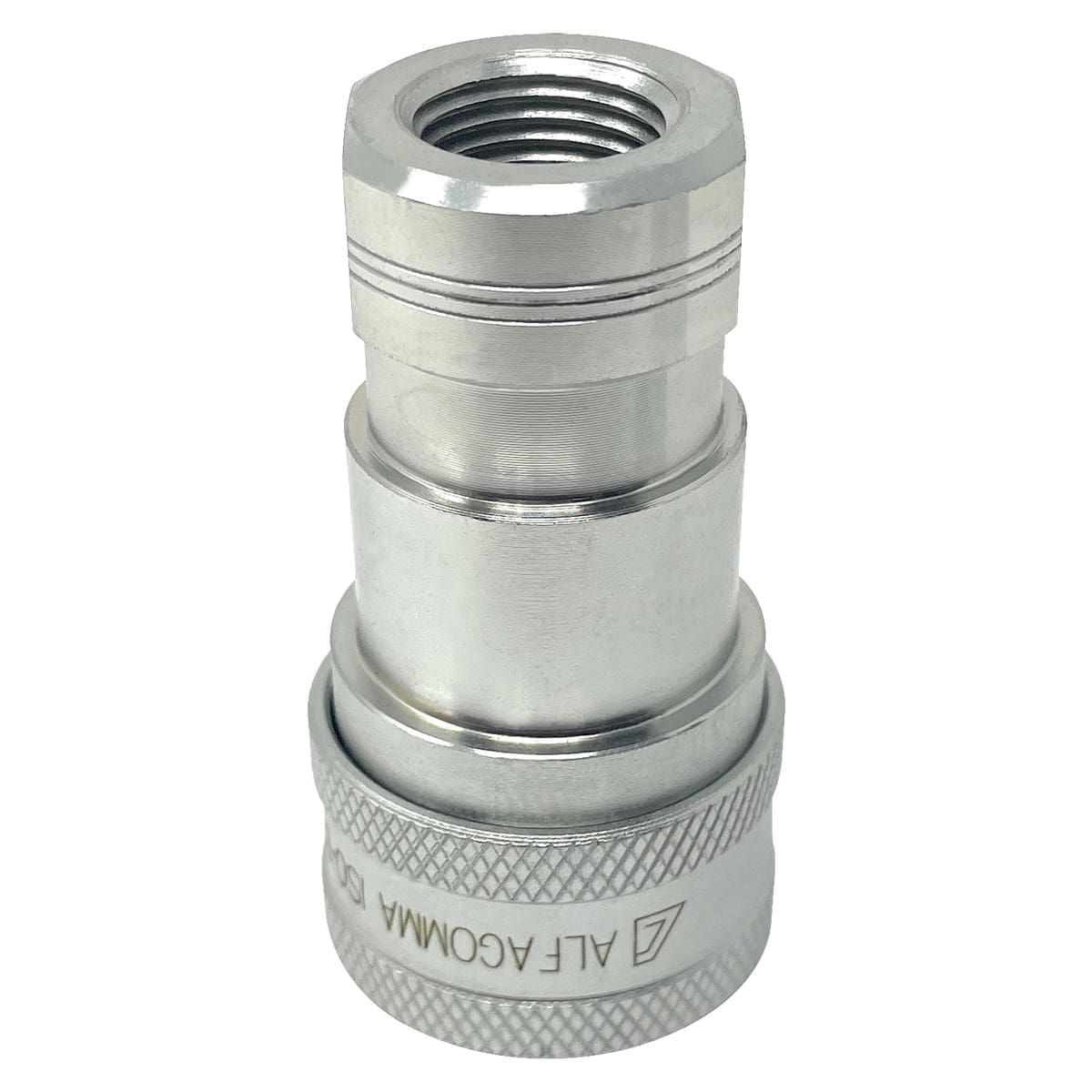

3/8″ Hydraulic Quick Release Coupling, Series B, 3/8″ Female Socket x 3/8″ Female Threads, Galvanized Steel

$15.56

Hydraulic Quick Release / Connect Coupler
ISO 7241 B Standard (Series “B”)
3/8″ Female Socket x 3/8″ Female Threads
4060 psi Working Pressure
Galvanized Steel Coupler with NBR O-Rings

Stock Item: Available

This product ships from the Gloxco fulfillment center. Stock items typically ship within 1 business day.

SKU: QBF-0606-FNPR Categories: Couplings & Fittings, Hydraulic Quick Release Couplers

Description
Additional information

Quick Release Coupling 3/8″ QBF-0606-FNPR

QD ISO B 3/8″ Male x 3/8″ FPT ARGUS ISO 7241-1 series “B” quick-release couplings are used for quick coupling and uncoupling of hydraulic lines. During the coupling action in zero or low-pressure ranges, valves that release or block the flow are automatically activated. The QA-ISO-B quick-release coupling, formed by the coupling plug and the coupling socket, is connected by pushing on a sleeve. This guarantees a flush connection between the two coupling halves.

*Interchange: 1233777, 3HF3, 3H21, HNV 38 NPT F, QBC66FP, G94521-0606, 6FQPI-6FP 3-H21, IB10-F-06N, Q02411341A-06-06, H3-62 F6602-06, S105-3, 72C6-6F, QRC-IB-10-F-NF06-BT-W3, F. IRB 38 NPT, TH3-21, 3DSF3-S

*This interchange does not give 100% interchangeability with the part numbers listed, only compatibility.

Lead Time	1-2 Days
Brand	Alfagomma®
Quick Connect Type	Series B (ISO 7241-B)
Connection Size	3/8"
Connection Type	Female Socket x Female Threads
Fitting Material	Zinc Plated Carbon Steel
Gasket Material	NBR
Fittings	3/8" Male Plug x 3/8" Female NPT
Working Pressure	4060 psi
Working Temperature	-4° F to +212° F
Cross Reference	1233777, 3-H21, 3DSF3-S, 3H21, 3HF3, 6FQPI-6FP, 72C6-6F, F. IRB 38 NPT, F6602-06, G94521-0606, H3-62, HNV 38 NPT F, IB10-F-06N, Q02411341A-06-06, QBC66FP, QRC-IB-10-F-NF06-BT-W3, S105-3, TH3-21
Product Type	Series B Hydraulic Quick Connect Fittings

3/8″ Hydraulic Quick Release Coupling, Series B, 3/8″ Female Socket x 3/8″ Female Threads, Galvanized Steel
