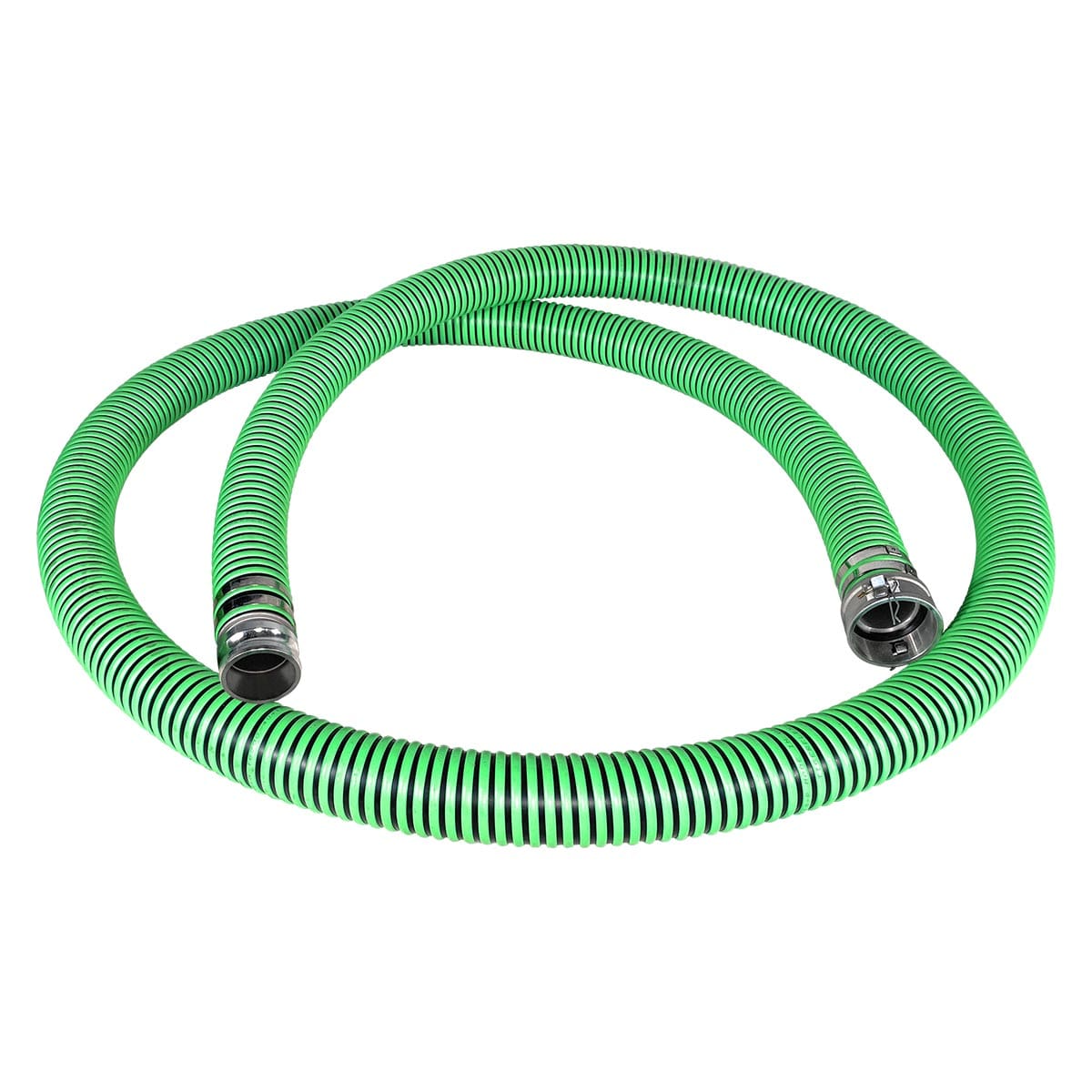

3″ Green EPDM Suction Hose Assembly, Male Camlock x Female Camlock, 45 PSI, 30′ Length
$247.80
- 3″ ID Suction Hose, 30 Ft Length
- Green EPDM Hose with Rigid Lime-Green Polyethylene Helix Reinforcement
- 3″ Male Camlock x 3″ Female Camlock
- Aluminum Cam and Groove Fittings, Installed with Hose Bands
- 45 PSI working pressure (at 68 deg Fahrenheit)
- Temperature Range: -40° F to +140° F
This EPDM suction hose is designed to meet all water hose specifications. It was especially designed for use in construction, mining, industrial & agricultural service.
The hose is made of flexible green EPDM and is reinforced by a rigid lime-green polyethylene helix. It has a working temperature range of -40° F to +140° F.
This is a hose assembly has an aluminum Type E male cam and groove fitting installed on one side and an aluminum Type C female cam and groove fitting installed on the other side. These assemblies are installed with hose bands.
| Weight | 38.2935 lbs |
|---|---|
| Dimensions | 48 × 48 × 15 in |
| Hose Type | Green EPDM Suction |
| Hose Fittings | Male Camlock x Female Camlock |
| Hose Length | 30' |
| Hose ID | 3" |
| Inside Diameter | 3" |
| Outside Diameter | 3.52" |
| Hose Cover | Green PVC/Black Rubber |
| Hose Tube | Black Thermoplastic Rubber |
| Hose Reinforcement | Rigid Lime-Green Polyethylene Helix |
| Working Pressure | 45 PSI |
| Working Temperature | -40° F to +140° F |
| Product Type | Green EPDM Suction Hose Assemblies |
