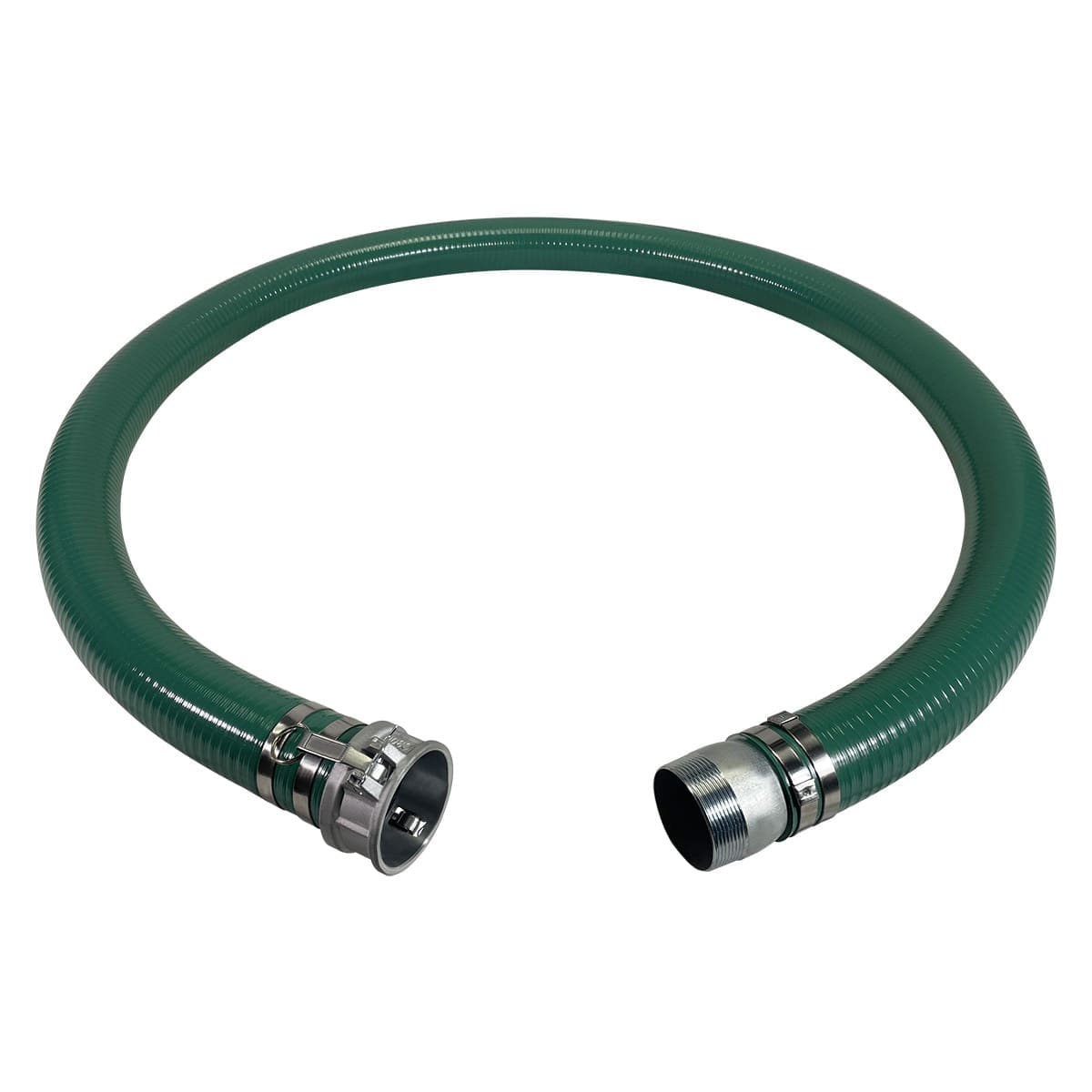

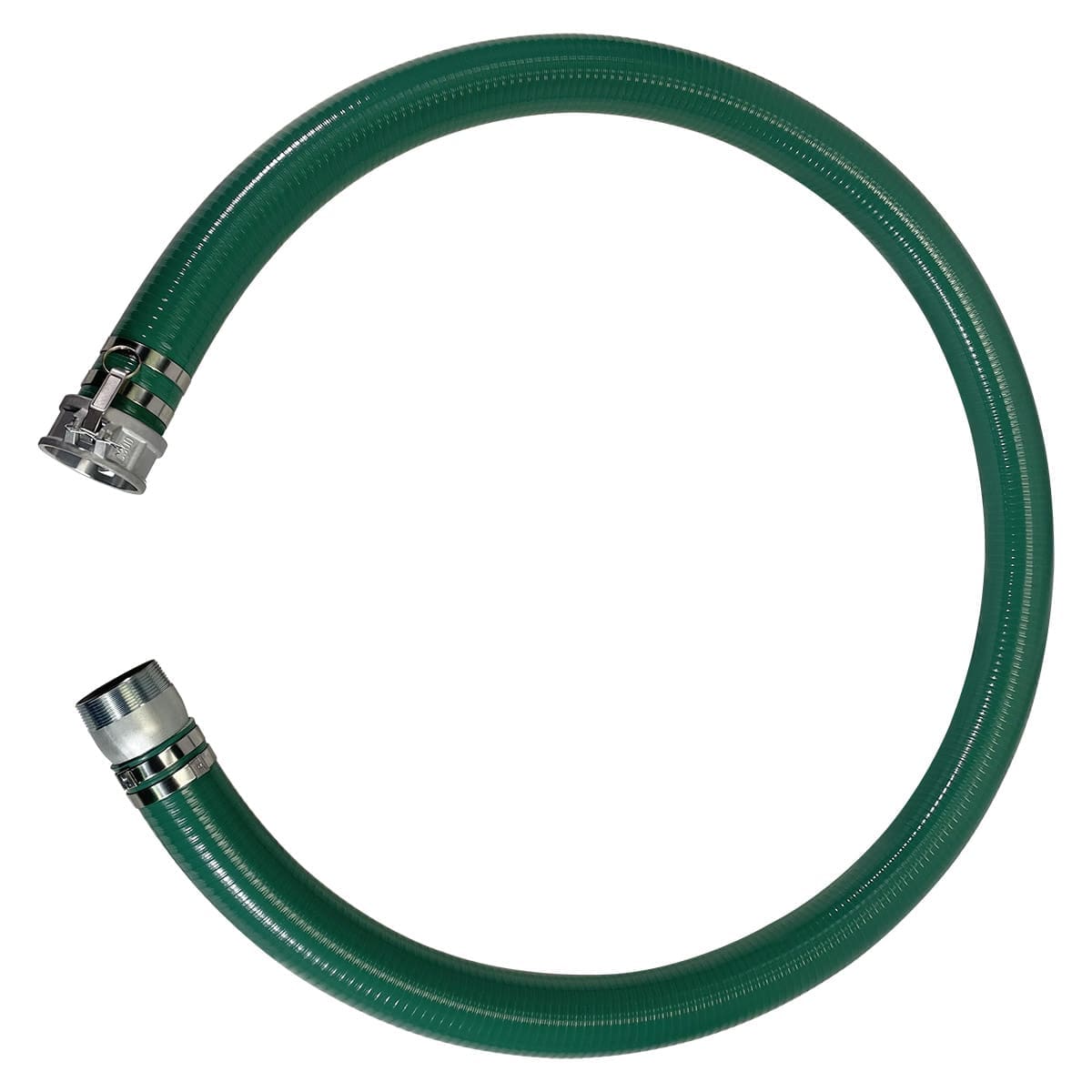

3″ Green PVC Suction Hose Assembly, Female Camlock x Male NPT KC Nipple, 75 PSI, 10′ Length
Original price was: $82.74.$57.92Current price is: $57.92.
- 3″ ID Suction Hose, 10 Ft Length
- Green PVC Hose with Rigid PVC Helix Reinforcement
- 3″ Male Camlock x 3″ Female Camlock
- Aluminum Cam and Groove Fittings, Installed with Hose Bands
- 75 PSI working pressure (at 68 deg Fahrenheit)
- Temperature Range: -14° F to +150° F
This PVC suction hose is designed to meet all water hose specifications. It was especially designed for use in construction, mining, industrial & agricultural service.
The hose is made of flexible green PVC and is reinforced by a rigid white PVC helix. It has a working temperature range of -14° F to +150° F.
This is a hose assembly has an plated steel male NPT KC Nipple installed on one side and an aluminum Type C female cam and groove fitting installed on the other side. These assemblies are installed with hose bands.
| Weight | 14.826 lbs |
|---|---|
| Dimensions | 36 × 36 × 10 in |
| Hose Type | Green PVC Suction |
| Hose Fittings | Male NPT KC Nipple x Female Camlock |
| Hose Length | 10' |
| Hose ID | 3" |
| Inside Diameter | 3" |
| Outside Diameter | 3.35" |
| Hose Cover | Green PVC |
| Hose Tube | Green PVC |
| Hose Reinforcement | Rigid White PVC Helix |
| Working Pressure | 75 PSI |
| Working Temperature | -14° F to +150° F |
| Product Type | Green PVC Suction Hose Assemblies |
