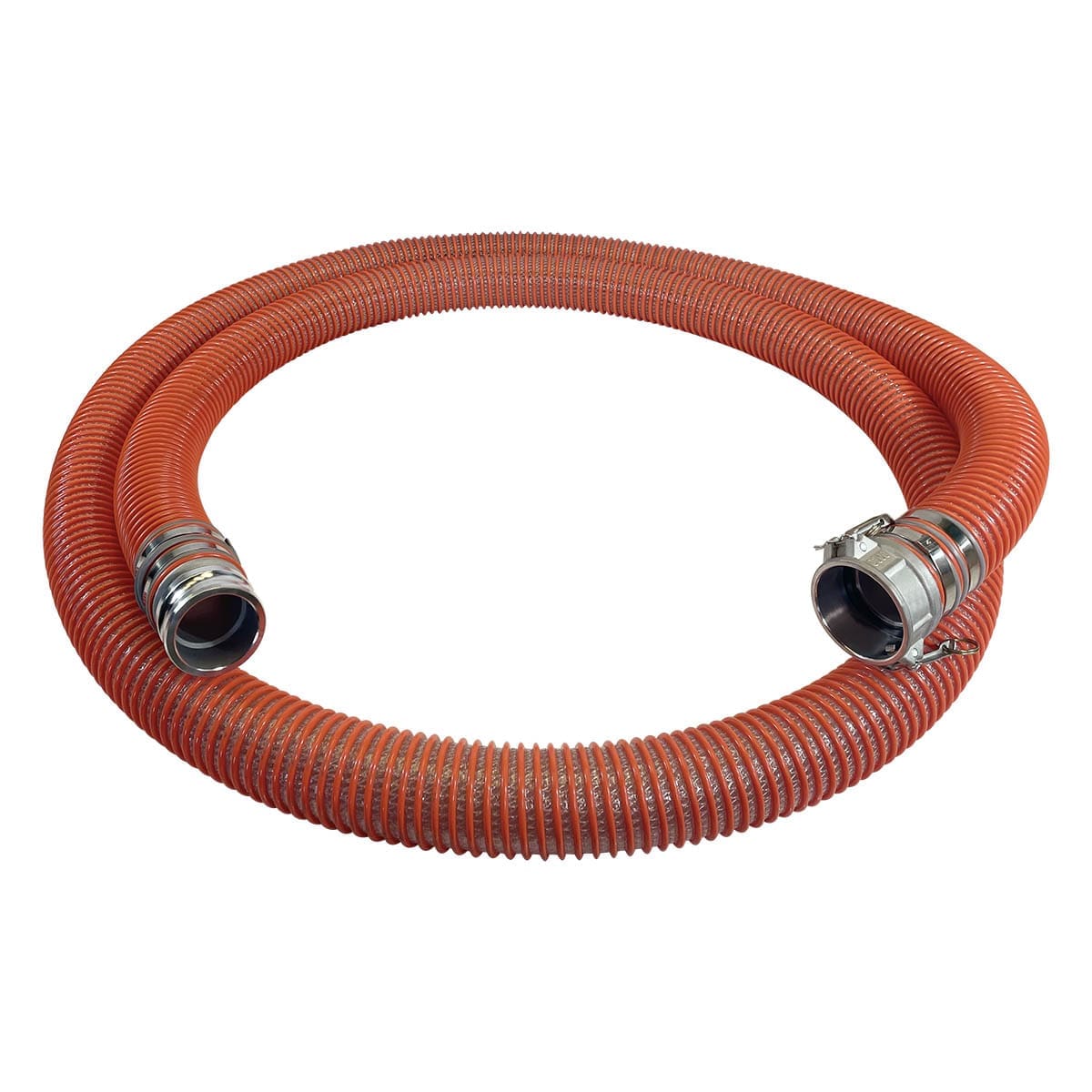

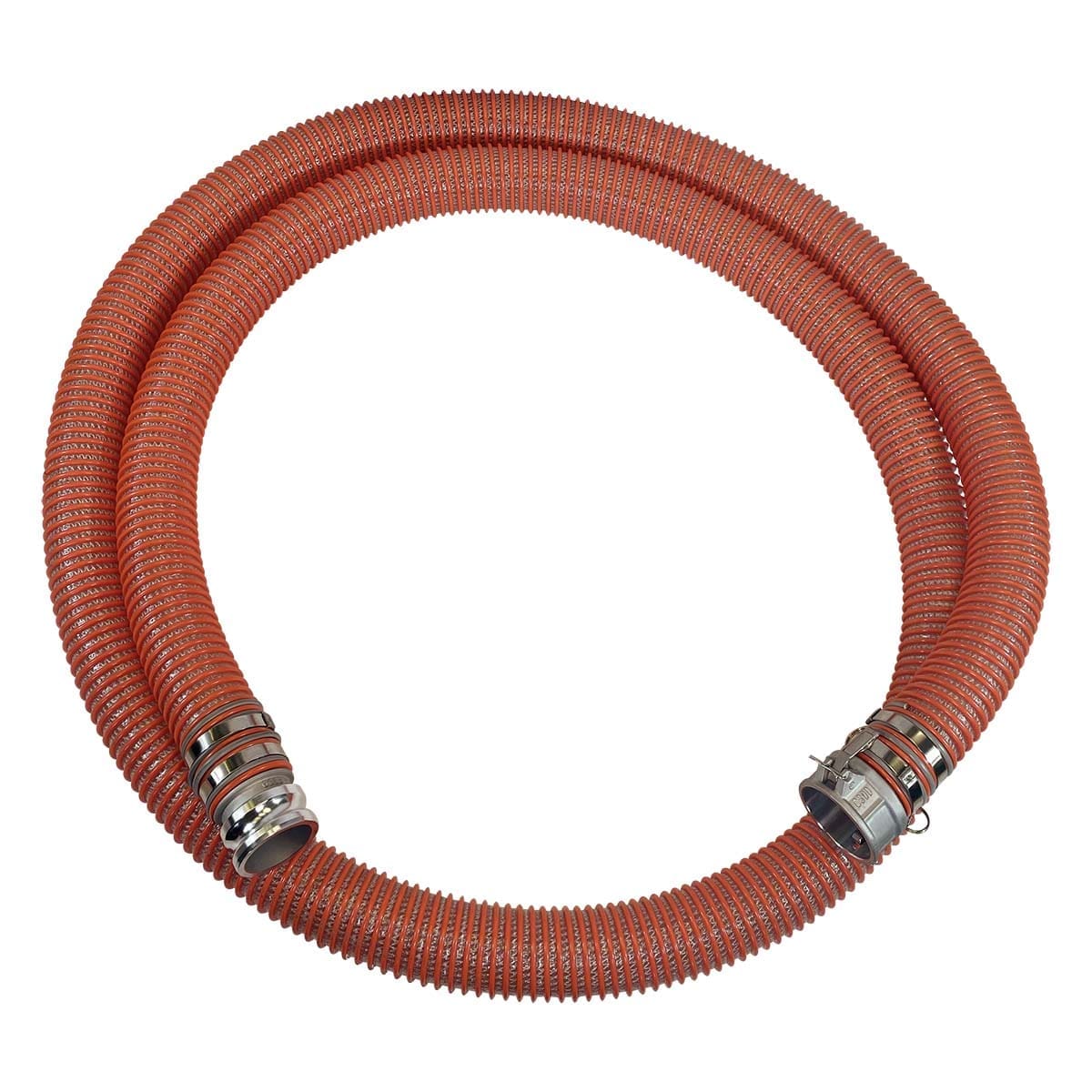

3″ Heavy Duty PVC Suction Hose Assembly, Orange/Clear, Male Camlock x Female Camlock, 100 PSI, 20′ Length
$186.49
- 3″ ID Heavy Duty PVC Suction Hose, 20 Ft Length
- Clear PVC Hose with Sturdy Clockwise Orange PVC Helix Reinforcement
- 3″ Male Camlock x 3″ Female Camlock
- Aluminum Cam and Groove Fittings, Installed with Hose Bands
- 100 PSI working pressure (at 68 deg Fahrenheit)
- Temperature Range: -13° F to +140° F
This heavy duty PVC suction hose is designed to meet all water hose specifications. It was especially designed for use in construction, mining, industrial & agricultural service. It is also use in fish suction and transfer.
The hose is made of flexible clear PVC and is reinforced by a sturdy clockwise orange PVC helix with high tensile strength polyester yarn. It has a working temperature range of -13° F to +140° F.

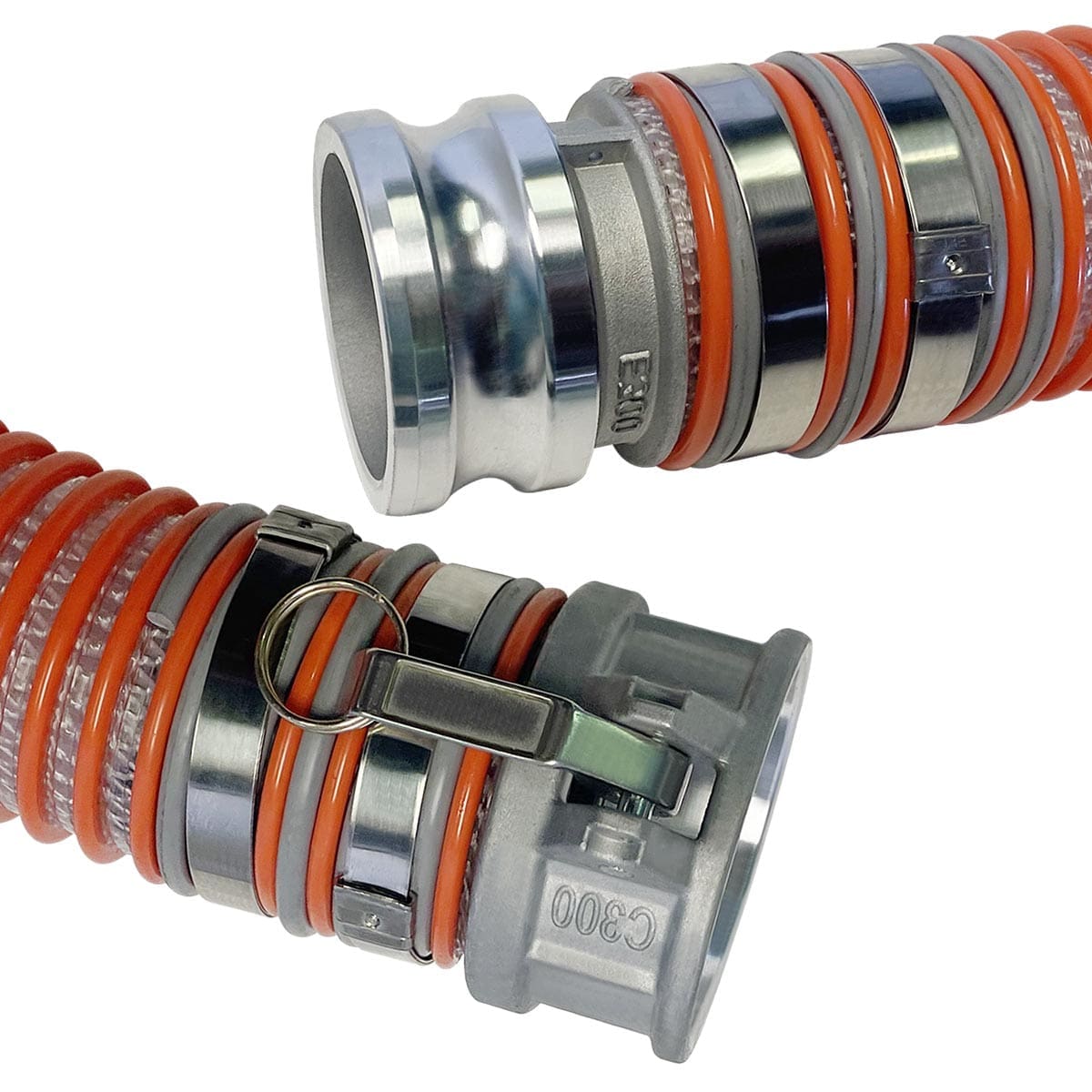

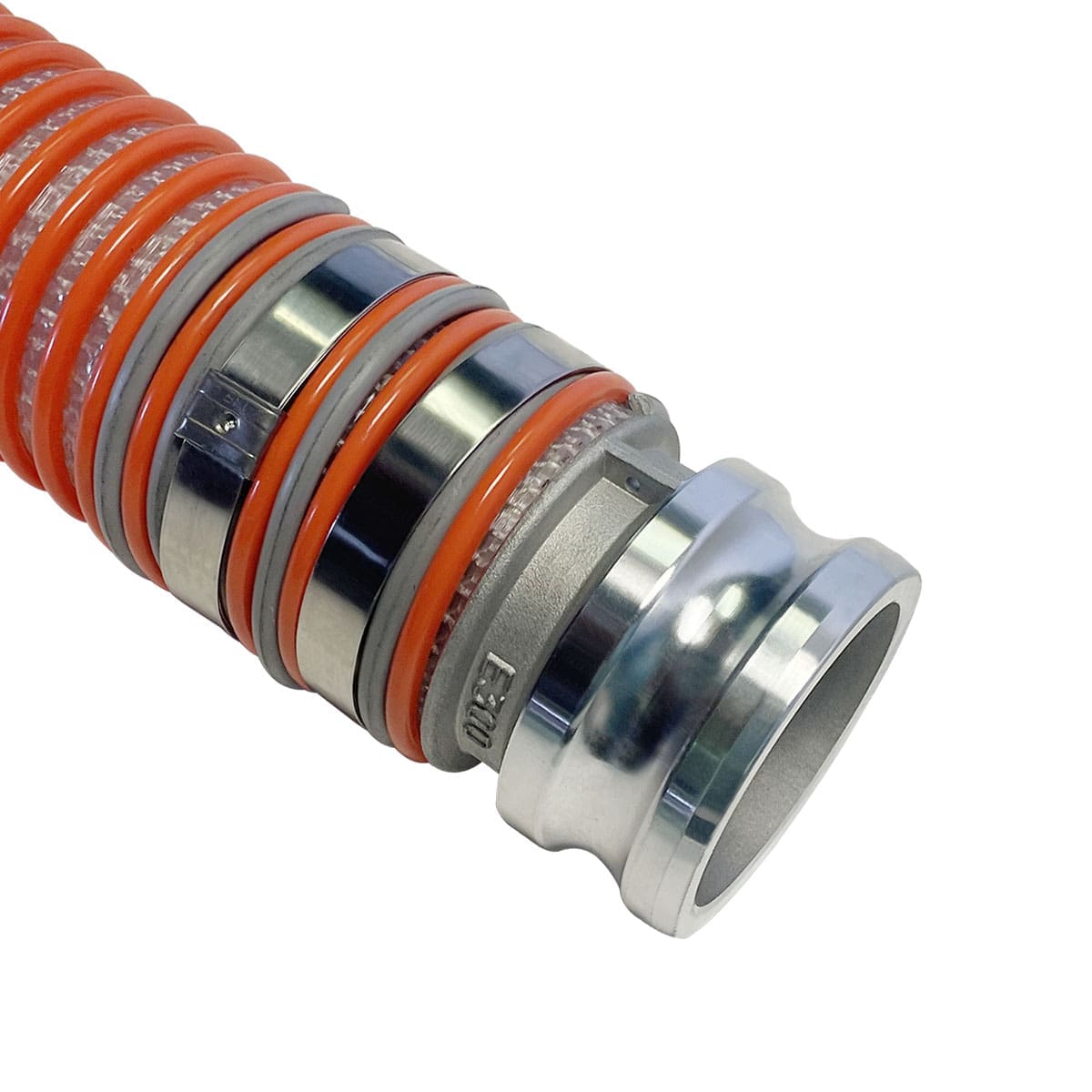

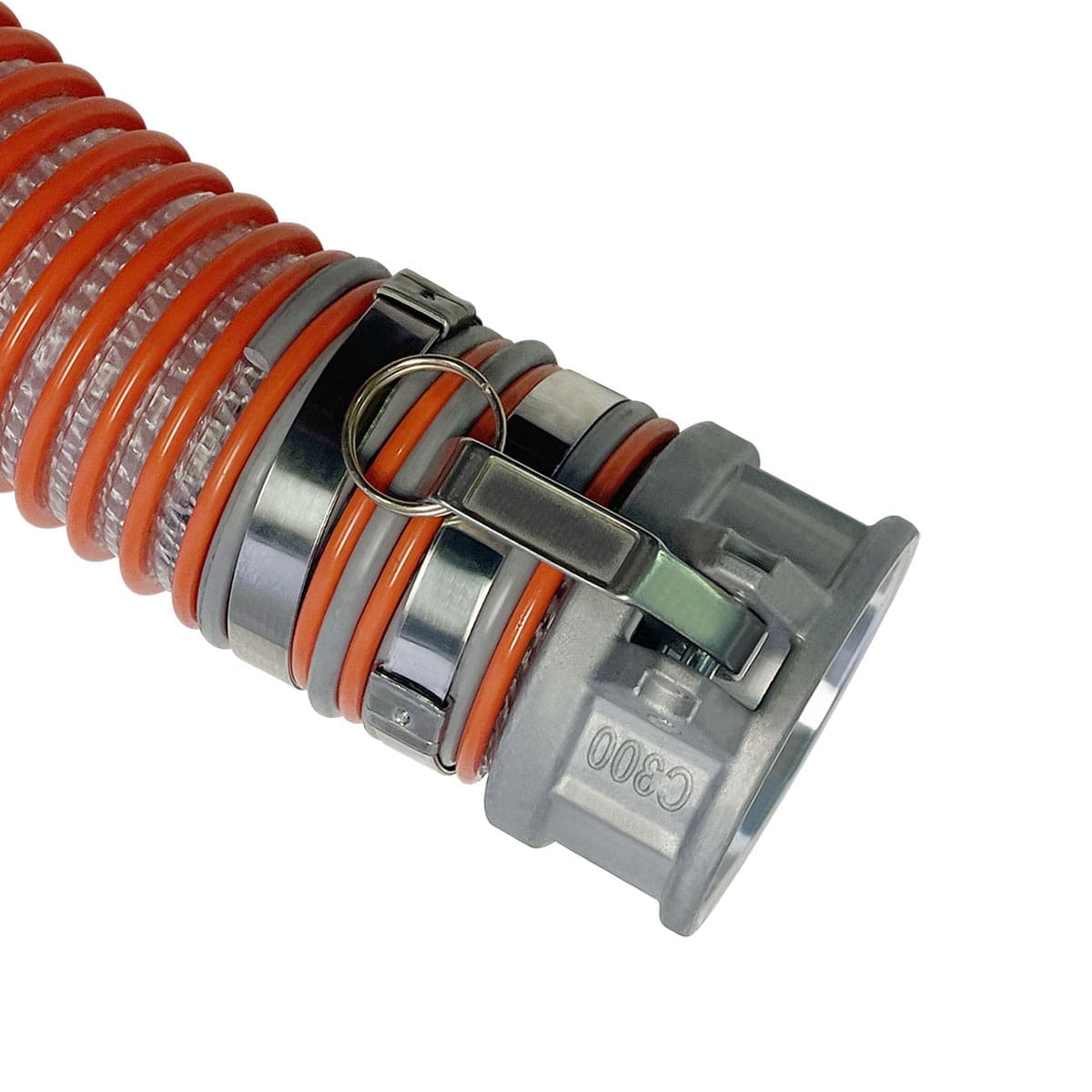

This is a hose assembly has an aluminum Type E male cam and groove fitting installed on one side and an aluminum Type C female cam and groove fitting installed on the other side. These assemblies are installed with hose bands.
| Weight | 27.3735 lbs |
|---|---|
| Dimensions | 36 × 36 × 10 in |
| Hose Type | Orange/Clear PVC Suction |
| Hose Fittings | Male Camlock x Female Camlock |
| Hose Length | 20' |
| Hose ID | 3" |
| Inside Diameter | 3" |
| Outside Diameter | 3.70" |
| Hose Cover | Orange/Clear PVC |
| Hose Tube | Clear PVC |
| Hose Reinforcement | Sturdy Clockwise Orange PVC Helix |
| Working Pressure | 100 PSI |
| Working Temperature | -13° F to +140° F |
| Product Type | Heavy Duty PVC Suction Hose Assemblies |
