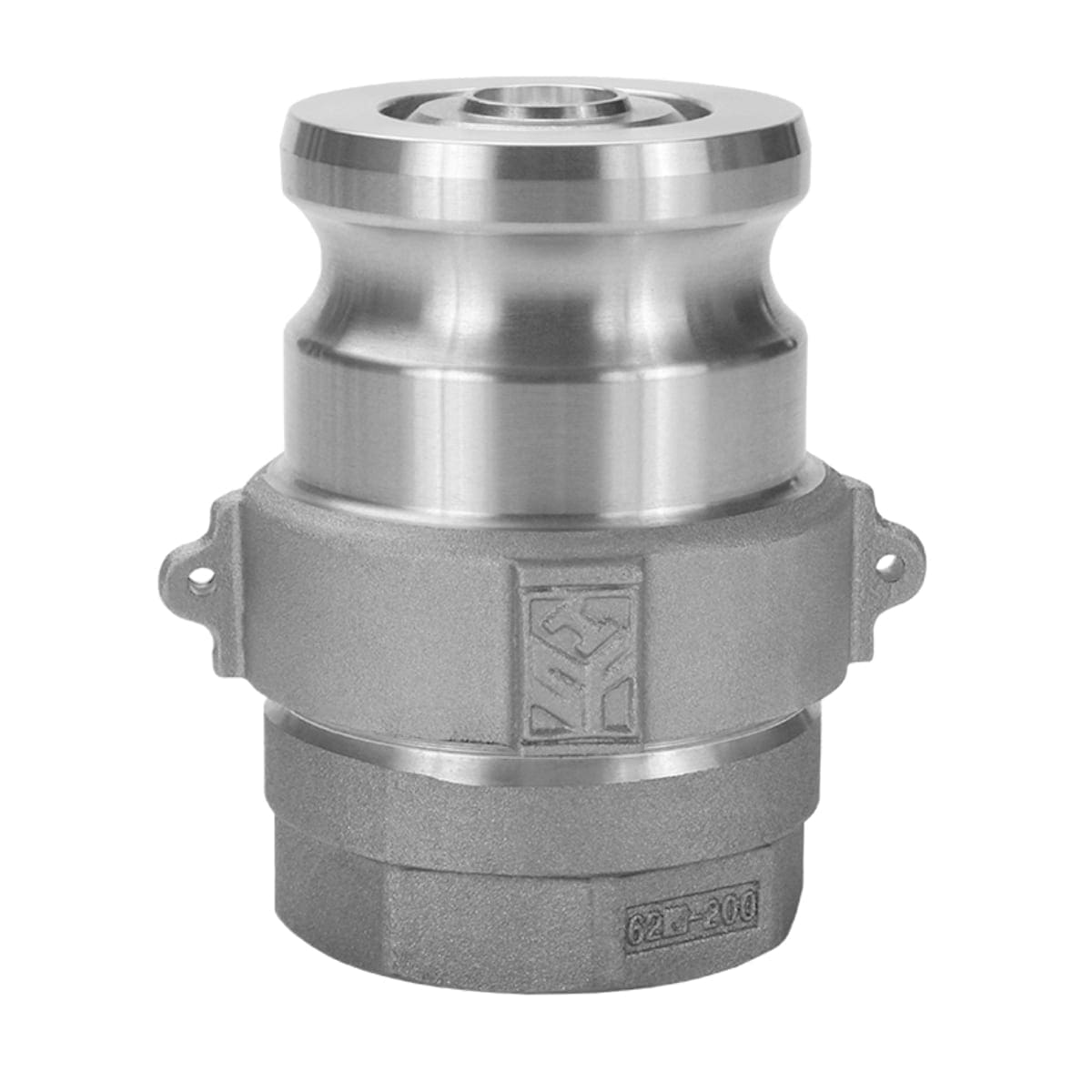

316 Stainless Steel Viton (FKM) Dry Disconnect Adapter, 2″ Male Adapter x 1.5″ Female NPT

$147.26

2″ Male Adapter x 1.5″ Female NPT
150 PSI
316 Stainless Steel Construction
Viton (Fluorocarbon FKM) seals
Compatible to DBA72-150, 672A-150

Factory Direct Item

This product ships direct from our manufacturer. Lead times may vary. Please contact customer service for availablitiy.

SKU: 672A-150 Categories: Dry Disconnect Adapters, Dry Disconnect Fittings

Description
Additional information

This is a male dry disconnect adapter that attaches to female dry disconnect couplers. Dry disconnect couplers (dry break couplers) help prevent spillage from accidental or normal disconnects using a spring loaded sealing device, minimizing product loss and operator exposure.

This adapter has a 2″ male dry disconnect adapter on one side and a 1.5″ female NPT on the other.

The adapter uses Viton (Fluorocarbon FKM) rubber seals, which has both a high temperature resistance and a high chemical resistance. Viton seals are a popular choice in automotive, chemical processing, oil & gas, heavy duty machinery, and aerospace industries.

Weight	3.48 lbs
Dimensions	3 × 3 × 5 in
Product Type	Dry Disconnect
Connection Type	Dry Disconnect Adapter x Female NPT
Fittings	2" Male Adapter x 1.5" Female NPT
Cross Reference	672A-150, DBA72-150
Working Pressure	150 PSI
Adapter Material	316 Stainless Steel
Adapter Seat	Viton (Fluorocarbon FKM)
Lead Time	Ships in 1-2 Business Days
