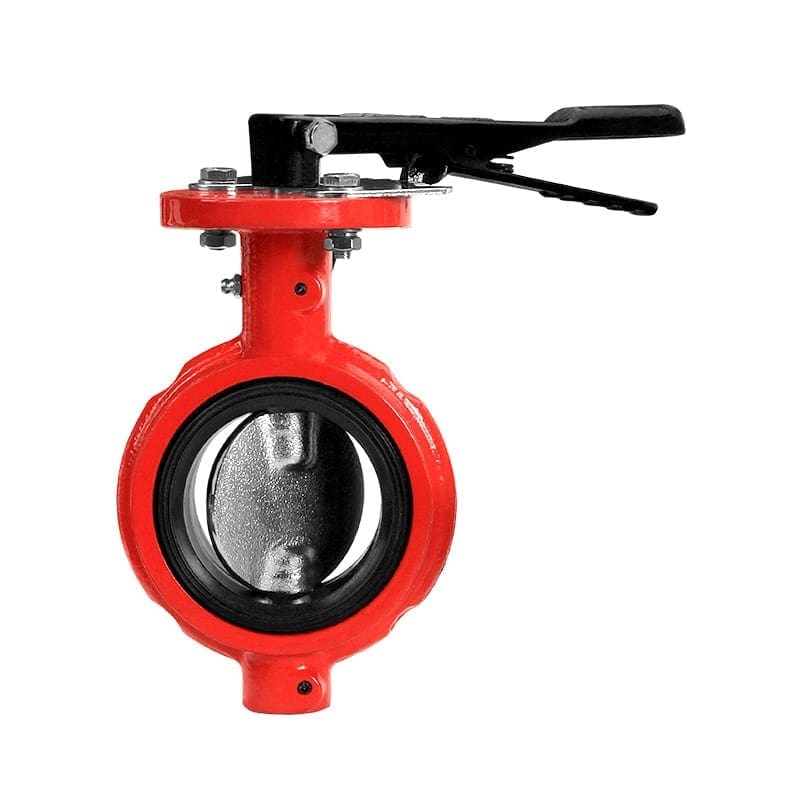

6″ Ductile Iron Butterfly Valve, Short Neck, Notched Body, Stainless Steel Disk (BFV-600SN-SS)

$503.21

Wafer Style Butterfly Valve with Manual Lever Handle
Ductile Iron Body, Stainless Steel Disk
6″ Pipe Size
200 psi max, 200 WOG/CWP
Short Neck, Notched Body

Factory Direct Item

This product ships direct from our manufacturer. Lead times may vary. Please contact customer service for availablitiy.

SKU: BFV-600SN-SS Categories: Butterfly Valves, Valves & Gauges

Description
Additional information

This butterfly valve has a wafer style design for a seal against two way pressure to prevent backflow in single direction systems. It is made of ductile iron for compressive strength and more flexible and elastic that cast iron, Buna N Seat provides high tensile strength and resistant to oil, fuel, and other chemicals. Lever handle for manual flow control. Maximum pressure of 200 pounds per square inch (psi). Upper temperature range of 150 degrees Fahrenheit. Flanged connection surrounds the body for bolting to pipe flanges.

This butterfly valves includes a 10 position locking handle and a grease fitting.

Weight	19.32 lbs
Dimensions	14 × 10 × 3 in
Valve Type	Butterfly Valve
Connection Size	6"
Valve Material	Ductile Iron
Disk Material	316 Stainless Steel Ductile Iron
Valve Seat	Buna
Valve Working Pressure	200 PSI (WOG/CWP)
Valve Features	Grease Fitting, Locking Handle, Notched Body, Short Neck
Pipe Size	6"
Unit of Measure	Each
Lead Time	Ships in 1-2 Business Days
Product Type	Butterfly Valves
