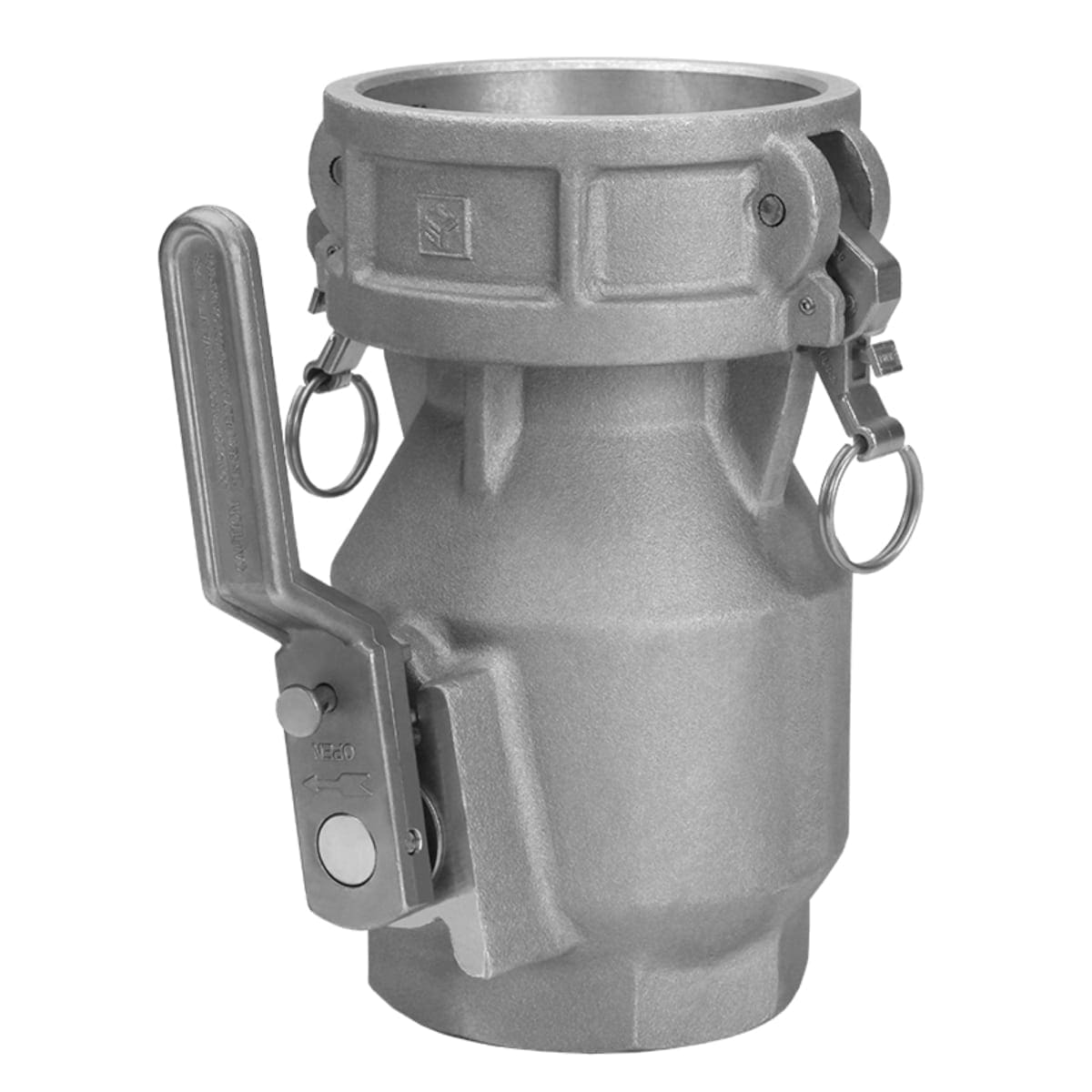

Aluminum PTFE Dry Disconnect Coupler, 2″ Female Coupler x 1.5″ Female NPT

$517.48

2″ Female Coupler x 1.5″ Female NPT
Stainless Steel Self Locking Handles
150 PSI
Aluminum Body: Corrosion and abrasion Resistant, Light Weight
PTFE Encapsulated Seals
Compatible to DBC63-150, 763D-150

Stock Item: Backordered

This stock item is currently backorderd. Please contact customer service for estimated restock date.

SKU: 763D-150 Category: Dry Disconnect Couplers

Description
Additional information

This is a female dry disconnect coupler that attaches to male dry disconnect adapters. Dry disconnect couplers (dry break couplers) help prevent spillage from accidental or normal disconnects using a spring loaded sealing device, minimizing product loss and operator exposure.

This coupler has a 2″ female dry disconnect coupler on one side and a 1.5″ female NPT on the other.

The coupler uses PTFE Encapsulated rubber seals, which is made up of PTFE and silicone. As a result, these seals are recommended for highly oxidizing fluids, esters, ketones, and other liquids not generally handled by natural and synthetic rubbers.

Weight	4.2 lbs
Dimensions	5 × 4 × 5 in
Product Type	Dry Disconnect
Connection Type	Dry Disconnect Coupler x Female NPT
Coupler Material	Aluminum
Fittings	2" Female Coupler x 1.5" Female NPT
Cross Reference	763D-150, DBC63-150
Working Pressure	150 PSI
Coupler Seat	PTFE Encapsulated
Lead Time	Ships in 1-2 Business Days

Aluminum PTFE Dry Disconnect Coupler, 2″ Female Coupler x 1.5″ Female NPT
