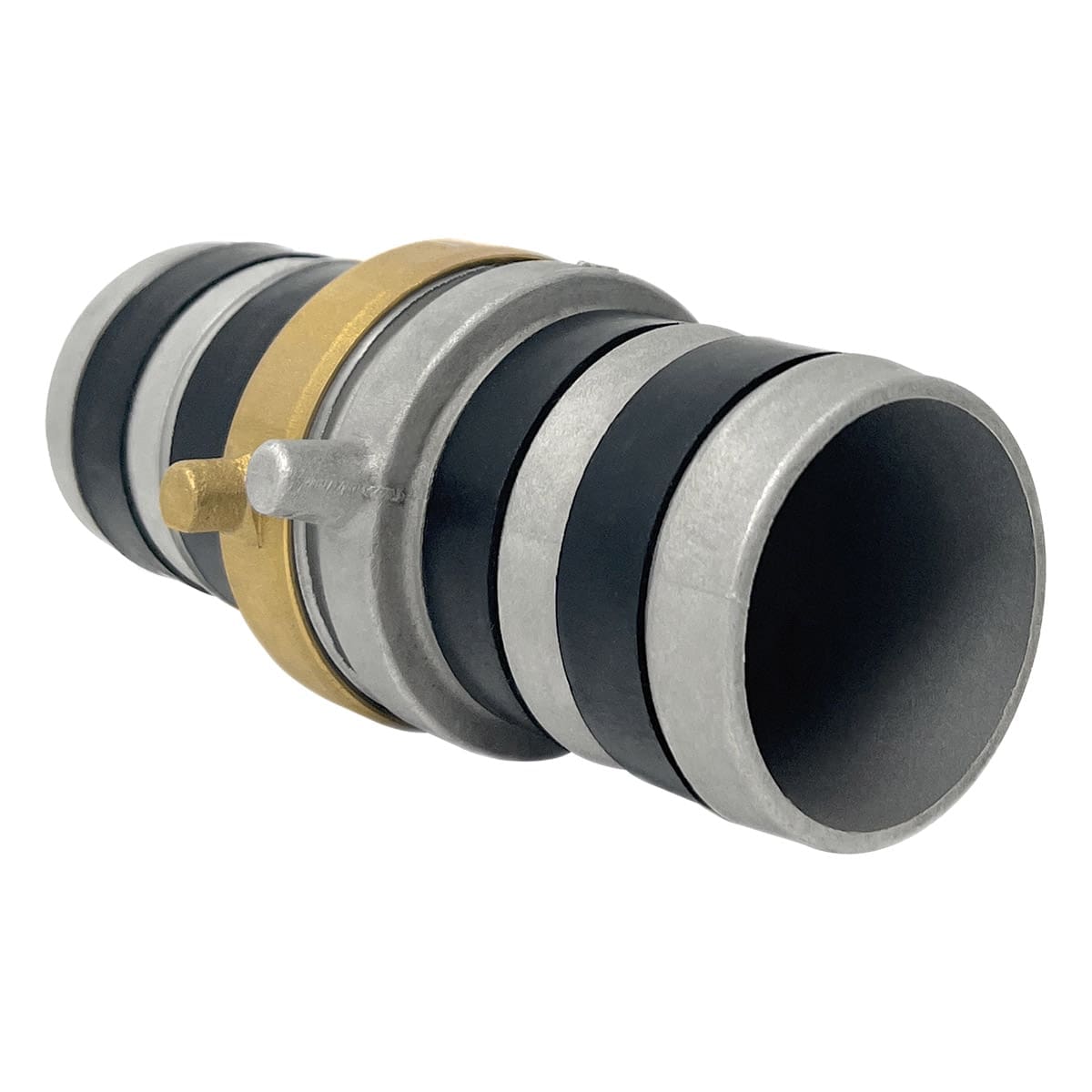

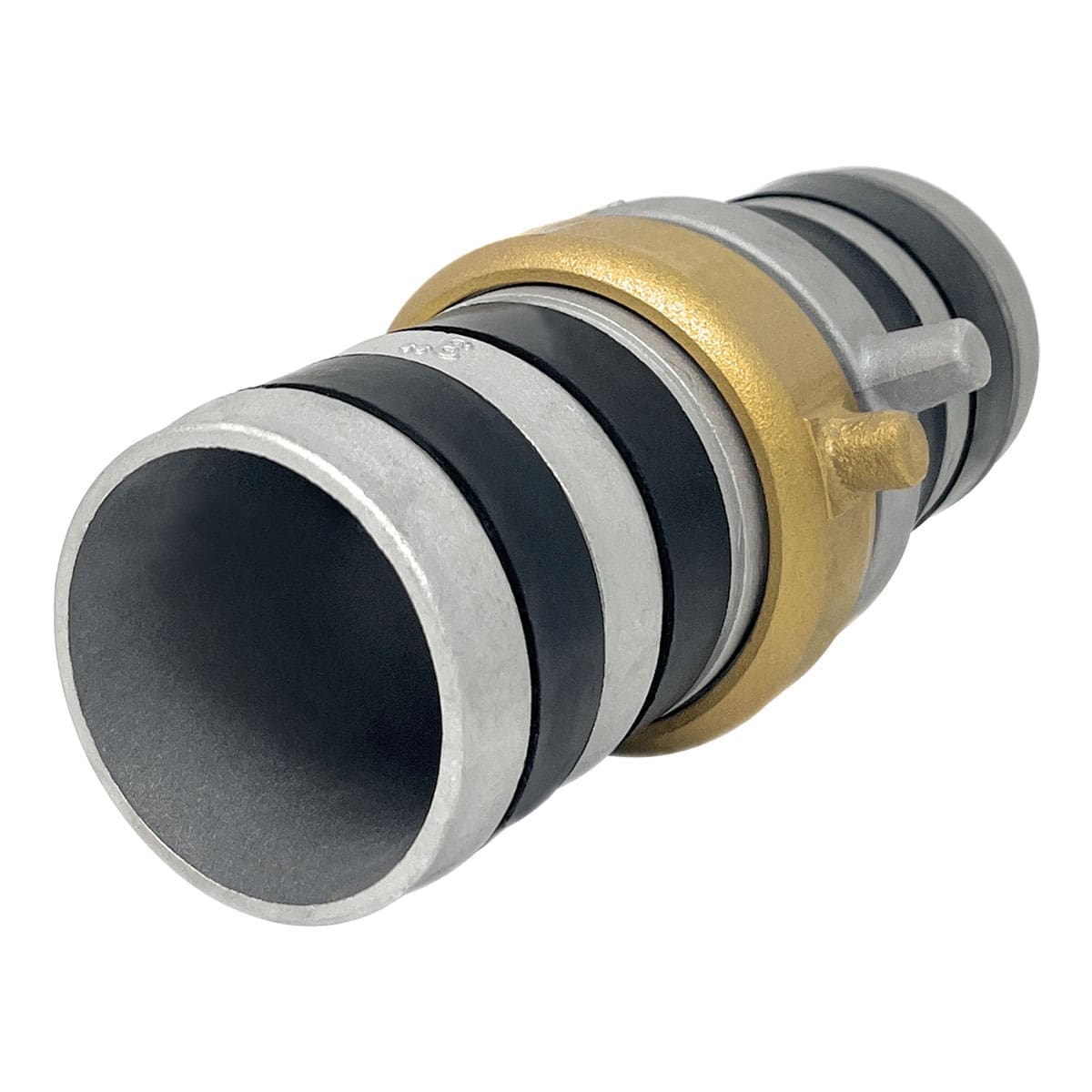

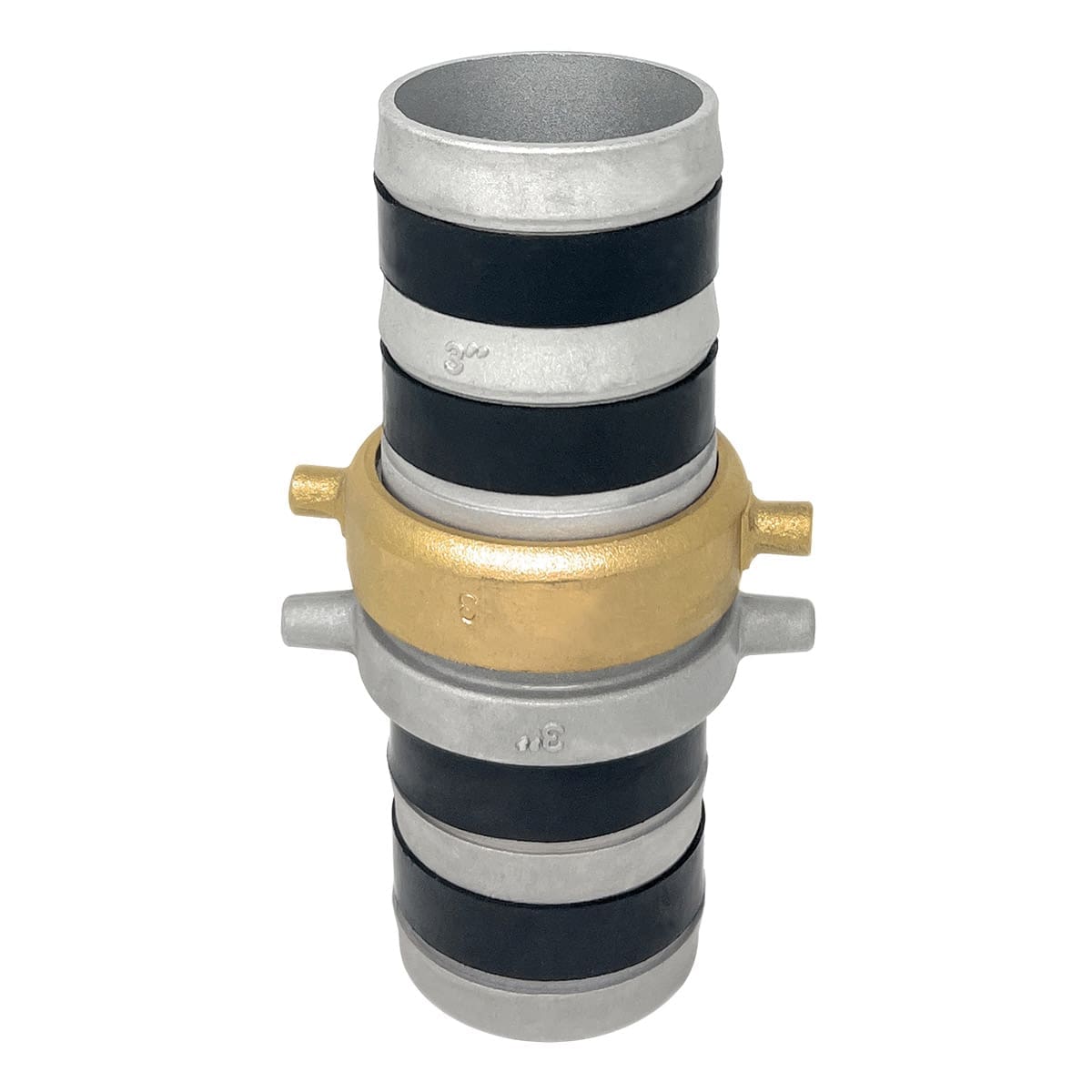

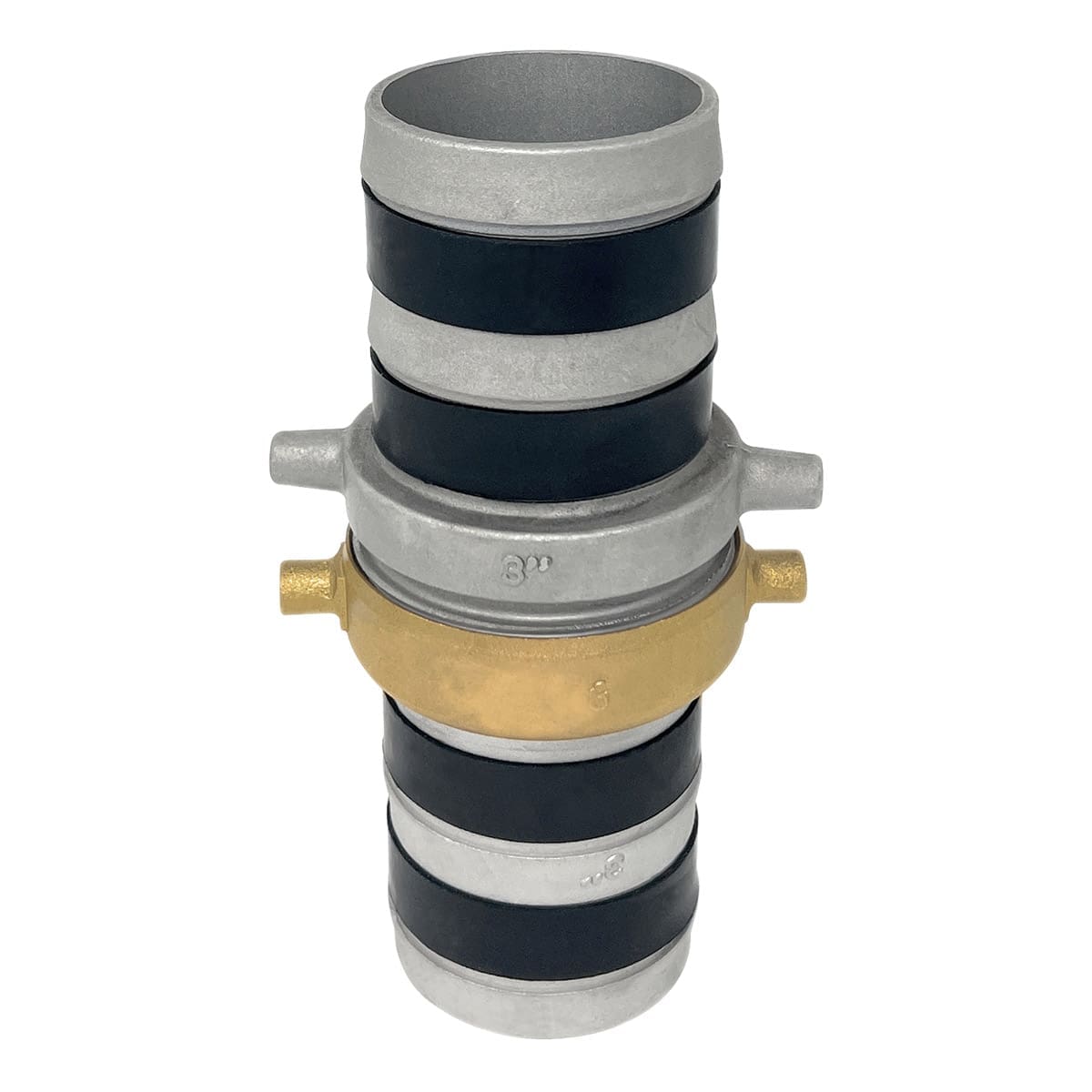

Anti-Leak Pin Lug Hose Shank Coupling, Complete Set, 3″ Male x Female Couplings with NPSH Threads and Hose Shanks, Aluminum with Brass Nut (PLC-300-SETLF-AL)
$36.98
- Pin Lug Hose Shank Coupling, Complete Set with Hose Gaskets
- Designed to Prevent Leaks When Installed in Layflat hose
- Includes a Male Fitting with 3″ Male NPSH Threads x 3″ Hose Shank with Anti Leak Gasket
- Includes a Female Fitting with 3″ Brass Swivel Nut x 3″ Hose Shank with Anti Leak Gasket
- Includes SBR Rubber Gasket
- Lightweight and Corrosion Resistant Aluminum Body
These special anti-leak pin lug coupling set function exactly like our original pin lug couplings. However, these couplings include special anti leak gasket. These gaskets help make a tighter seal and prevent leaking when connecting these couplings to layflat hose.
Anti-leak pin lug hose shank couplings connect to hose with a hose shank and connect together with a threaded swivel nut that is included on the female side of the coupling. These couplings are designed to be used on low pressure suctions and discharge applications. The pin lugs make it easy to tighten by hand or with a spanner tool.
This is a complete pin lug coupling set connects to hose with a hose shank. This set includes a male fitting with 3″ NPSH threads x 3″ hose shank and a female fitting with a brass 3″ swivel nut x 3″ hose shank. The female side of the coupling includes a SBR rubber gasket.
Warning: These fittings should only be used in low pressure suction and discharge applications.
| Weight | 2.045 lbs |
|---|---|
| Dimensions | 9 × 6 × 4 in |
| Fitting Type | Anti-Leak Pin Lug Hose Shank |
| Pin Lug Material | Aluminum |
| Pin Lug Type | Complete Set |
| Connection Size | 3" |
| Material | Aluminum |
| Fittings | NPSH Pin Lug x Hose Shank, Complete Set |
| Gasket Type | SBR Rubber |
| Lead Time | Ships in 1-2 Business Days |
| Unit of Measure | Each |
| Product Type | Pin Lug Shank Couplings |
