Cam and Groove Fitting, Type DA with 3/4" Blowdown Assembly, Stainless Steel, 3" Female Camlock Coupler x 2" Male Camlock Adapter (CAM-3020-DABD07-SS)

Cam and Groove Fitting, Type DA with 3/4″ Blowdown Assembly, Stainless Steel, 3″ Female Camlock Coupler x 2″ Male Camlock Adapter (CAM-3020-DABD07-SS)

$112.10

Type DA Cam and Groove Fitting with 3/4″ Blowdown Assembly
Type DA Camlock (Cam and Groove), Reducer
3″ Female Camlock Coupler x 2″ Male Camlock Adapter
3/4″ Pipe Tap Connect with 3/4″ Standard Port Ball Valve
3/4″ Ball Valve Connect with 3/4″ Male End Crows Foot
316 Stainless Steel: Corrosion and Abrasion Resistant, Light Weight
125 PSI Max Pressure

Stock Item: Available

This product ships from the Gloxco fulfillment center. Stock items typically ship within 1 business day.

SKU: CAM-3020-DABD07-SS Categories: Cam and Groove Fittings, Stainless Steel Cam and Groove Fittings, Type DA Cam and Groove Fittings, Cam and Groove Fittings with Blowdown, Specialty Cam and Groove Fittings, Cam and Groove Reducer Fittings

Description
Additional information

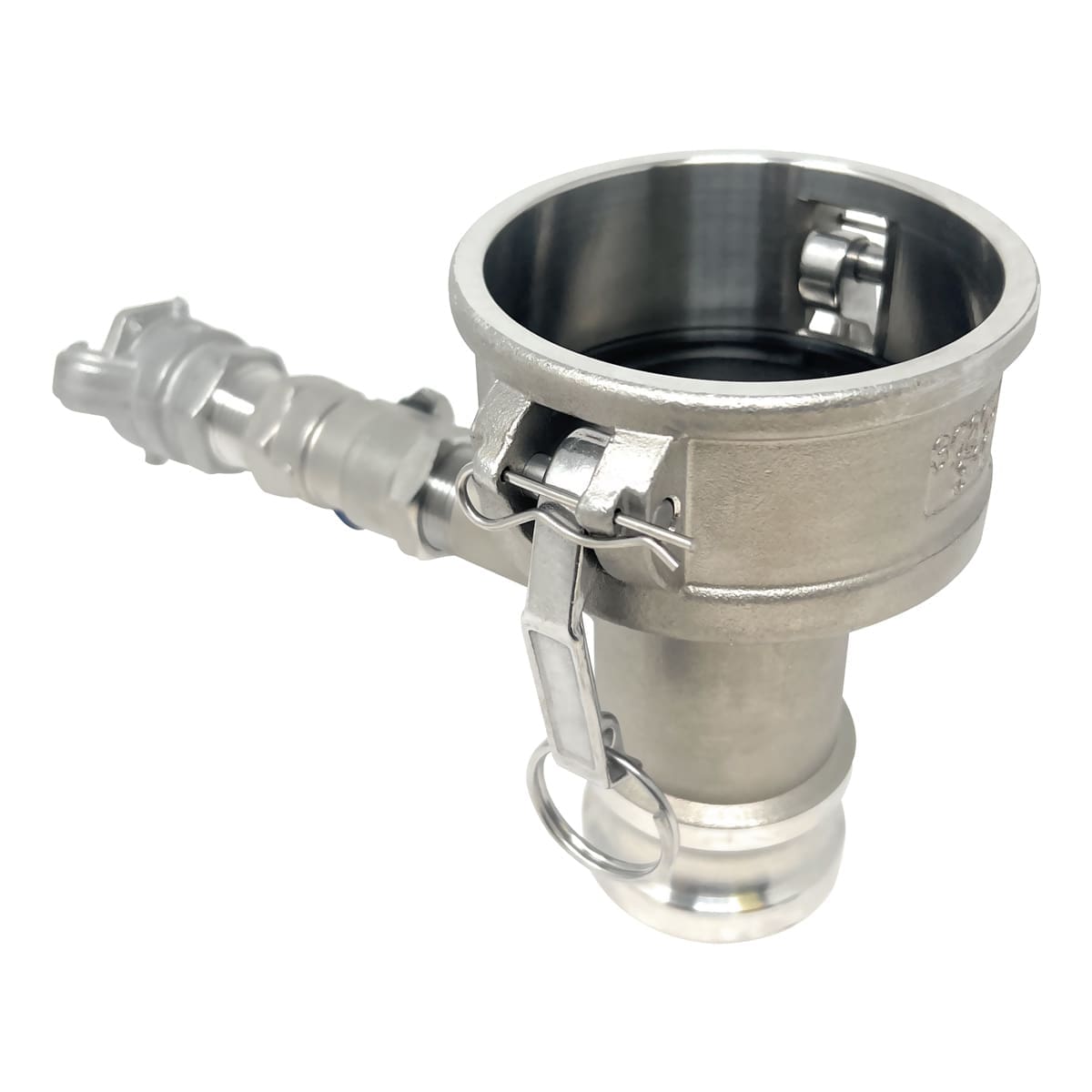

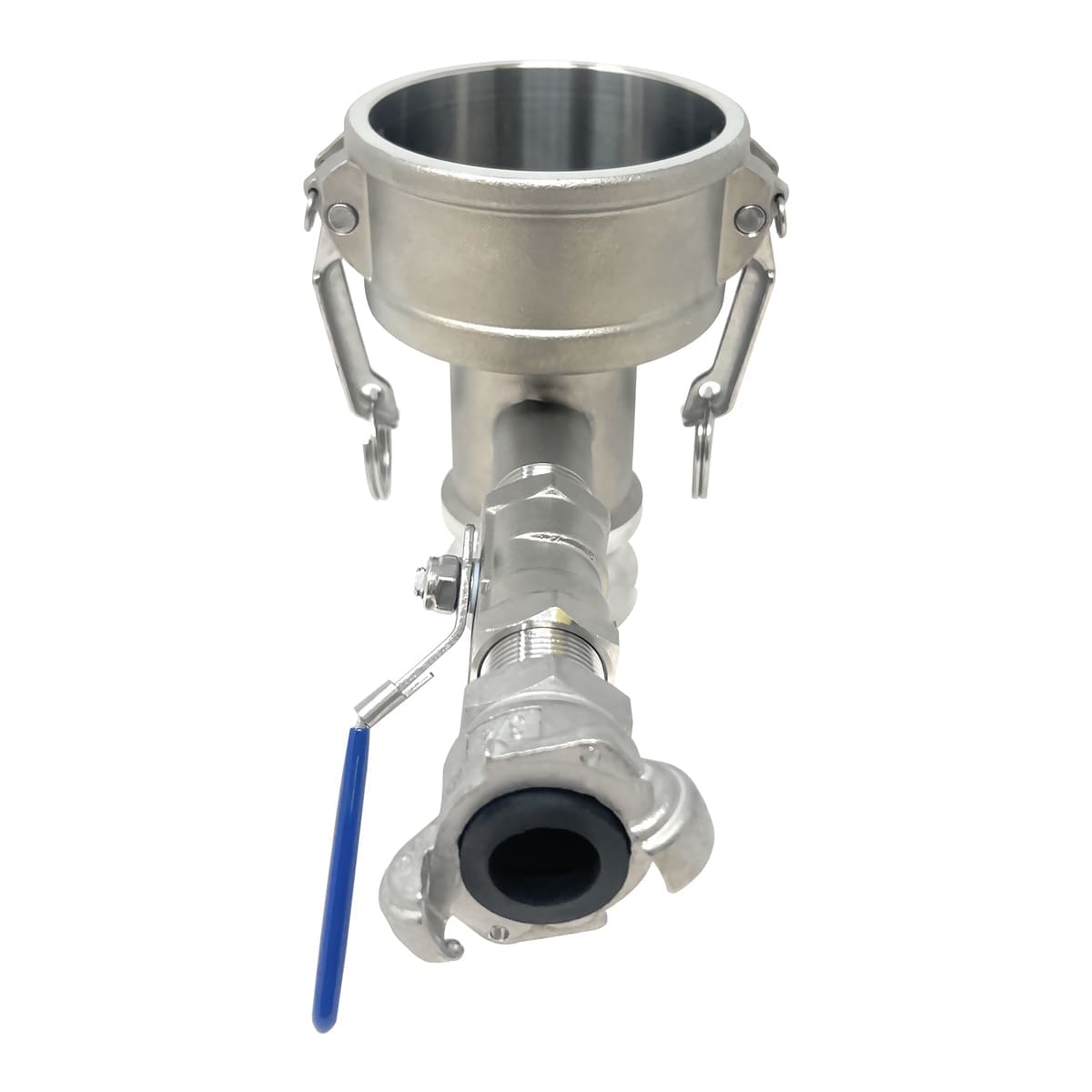

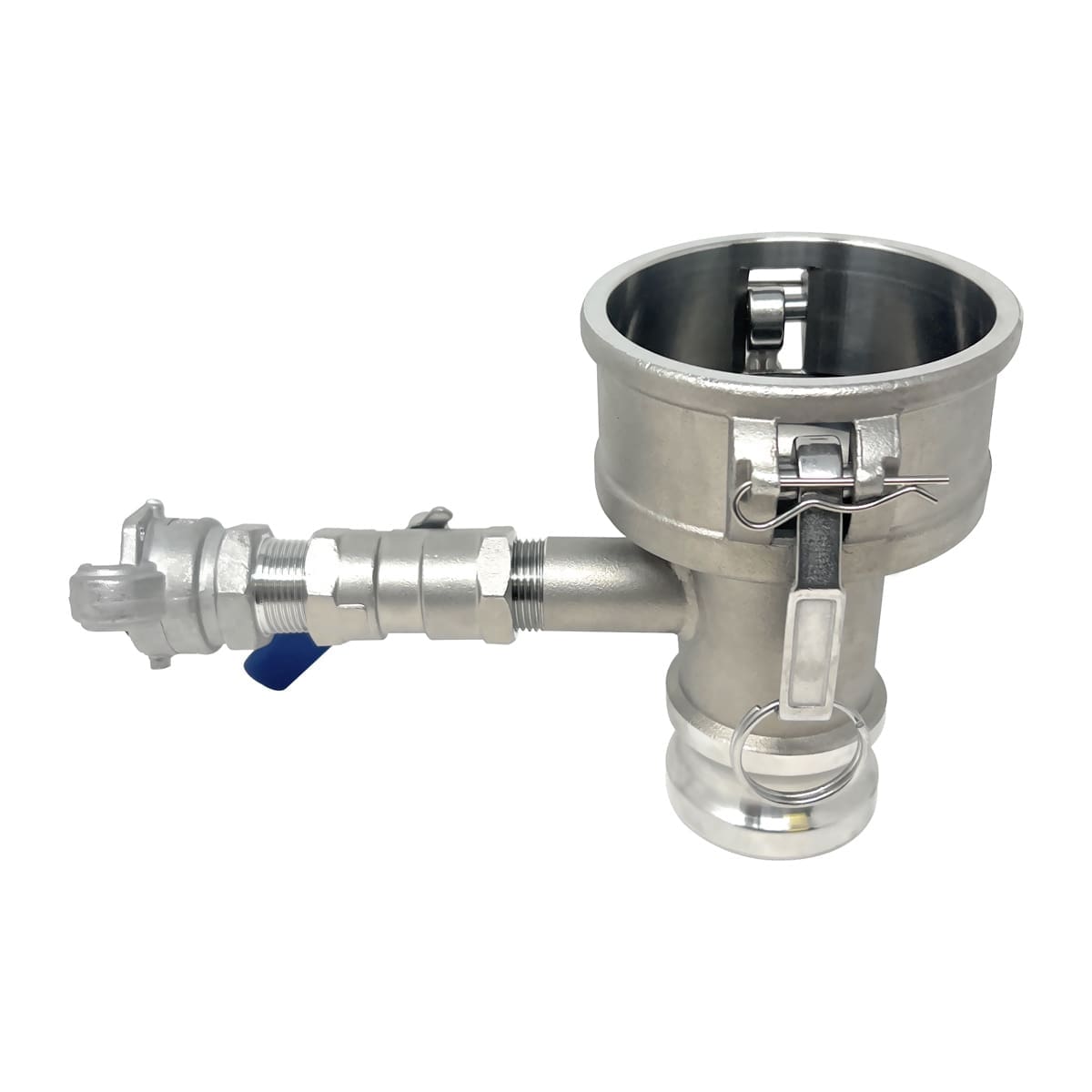

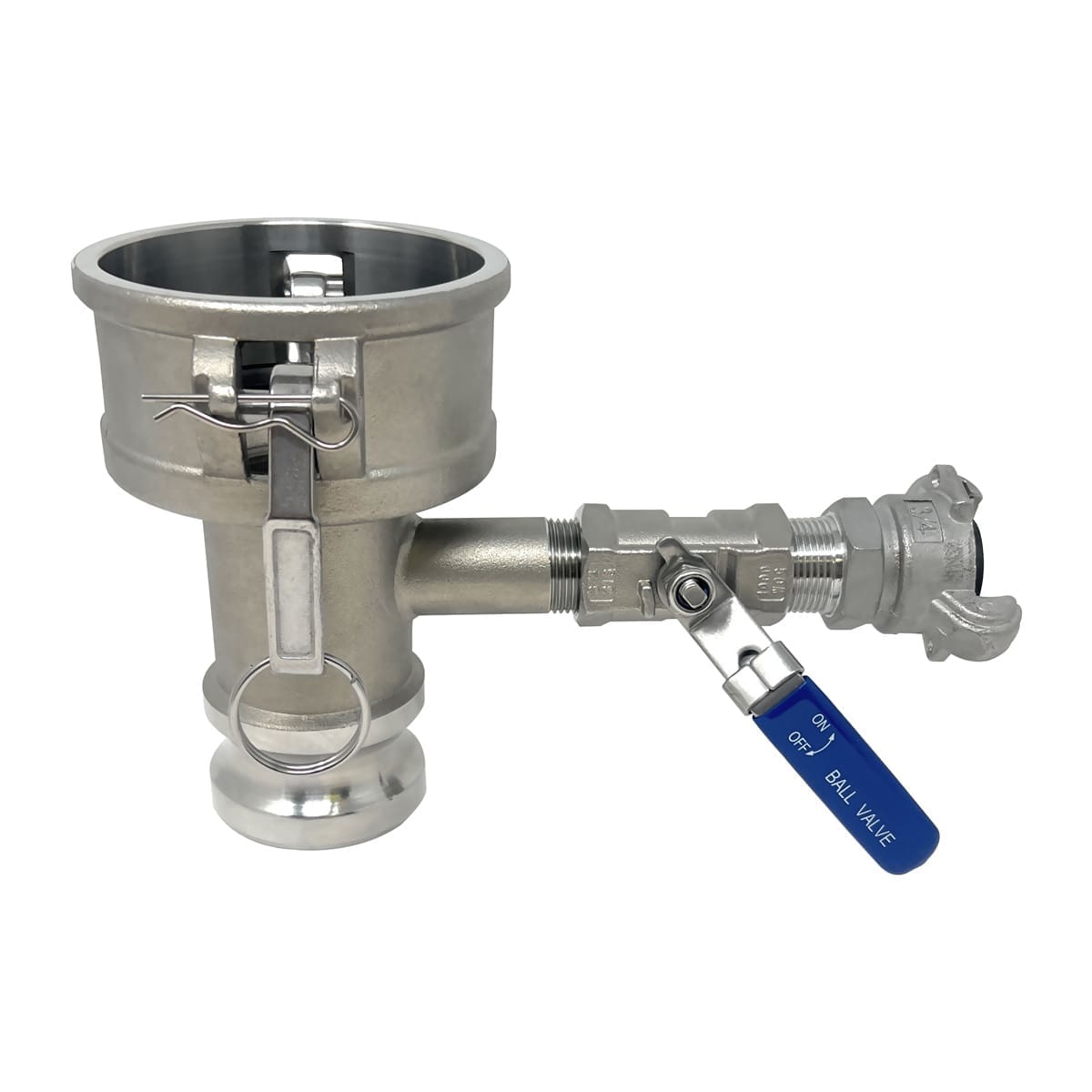

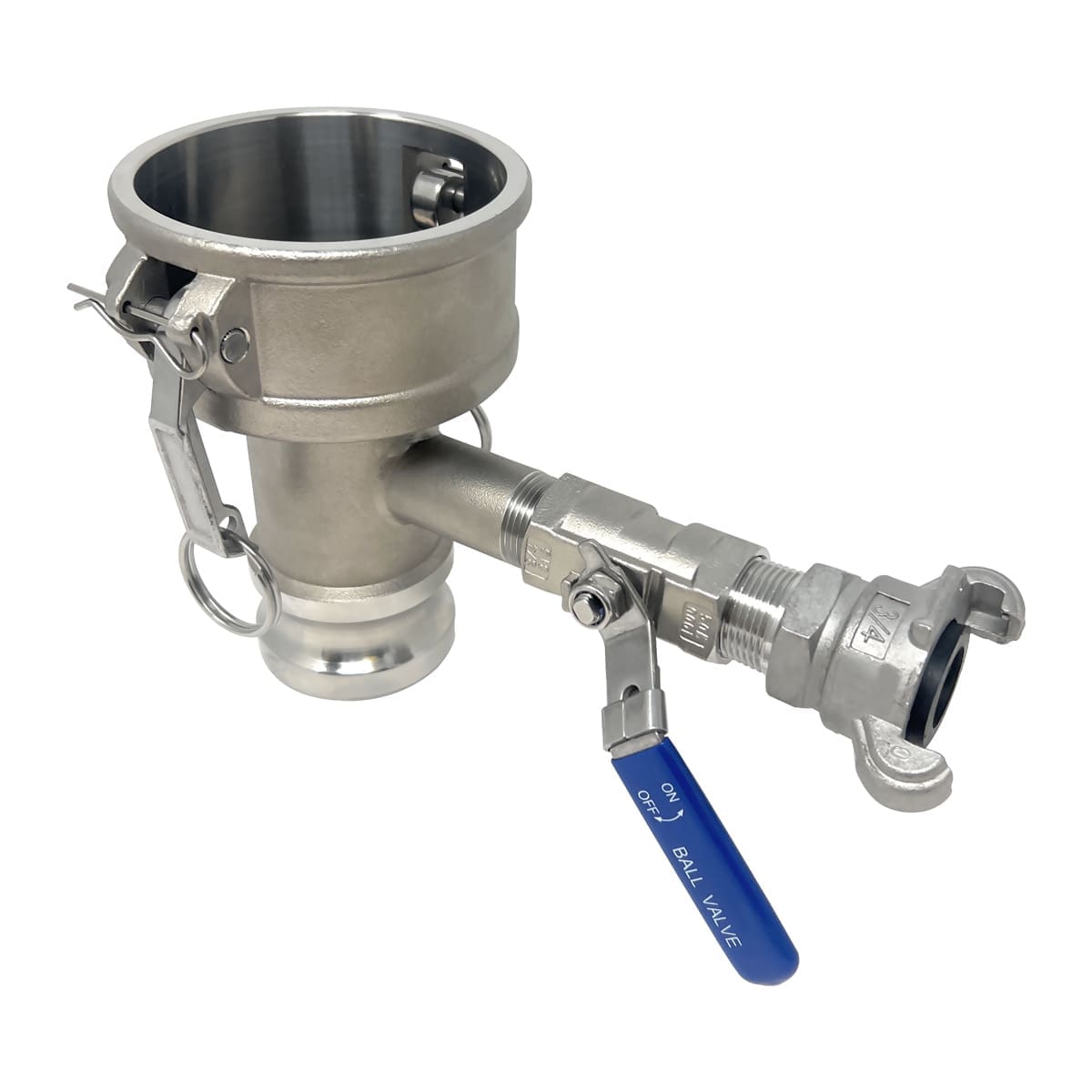

Gloxco brand stainless steel type DA cam and groove fitting with blowdown assembly. This type DA camlock (Cam and Groove) fitting with blowdown has a 3″ female camlock quick connect coupling on one side and a 2″ male camlock quick connect adapter on the other side and 3/4″ pipe tap on the middle of the fitting connect with 3/4″ standard port ball valve and ball valve connect with 3/4″ male end crows foot. The female camlock coupling side of this coupler will only attach to a male camlock. The male adapter side will connect to a female camlock coupler. The body of this cam and groove fitting is made of stainless steel. These 316 Stainless Steel cam lock fittings are corrosion and abrasion resistant. This fitting’s seal is made of NSS (Buna-N) rubber. Buna-N seals are resistant to fuel, oil, and other chemicals. The cam arms are made of stainless steel and includes two locking cotter pins. These cam and groove fittings are suitable for use with water, hydraulic oils, coolants, gasoline, and other petroleum products.

These Type DA cam and groove fitting is made to quickly connect or disconnect. They comply with commercial item description A-A-59326D for quick disconnect fittings. These camlock fittings are often used in applications such as vacuum trucks, vacuum trailers, frac tanks, fuel delivery, grain movement and waste water industry. Camlock (cam and groove) fittings are popular couplings because they are economical and can easily be connected and disconnected.

In addition to this stainless steel type DA cam and groove fitting, Gloxco offers a full line of hose fittings with various types of connections. Gloxco hose fittings are used in systems such as air compressors, oilfield water distribution, vacuum trailer, vacuum trucks, frac tanks, storage tanks, agriculture, mining, road construction, fire fighting, and aviation industry.

Warning: Type DA cam and groove fittings, or any other camlock fitting, should not be used for compressed air or steam.

Weight	5.8 lbs
Dimensions	6.25 × 8 × 4.25 in
Camlock Type	Type DA – With Blowdown Assembly
Connection Size	3" X 2"
Fittings	3″ Female Coupler x 2″ Male Adapter
Camlock Material	316 Stainless Steel
Gasket Type	Buna
Lead Time	Ships in 2-4 Business Days
Cross Reference	CG-SS-3020-DA-BDV-075
Unit of Measure	Each
Max Pressure Rating	125 PSI
Product Type	Cam and Groove Fittings with Blowdown

Cam and Groove Fitting, Type DA with 3/4″ Blowdown Assembly, Stainless Steel, 3″ Female Camlock Coupler x 2″ Male Camlock Adapter (CAM-3020-DABD07-SS)
