Fruitland Manufacturing RCF500 Vacuum Pumps are designed to work in all types of liquid waste handling markets including the Oil and Gas Fracturing Industry, Industrial, Environmental, Grease and Septic.
Fruitland RCF500 Vacuum Pumps have an approximate air flow of 396 CFM and pressures to 35 PSI. They have a maximum vacuum of 28.5″ Hg at 44 BHP and require 23 BHP power at 27″Hg. The RCF500 vacuum pump has an operating speed of 1400 RPM and a 3″ port size. These are automatically lubricated with an included oil pump and have 8 Kevlar vanes. The 500 series pumps use less oil than any other rotary vane pump in the industry. Applications for the 500 pump are universally used throughout oil & gas fracturing, environmental, industrial and septic industries.

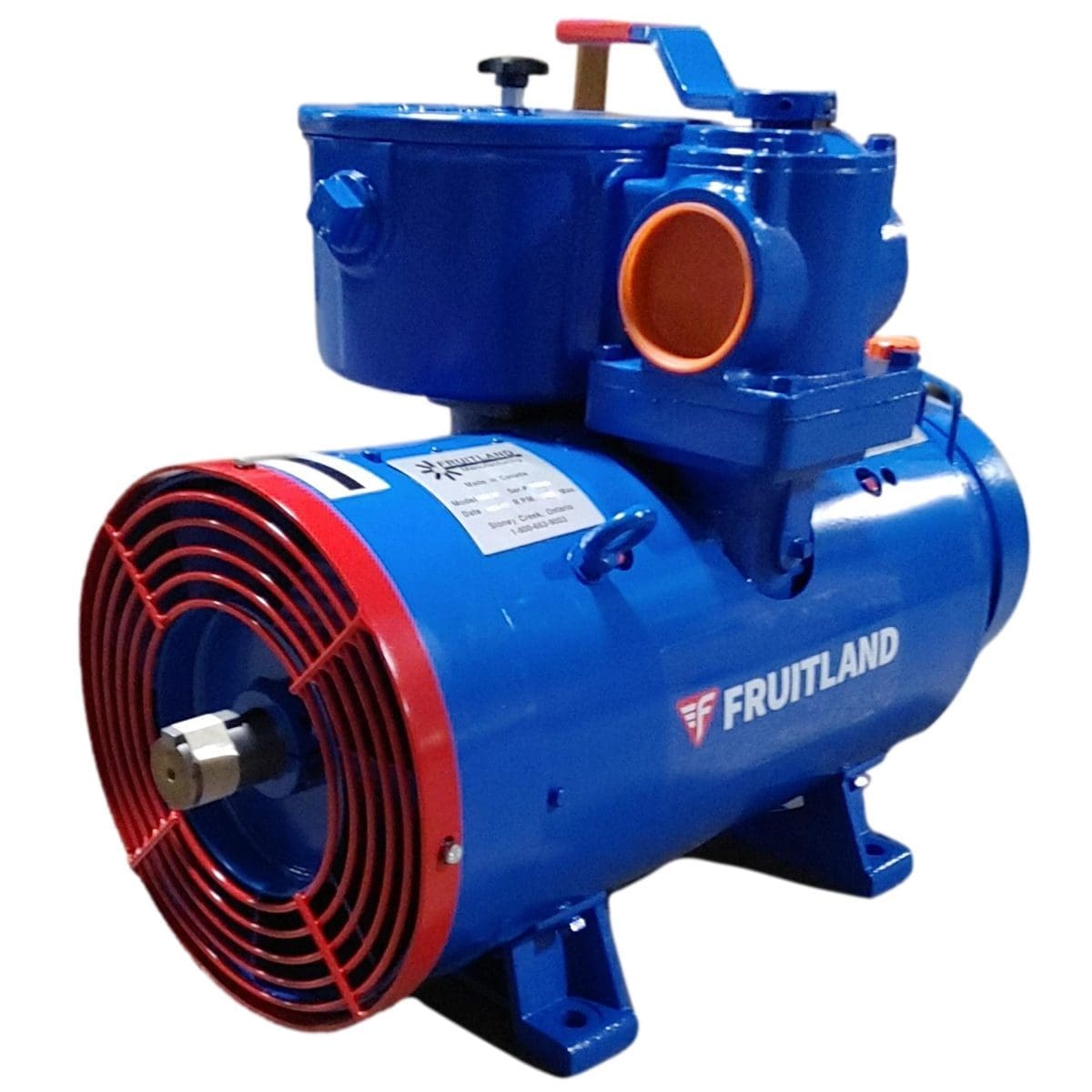

The RCF500LUFH-HM is a RCF500 vacuum pump with the following options. (L) Left hand or Counter-clockwise rotation (when looking at the pulley or drive shaft). (U) The four-way diverter valve is installed on top of the pump. (H) This pump includes the hydraulic drive adapter.
