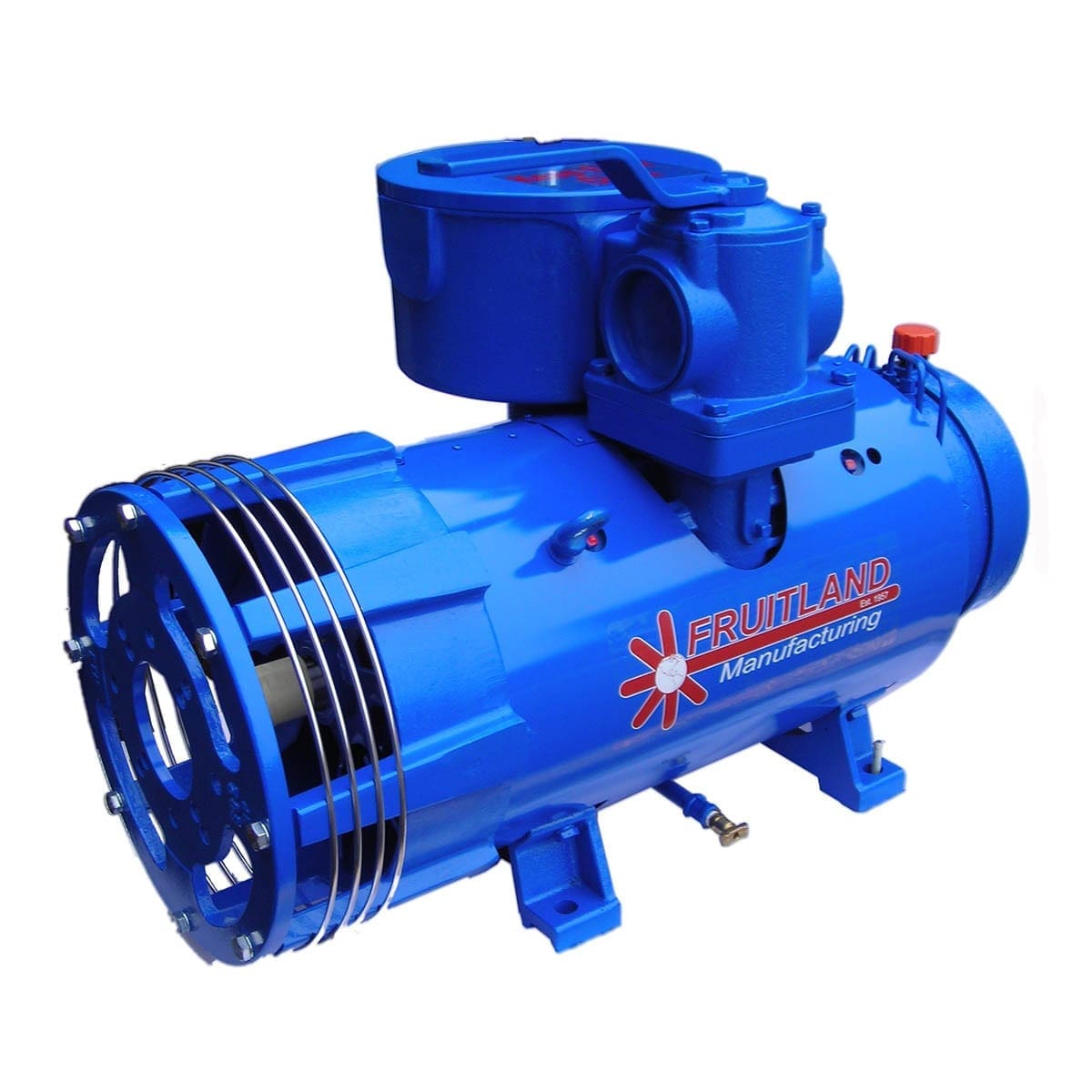

Fruitland Manufacturing RCF870 Vacuum Pumps are designed to work in all types of liquid waste handling markets including the Oil and Gas Fracturing Industry, Industrial, Environmental, Grease and Septic.
Fruitland RCF870 Vacuum Pumps have an approximate air flow of 501 CFM and pressures to 30 PSI. They have a maximum vacuum of 28.5″ Hg at 55 BHP and require 26 BHP power at 27″Hg. The RCF870 vacuum pump has an operating speed of 1400 RPM and a 4″ port size. These are automatically lubricated with an included oil pump and have 8 Kevlar vanes. The 870 series pumps use less oil than any other rotary vane pump in the industry. Applications for the 870 pump are universally used throughout oil & gas fracturing, environmental, industrial and septic industries.

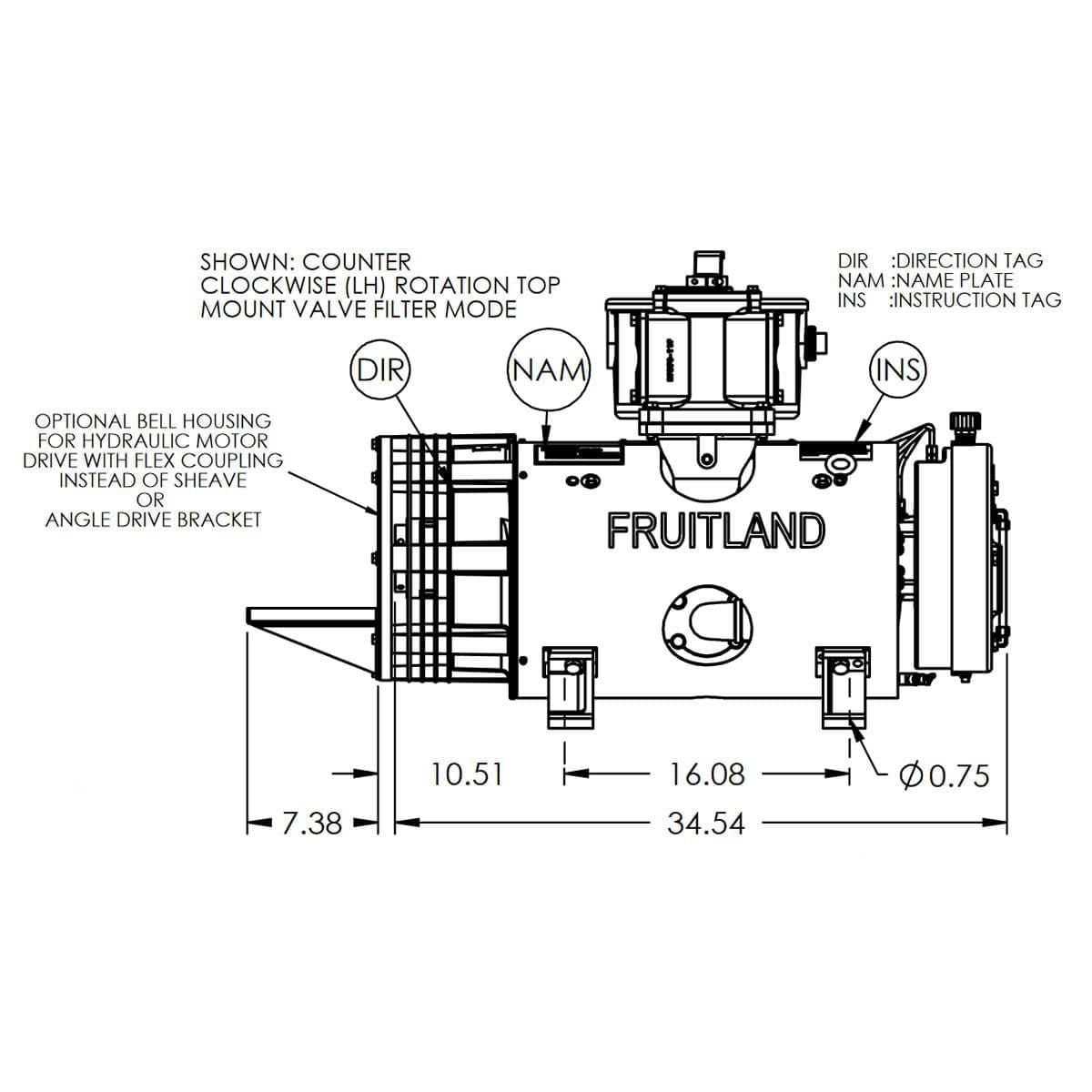

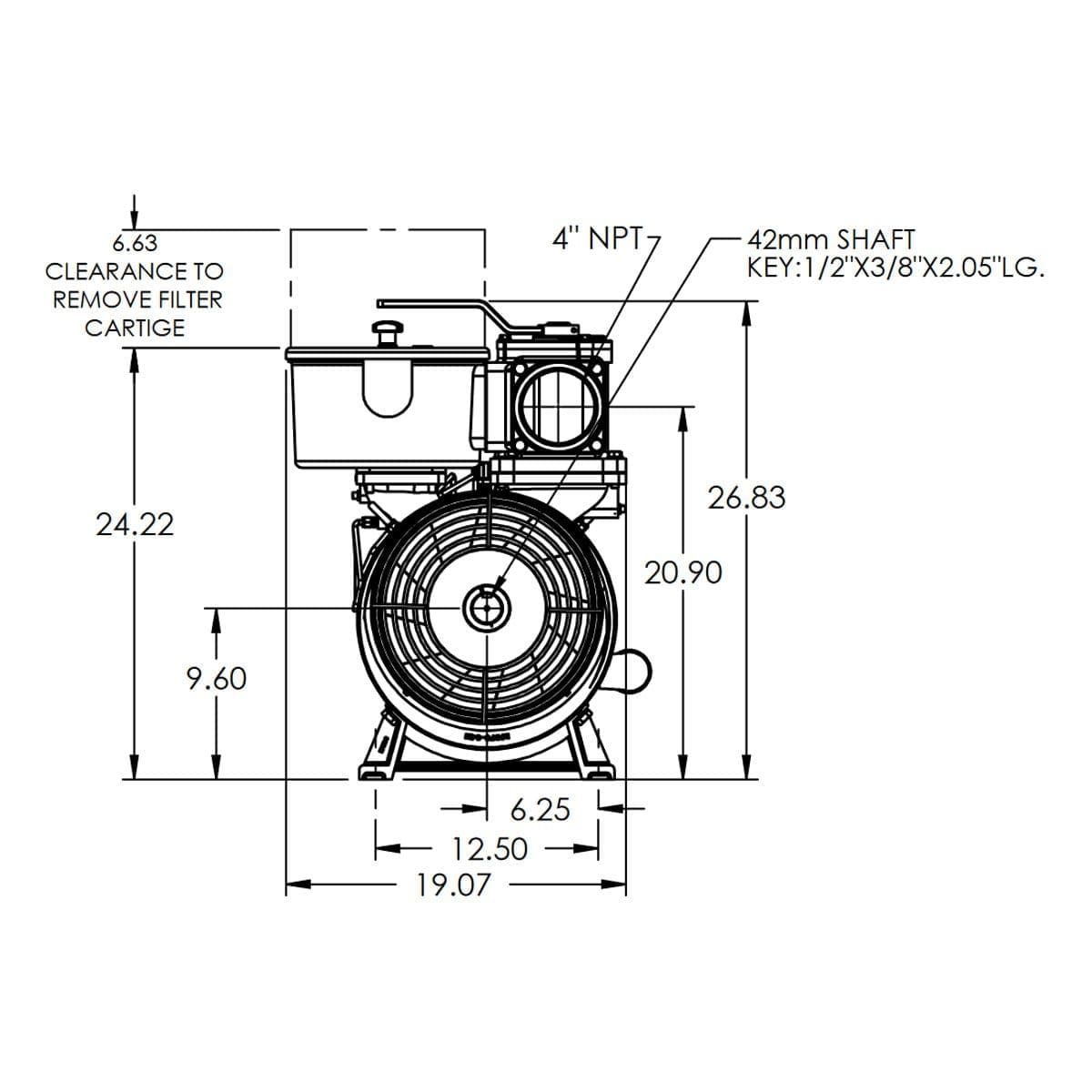

The RCF870LU is a RCF870 vacuum pump with the following options. (L) Left hand or Counter-clockwise rotation (when looking at the pulley or drive shaft). (U) The four-way diverter valve is installed on top of the pump. (F) This pump includes the filter option.
