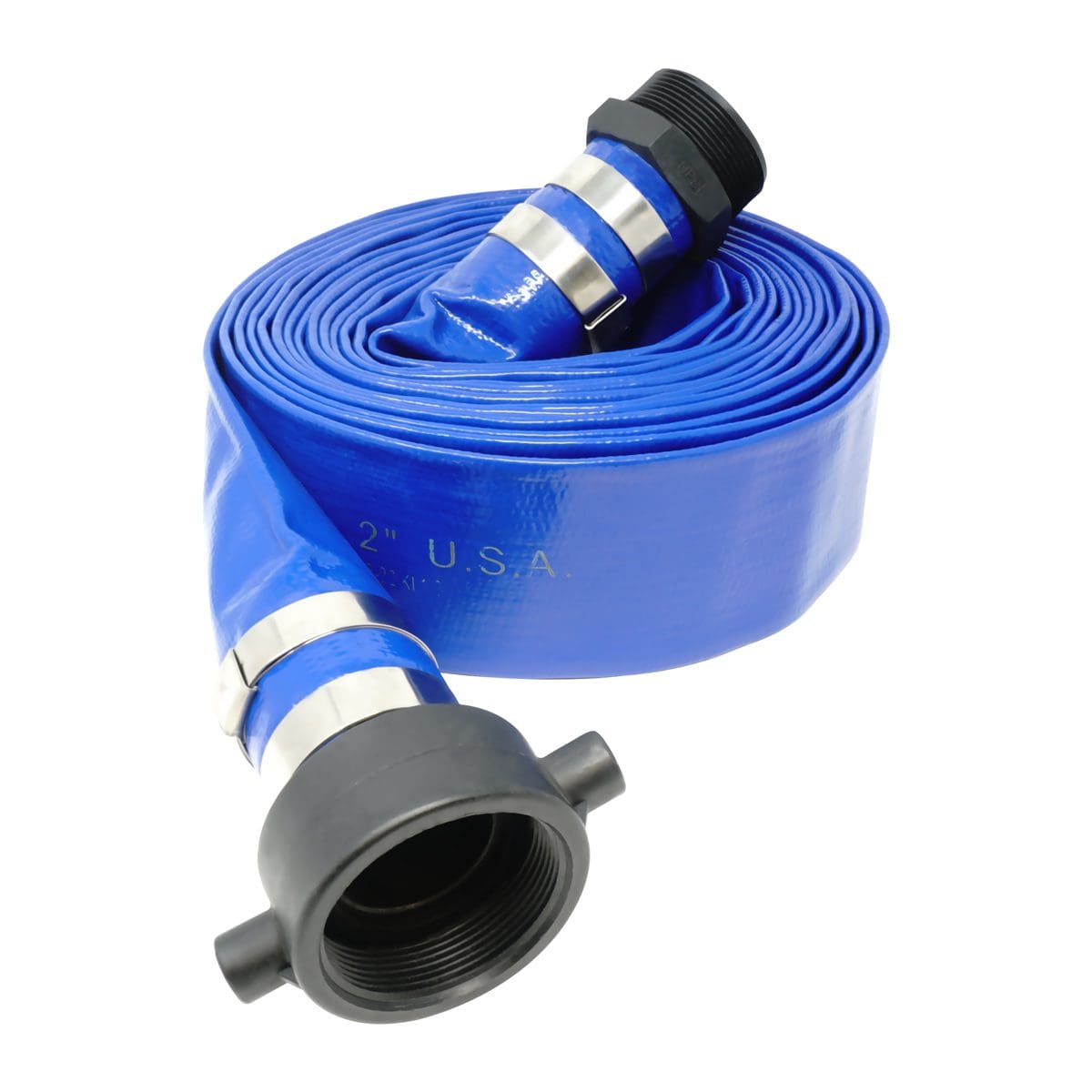

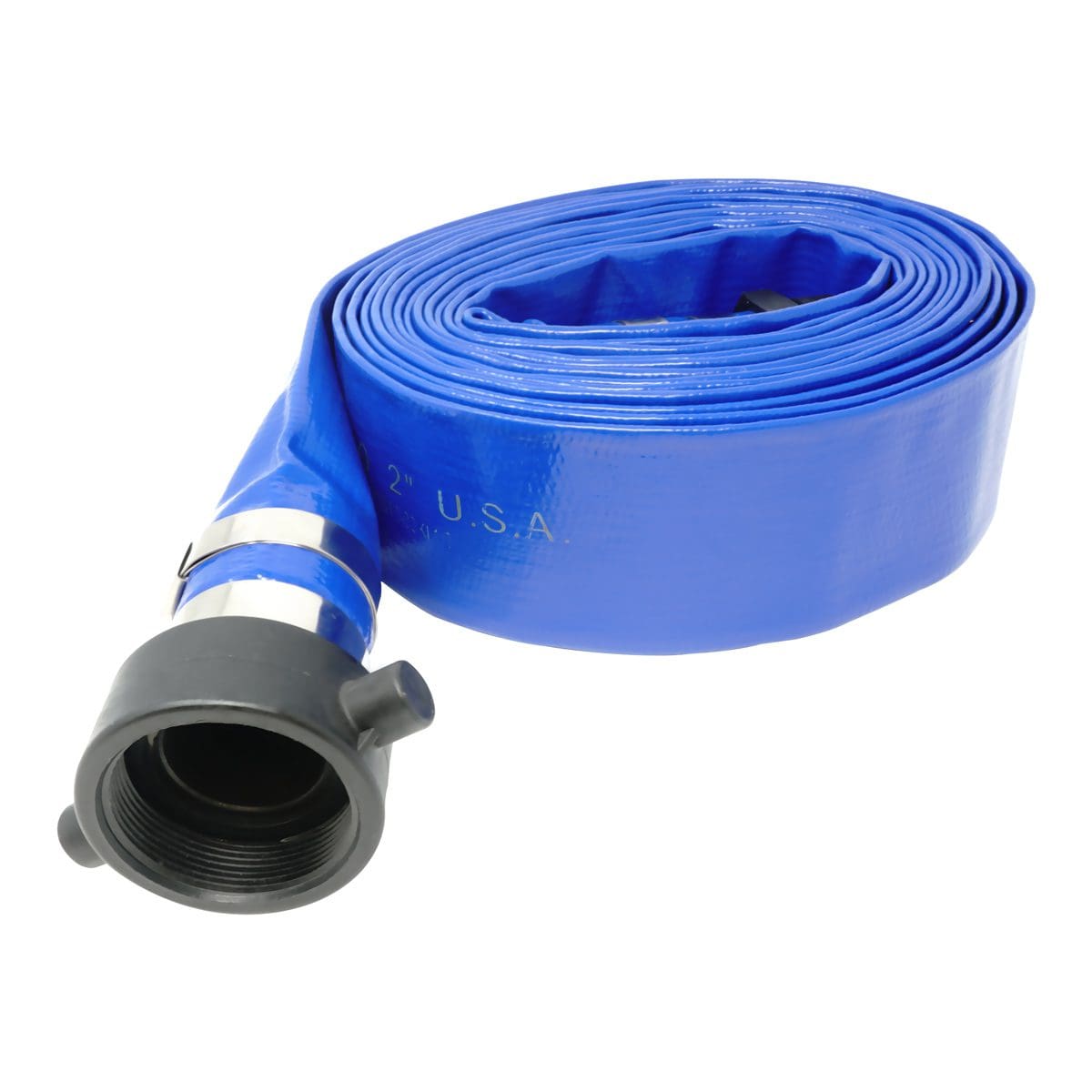

Gloxco 1-1/2″ x 25′ Blue Lay Flat PVC Discharge Hose Assembly with Poly Pin Lug Fittings
$26.44

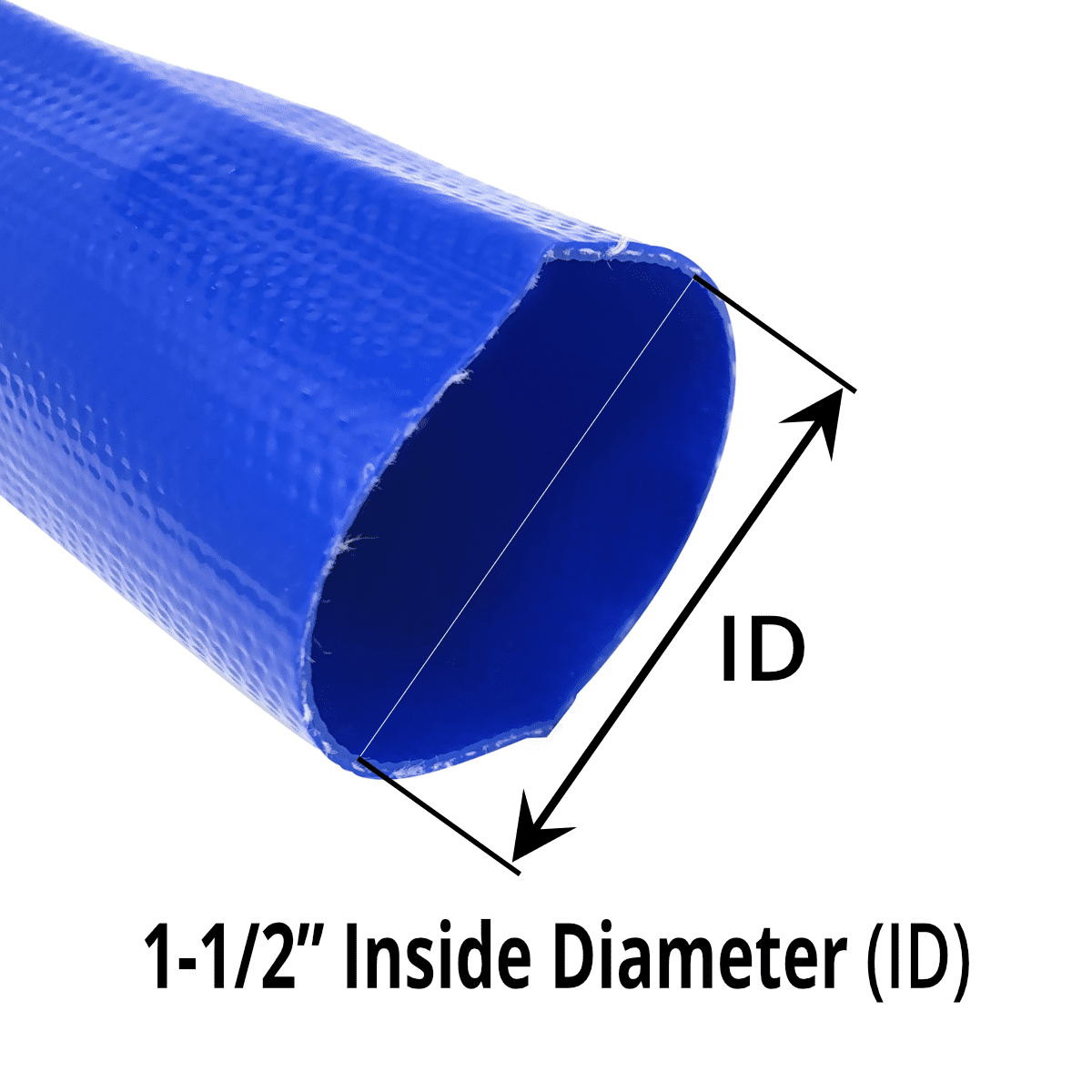

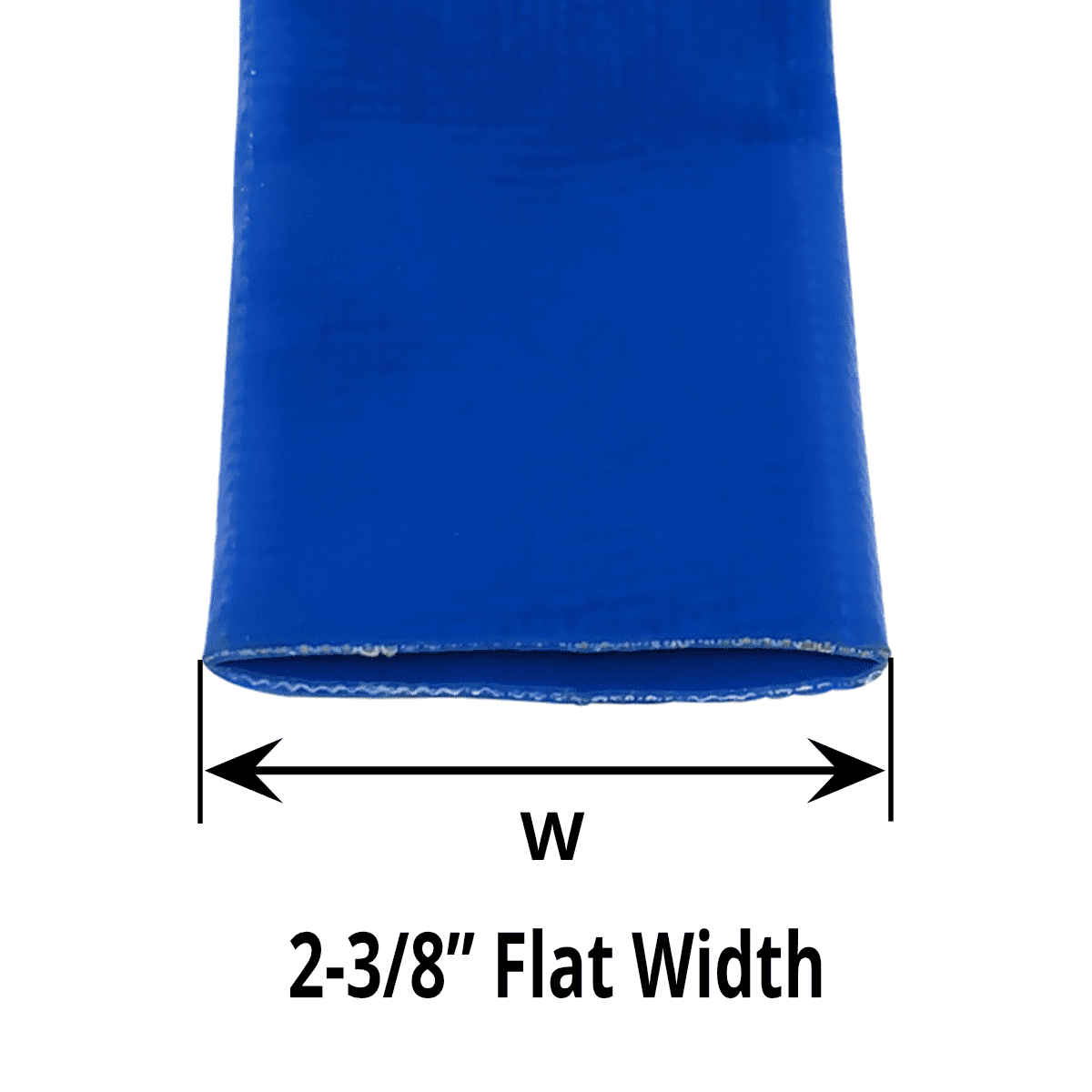

- 1-1/2″ ID, 2-3/8″ Flat Width, Discharge Hose, 25 Ft Length
- Blue PVC Hose with 2 Spiral Plies Reinforcement

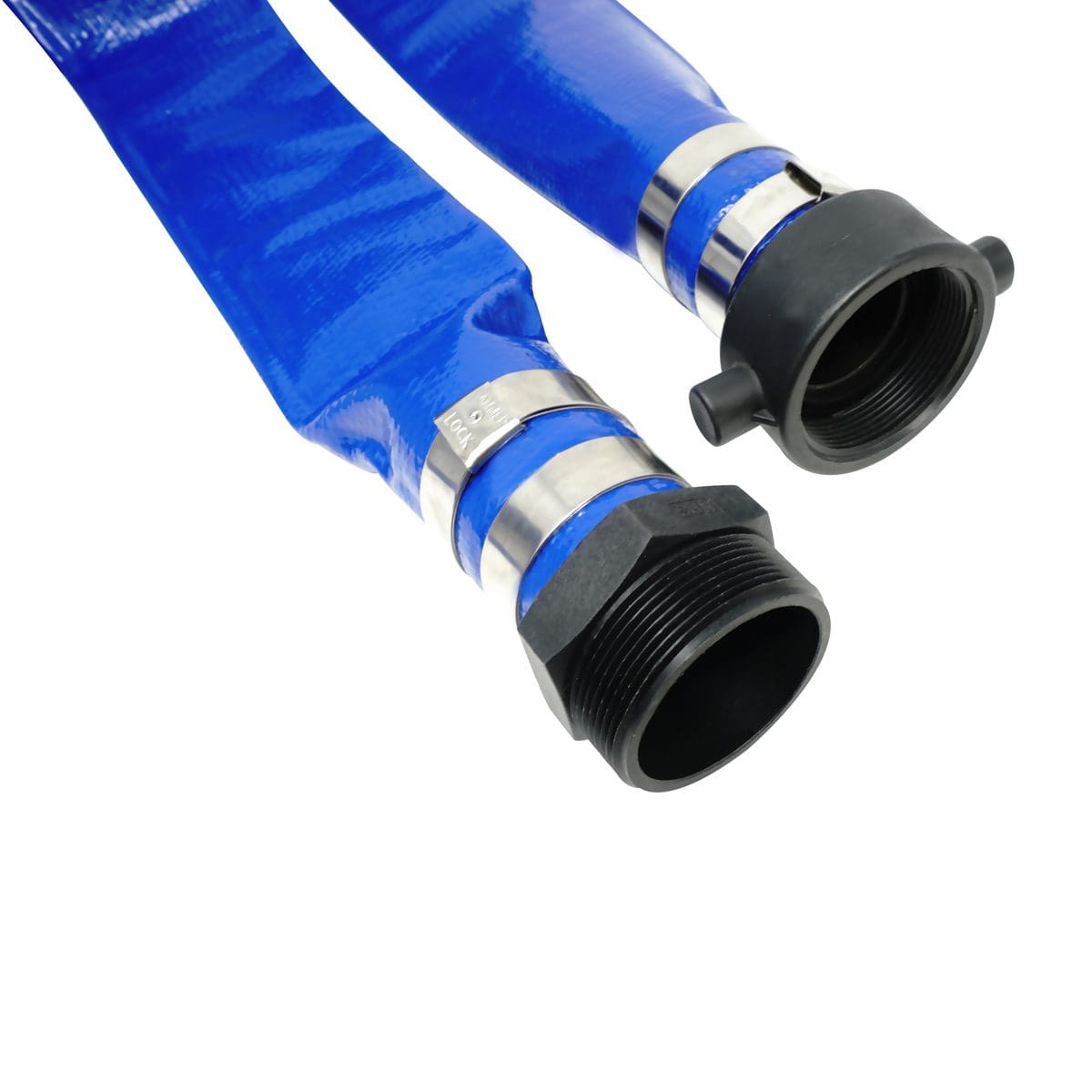

- 1-1/2″ Male Pin Lug Hose Shank x 1-1/2″ Female Pin Lug Hose Shank with Threaded Swivel Nut
- Poly Pin Lug Fittings, Installed with 2 Bands/Clamps per side
- 80 PSI working pressure (at 70 deg Fahrenheit)
This blue lay flat PVC hose is a strong, lightweight hose designed for discharge applications. It is commonly used in agriculture, construction and other industrial applications. This hose rolls up flat for easy storage.
The hose is made of lay flat blue PVC and is reinforced by a 2 spiral piles. It has a working pressure of 80 psi and a working temperature range of -5° F to 170° F.

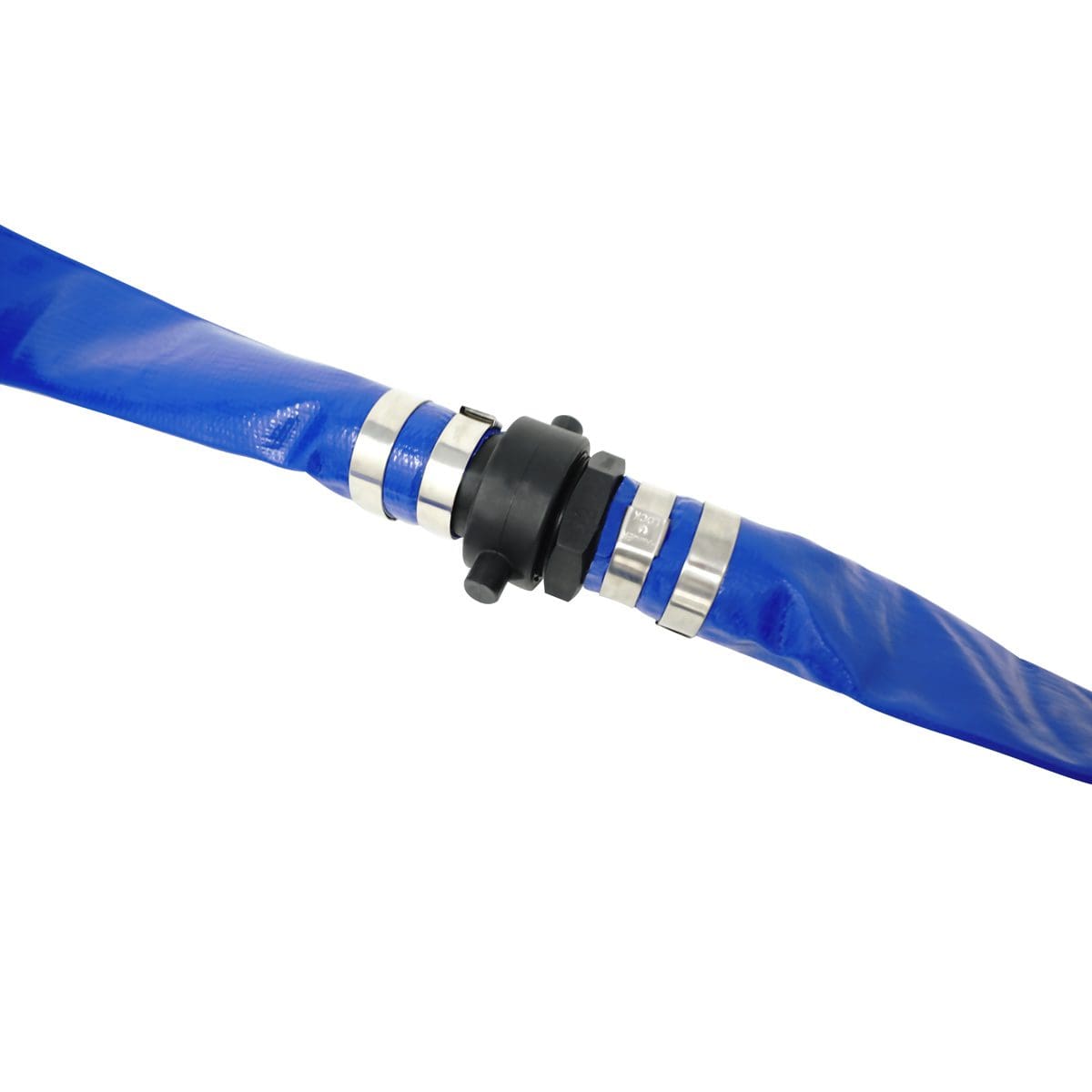

This is a hose assembly has a poly female NPSH pin lug hose shank fitting, with a threaded swivel nut on one side. It has a poly male NPSH pin lug hose shank fitting on the other side.These assemblies are installed with two punch lock hose bands/clamps per side.
| Weight | 6.7725 lbs |
|---|---|
| Dimensions | 10 × 10 × 4 in |
| Brand | Gloxco |
| Hose Type | Blue Lay Flat PVC Discharge |
| Hose Fittings | Poly Pin Lug, Male x Female |
| Clamp Style | Banded |
| Hose Length | 25' |
| Hose ID | 1-1/2" |
| Inside Diameter | 1-1/2" |
| Hose Flat Width | 2-3/8" |
| Hose Cover | Blue PVC |
| Hose Tube | Blue PVC |
| Hose Reinforcement | 2 Spiral Piles |
| Working Pressure | 80 PSI |
| Working Temperature | -5° F to 170° F |
| Lead Time | 1-2 Days |
| USA Content | Assembled In USA |
| Product Type | Blue Layflat Discharge Hose Assemblies |
