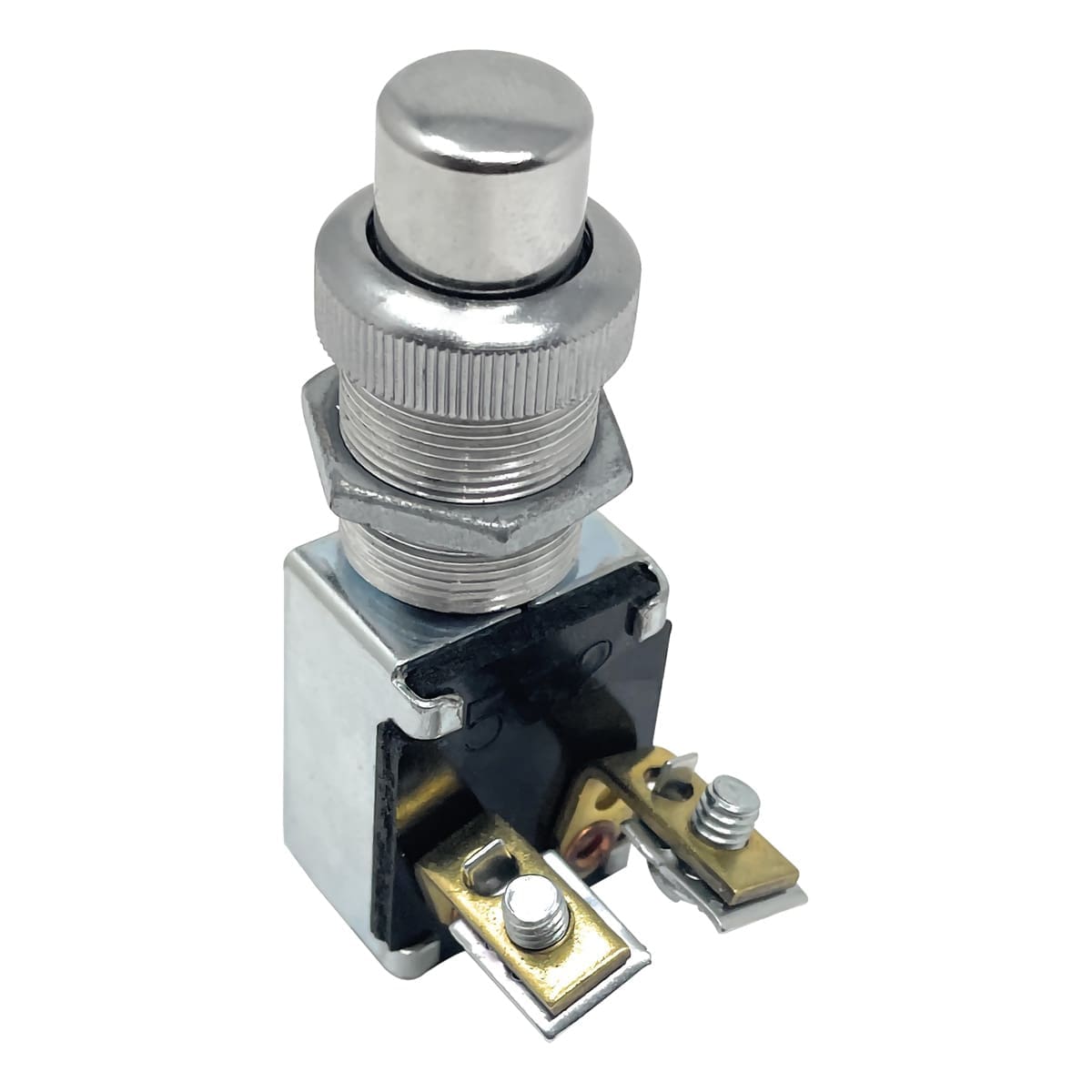

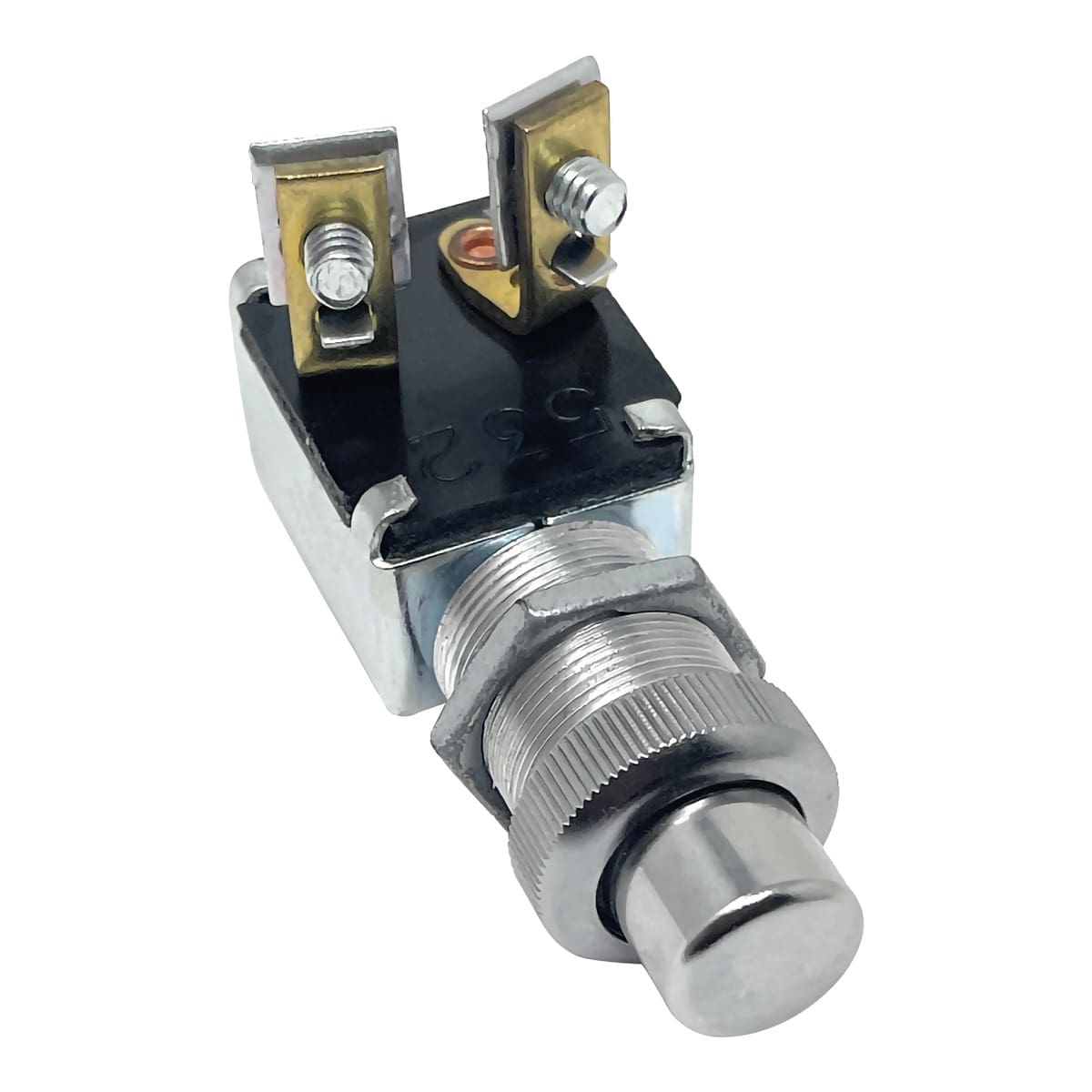

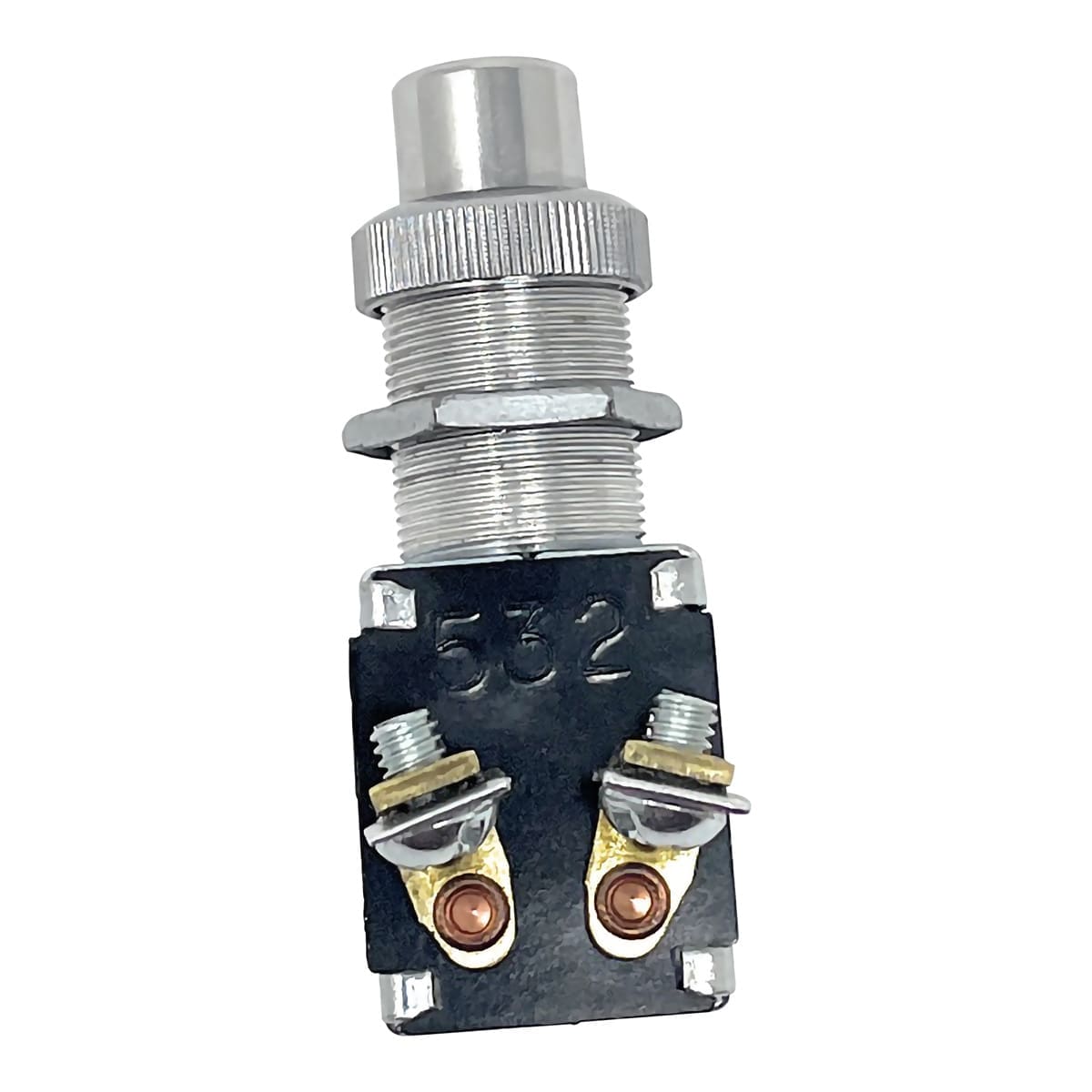

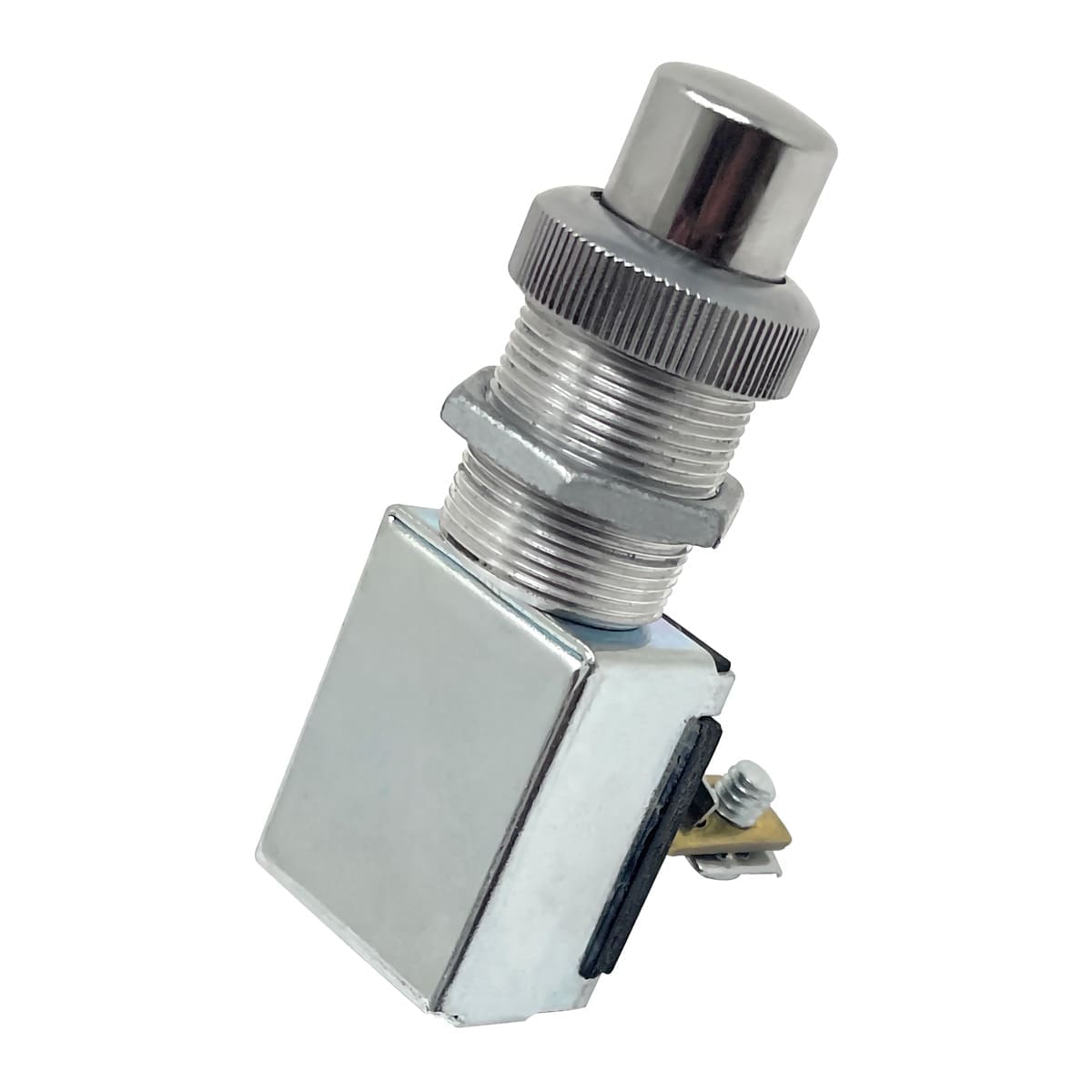

Push Button Momentary Switch
$19.60
- Mounting: 5/8”-32 7/8” L (22.1mm)
- Voltage Rating (MAX): 12
- Positions: 2
- Input Terminals: 2
- Housing: Plated Steel
- Contact Material: Copper Alloy
Normally Open Push Button Switches are push to operate and will spring return to ‘Off’ position. They have a cylindrical diecast body with 5/8″-32 mounting stem. These normally open switches are impact resistant, designed to prevent accidental actuation, include two screw terminals, and have an O-Ring seal in the mounting stem.
15A resistive, 10A inductive at 12V DC, 8A resistive, 5A inductive at 24V DC
| Weight | .5 lbs |
|---|---|
| Dimensions | 3.7 × 3.4 × 2.3 in |
| Lead Time | 1-2 Days |
