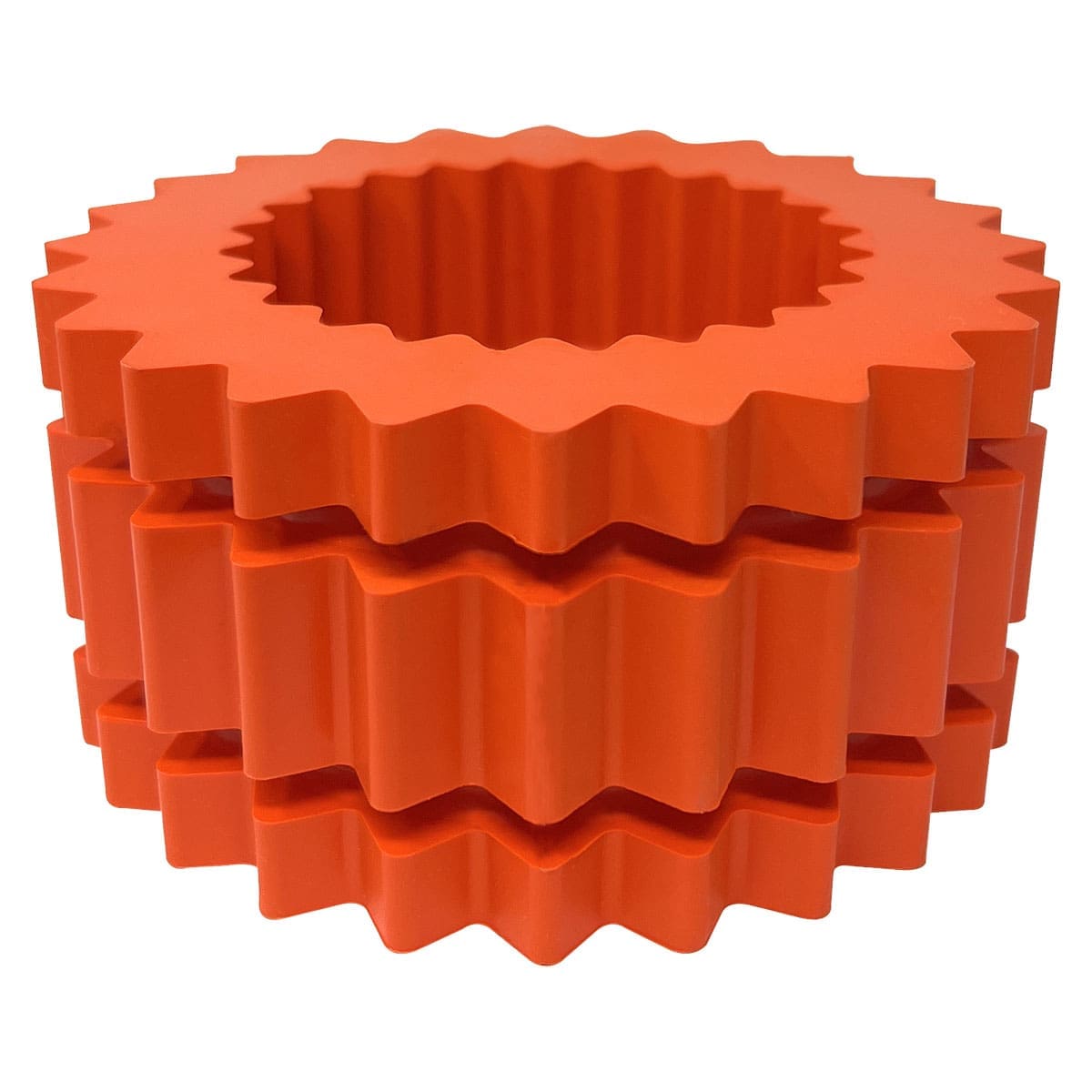

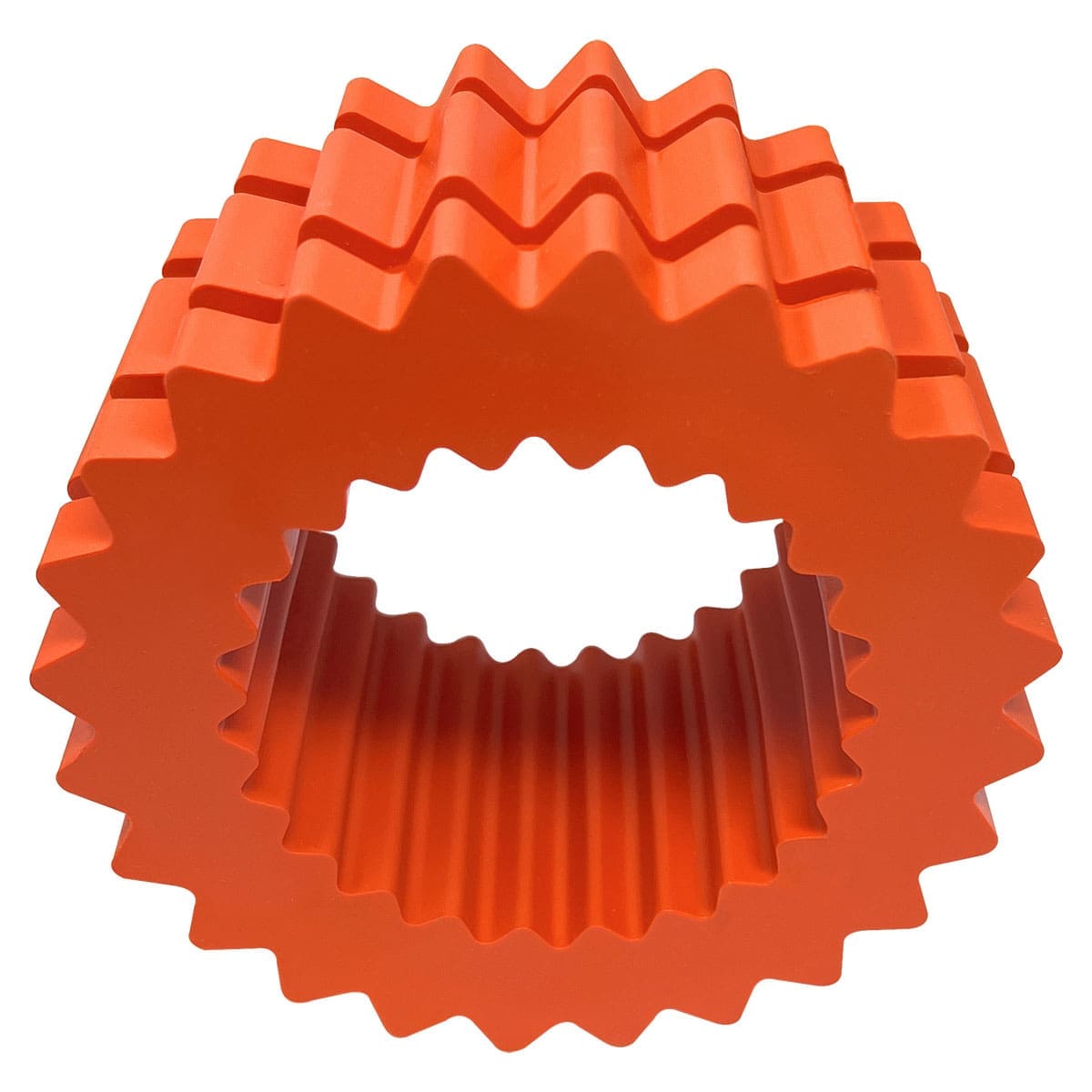

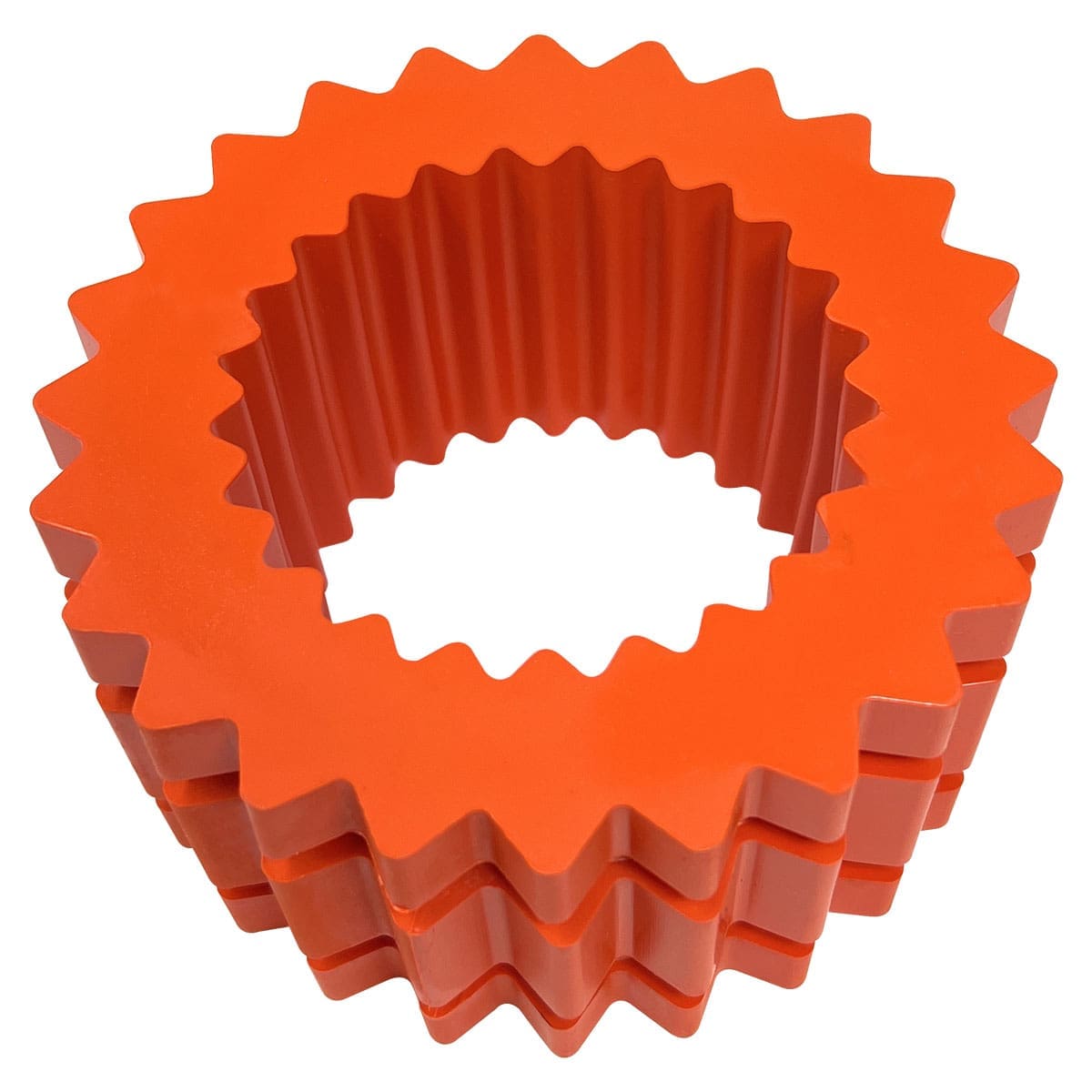

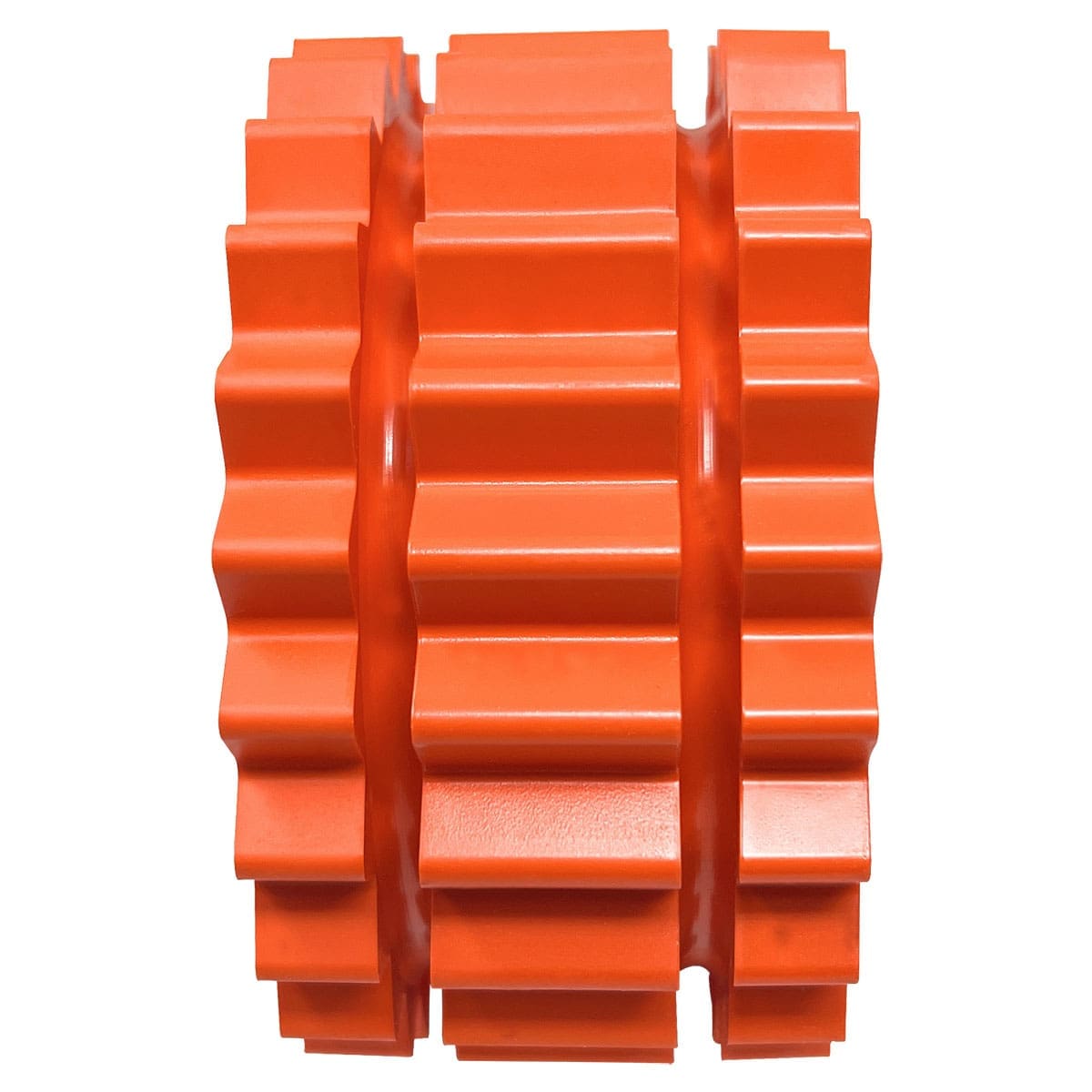

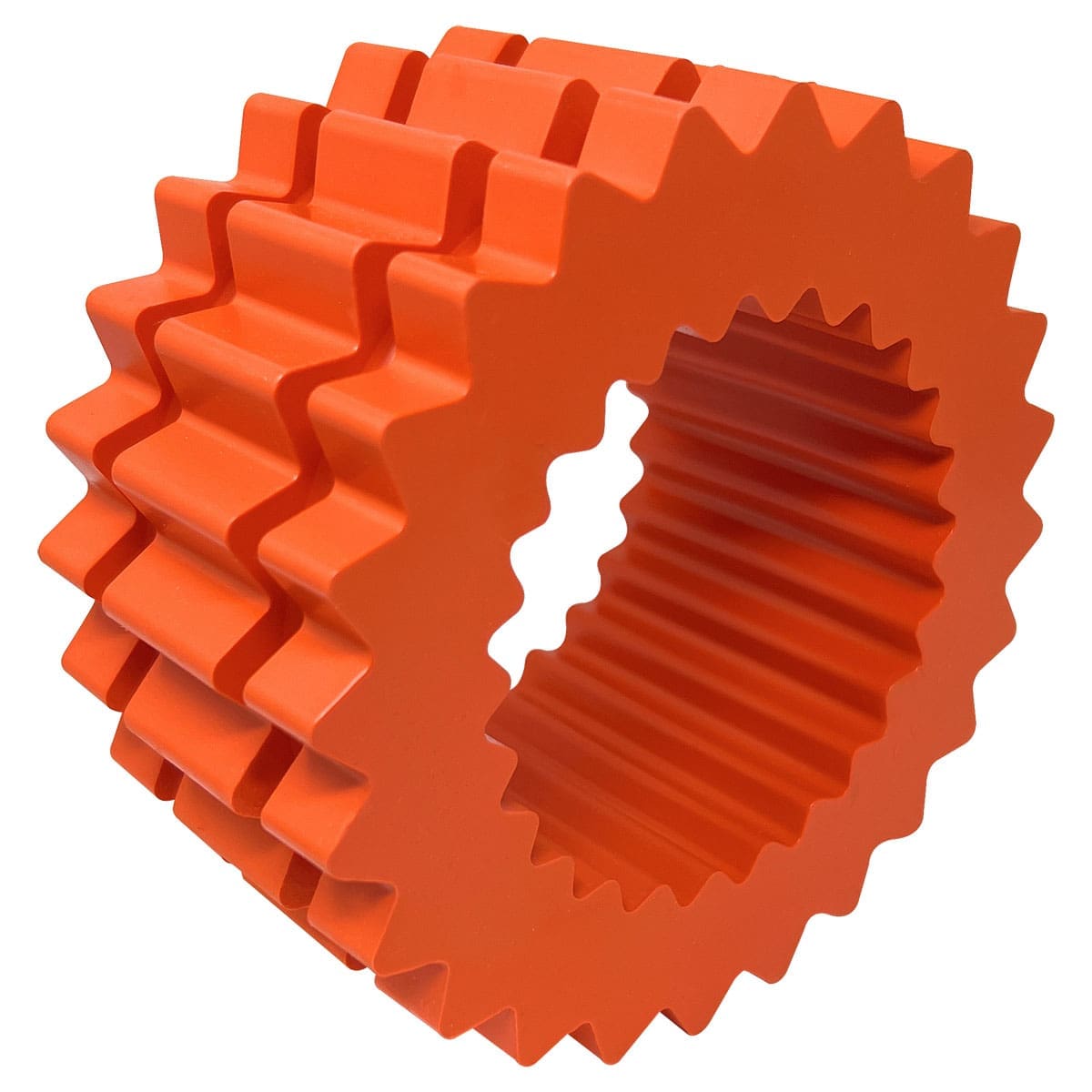

Sleeve Coupling Insert, 7H Hytrel, 2875 in-lb Torque Rated, 5250 Max RPM
$120.05
- Sleeve Coupling insert 9H
- 7H body style, 4.34″ outside dia,
- 2875 in/lb Rated Torque, 5250 Max RPM
- 7H Element
- 7H one piece sleeve
- Coupling insert
Sleeve Coupling insert (element) 7H made from durable Hytrel material offering dependability, quiet performance, this is a low maintenance sleeve coupling insert and easy to install. This flex insert absorbs shock, slight misalignment and end float. Use sleeve insert with Sure-Flex Plus coupling components.
Designed for High-Torque applications, transmits 4 times as much power as EPDM sleeves.
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Cross Reference | 00514383, 7H |
| Brand | TB Wood's Inc |
| Lead Time | 1-2 Days |
| Material | Hytrel |
| Inside Diameter | 2.19 |
| Product Type | Drive Coupling |
