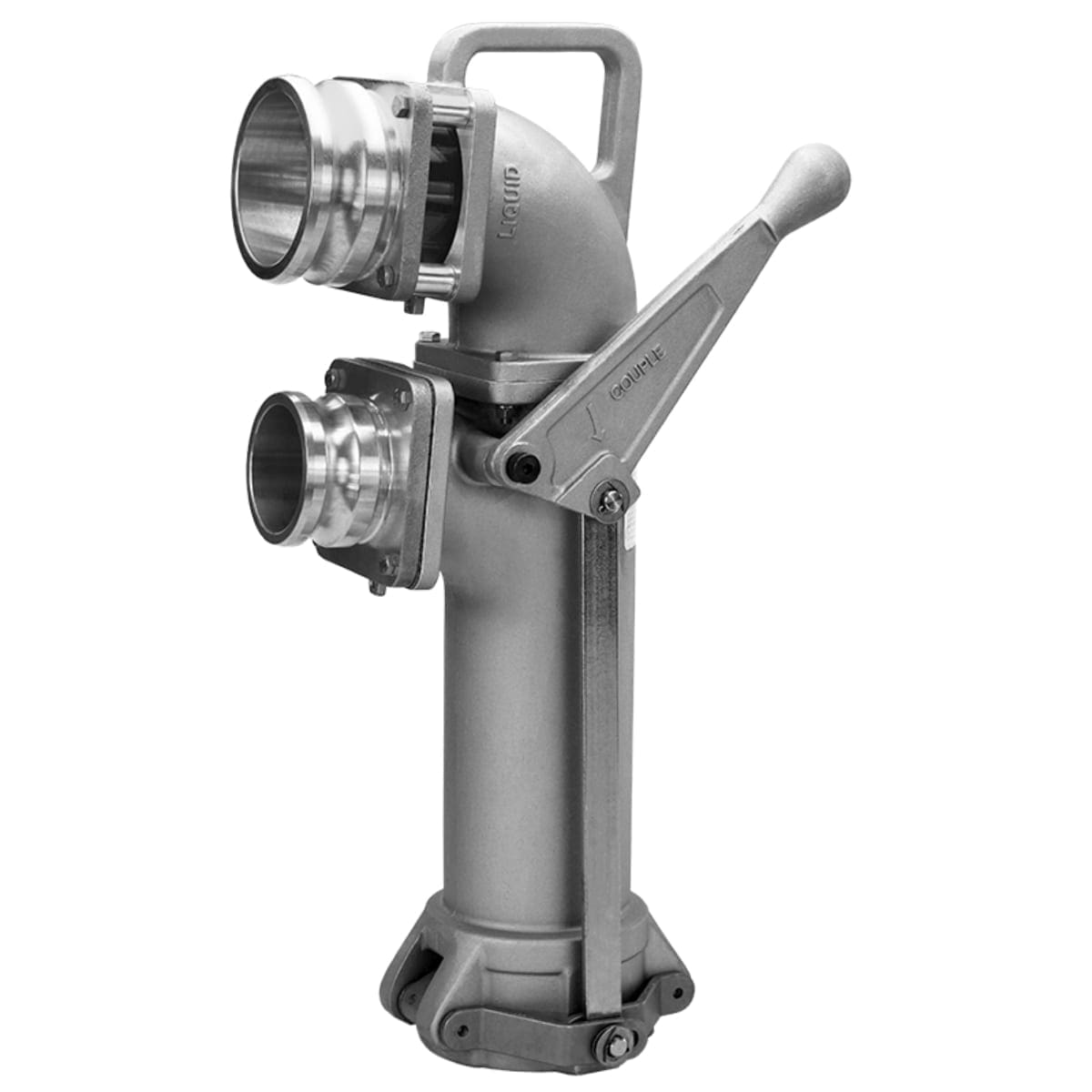

Standard Size Single Point Drop Elbow, Aluminum, No Inlet or Outlet Adapter (Body Only)

This single point (co-axial) drop elbow easily connects to underground tank fill collars and prevents hose damage due to kinks.

At single point tank stations, this co-axial elbow allows vapor recovery and fuel delivery to be done with one elbow. The upper connection is the fuel delivery inlet while the lower connection is the vapor recovery outlet. This elbow does not contain an inlet or outlet adapter but can be fitted with a variety of adapters with a four bolt flange pattern.

A lever handle enables the operator to positively engage the stainless steel locking arms onto an underground adapter, creating a uniform seal compression.

This coaxial elbow meets stage 1 and 2 vapor recovery standards.
