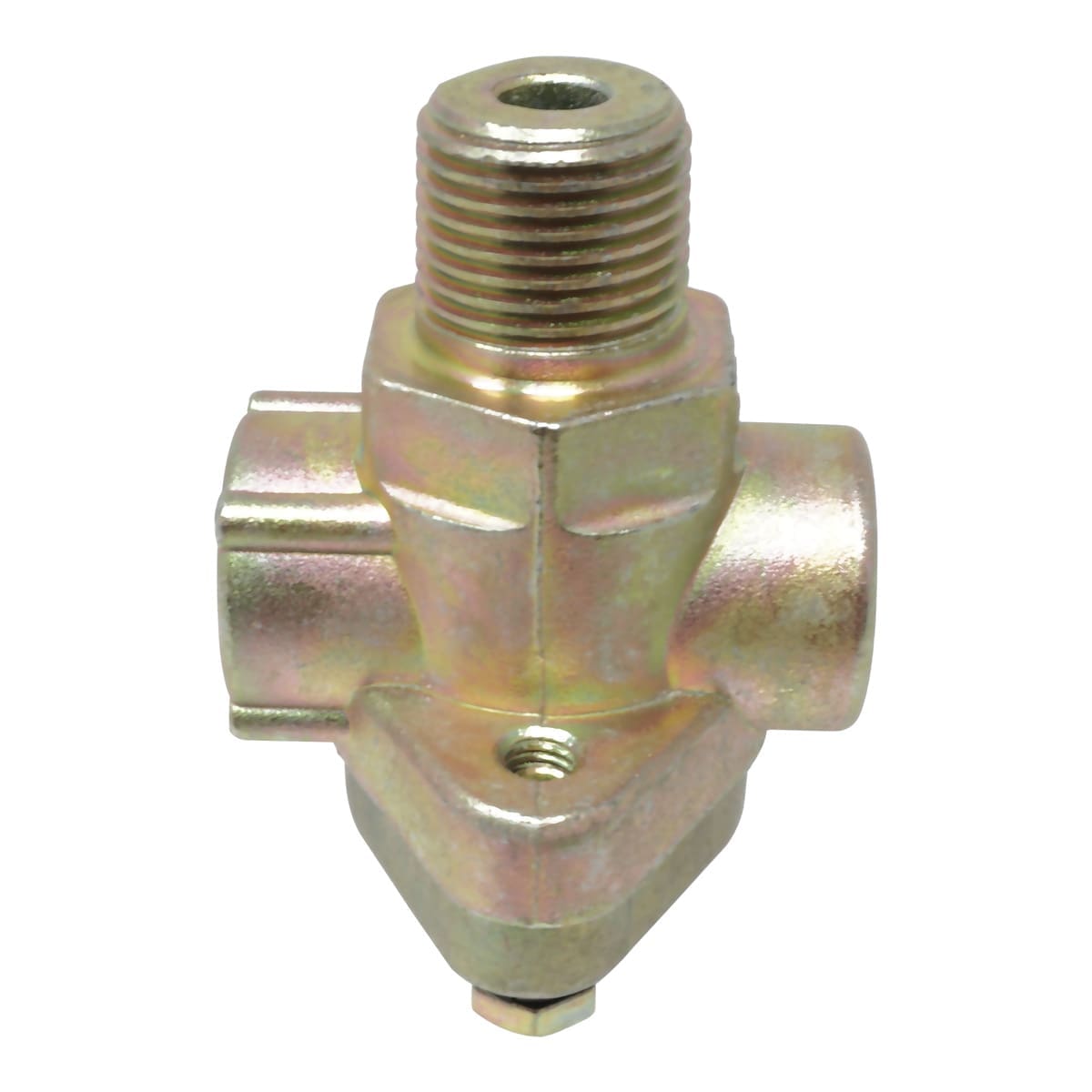

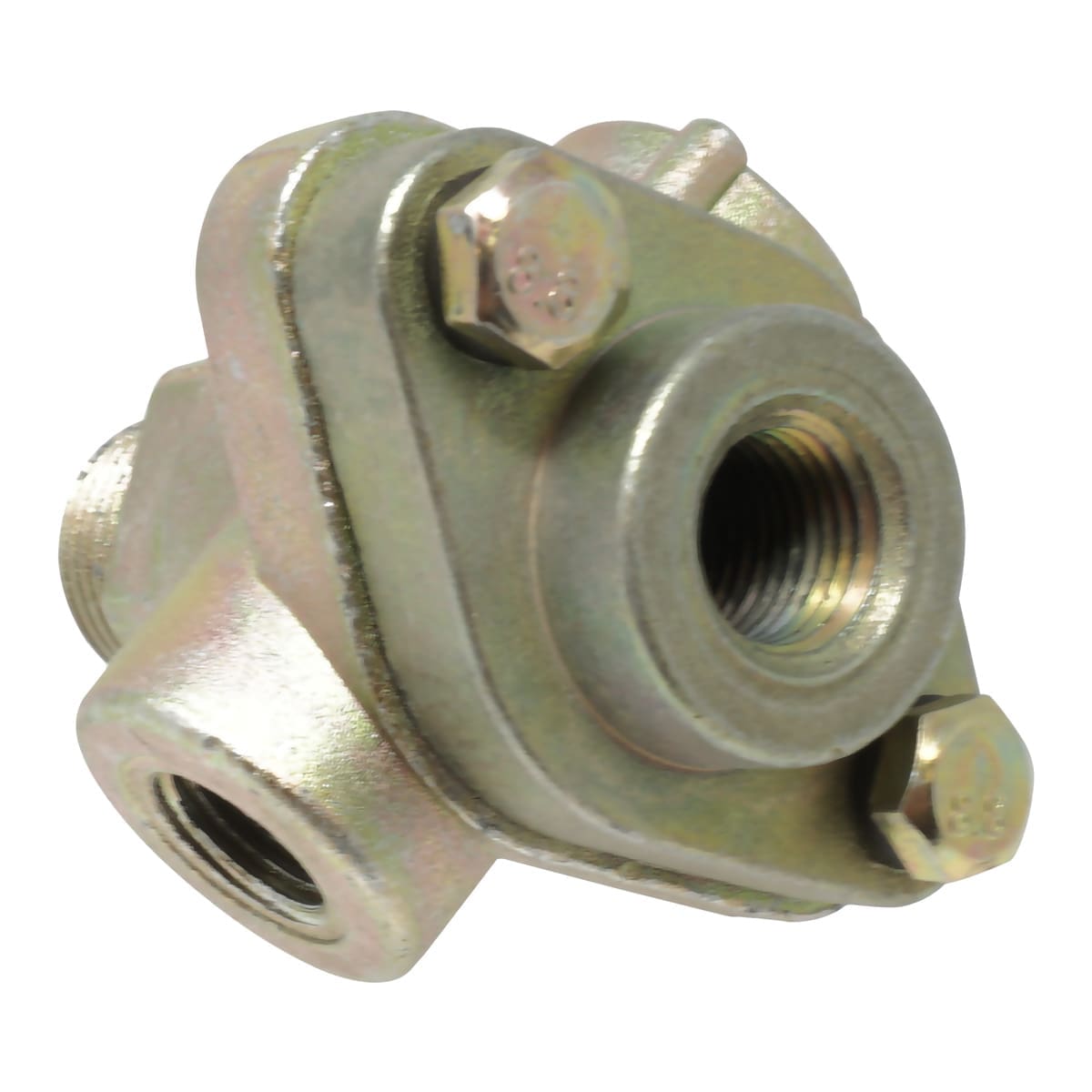

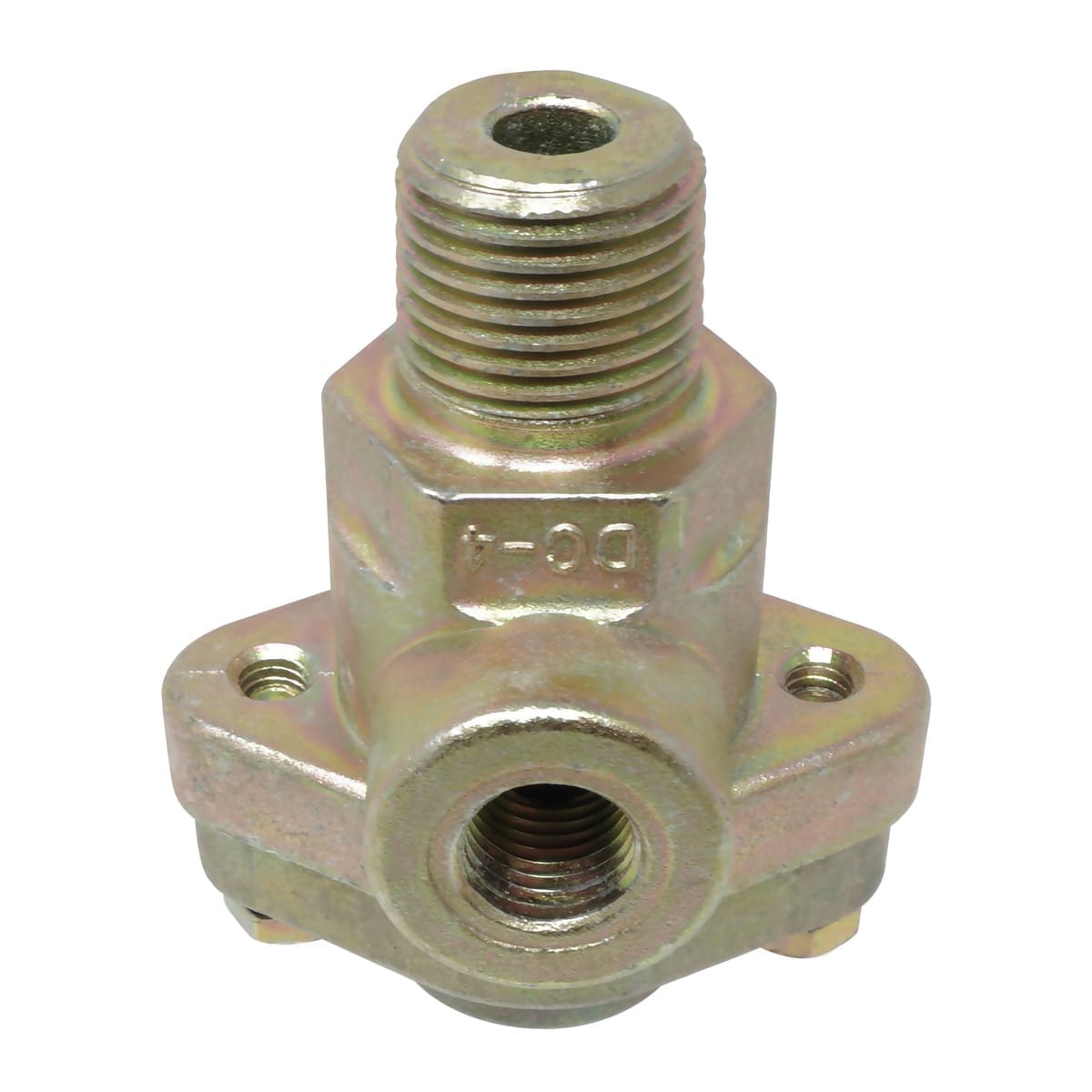

Truck Air Brake Systems Double Check Valve (DC-4) 3/8 NPT(WA278596)

$21.08

Supply Port 1: 1/2-14 NPT (Male)
Supply Port 2: 1/4-18 NPT (Female)
Delivery Port: 1/4-18 NPT (Female)
Delivery Port 2: 1/4-18 NPT(Female)
Length: 2 3/4 (Inch)
Thread Type: N.P.T, DC-4 No Sealant
Part Type: Air Valve

Stock Item: Available

This product ships from the Gloxco fulfillment center. Stock items typically ship within 1 business day.

SKU: WA278596 Categories: Air Brake Systems, PTOs and Hydraulics Tag: Stock Item

Description
Additional information

This is a Four Way Double Check Valve part of the air brake System components on a commercial vehicle. Used in an air brake system to direct air a flow of air into a common line from either of two sources whichever is at higher pressure. For use of transfer or made for heavy duty use. A frame mount, shuttle type double check valve that offers maximum durability. Offers ease of installation as it is made following strict OEM specifications.

Please verify fit with the OEM Part number interchanges list below.

This part interchanges with the following part numbers: S-16918, 1676718C1, 1676718C1, TV278596TEC, MBW278596, BW278596N, 745-278596, 606182C91, 278596N, 278596, ZAC278596, 278596, TV278596TEC, MBW278596, BW278596N, 745-278596, 606182C91, 278596N, ZAC278596

Part Interchanges listing means that this valve is a suitable replacement for the part numbers listed above.

Weight	0.6 lbs
Dimensions	2.75 × 2 × 2.54 in
Product Type	PTO Parts
PTO Part Types	PTO Air Control Valves, PTO Tower Consoles
Lead Time	1-2 Days
Interchanges	032146, 32146, 329219X, S-16309, S-D523
