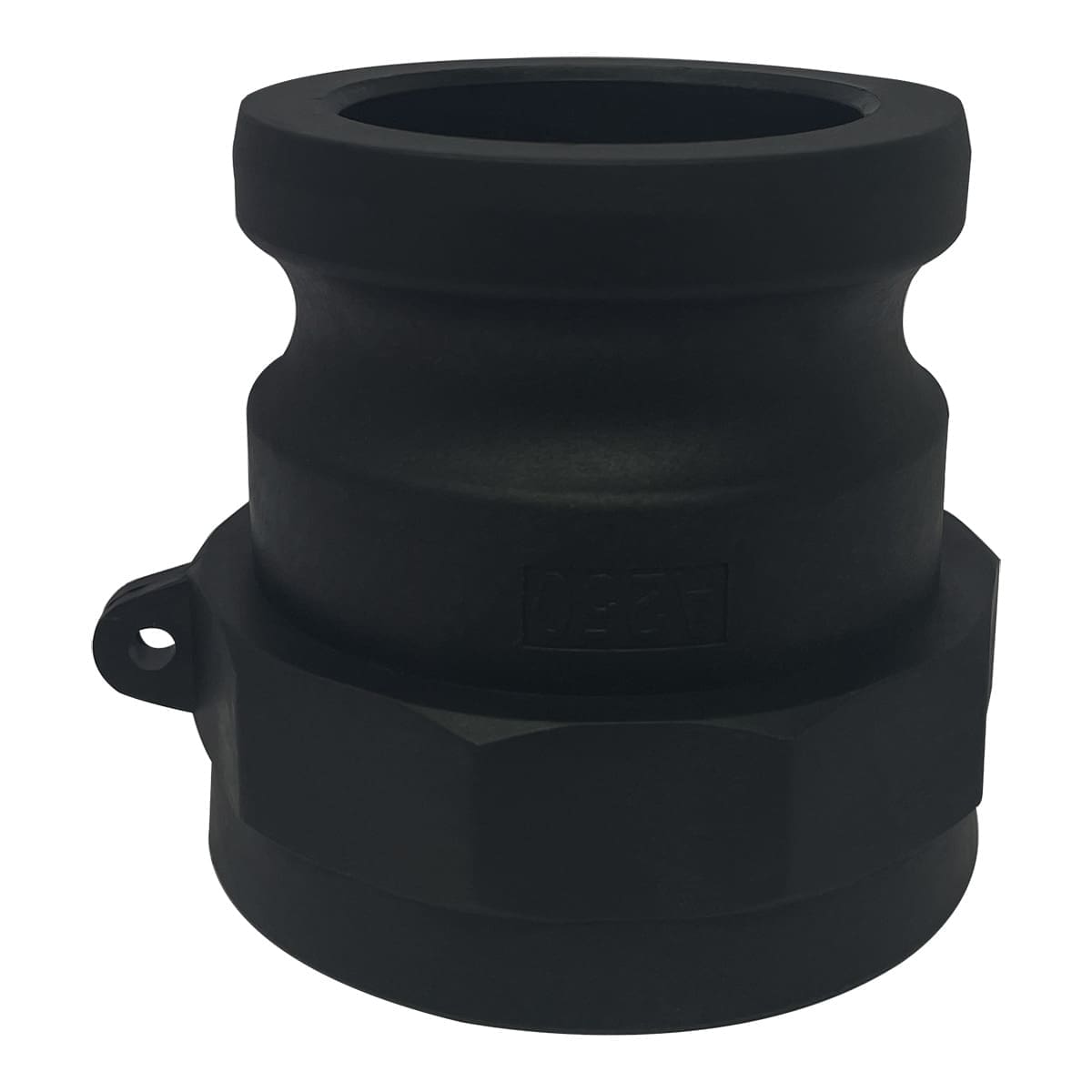

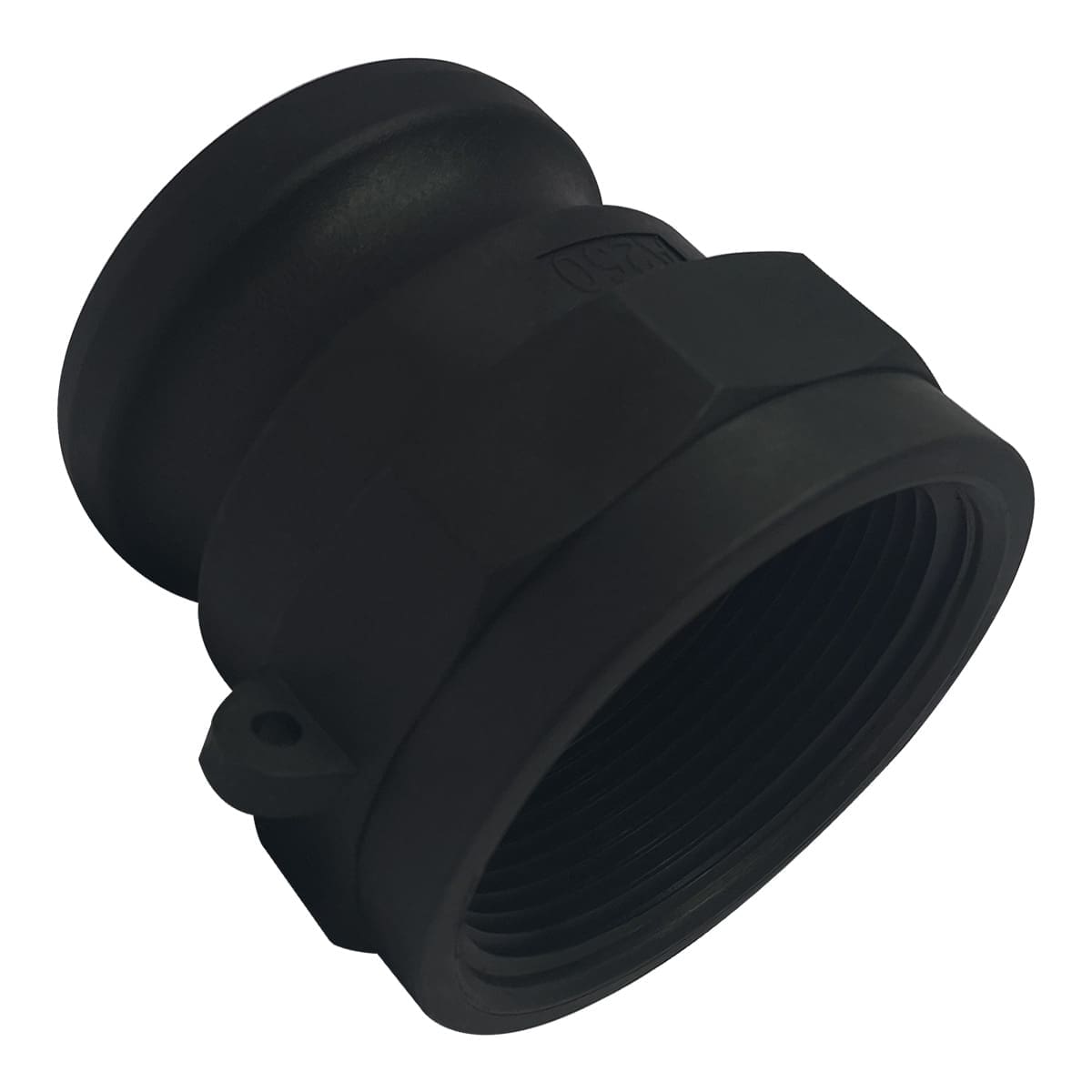

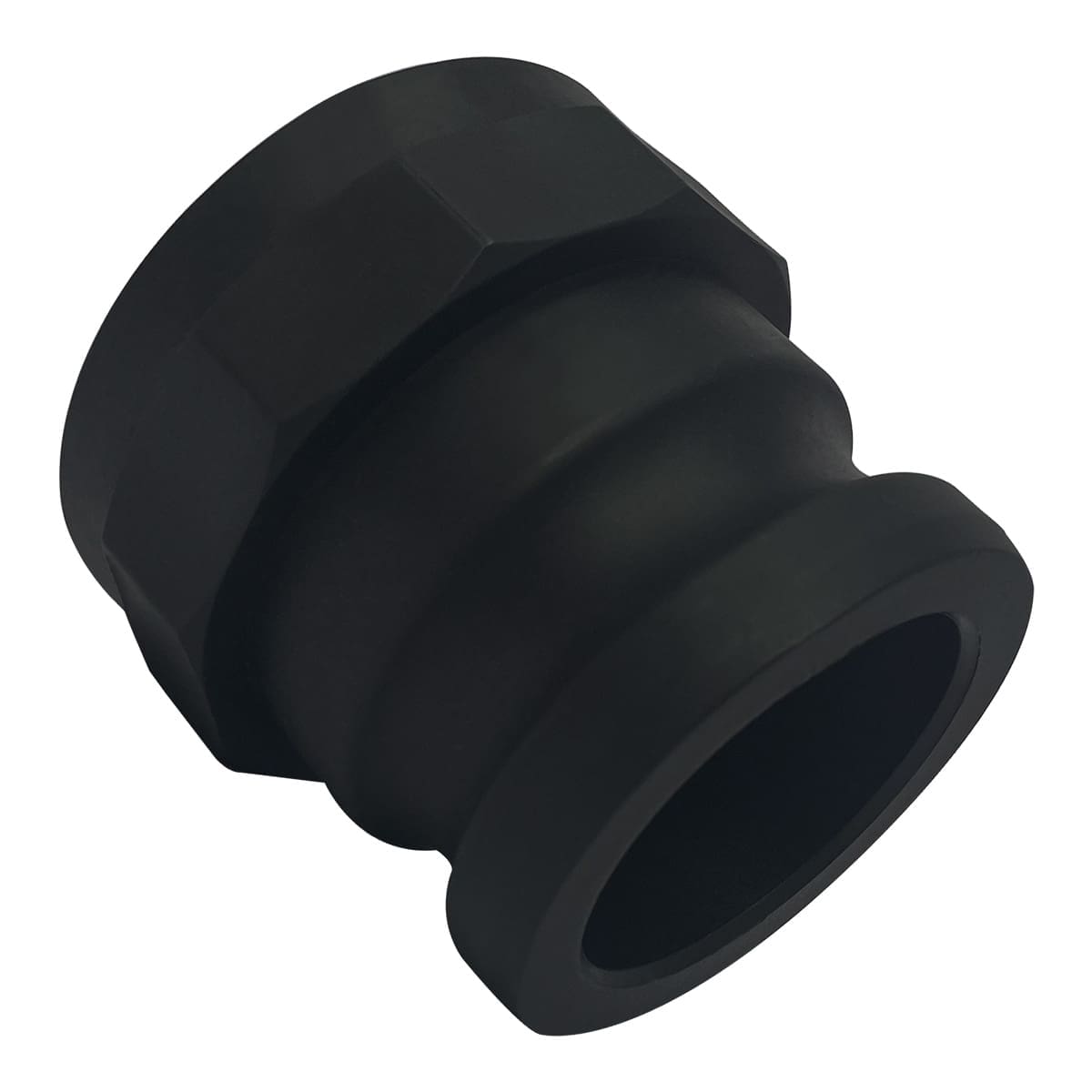

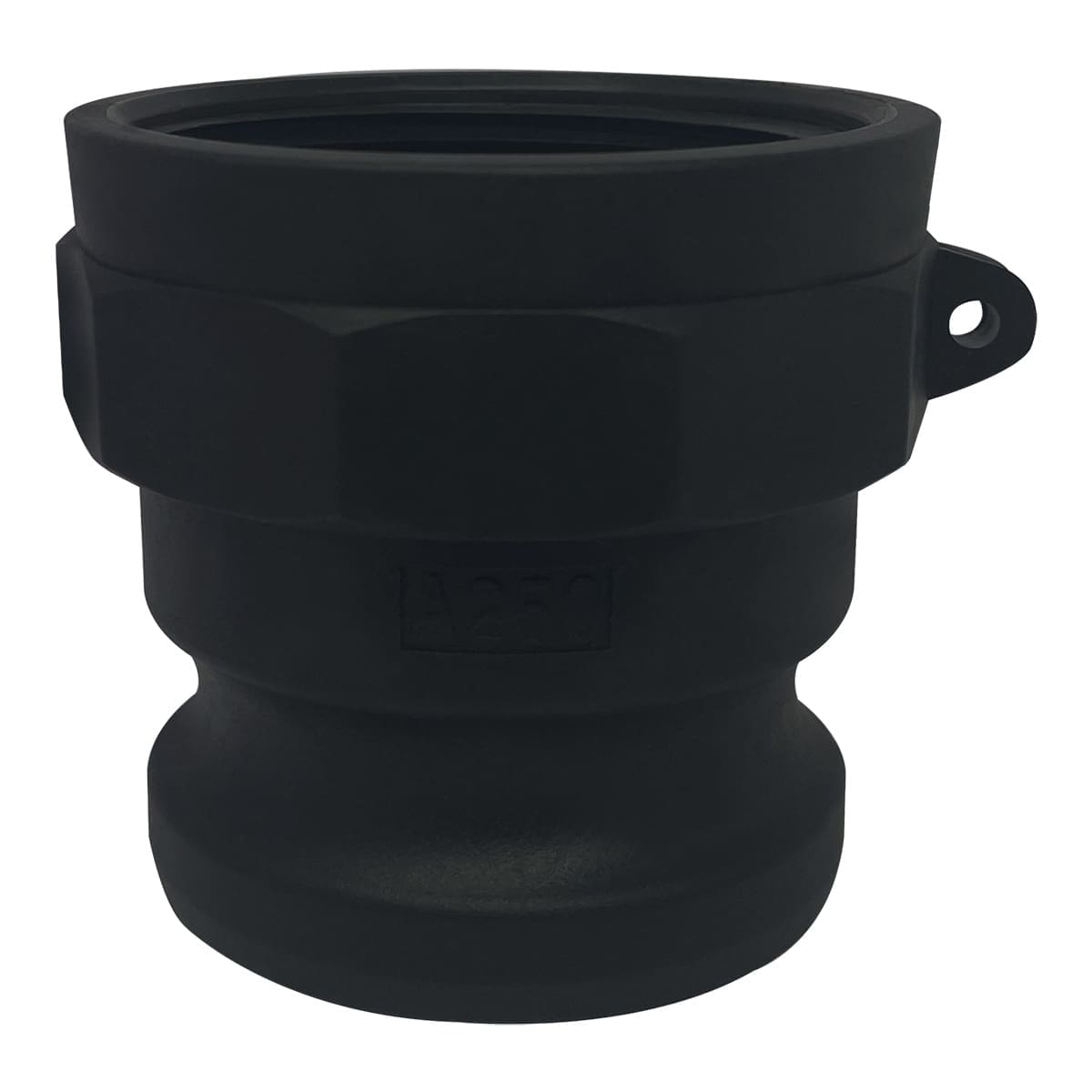

Type A Poly Cam Lock Fitting, 2-1/2″ Male Cam and Groove x 2-1/2″ Female NPT (CAM-25-A-PP)

Gloxco brand glass-filled polypropylene plastic type A cam and groove fitting. This type A poly cam lock fitting has a 2-1/2″ male camlock (cam and groove) quick connect coupling on one side and a 2-1/2″ female NPT theads on the other side. The male camlock side of this coupler will only attach to a 2-1/2″ female camlock. The female threaded side will connect to a male NPT (National Pipe Tapered) threaded pipe.  The body of this cam and groove fitting is made of polypropylene. This Poly cam lock fitting is lightweight and resistant to abrasion corrosion and some chemicals.This fitting’s seal is made of NBR (Buna-N) rubber. Buna-N seals are resistant to fuel, oil, and other chemicals. These cam and groove fittings are suitable for use with water and other liquids.

These Type A cam and groove fitting is made to quickly connect or disconnect. They comply with commercial item description A-A-59326D for quick disconnect fittings. These Gloxco camlock fittings are often used in applications such as vacuum trucks, vacuum trailers, frac tanks, fuel delivery, grain movement and waste water industry. Cam lock (cam and groove) fittings are popular couplings because they are economical and can easily be connected and disconnected. 2-1/2″ poly camlock fittings have a max PSI rating of 100 psi.

In addition to this type a poly cam lock fitting, Gloxco offers a full line of hose fittings with various types of connections. Gloxco hose fittings are used in systems such as air compressors, oilfield water distribution, vacuum trailer, vacuum trucks, frac tanks, storage tanks, agriculture, mining, road construction, fire fighting, and aviation industry.

Warning: Type A cam lock fittings, or any other camlock fitting, should not be used for compressed air or steam.
