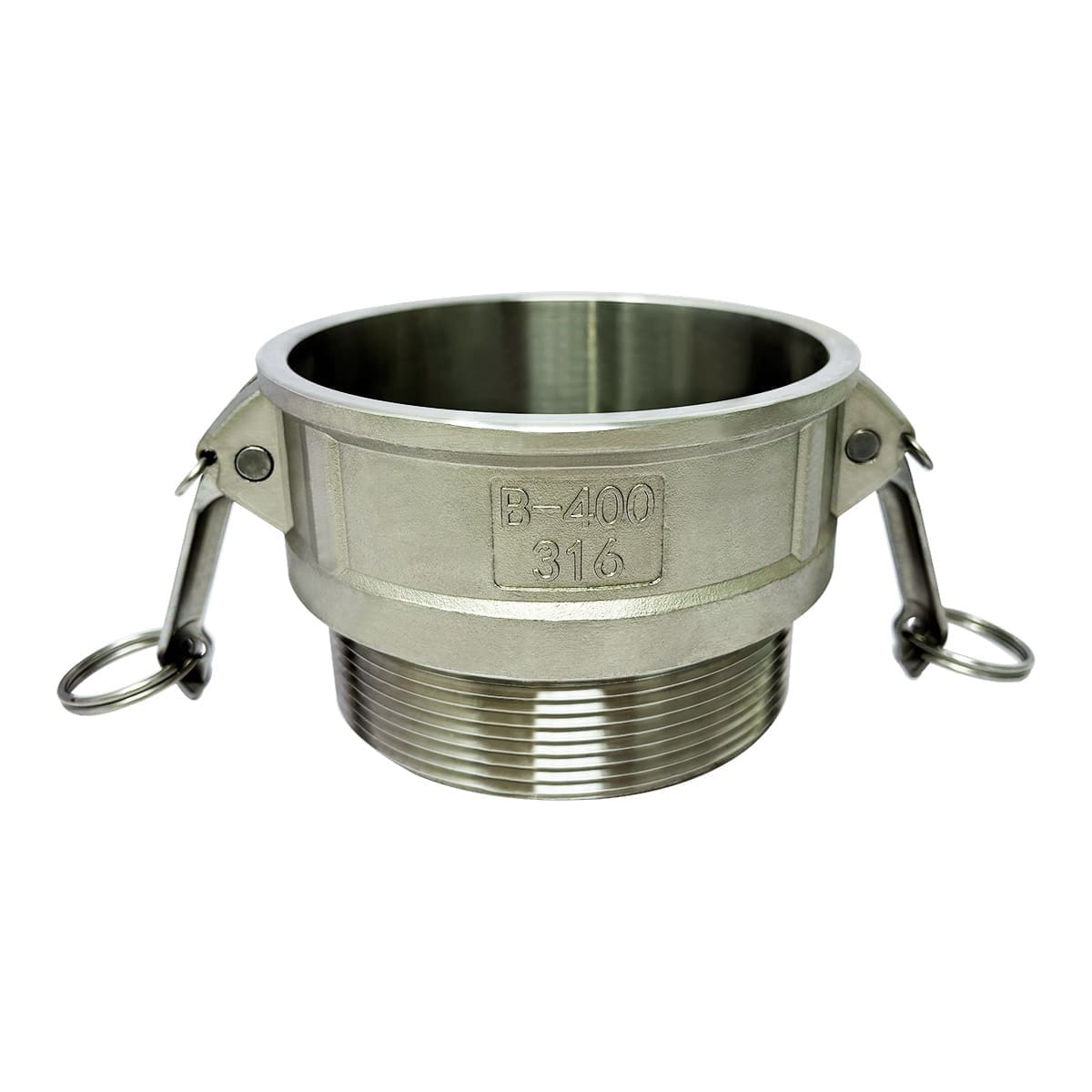

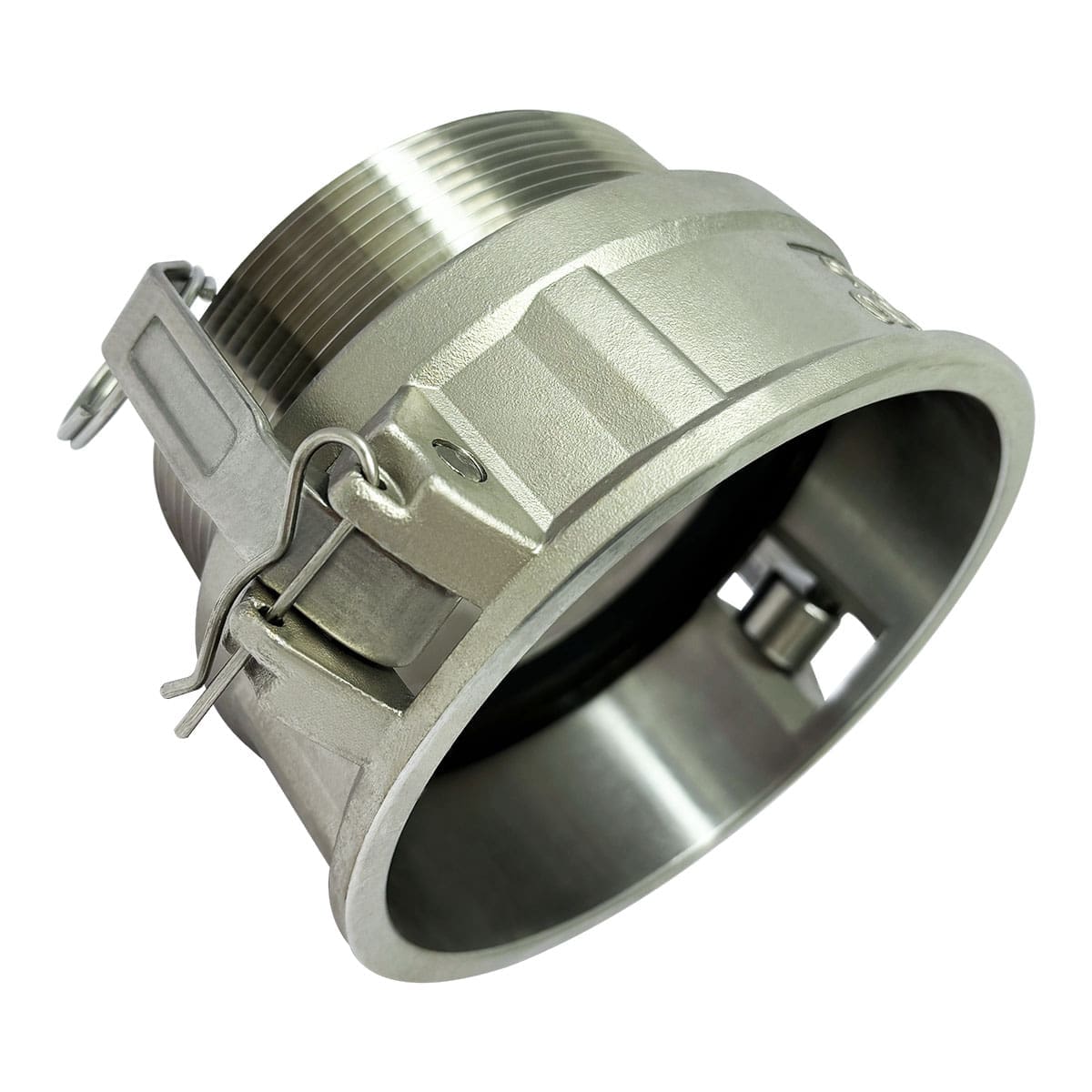

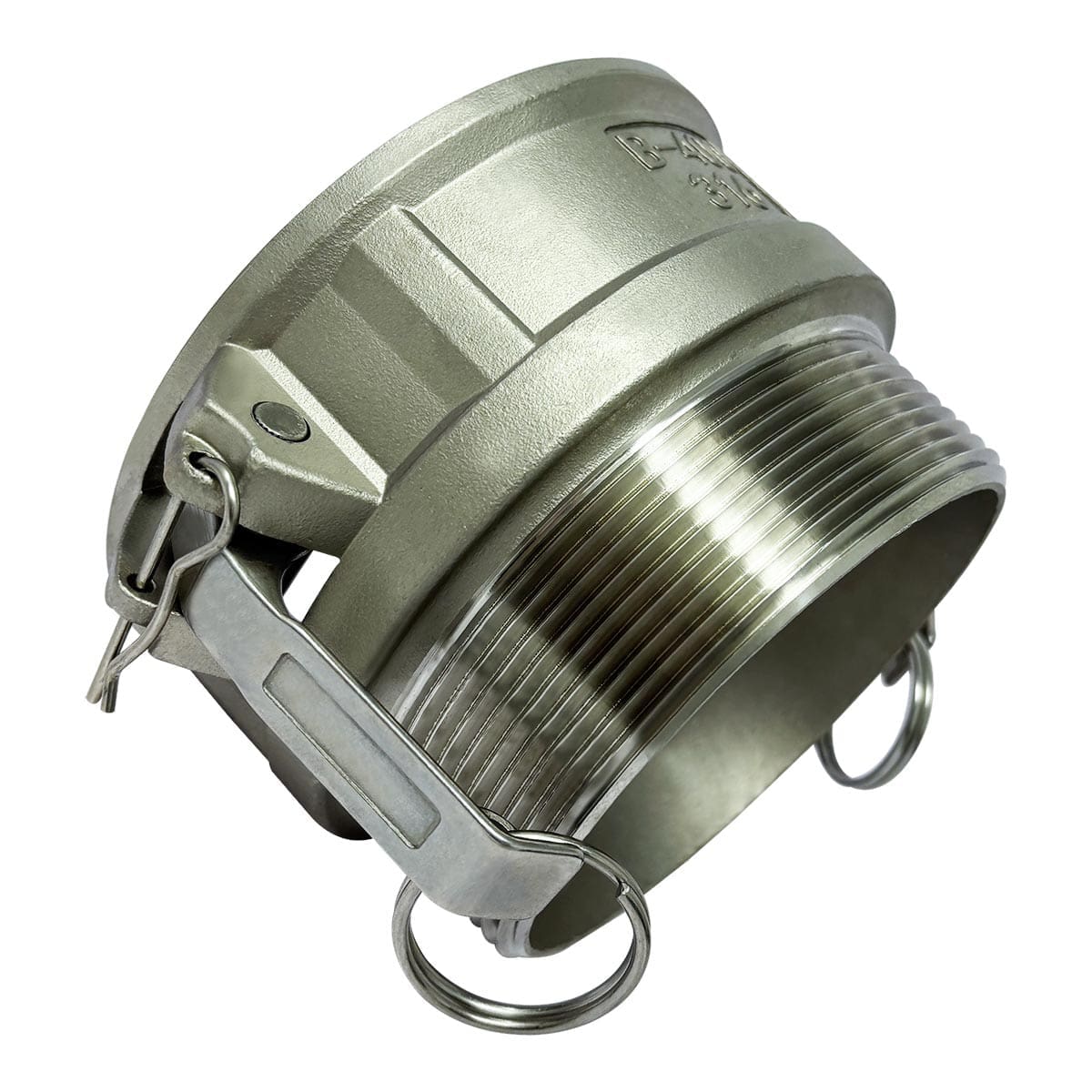

Type B Stainless Steel Cam and Groove Fitting, 4″ Female Camlock Coupler x 4″ Male NPT (CAM-40-B-SS)

Gloxco brand type B stainless steel cam and groove fitting. This type B stainless steel cam lock fitting has a 4″ female camlock (cam and groove) quick connect coupler on one side and a 4″ male NPT theads on the other side. The female camlock side of this coupler will only attach to a 4″ male camlock. The male threaded side will connect to a female NPT (National Pipe Tapered) threaded pipe. The body of this cam and groove fitting is made of stainless steel. This stainless steel cam lock fitting is lightweight and resistant to abrasion corrosion and some chemicals. This fitting’s seal is made of NSS (Buna-N) rubber. Buna-N seals are resistant to fuel, oil, and other chemicals. This fitting has stainless steel cam arms. Stainless steel cam arms are a little more durable than the stainless steel cam arms found on other fittings. These cam and groove fittings are suitable for use with water, hydraulic oils, coolants, gasoline, and other petroleum products.

These Type B cam and groove fittings are made to quickly connect or disconnect. They comply with commercial item description A-A-59326D for quick disconnect fittings. These Gloxco camlock fittings are often used in applications such as vacuum trucks, vacuum trailers, frac tanks, fuel delivery, grain movement and waste water industry. Cam lock (cam and groove) fittings are popular couplings because they are economical and can easily be connected and disconnected.

In addition to this type a poly cam lock fitting, Gloxco offers a full line of hose fittings with various types of connections. Gloxco hose fittings are used in systems such as air compressors, oilfield water distribution, vacuum trailer, vacuum trucks, frac tanks, storage tanks, agriculture, mining, road construction, fire fighting, and aviation industry.

Warning: Type B cam lock fittings, or any other camlock fitting, should not be used for compressed air or steam.
