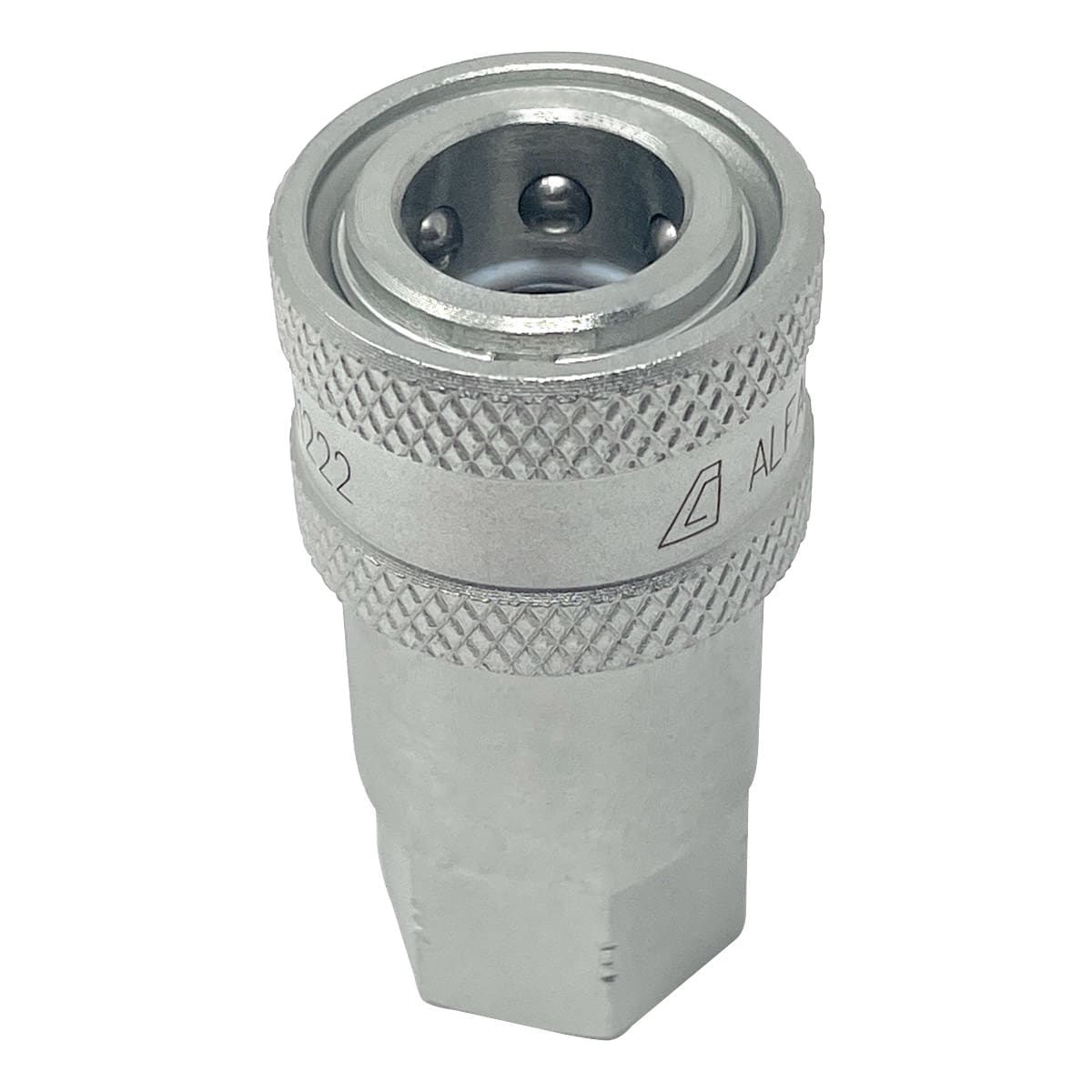

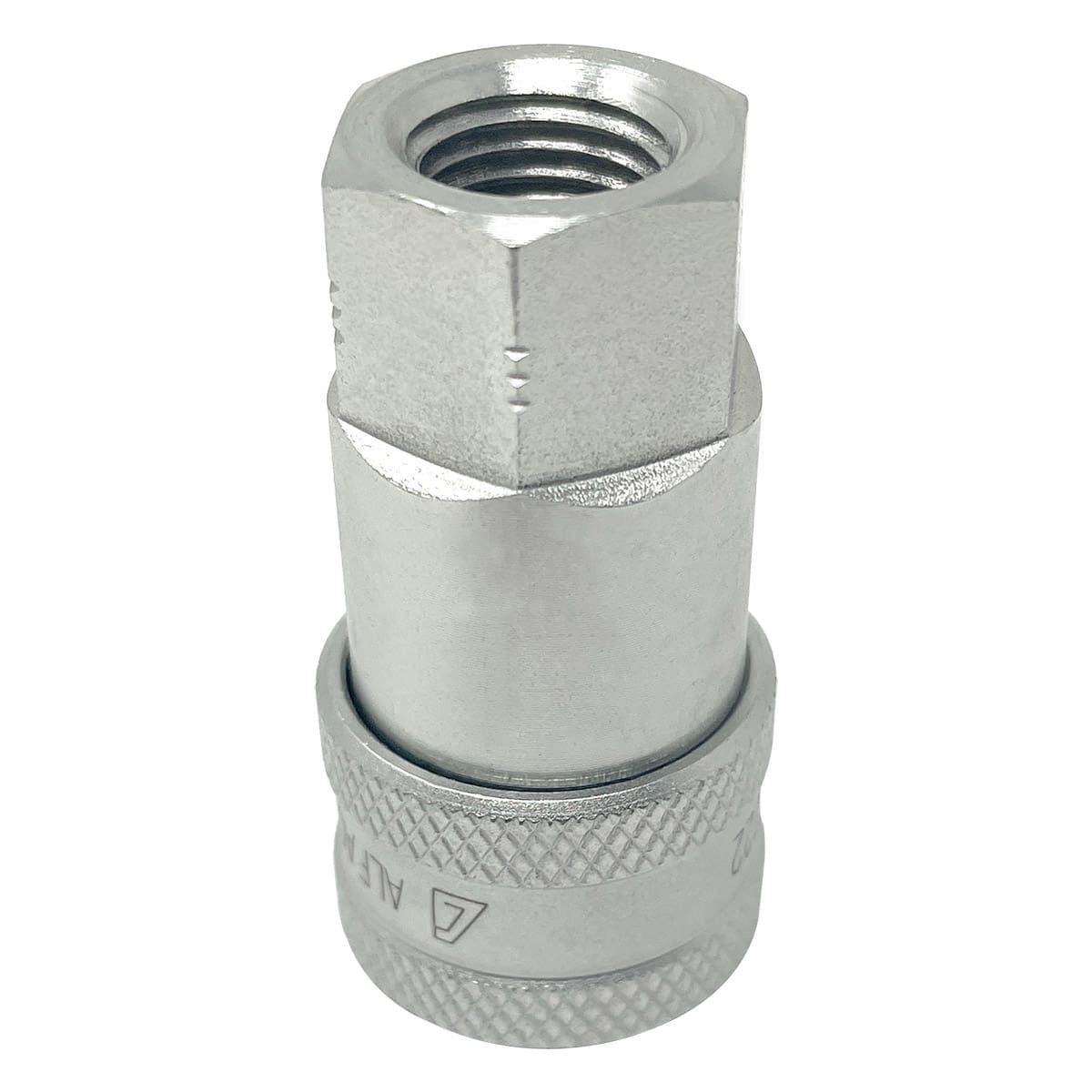

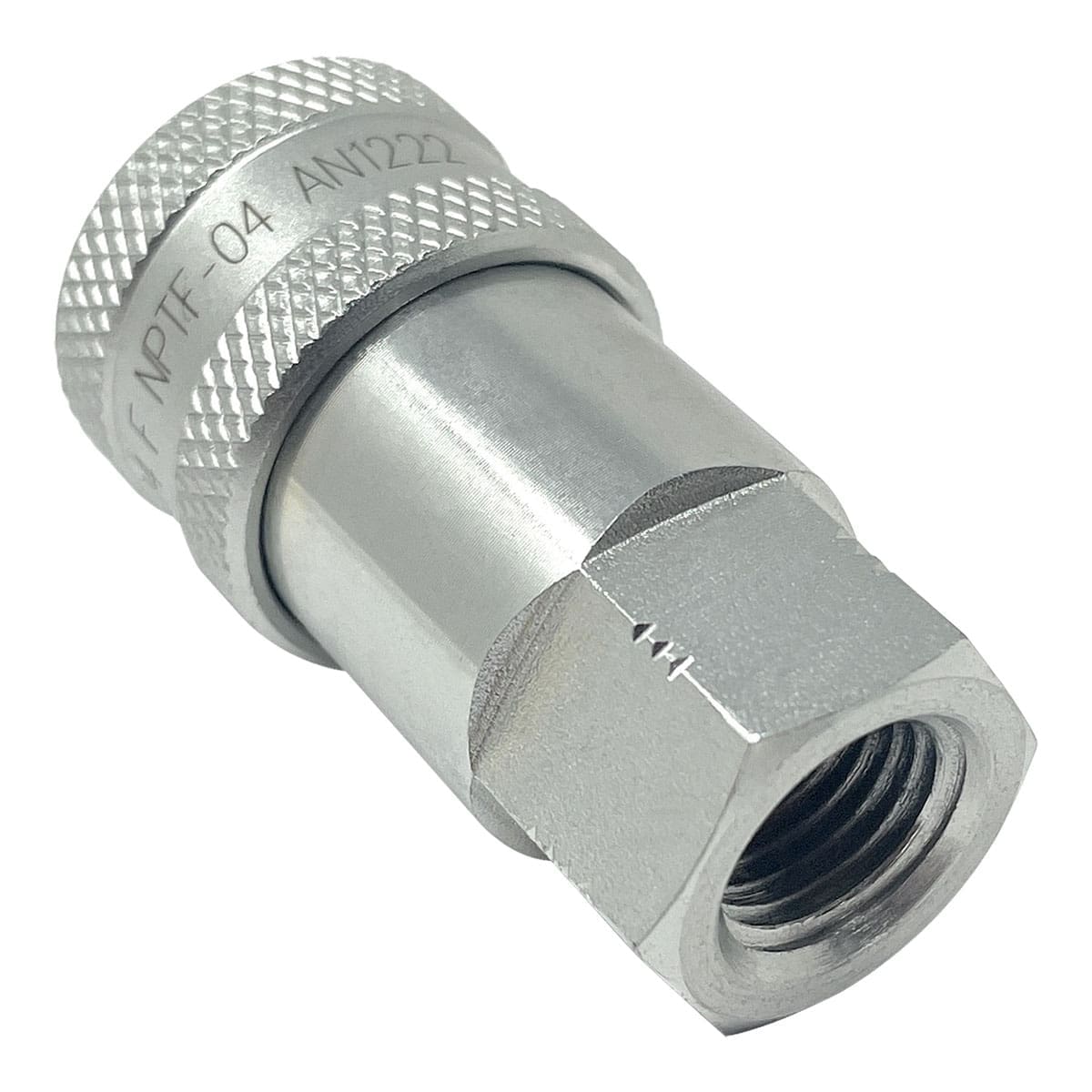

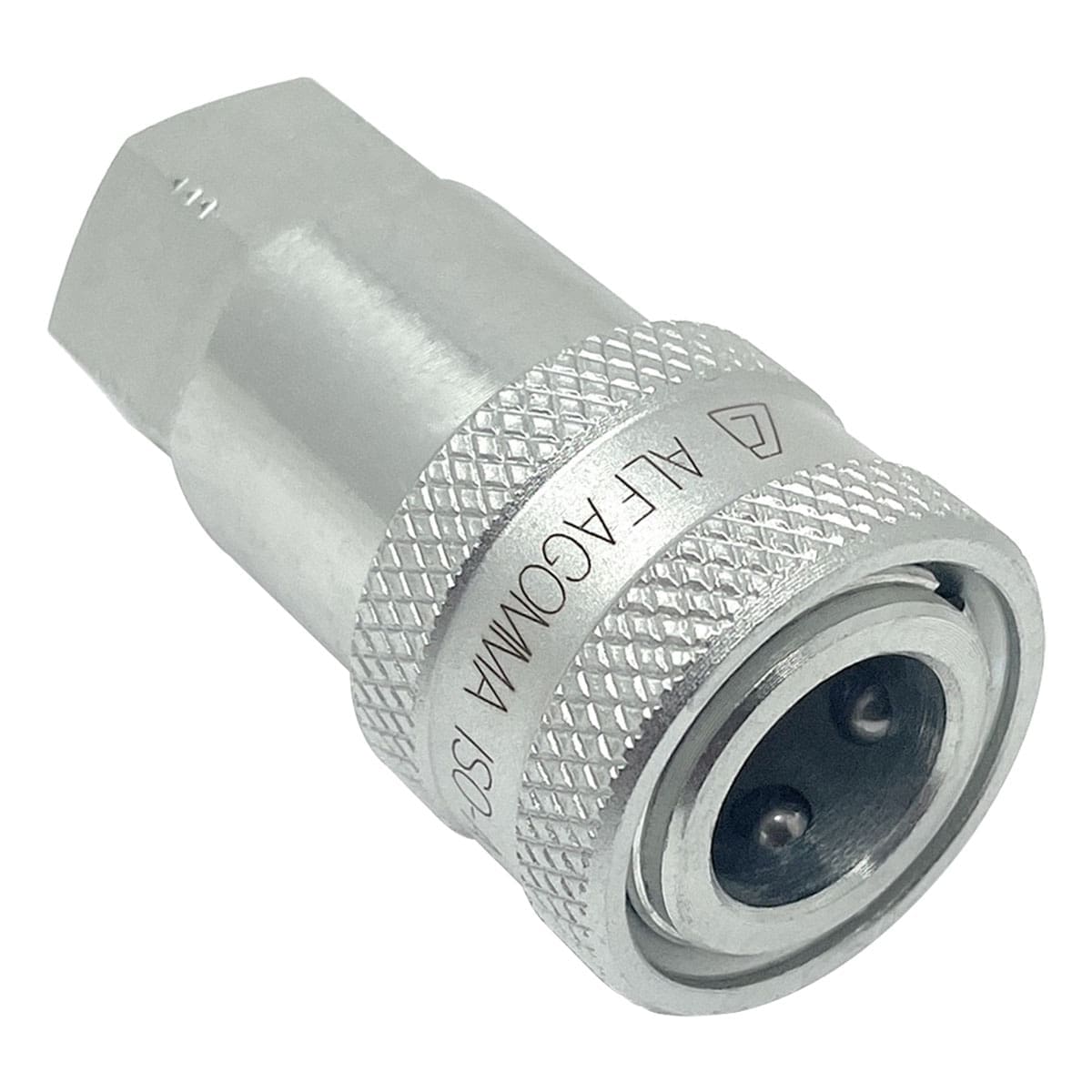

1/4″ Hydraulic Quick Release Coupling, Series A, 1/4″ Female Socket x 1/4″ Female Threads, Galvanized Steel

$11.64

Hydraulic Quick Release / Connect Coupler
ISO 7241 A Standard (Series “A”)
1/4″ Female Socket x 1/4″ Female Threads
5075 psi Working Pressure
Galvanized Steel Coupler with NBR O-Rings

Stock Item: Available

This product ships from the Gloxco fulfillment center. Stock items typically ship within 1 business day.

SKU: QAF-0404-FNPR Categories: Couplings & Fittings, Quick Release Couplings

Description
Additional information

Quick Release Coupling 1/4″ QAF-0404-FNPR

QD ISO A 1/4″ Male x 1/4″ FPT ARGUS ISO 7241-1 series “A” quick-release couplings are used for quick coupling and uncoupling of hydraulic lines. During the coupling action in zero or low-pressure ranges, valves that release or block the flow are automatically activated. The QA-ISO-A quick-release coupling, formed by the coupling plug and the coupling socket, is connected by pushing on a sleeve. This guarantees a flush connection between the two coupling halves

*Interchange: 1219612, 2KF2, 5601-4-4S, NV 14 NPT F, QAC44FP, G95621-0404, 4FQP-4FP, HA 15211 00, IA06-F-04N, Q00811341A-04-04, 6601-4-4, 6002-04, S565-2, 61C4-4F, QRC-IA-06-F-NF04-BT-W3, F. BIR 14 NPT, CA5602-16, B-6659-4

*This interchange does not give 100% interchangeability with the part numbers listed, only compatibility.

Lead Time	1-2 Days
Brand	Alfagomma®
Quick Connect Type	Series A (ISO 7421-A)
Connection Size	1/4"
Connection Type	Female Socket x Female Threads
Fitting Material	Zinc Plated Carbon Steel
Gasket Material	NBR
Fittings	1/4" Female Socket x 1/4" Female NPT
Working Pressure	5075 psi
Working Temperature	-4° F to +212° F
Product Type	Series A Hydraulic Quick Connect Fittings

1/4″ Hydraulic Quick Release Coupling, Series A, 1/4″ Female Socket x 1/4″ Female Threads, Galvanized Steel
