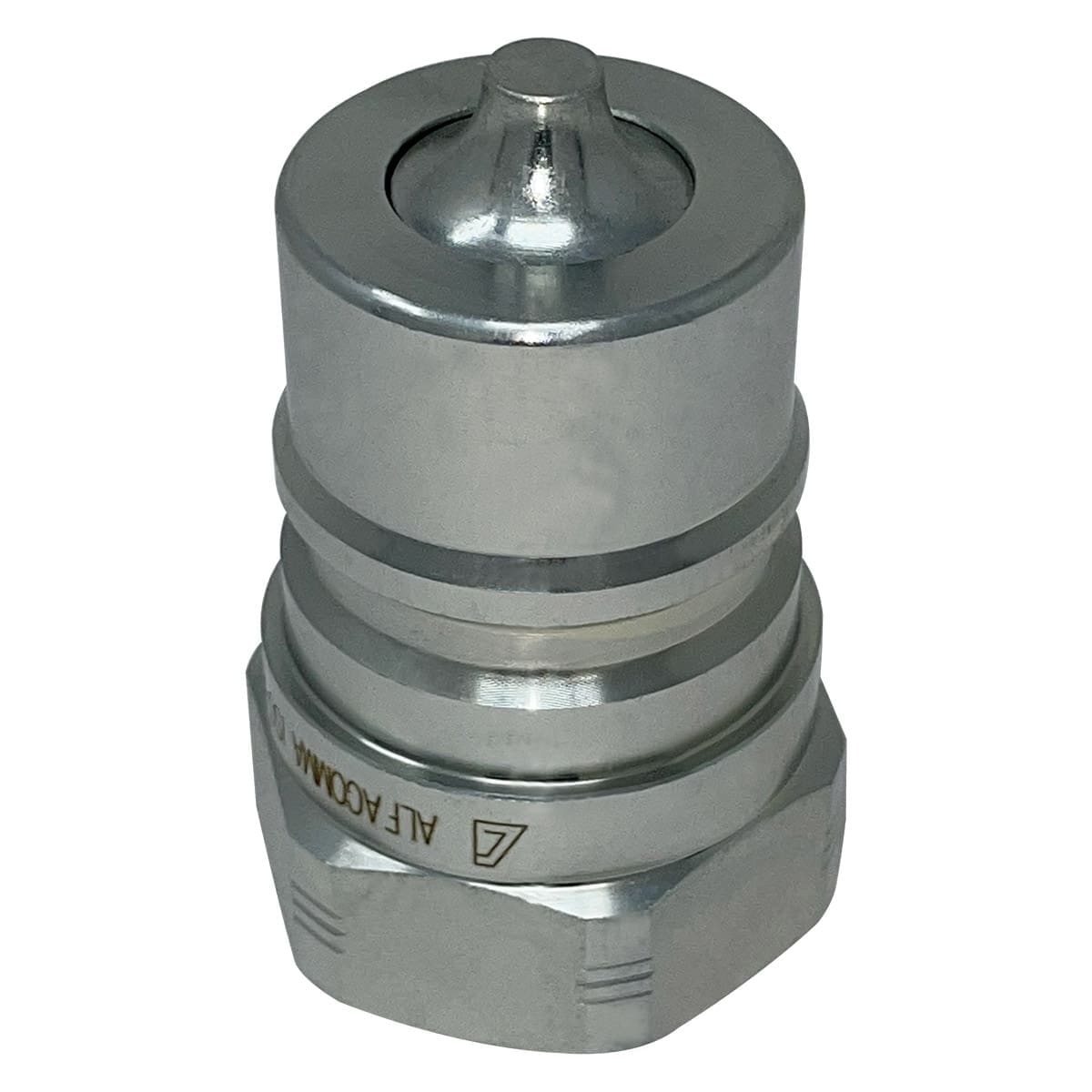

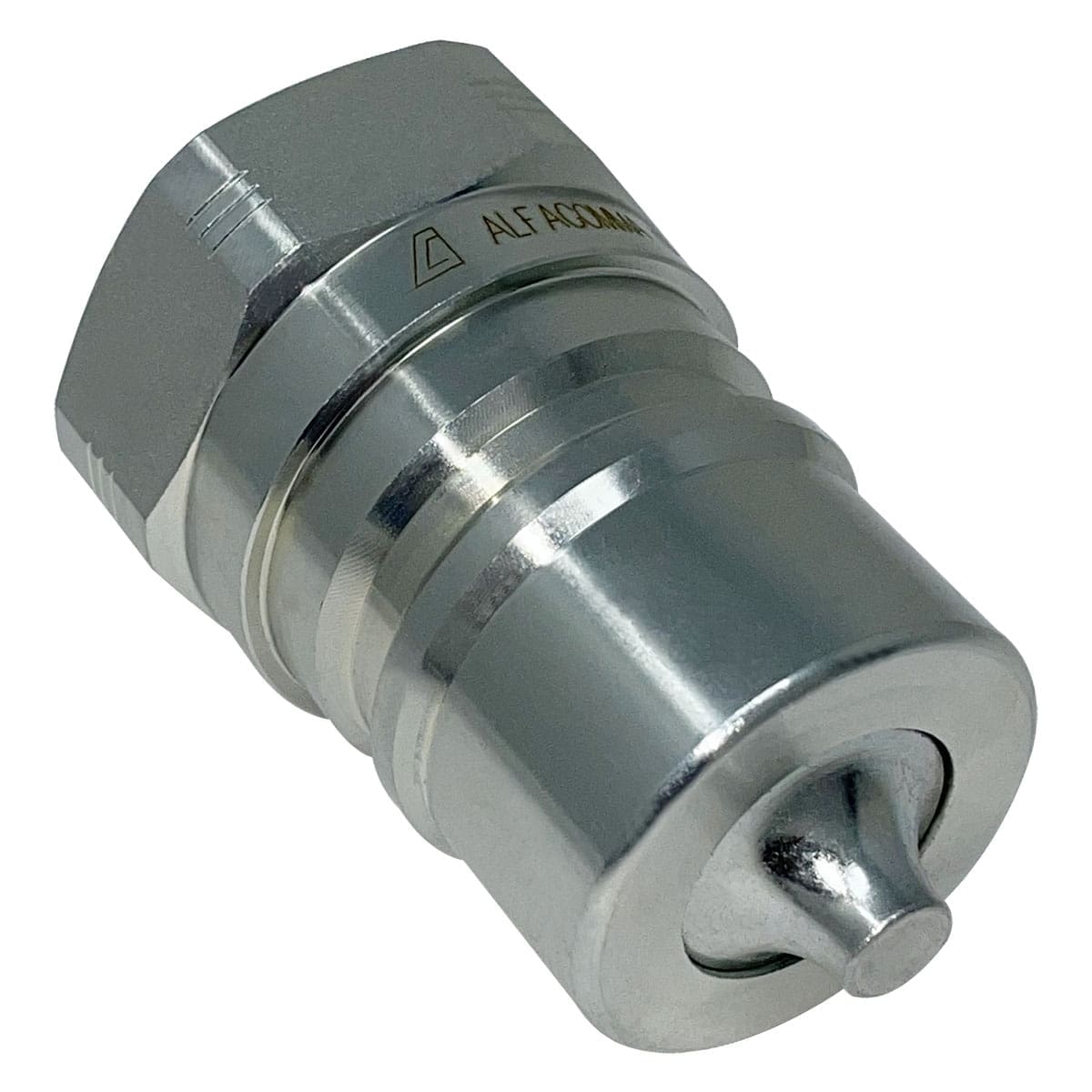

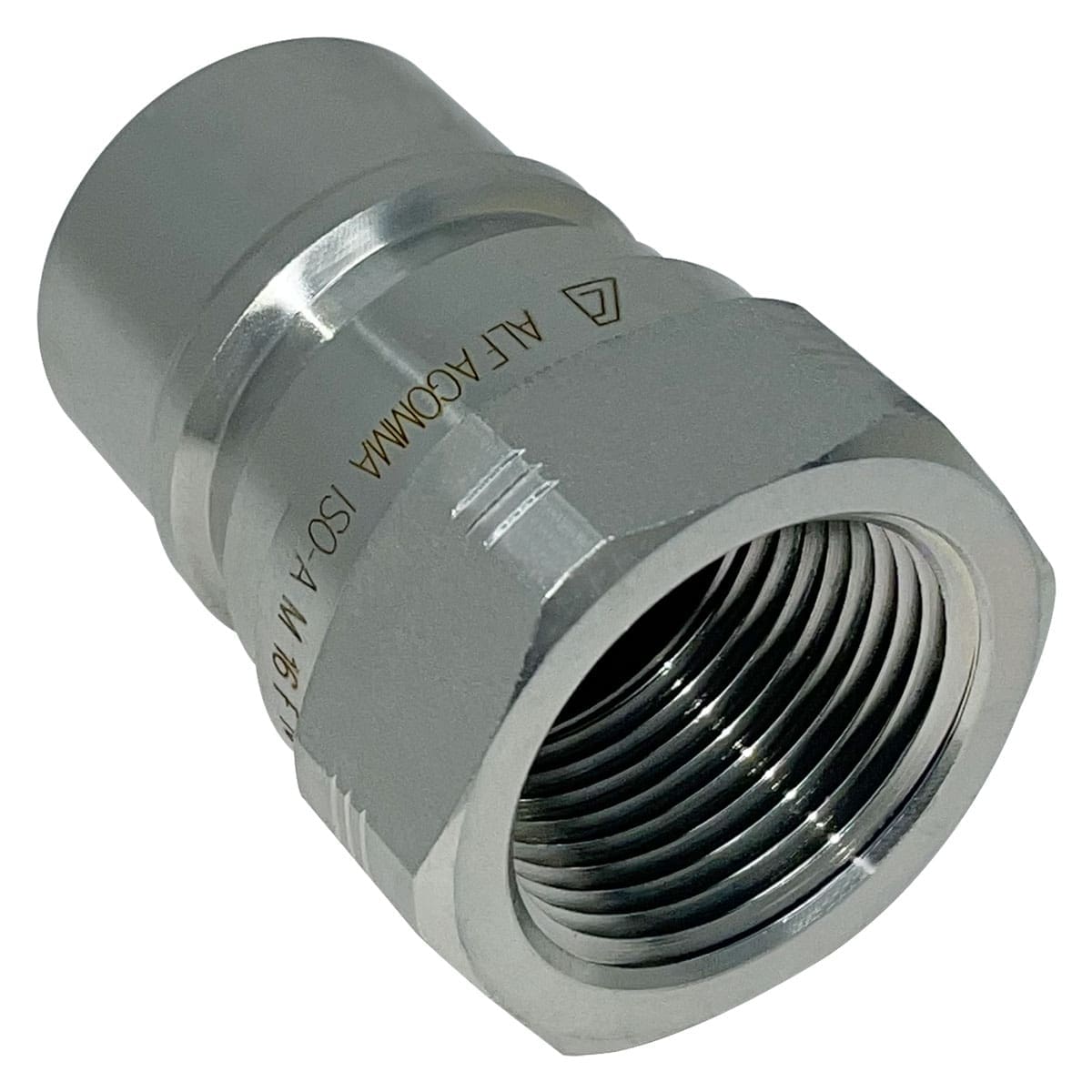

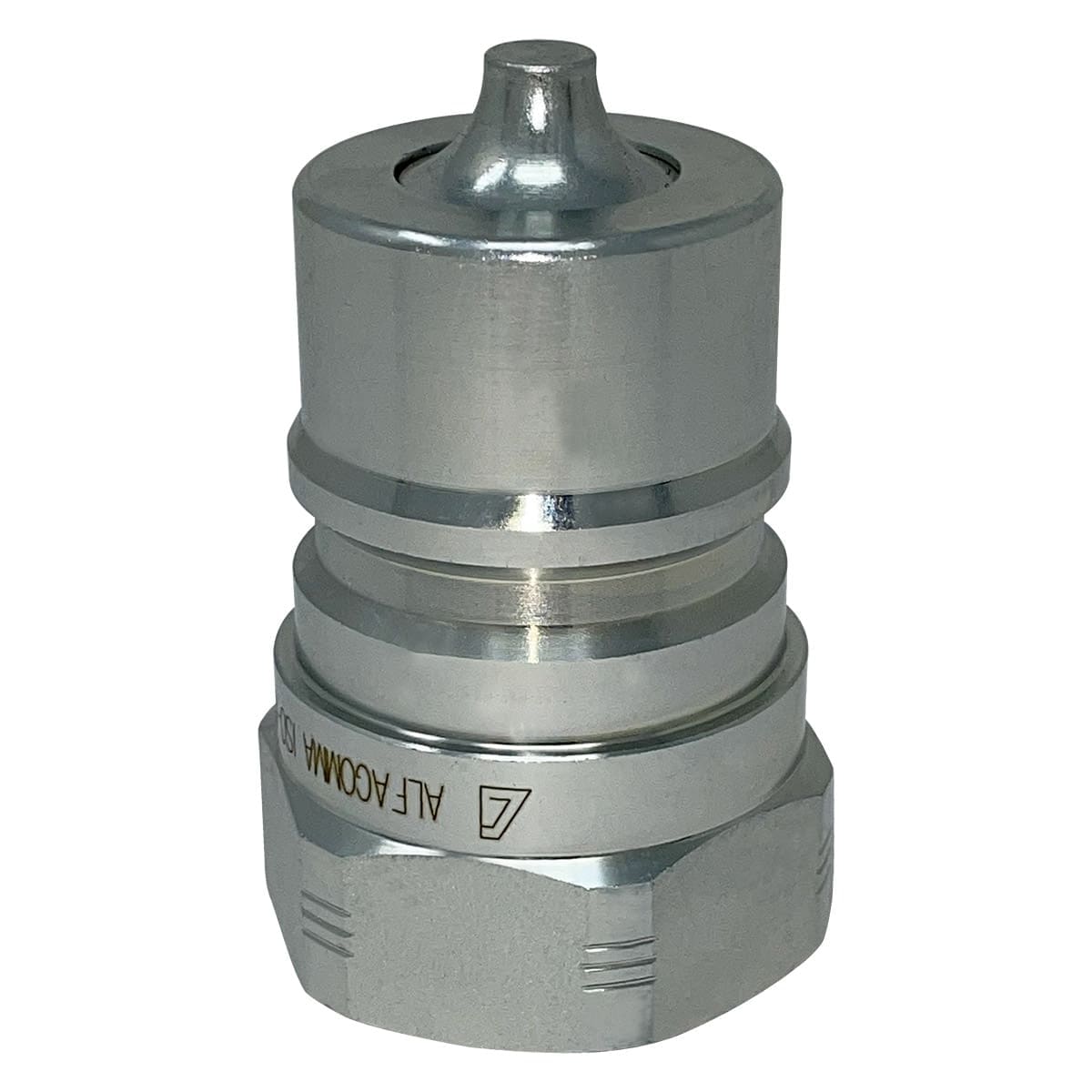

1″ Hydraulic Quick Release Coupling, Series A, 1″ Male Plug x 1″ Female Threads, Galvanized Steel

$20.96

Hydraulic Quick Release / Connect Coupler
ISO 7241 A Standard (Series “A”)
1″ Male Plug x 1″ Female Threads
5075 psi Working Pressure
Galvanized Steel Coupler

Stock Item: Available

This product ships from the Gloxco fulfillment center. Stock items typically ship within 1 business day.

SKU: QAM-1616-FNPR Categories: Couplings & Fittings, Quick Release Couplings

Description
Additional information

Quick Release Coupling 1″ QAM-1616-FNPR

QD ISO A 1″ Male x 1″ FPT ARGUS ISO 7241-1 series “A” quick-release couplings are used for quick coupling and uncoupling of hydraulic lines. During the coupling action in zero or low-pressure ranges, valves that release or block the flow are automatically activated. The QA-ISO-A quick-release coupling, formed by the coupling plug and the coupling socket, is connected by pushing on a sleeve. This guarantees a flush connection between the two coupling halves.

*Interchange: 1222487, K8F8, 5602-16-16S, NV 1 NPT M, QAN1616FP, G95611-1616, 16MQP-16FP, HA 15252 00, IA25-M-16N, Q00211341A-16-16, 6602-16-16, 6001-16, S561-8, 61N16-16F, QRC-IA-25-M-NF16-B-W3, M. BIR 100 NPT, PA5608-36, B-6657-16

*This interchange does not give 100% interchangeability with the part numbers listed, only compatibility.

Lead Time	1-2 Days
Brand	Alfagomma®
Quick Connect Type	Series A (ISO 7421-A)
Connection Size	1"
Connection Type	Male Plug x Female Threads
Fitting Material	Zinc Plated Carbon Steel
Fittings	1" Male Plug x 1" Female NPT
Working Pressure	5075 psi
Working Temperature	-4° F to +212° F
Product Type	Series A Hydraulic Quick Connect Fittings

1″ Hydraulic Quick Release Coupling, Series A, 1″ Male Plug x 1″ Female Threads, Galvanized Steel
