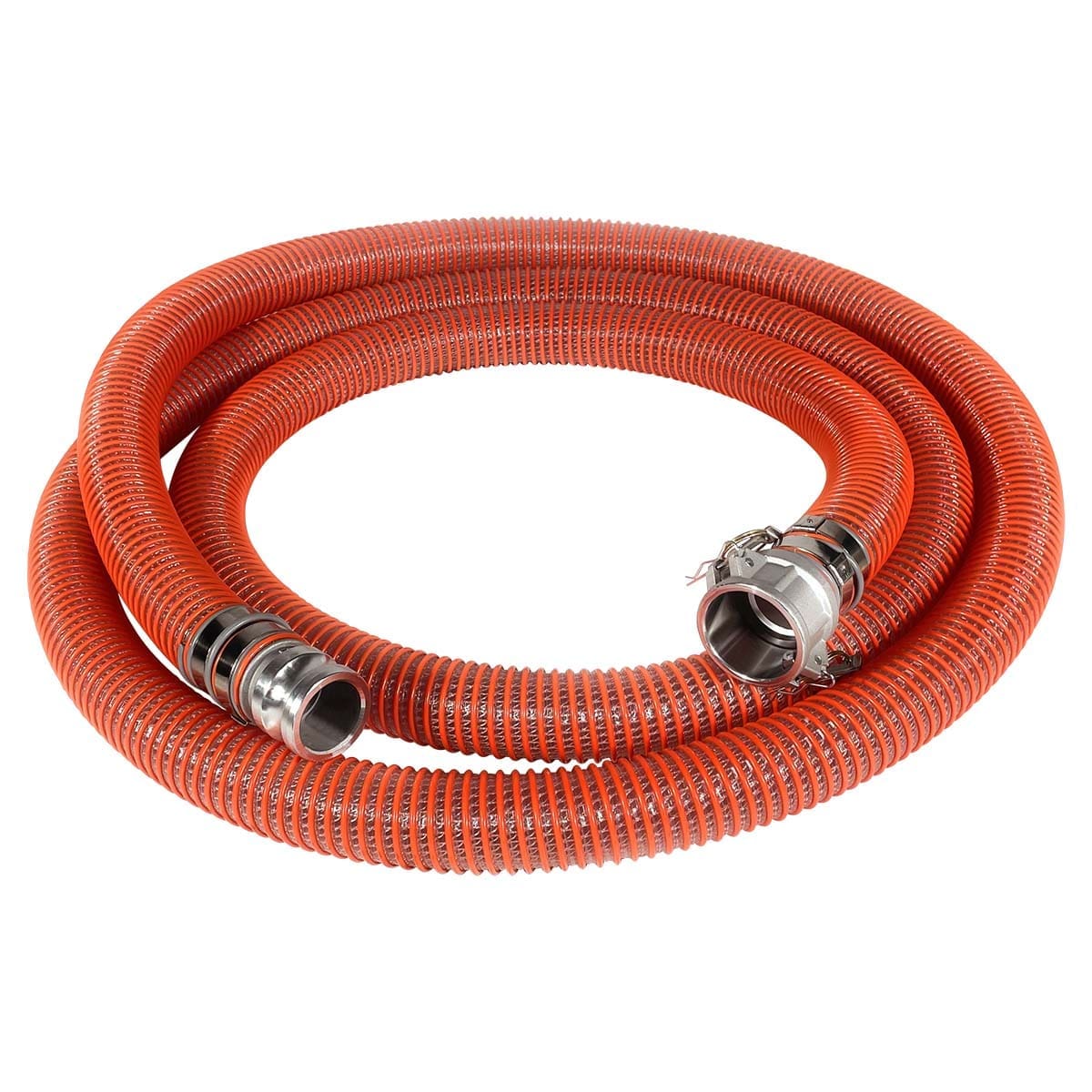

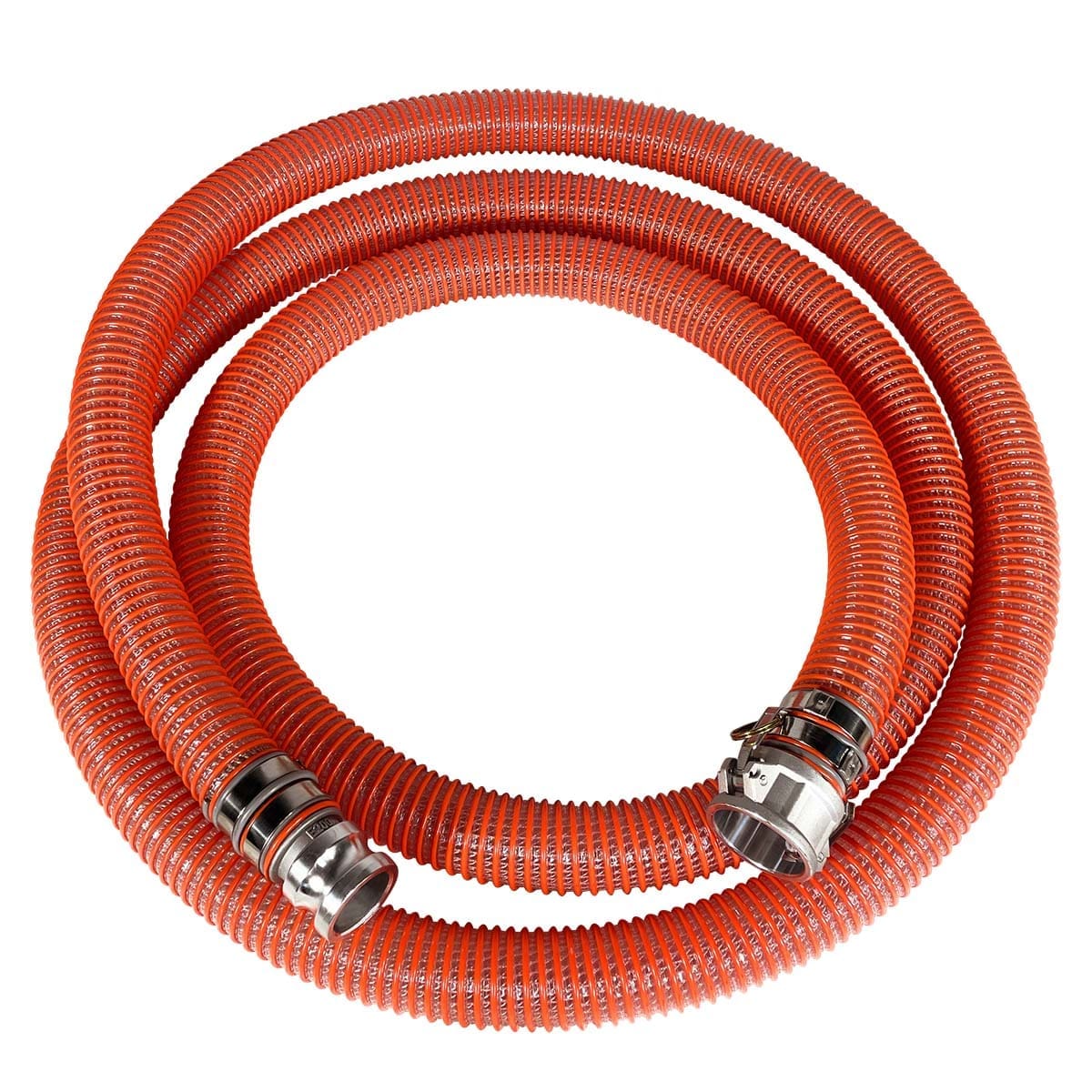

2″ Heavy Duty PVC Suction Hose Assembly, Orange/Clear, Male Camlock x Female Camlock, 100 PSI, 20′ Length

$140.16

2″ ID Heavy Duty PVC Suction Hose, 20 Ft Length
Clear PVC Hose with Sturdy Clockwise Orange PVC Helix Reinforcement
2″ Male Camlock x 2″ Female Camlock
Aluminum Cam and Groove Fittings, Installed with Hose Bands
100 PSI working pressure (at 68 deg Fahrenheit)
Temperature Range: -13° F to +140° F

Stock Item: Available

This product ships from the Gloxco fulfillment center. Stock items typically ship within 1 business day.

SKU: HA-200HDS-CEAL-20 Categories: Heavy Duty PVC Suction Hose Assemblies, Suction Hose Assemblies

Description
Additional information

This heavy duty PVC suction hose is designed to meet all water hose specifications. It was especially designed for use in construction, mining, industrial & agricultural service. It is also use in fish suction and transfer.

The hose is made of flexible clear PVC and is reinforced by a sturdy clockwise orange PVC helix with high tensile strength polyester yarn. It has a working temperature range of -13° F to +140° F.

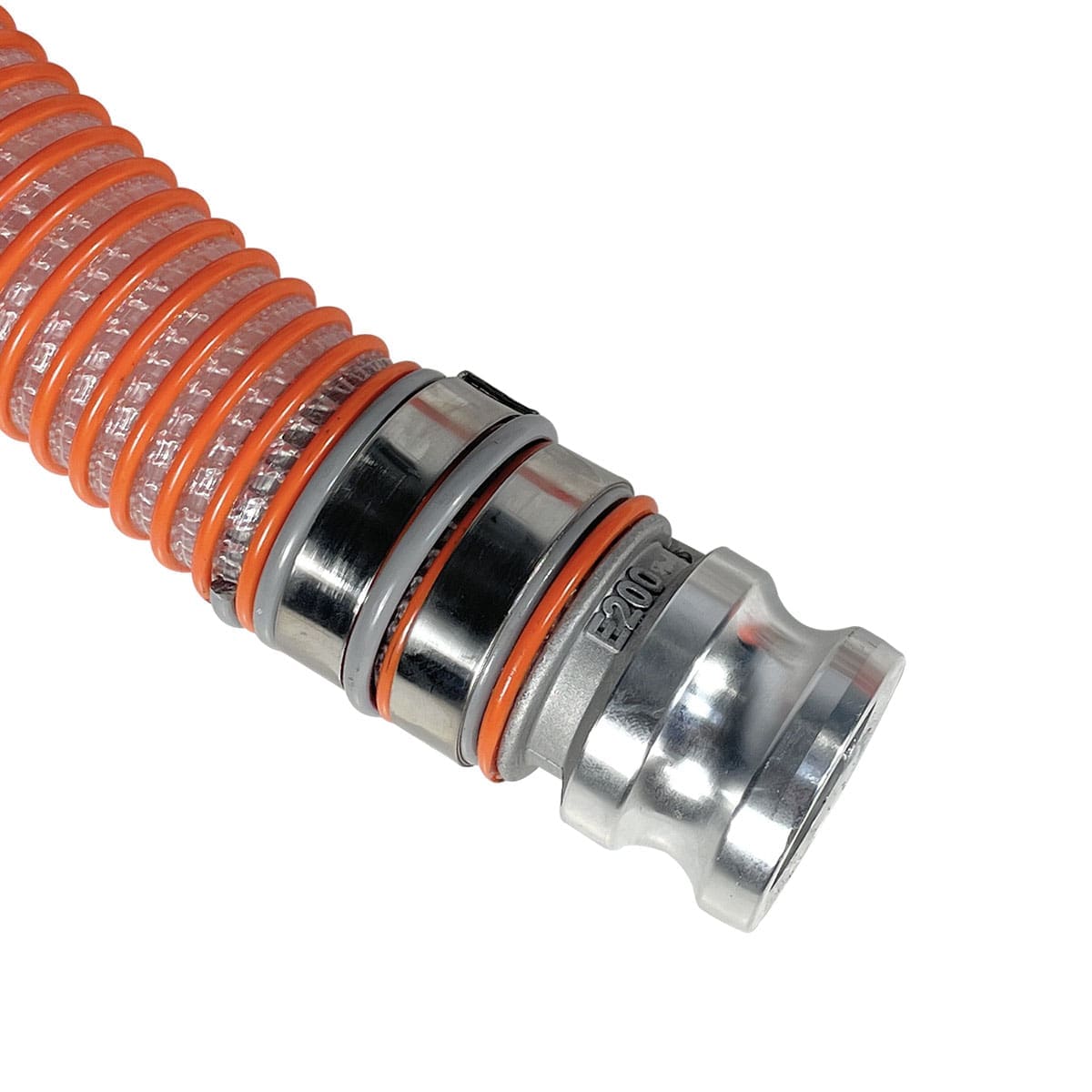

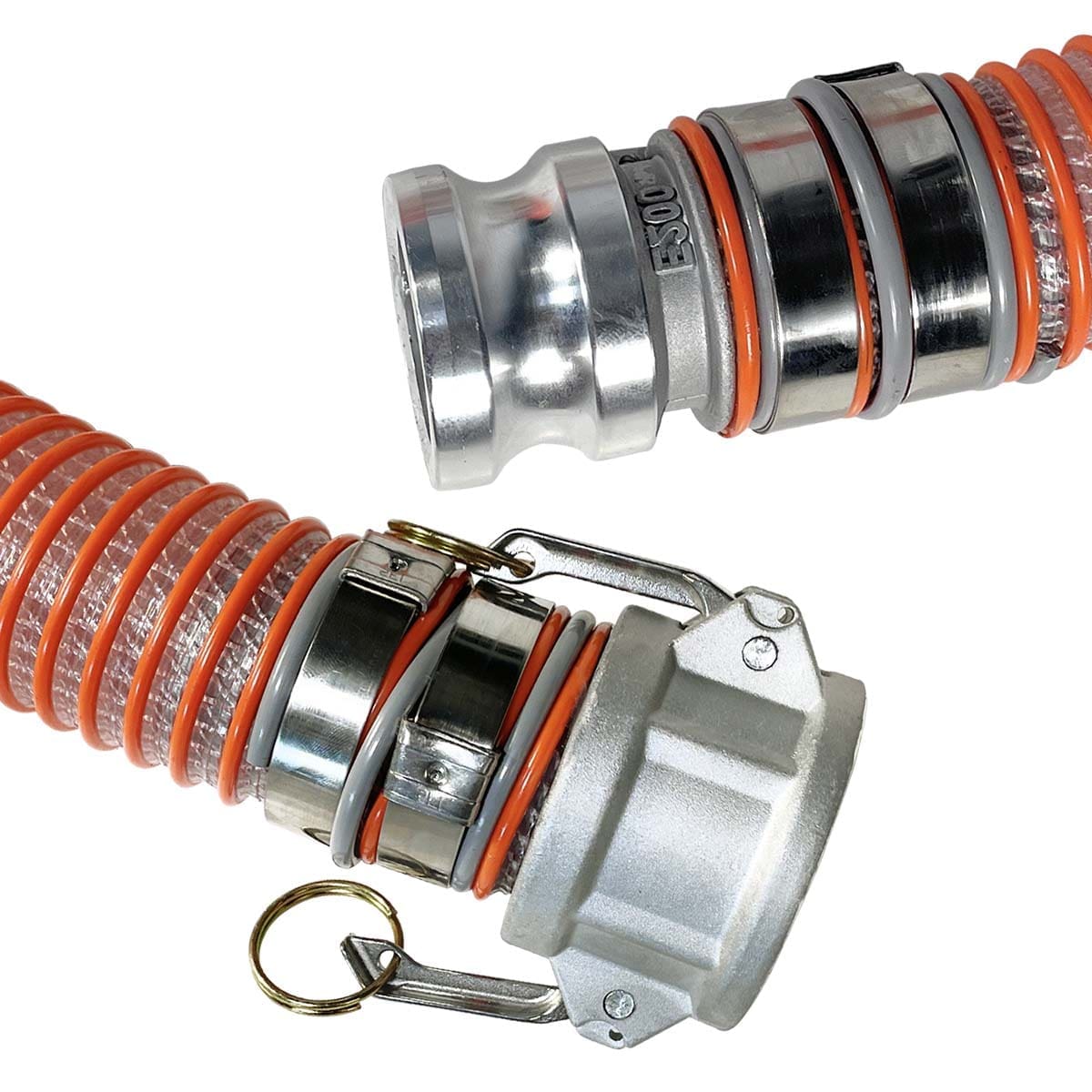

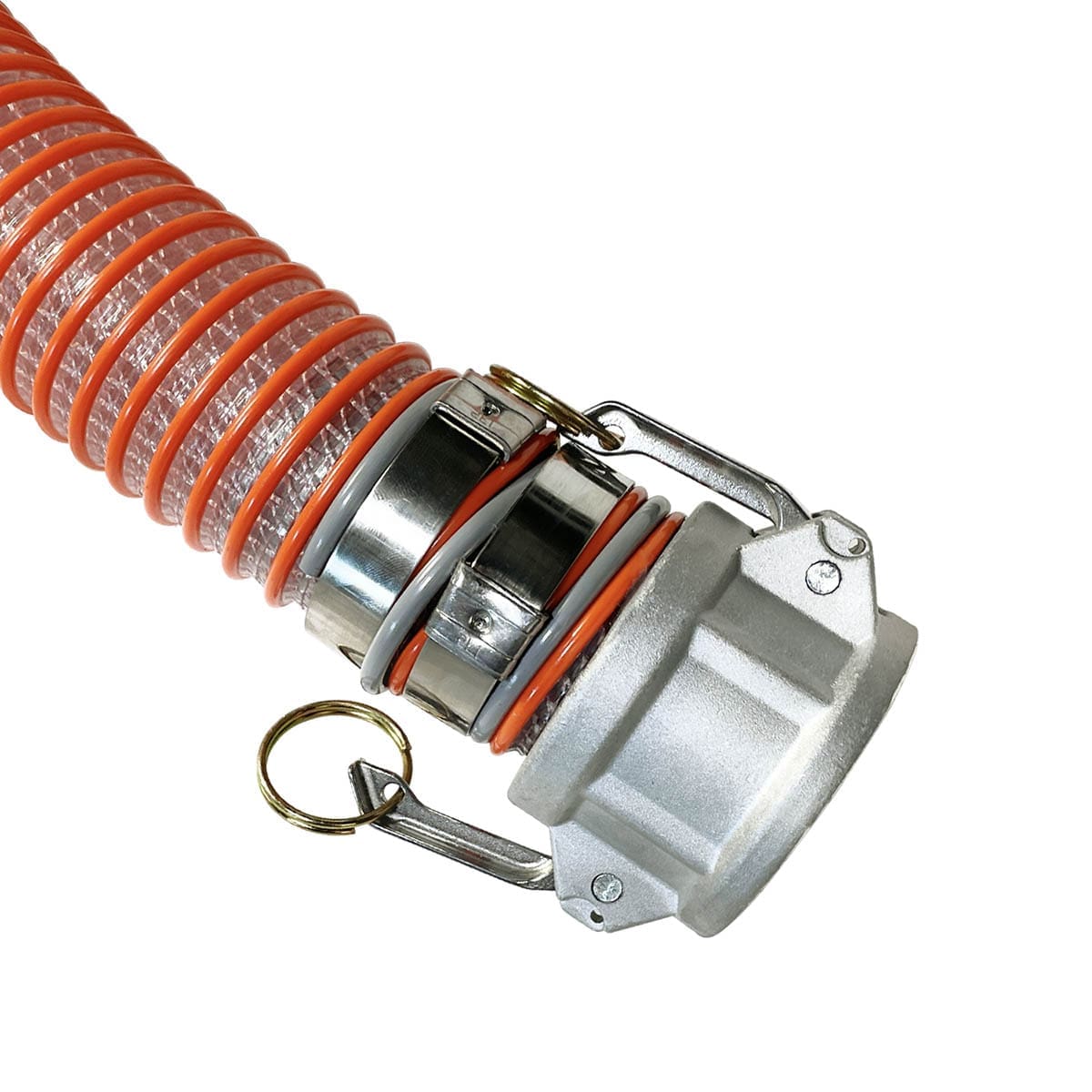

This is a hose assembly has an aluminum Type E male cam and groove fitting installed on one side and an aluminum Type C female cam and groove fitting installed on the other side. These assemblies are installed with hose bands.

Weight	17.1549 lbs
Dimensions	21 × 21 × 6 in
Hose Type	Orange/Clear PVC Suction
Hose Fittings	Male Camlock x Female Camlock
Hose Length	20'
Hose ID	2"
Inside Diameter	2"
Outside Diameter	2.60"
Hose Cover	Orange/Clear PVC
Hose Tube	Clear PVC
Hose Reinforcement	Sturdy Clockwise Orange PVC Helix
Working Pressure	100 PSI
Working Temperature	-13° F to +140° F
Product Type	Heavy Duty PVC Suction Hose Assemblies

2″ Heavy Duty PVC Suction Hose Assembly, Orange/Clear, Male Camlock x Female Camlock, 100 PSI, 20′ Length
