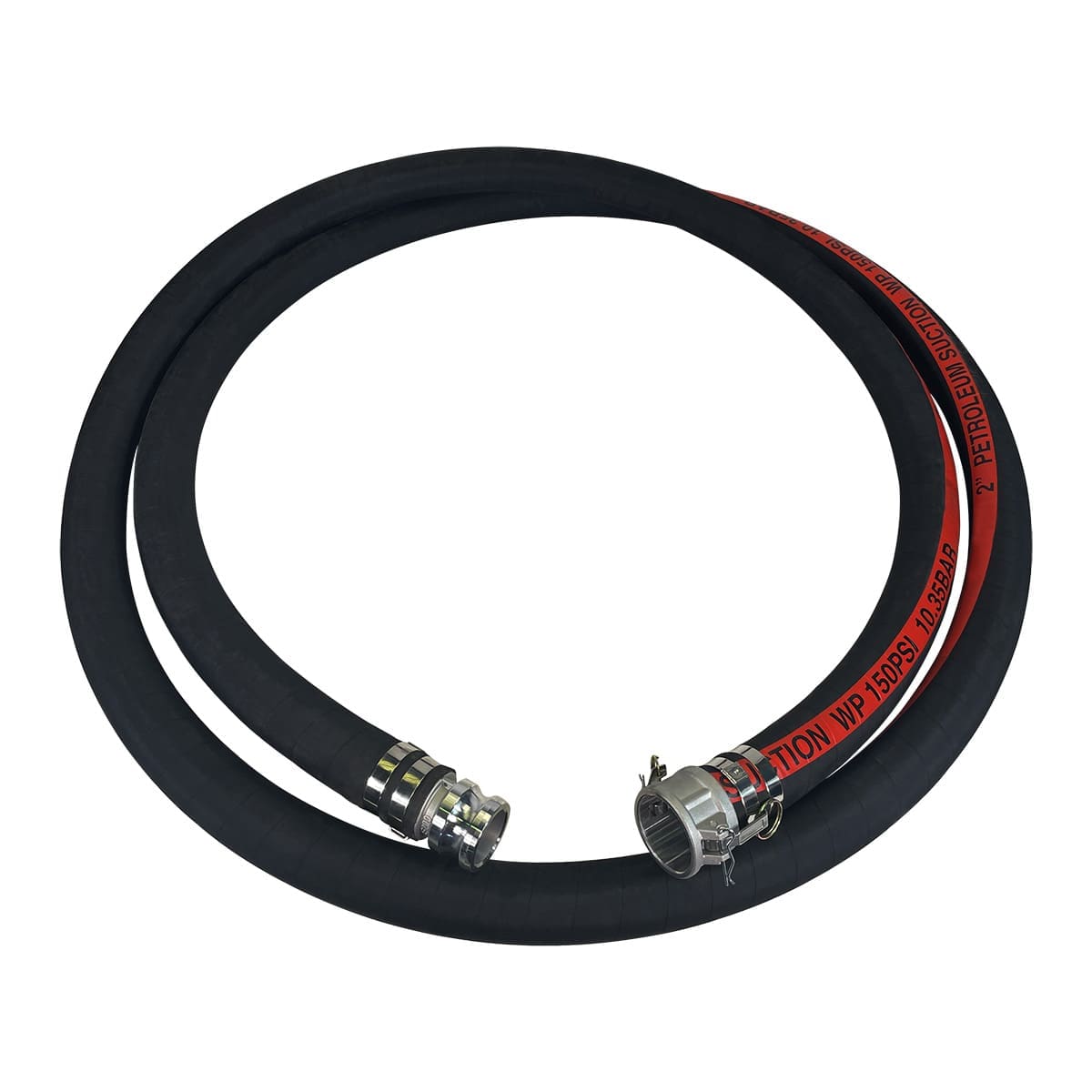

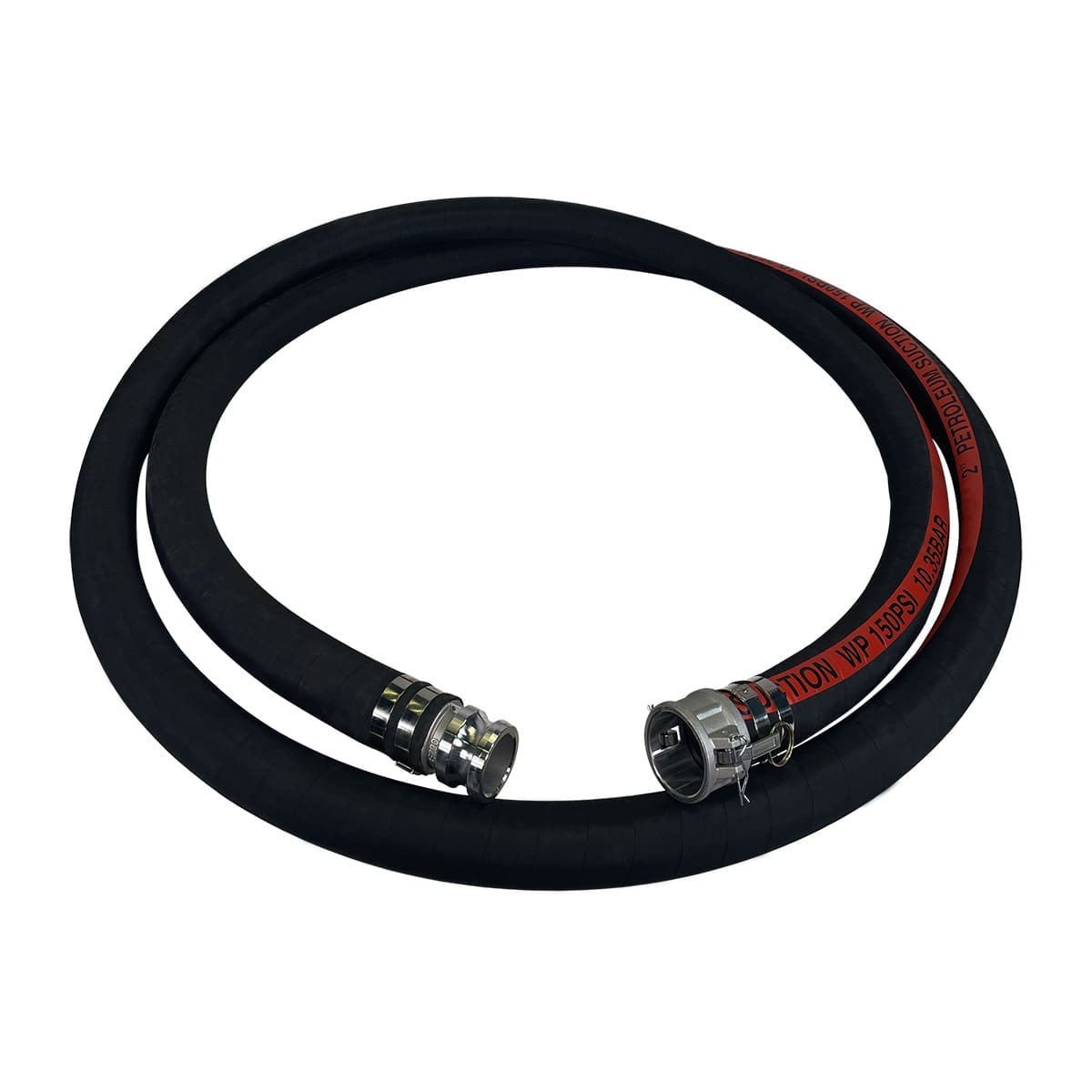

2″ Tank Truck Smooth Hose Assembly, Male Camlock x Female Camlock, 150 PSI, 20′ Length
$212.20
- 2″ ID Suction Hose, 20 Ft Length
- Black Nitrile Tube Hose with Dual Wire Helix Reinforcement
- 2″ Male Camlock x 2″ Female Camlock
- Aluminum Cam and Groove Fittings, Installed with Hose Bands
- 150 PSI working pressure (at 68 deg Fahrenheit)
- Temperature Range: -31° F to +176° F
This Nitrile tube suction hose is designed to suction or discharge of petroleum-based products. It was especially designed for use in truck and car operations.
The hose is made of flexible black Nitrile tube with red lay line and is reinforced by two synthetic plies with a dual wire helix. It has a working temperature range of -31° F to +176° F.

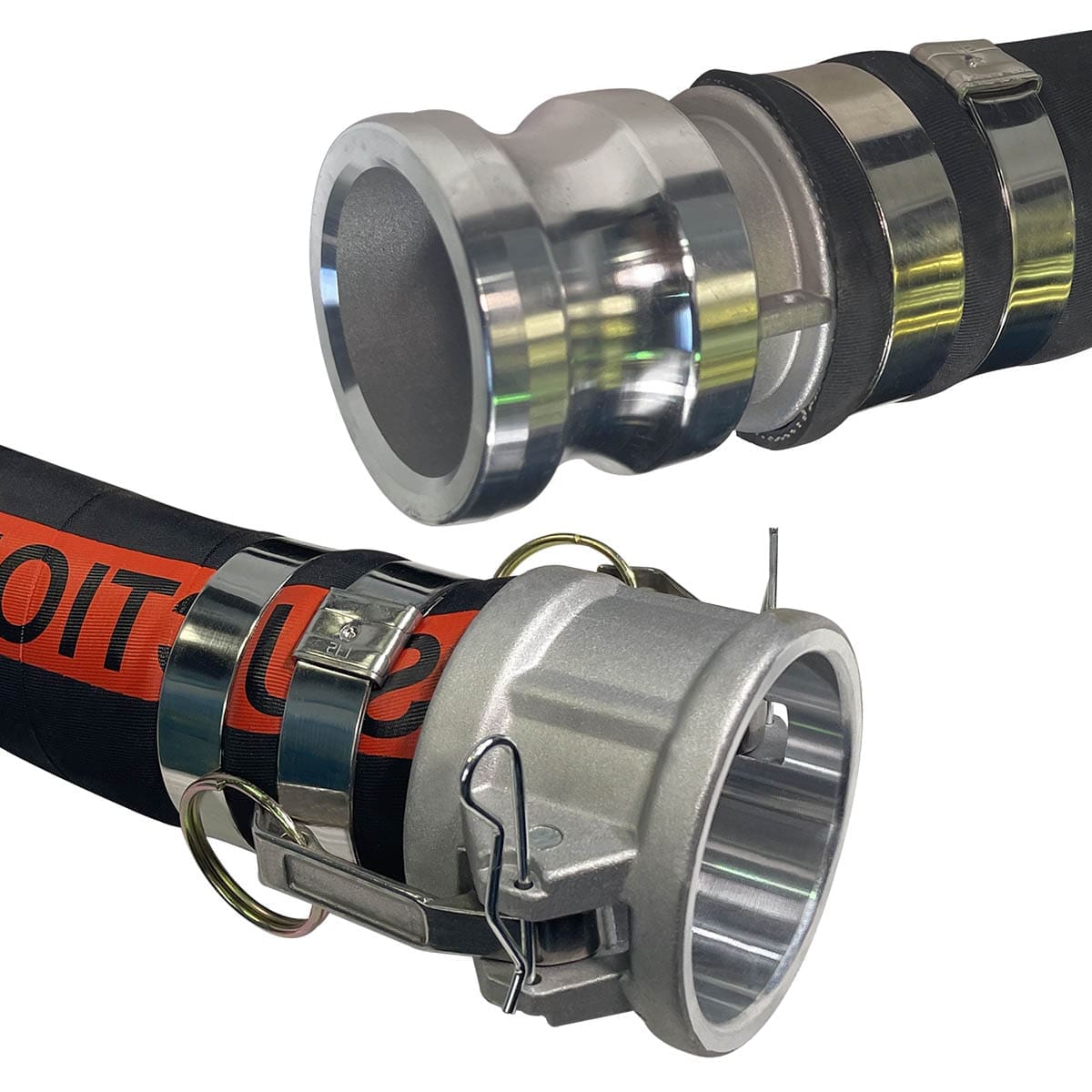

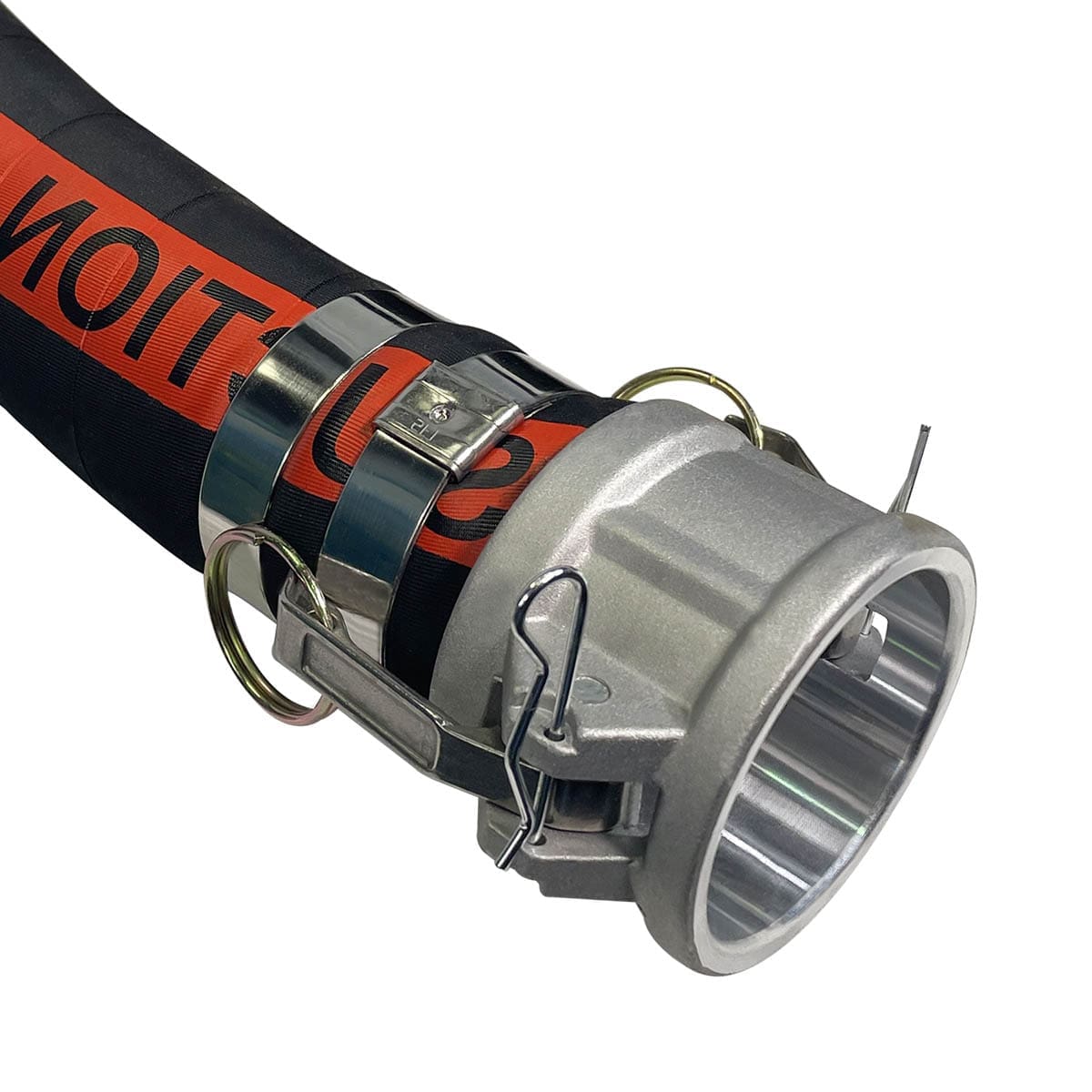

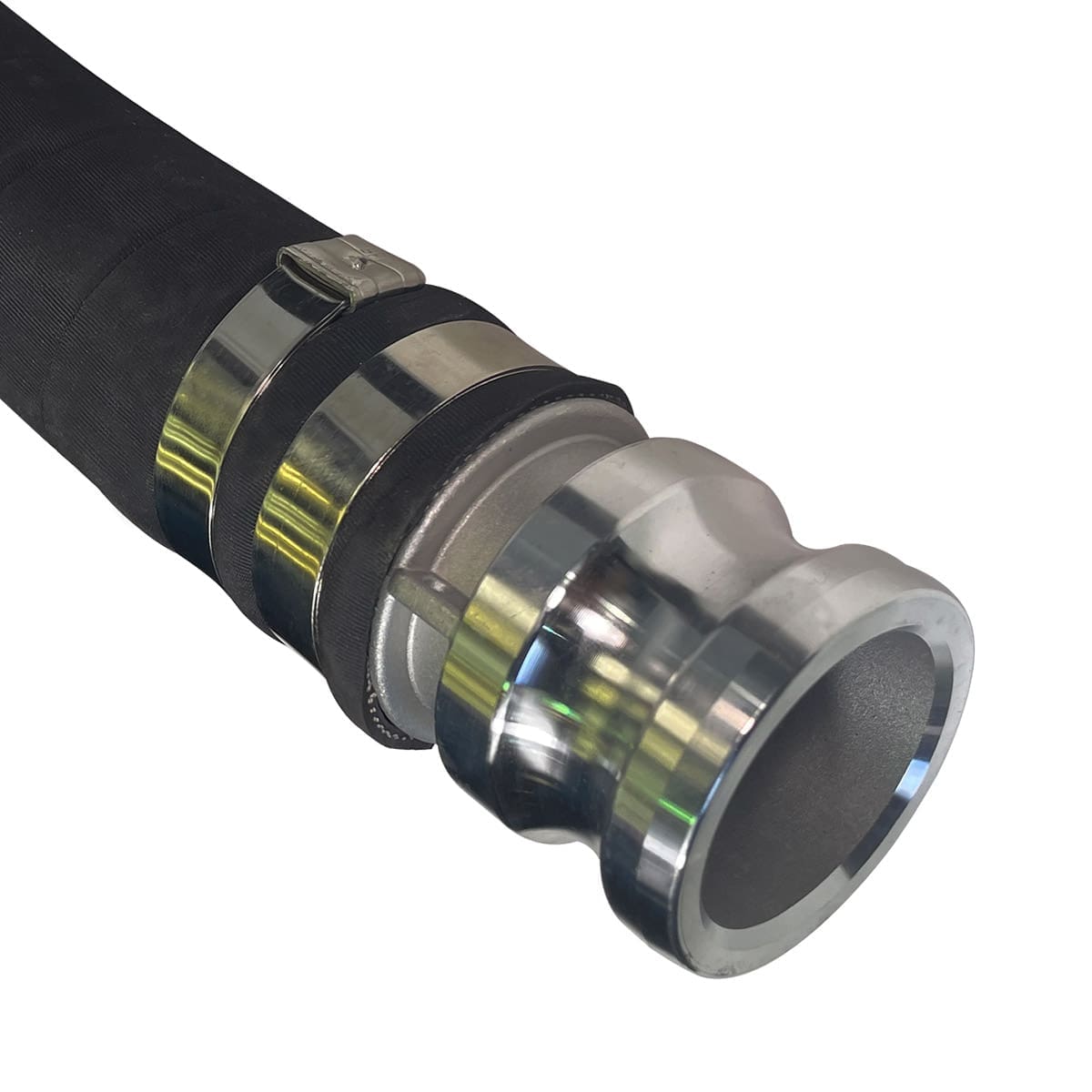

This is a hose assembly has an aluminum Type E male cam and groove fitting installed on one side and an aluminum Type C female cam and groove fitting installed on the other side. These assemblies are installed with hose bands.
| Weight | 26.6049 lbs |
|---|---|
| Dimensions | 24 × 24 × 6 in |
| Hose Type | Black Nitrile Tube Suction |
| Hose Fittings | Male Camlock x Female Camlock |
| Hose Length | 20' |
| Hose ID | 2" |
| Inside Diameter | 2" |
| Outside Diameter | 2.52" |
| Hose Cover | Black NBR/PVC |
| Hose Tube | Black Nitrile Tube |
| Hose Reinforcement | Dual Wire Helix |
| Working Pressure | 150 PSI |
| Working Temperature | -31° F to +176° F |
| Product Type | Tank Truck Smooth Hose Assemblies |
