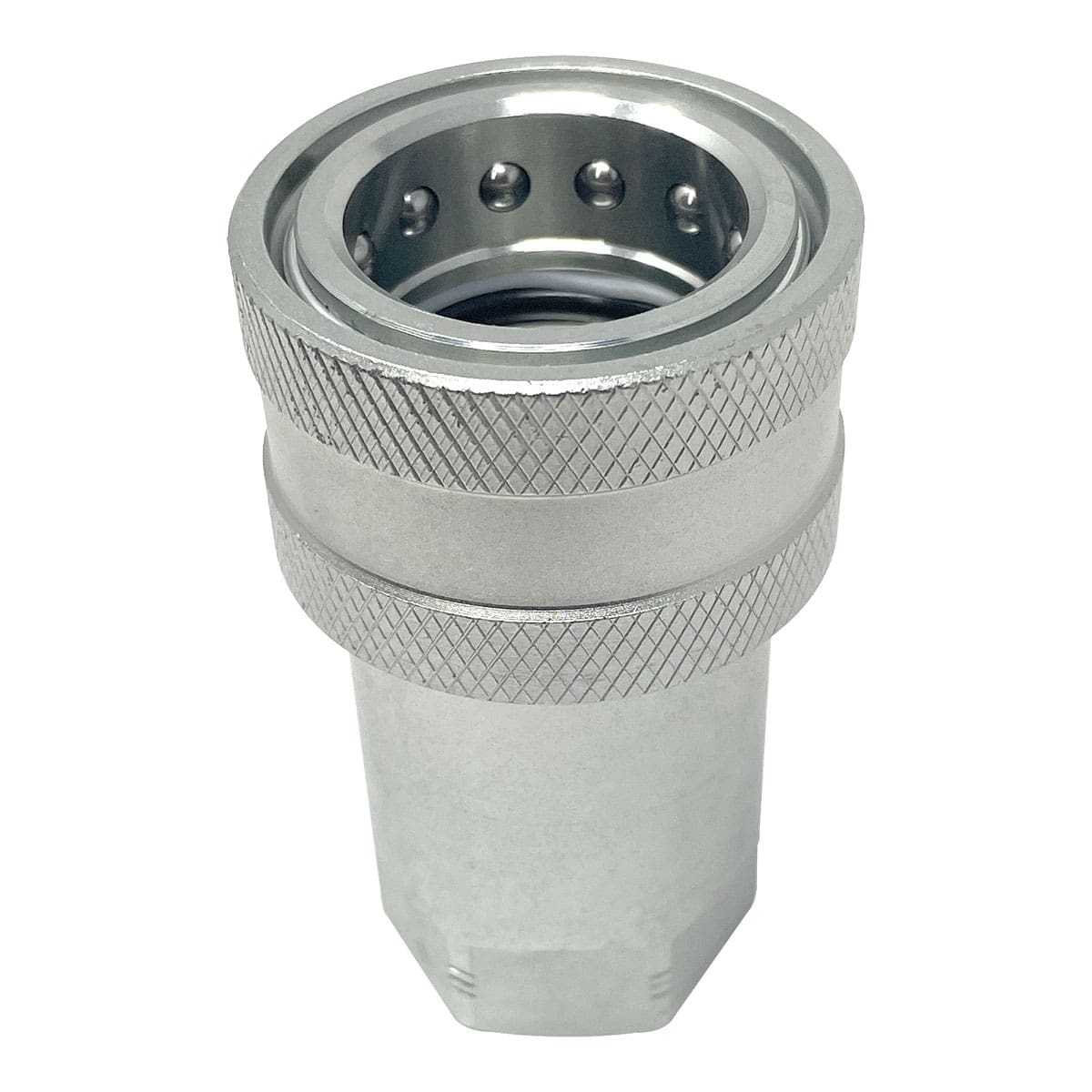

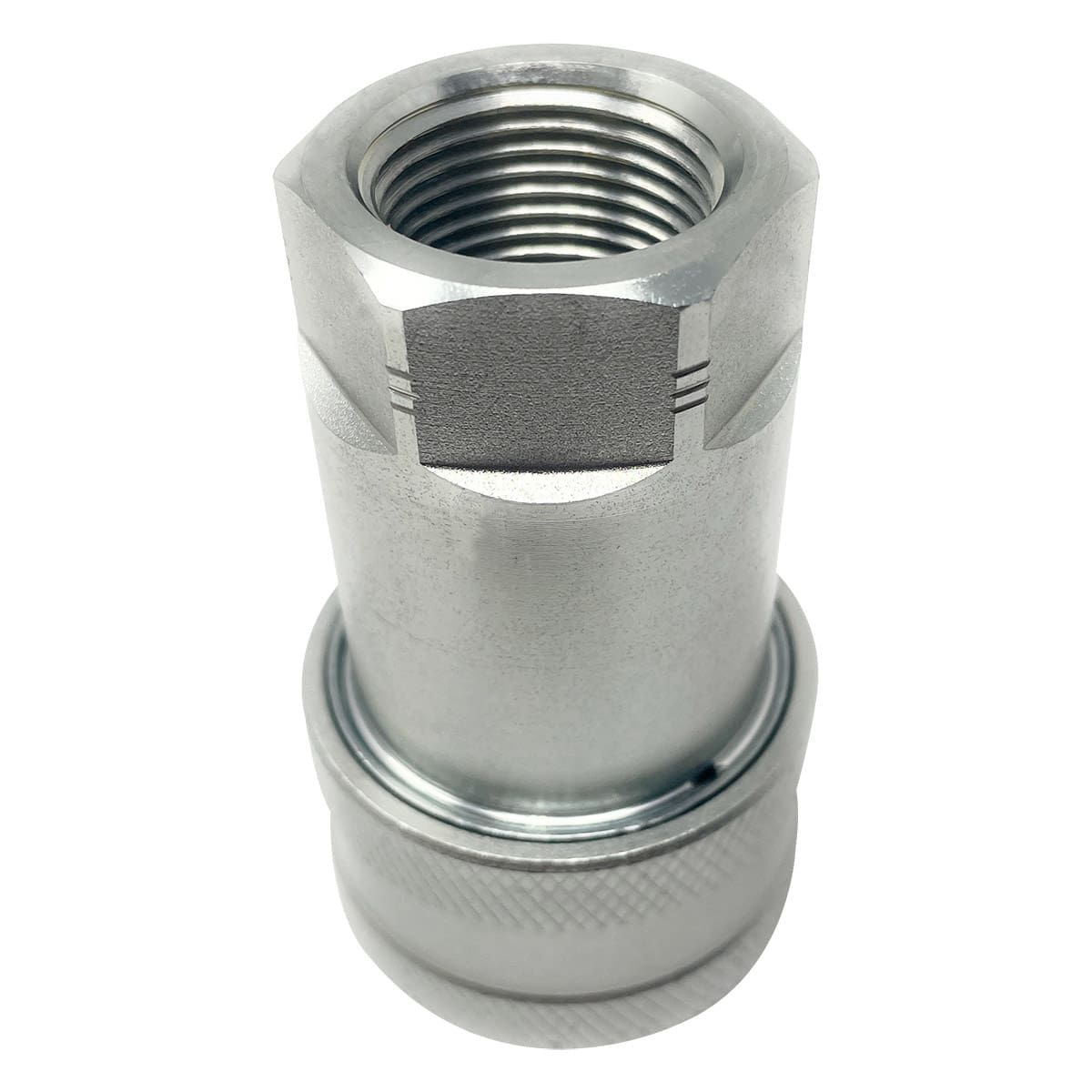

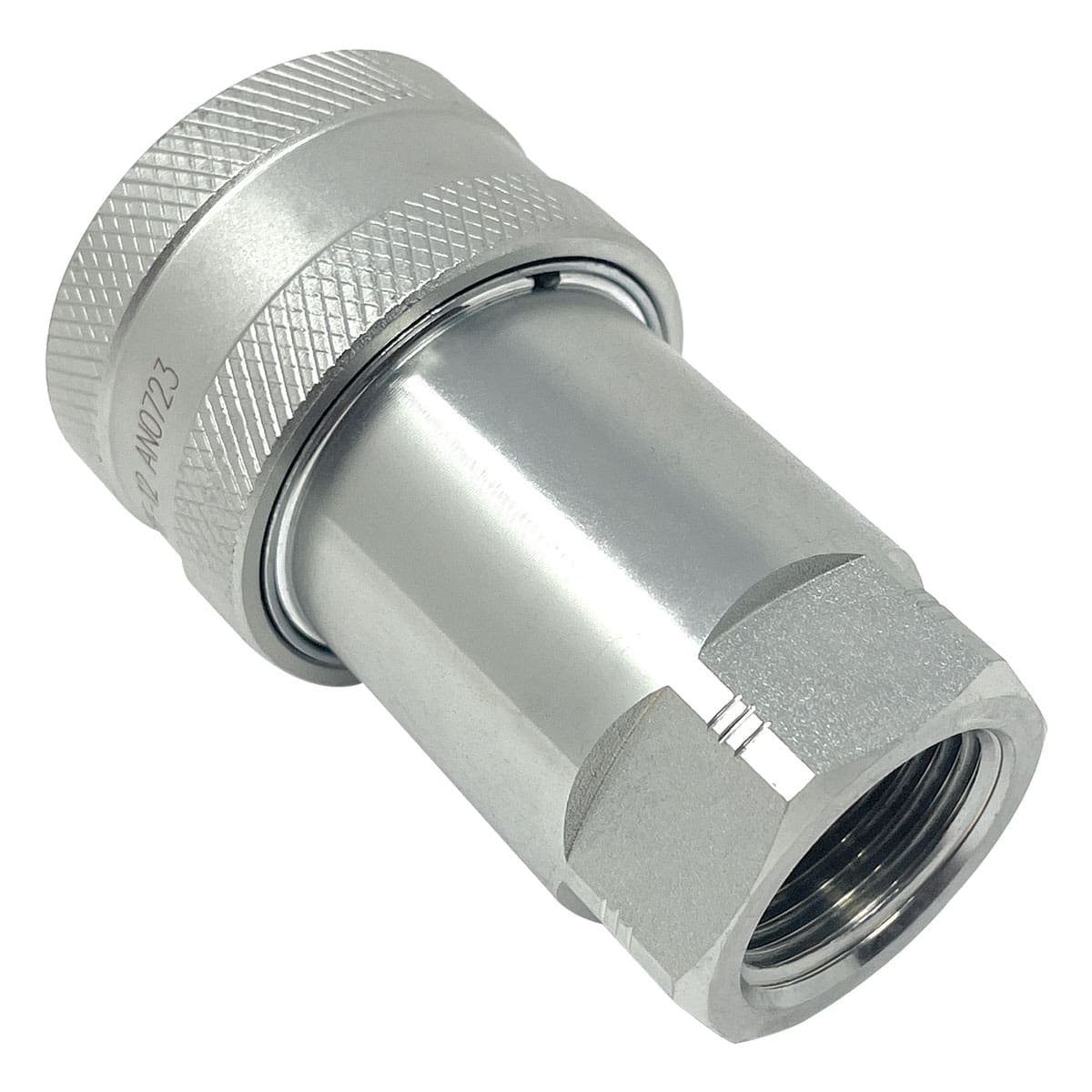

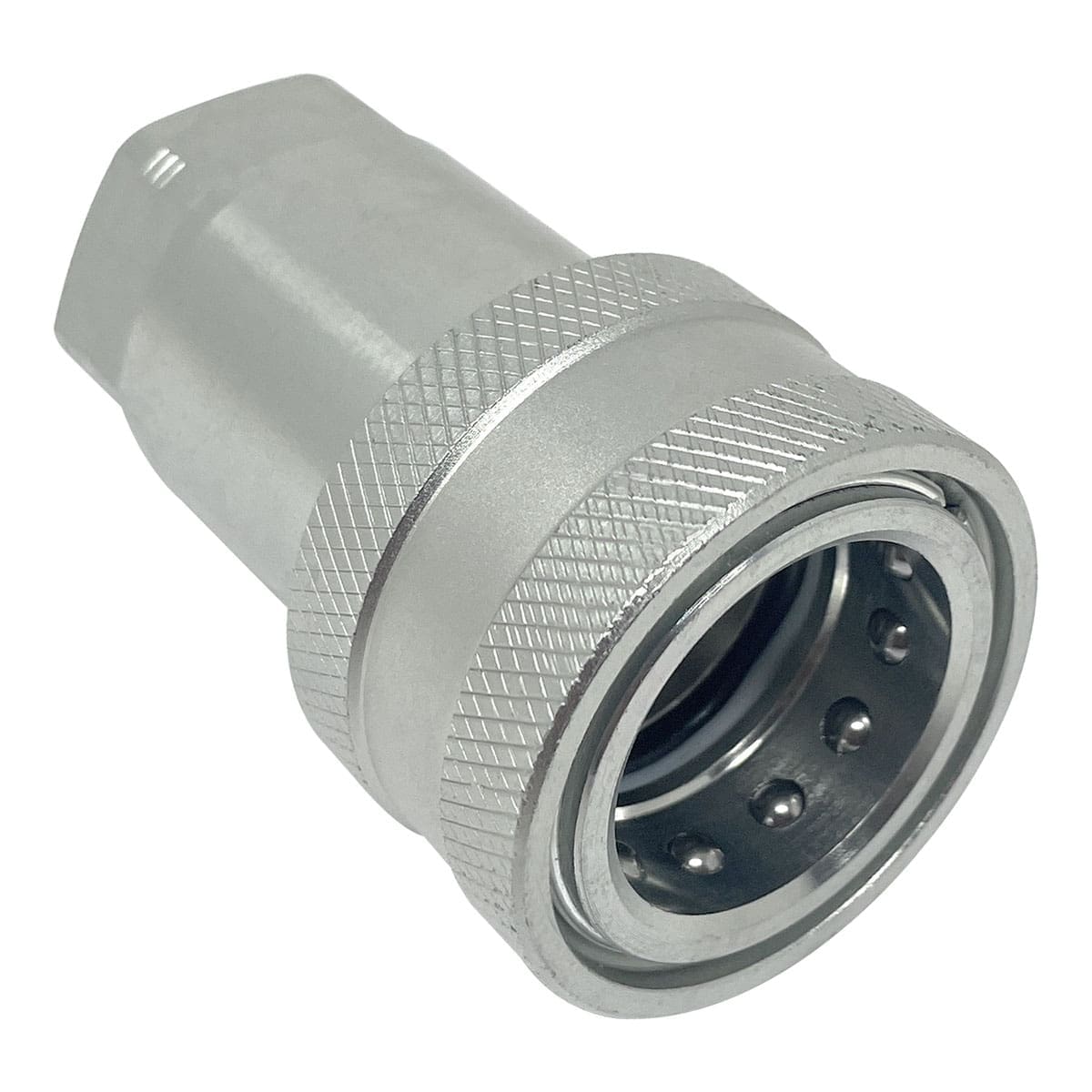

3/4″ Hydraulic Quick Release Coupling, Series A, 3/4″ Female Socket x 3/4″ Female Threads, Galvanized Steel

$27.83

Hydraulic Quick Release / Connect Coupler
ISO 7241 A Standard (Series “A”)
3/4″ Female Socket x 3/4″ Female Threads
5075 psi Working Pressure
Galvanized Steel Coupler with NBR O-Rings

Stock Item: Available

This product ships from the Gloxco fulfillment center. Stock items typically ship within 1 business day.

SKU: QAF-1212-FNPR Categories: Couplings & Fittings, Quick Release Couplings

Description
Additional information

Quick Release Coupling 3/4″ QAF-1212-FNPR

QD ISO A 3/4″ Male x 3/4″ FPT ARGUS ISO 7241-1 series “A” quick-release couplings are used for quick coupling and uncoupling of hydraulic lines. During the coupling action in zero or low-pressure ranges, valves that release or block the flow are automatically activated. The QA-ISO-A quick-release coupling, formed by the coupling plug and the coupling socket, is connected by pushing on a sleeve. This guarantees a flush connection between the two coupling halves.

*Interchange: 1222494, 6KF6, 5601-12-12S, NV 34 NPT F, QAC1212FP, G95621-1212, 12FQP-12FP, HA 15241 00, IA19-F-12N, Q00811341A-12-12, 6601-12-12, 6002-12, S565-6, 61C12-12F, QRC-IA-19-F-NF12-BT-W3, F. BIR 34 NPT, CA5606-31, B-6659-12

*This interchange does not give 100% interchangeability with the part numbers listed, only compatibility.

Lead Time	1-2 Days
Brand	Alfagomma®
Quick Connect Type	Series A (ISO 7421-A)
Connection Size	3/4"
Connection Type	Female Socket x Female Threads
Fitting Material	Zinc Plated Carbon Steel
Gasket Material	NBR
Fittings	3/4" Female Socket x 3/4" Female NPT
Working Pressure	5075 psi
Working Temperature	-4° F to +212° F
Product Type	Series A Hydraulic Quick Connect Fittings

3/4″ Hydraulic Quick Release Coupling, Series A, 3/4″ Female Socket x 3/4″ Female Threads, Galvanized Steel
