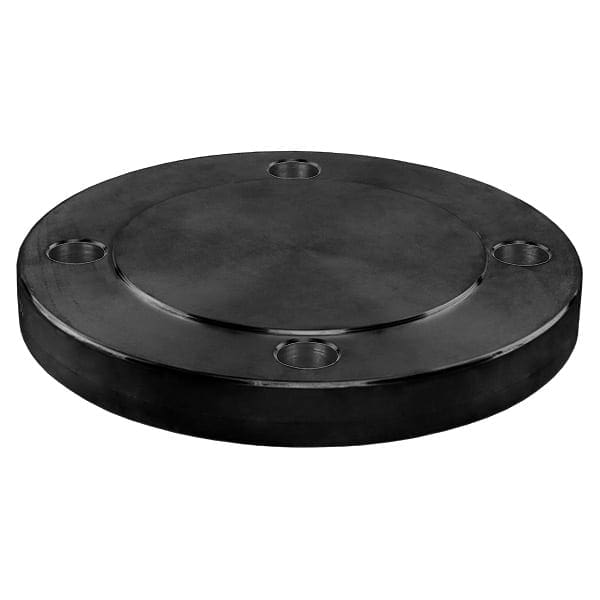

3″ Pipe Size Blind Raised Face Flange, 150# ANSI B16.5 Flange, Carbon Steel
$34.10
- Blind Raised Face Flange
- Used for 3″ Piping
- 150# Max Pressure
- Meets ANSI B16.5 Standards
- Carbon Steel
Class 150 blind raised face flanges are typically used in industrial piping applications.
This blind flange is used to cap off a flange assembly.
This is a 3″ blind raised face flange for use with 3″ piping. It is pressure rated up to 150# and meets ANSI B16.5 standards. It is forged of Carbon Steel.
| Weight | 9.00 lbs |
|---|---|
| Dimensions | 7.5 × 7.5 × 2 in |
| Connection Size | 3" |
| Connection Type | Blind Flange |
| Material | Carbon Steel |
| Lead Time | Ships in 1-2 Business Days |
| Unit of Measure | Each |
| Flange Diameter | 7.50" |
| Flange Hole Diameter | 0.94 |
| Flange Pressure | 150# |
| Flange Bolts | 4 Bolts |
| Flange Standards | ANSI B16.5 |
| Flange Type | Blind Raised Face |
| Pipe Size | 3" |
