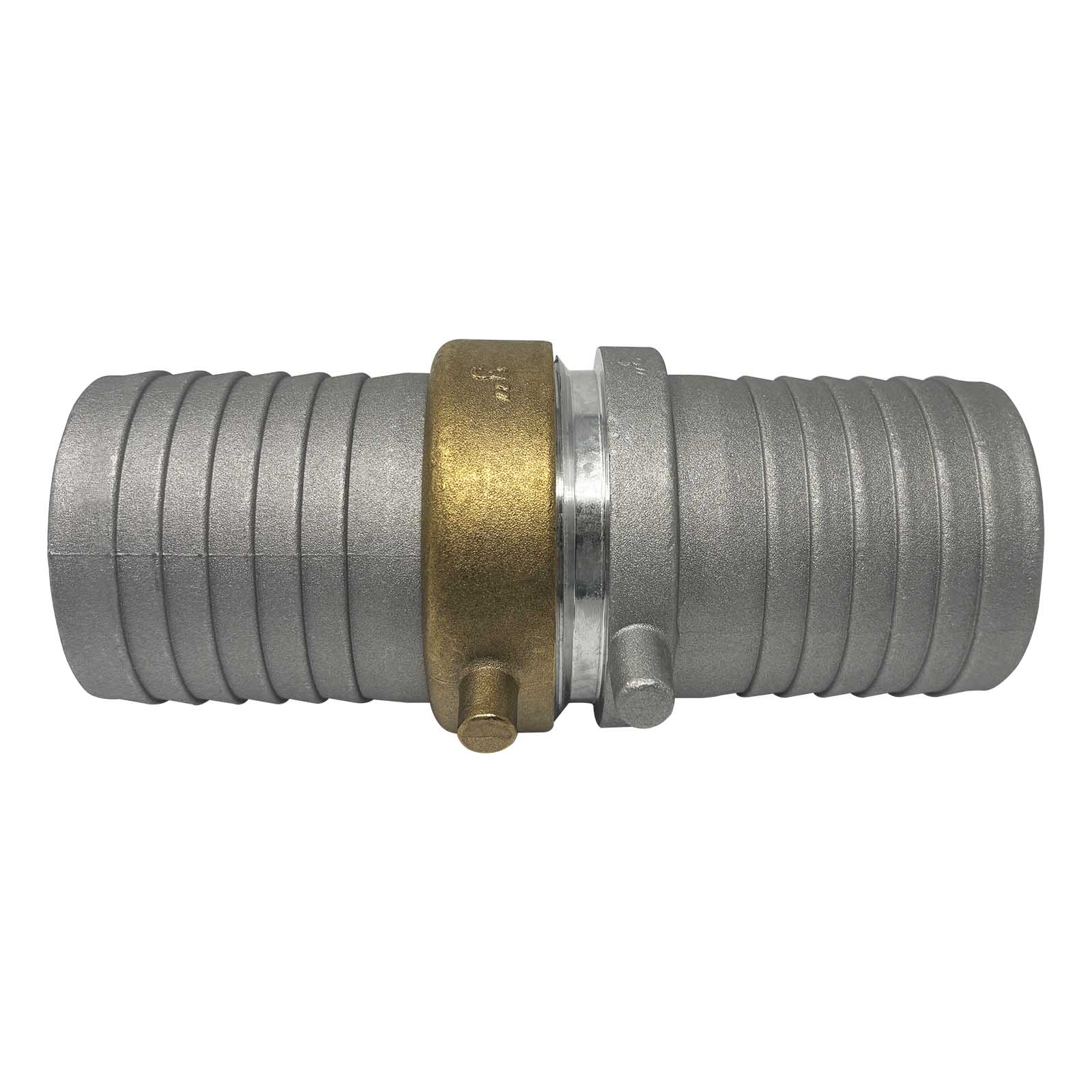

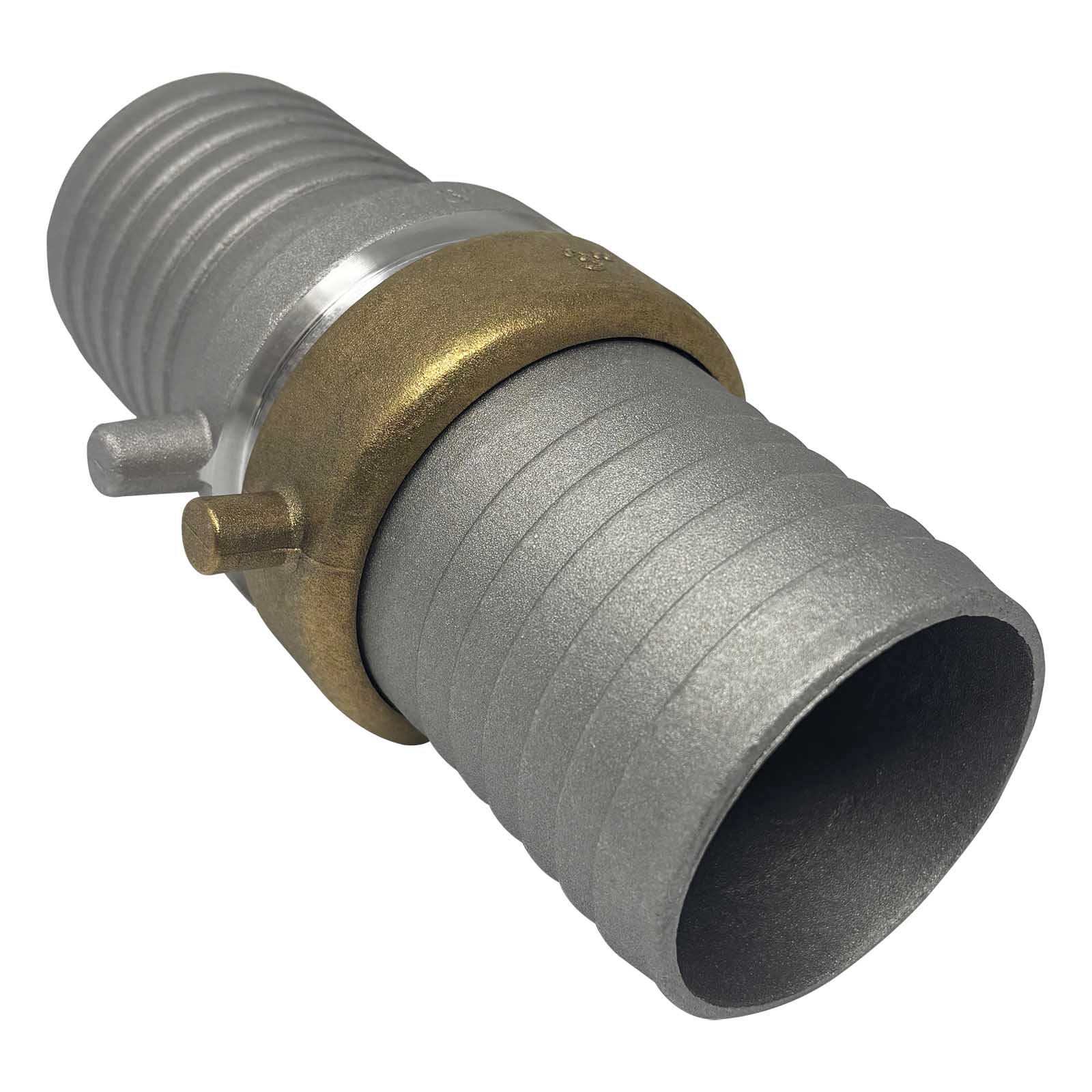

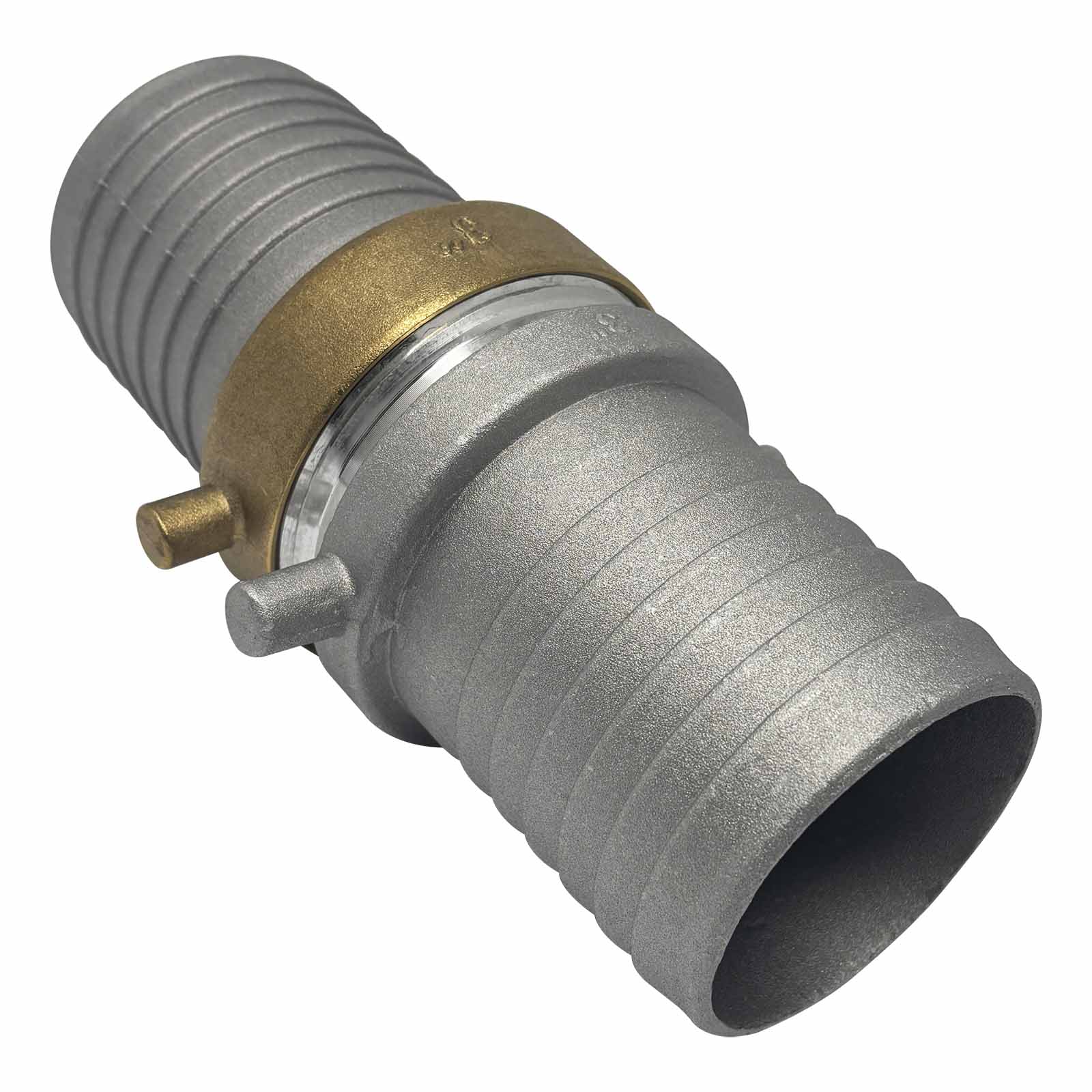

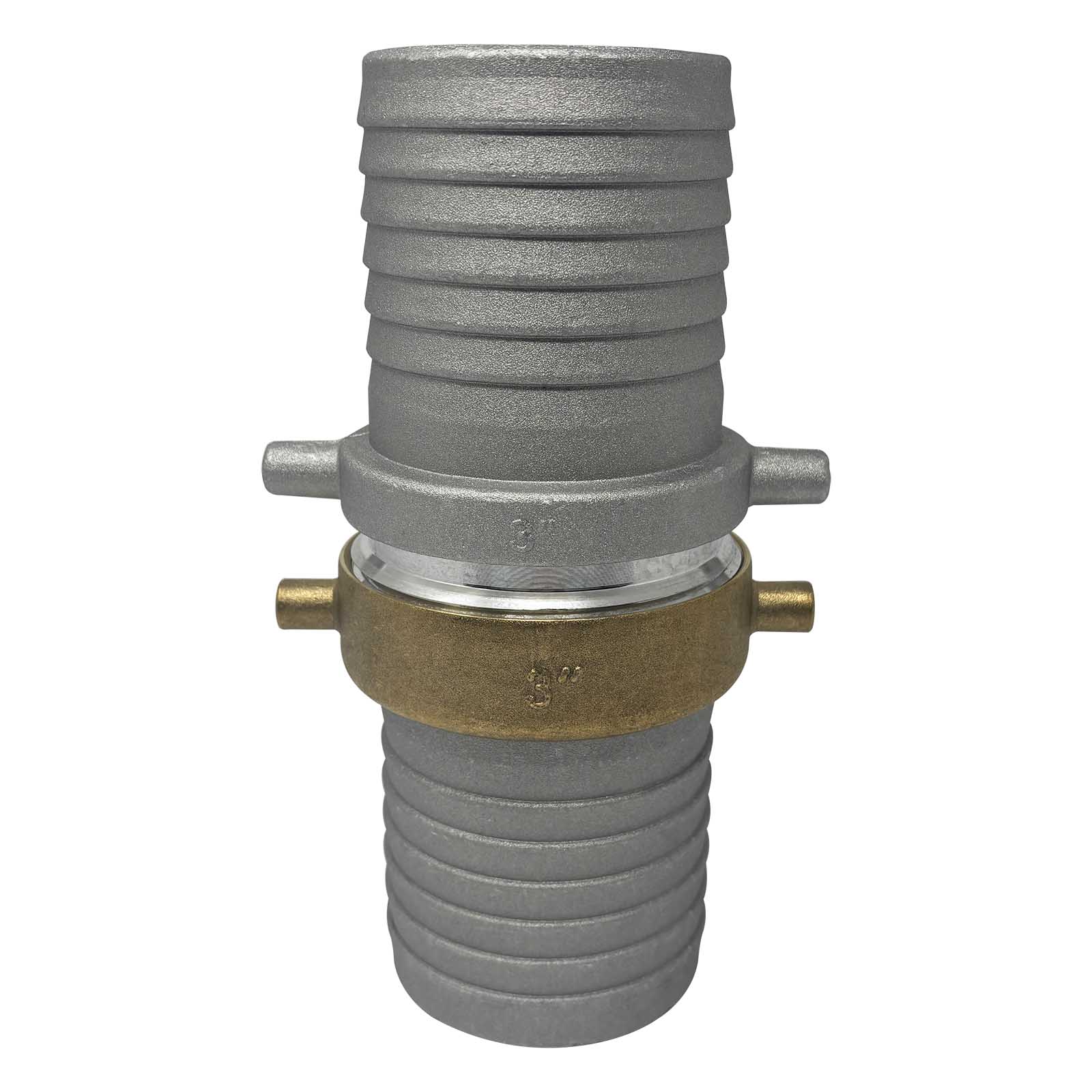

Pin Lug Hose Shank Coupling, Complete Set, 3″ Male x Female Couplings with NPSH Threads and Hose Shanks, Aluminum with Brass Nut (PLC-300-SET-AL)

$32.60

Pin Lug Hose Shank Coupling, Complete Set
Includes a Male Fitting with 3″ Male NPSH Threads x 3″ Hose Shank
Includes a Female Fitting with 3″ Brass Swivel Nut x 3″ Hose Shank
Includes SBR Rubber Gasket
Lightweight and Corrosion Resistant Aluminum Body

Stock Item: Available

This product ships from the Gloxco fulfillment center. Stock items typically ship within 1 business day.

SKU: PLC-300-SET-AL Categories: Pin Lug Shank Couplings, Aluminum Pin Lug Couplings, Complete Pin Lug Coupling Sets Tag: Stock Item

Description
Additional information

Pin Lug Hose Shank couplings connect to hose with a hose shank and connect together with a threaded swivel nut that is included on the female side of the coupling. These couplings are designed to be used on low pressure suctions and discharge applications. The pin lugs make it easy to tighten by hand or with a spanner tool.

This is a complete pin lug coupling set connects to hose with a hose shank. This set includes a male fitting with 3″ NPSH threads x 3″ hose shank and a female fitting with a brass 3″ swivel nut x 3″ hose shank. The female side of the coupling includes a SBR rubber gasket.

Warning: These fittings should only be used in low pressure suction and discharge applications.

Weight	2.045 lbs
Dimensions	9 × 6 × 4 in
Fitting Type	Pin Lug Hose Shank
Pin Lug Material	Aluminum
Pin Lug Type	Complete Set
Connection Size	3"
Material	Aluminum
Fittings	NPSH Pin Lug x Hose Shank, Complete Set
Gasket Type	SBR Rubber
Lead Time	Ships in 1-2 Business Days
Unit of Measure	Each
Product Type	Pin Lug Shank Couplings

Pin Lug Hose Shank Coupling, Complete Set, 3″ Male x Female Couplings with NPSH Threads and Hose Shanks, Aluminum with Brass Nut (PLC-300-SET-AL)
