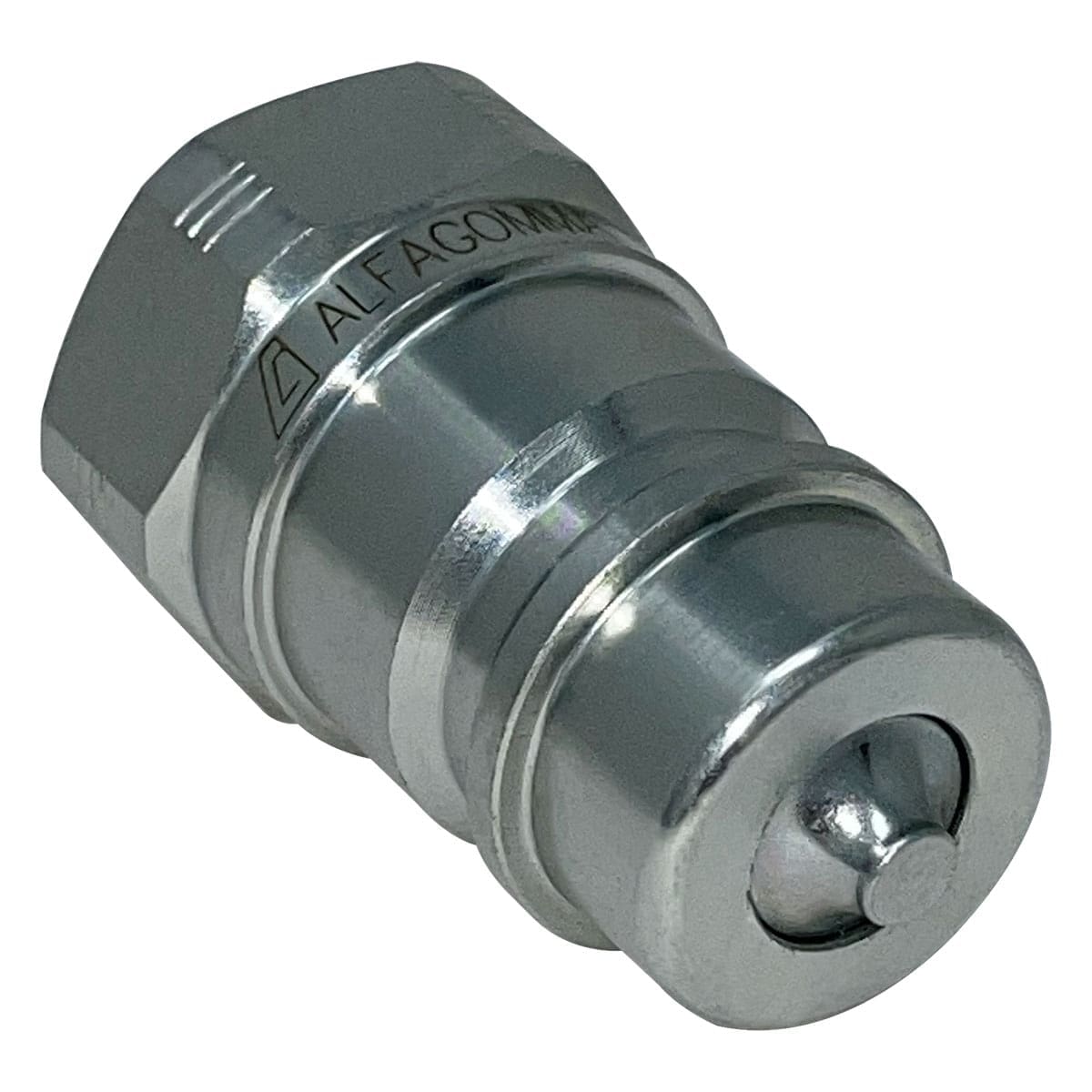

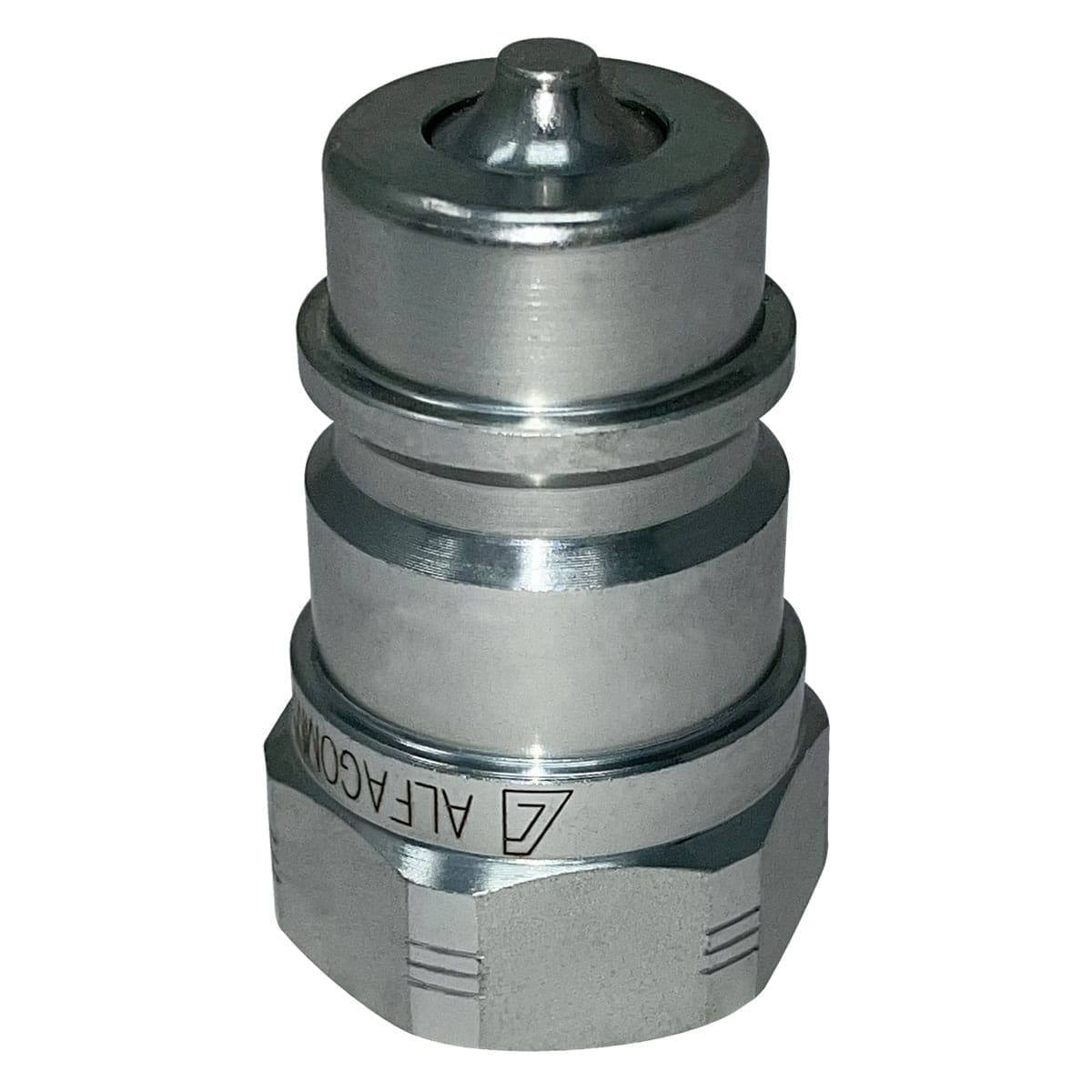

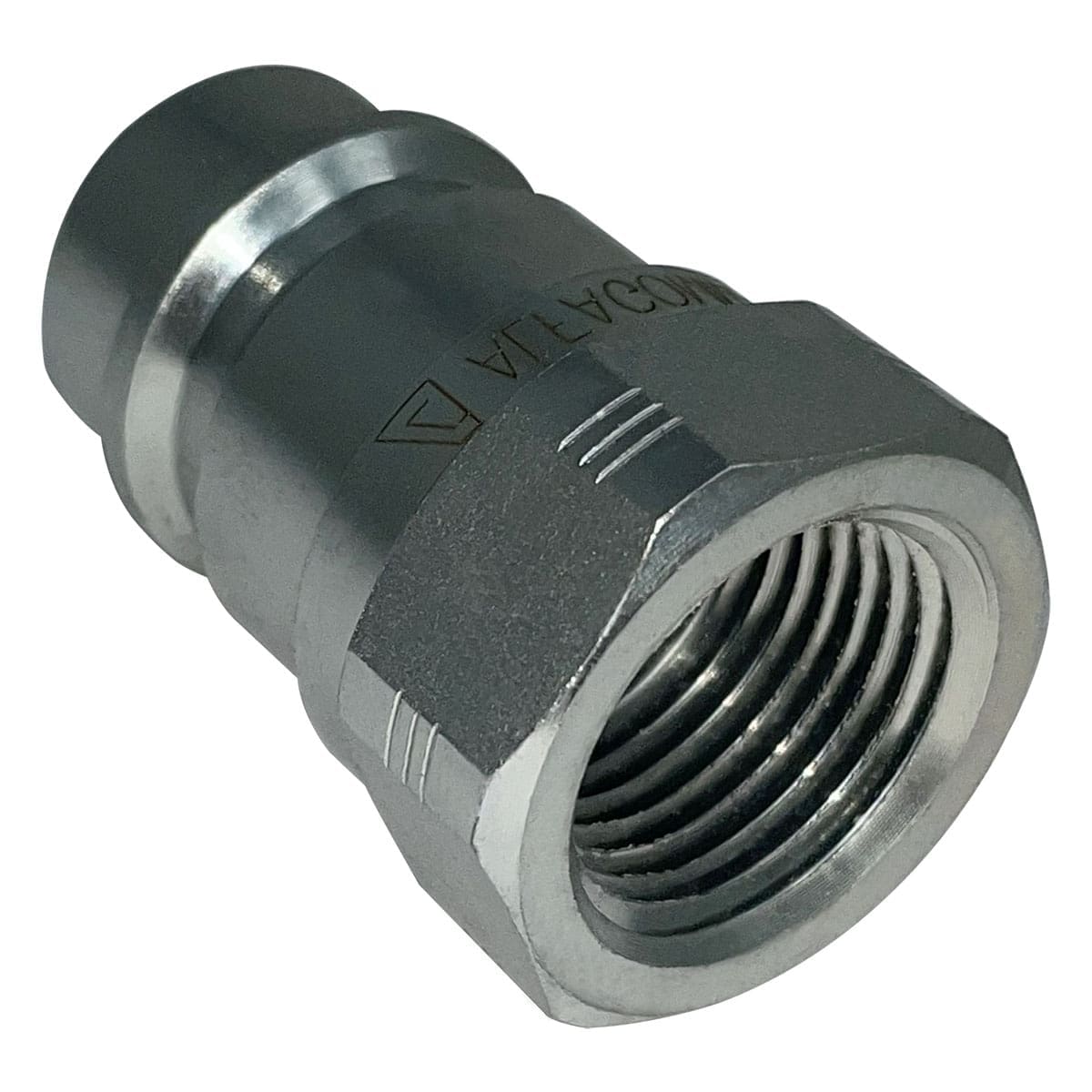

1/2" Hydraulic Quick Release Coupling, Series A, 1/2" Male Plug x 1/2" Female Threads, Galvanized Steel

1/2" Hydraulic Quick Release Coupling, Series A, 1/2" Male Plug x 1/2" Female Threads, Galvanized Steel - Image 2

1/2" Hydraulic Quick Release Coupling, Series A, 1/2" Male Plug x 1/2" Female Threads, Galvanized Steel - Image 3

1/2″ Hydraulic Quick Release Coupling, Series A, 1/2″ Male Plug x 1/2″ Female Threads, Galvanized Steel

$15.03

Hydraulic Quick Release / Connect Coupler
ISO 7241 A Standard (Series “A”)
1/2″ Male Plug x1/2″ Female Threads
3915 psi Working Pressure
Galvanized Steel Coupler

Stock Item: Backordered

This stock item is currently backordered. Please contact customer service for estimated restock date.

SKU: QAM-0808-FNPR Categories: Couplings & Fittings, Hydraulic Quick Release Couplers

Description
Additional information

Quick Release Coupling 1/2″ QAM-0808-FNPR

QD ISO A 1/2″ Male x 1/2″ FPT ARGUS ISO 7241-1 series “A” quick-release couplings are used for quick coupling and uncoupling of hydraulic lines. During the coupling action in zero or low-pressure ranges, valves that release or block the flow are automatically activated. The QA-ISO-A quick-release coupling, formed by the coupling plug and the coupling socket, is connected by pushing on a sleeve. This guarantees a flush connection between the two coupling halves.

*Interchange: 1222489, K4F4, NV 12 NPT M, QAN88FP, G95611-0808, 8MQP-8FP, HA 15232 00, IA12-M-08N, Q00211341A-08-08, 6602-8-10, 6001-08, S561-4, 61N8-8F, QRC-IA-12-M-NF08-B-W3 M. BIR 12 NPT, PA5604-26, B-6657-10

*This interchange does not give 100% interchangeability with the part numbers listed, only compatibility.

Weight	0.25 lbs
Dimensions	2.5 × 1.5 × 1.5 in
Lead Time	1-2 Days
Brand	Alfagomma®
Quick Connect Type	Series A (ISO 7421-A)
Connection Size	1/2"
Connection Type	Male Plug x Female Threads
Fitting Material	Zinc Plated Carbon Steel
Fittings	1/2" Male Plug x 1/2" Female NPT
Working Pressure	3915 psi
Working Temperature	-4° F to +212° F
Cross Reference	1222489, 6001-08, 61N8-8F, 6602-8-10, 8MQP-8FP, B-6657-10, G95611-0808, HA 15232 00, IA12-M-08N, K4F4, M. BIR 12 NPT, NV 12 NPT M, PA5604-26, Q00211341A-08-08, QAN88FP, QRC-IA-12-M-NF08-B-W3, S561-4
Product Type	Series A Hydraulic Quick Connect Fittings

1/2″ Hydraulic Quick Release Coupling, Series A, 1/2″ Male Plug x 1/2″ Female Threads, Galvanized Steel
